Key specifications
- BTU
- 143,000 BTU
- Gas Type
- Natural Gas
- Dimensions
- 24.0"W × 34.0"D × 57.0"H
- Type
- Range
- Style
- Standard Oven
- Installation Type
- Floor Model

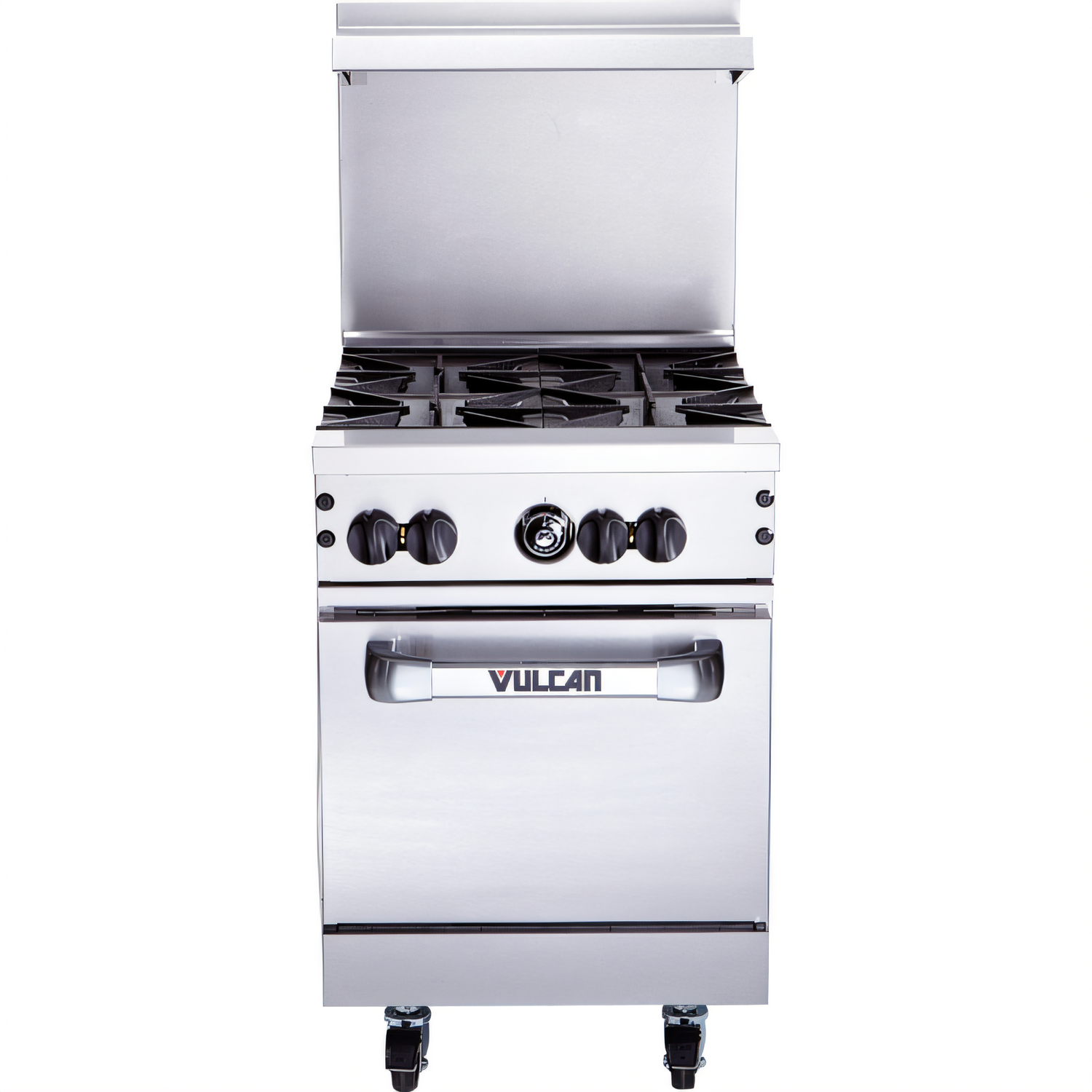

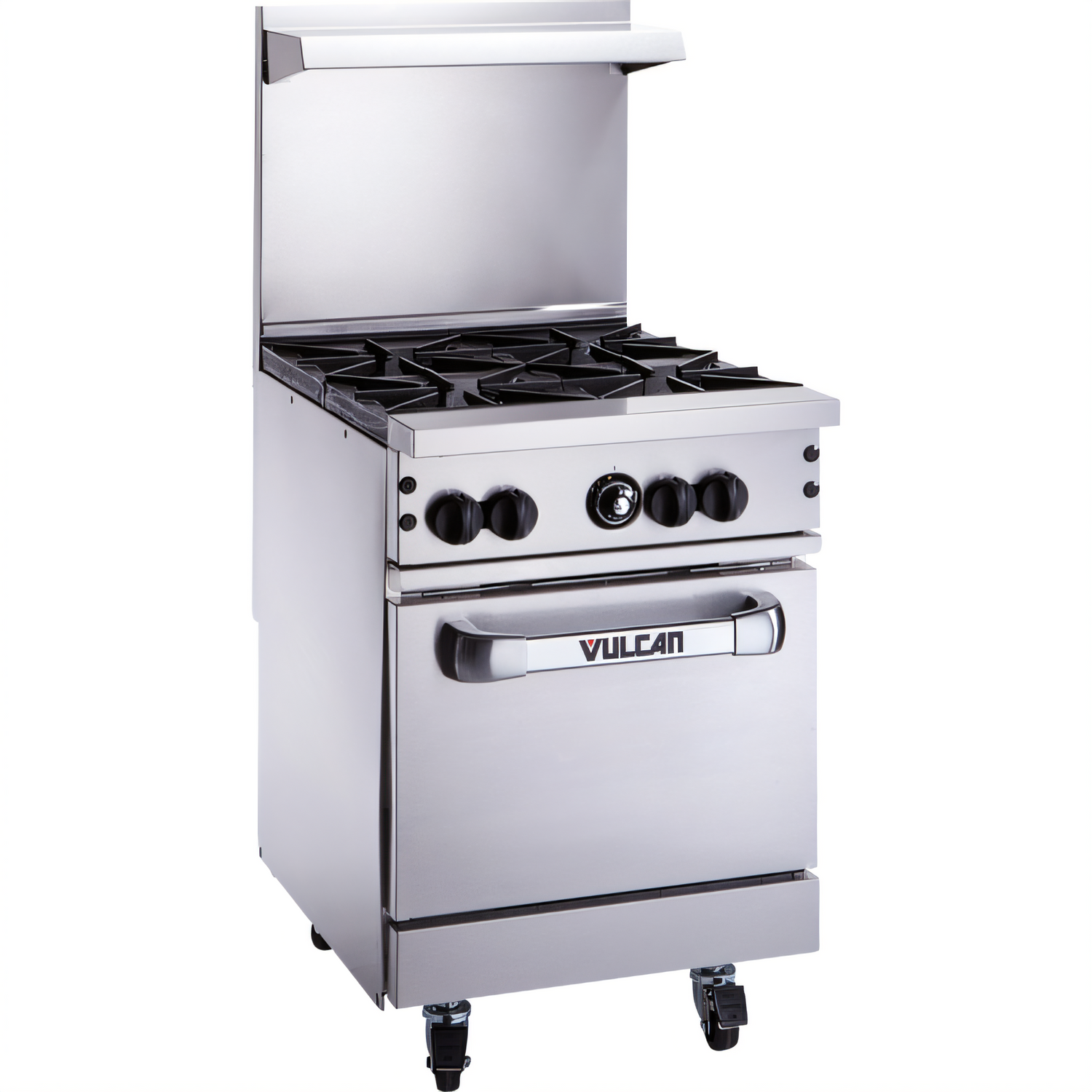

Vulcan 24S-4B 24-Inch 4-Burner Gas Range with Standard Oven
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Vulcan 24S-4B is a 24-inch gas restaurant range with four open burners and a standard oven.
- Four open burners provide 30,000 BTU each.
- The standard oven has a 23,000 BTU input, a 250°F–500°F thermostat range, two oven racks, and four rack positions.
- The stainless steel exterior includes the front, sides, backriser, and lift-off high shelf.
- A fully MIG welded frame and 6-inch adjustable legs complete the floor-model design.
The range has 143,000 BTU total input and includes a flash tube pilot system, heavy-duty cast grates, and an extra-deep pull-out crumb tray.
Overall Dimensions:
24.0"W x 34.0"D x 57.0"HProduct Weight:

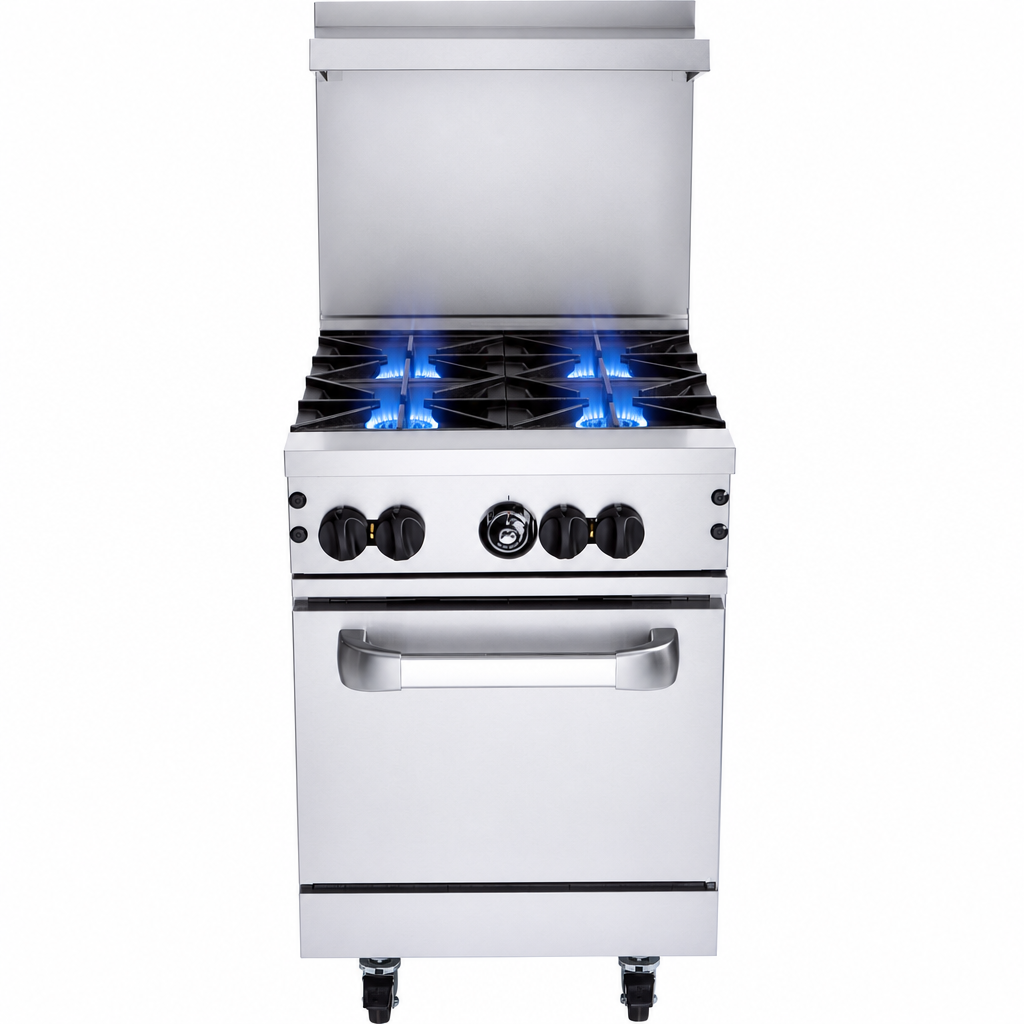

350.0 lbFour Open Burners
Each open burner provides 30,000 BTU and has a lift-off burner head.
Standard Oven
The 23,000 BTU standard oven includes a 250°F–500°F thermostat range, two oven racks, and four rack positions.
Stainless Steel Exterior
The stainless steel exterior includes the front, sides, backriser, and lift-off high shelf.
MIG-Welded Frame
The range uses a fully MIG welded frame.
Adjustable Legs
Includes 6-inch stainless steel adjustable legs.
Flash Tube Pilot System
The open burners use a shrouded flash tube pilot system with one pilot for every two burners.
Cast Grates
Heavy-duty lift-off cast grates accommodate stock pots and large pans.
Pull-Out Crumb Tray
An extra-deep pull-out crumb tray has welded corners.
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
