Key specifications

Amps
43 Amps (L1); 42 Amps (L2 and L3)
Phase
3-Phase
Dimensions
28.74"W × 33.47"D × 46.65"H
Type
Combi Oven
Style
Programmable
Installation Type
Floor Model
Spec sheet
Tecnoeka SKU: MKFA 1111 TS

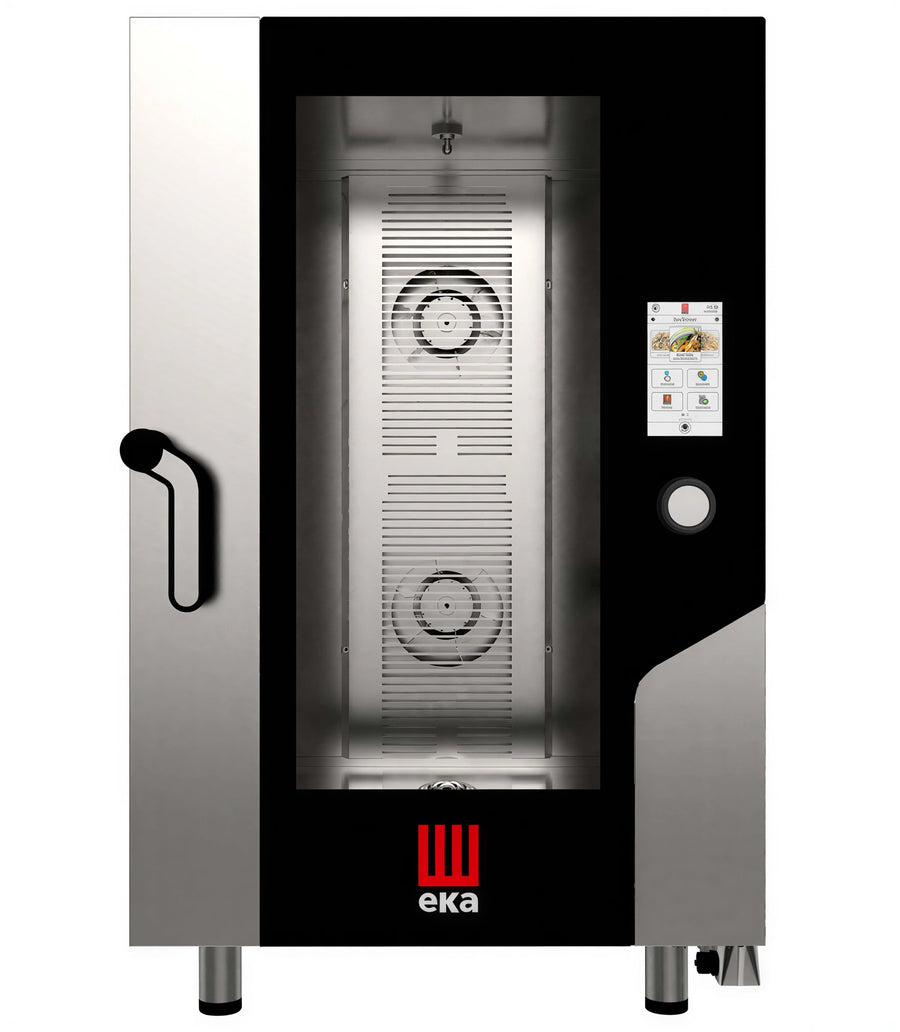

Tecnoeka MKFA 1111 TS 11-Pan GN 1/1 Floor Combi Oven

$13,300.00
/each
Estimated to ship in 16–19 business days Free Shipping
Capacity
Accessories

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,230/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Combi Oven
Style Programmable
Installation Type Floor Model
Material Stainless Steel
Controls Touchscreen and Dial
Pan Size GN 1/1 (12 in x 20 in)
Pan Capacity 11 GN 1/1 Pans
Half Size Pan Size 13 in x 18 in
Half Size Pan Capacity 11 Pans
Temperature Range 86°F–518°F
Cooking Chamber Material 304 Stainless Steel
Voltage 208/240 Volts
Amps 43 Amps (L1); 42 Amps (L2 and L3)
Watts 15.8–18.2 kW
Hertz 60 Hz
Phase 3-Phase
Plug Type Not Supplied
Connectivity Wi-Fi; USB
Recipe Capacity 500 Recipes
Stages Per Recipe 10 Stages
Fan Count 2
Door Opening Left Opening
Door Hinge Right Hinged
Wash System Automatic
Core Probe Detachable Multi-Point
Included Grids 11 GN 1/1 Stainless-Steel Grids
Installation Kit Included
Feet Adjustable

Description

The Tecnoeka MKFA 1111 TS is an electric floor model combi oven with touchscreen and dial controls. It accommodates 11 GN 1/1 hotel pans measuring 12 in x 20 in or 11 half-size pans measuring 13 in x 18 in.

Programmable controls support up to 500 recipes with up to 10 stages per recipe. The oven includes Wi-Fi connectivity, a USB port, an automatic wash system, a detachable multi-point core probe, an installation kit, and 11 GN 1/1 stainless-steel grids.

  • Temperature range from 86°F to 518°F
  • Two bi-directional, multi-speed, auto-reversing fans
  • Right-hinged, left-opening door with 60°, 90°, 120°, and 180° resting positions
  • 208/240 Volts AC, 3-phase, 60 Hz electrical configuration
  • Stainless-steel construction with adjustable feet

Overall Dimensions:

28.74"W x 33.47"D x 46.65"H

Product Weight:

250.4 lb

Programmable Controls

Touchscreen and dial controls support up to 500 recipes with up to 10 stages per recipe.

Pan Capacity

Accommodates 11 GN 1/1 hotel pans measuring 12 in x 20 in or 11 half-size pans measuring 13 in x 18 in.

Automatic Wash System

Integrated automatic wash system is included.

Core Probe

Includes a detachable multi-point core probe.

Air Circulation

Two bi-directional, multi-speed, auto-reversing fans.

Connectivity

Includes Wi-Fi connectivity and a USB port.

Door Configuration

Right-hinged door opens to the left and rests at 60°, 90°, 120°, and 180°.

Installation Kit

Includes a drain system and water supply connections.

Included Grids

Includes 11 GN 1/1 stainless-steel grids.

Frequently Asked Questions

The oven accommodates 11 GN 1/1 hotel pans measuring 12 in x 20 in or 11 half-size pans measuring 13 in x 18 in.
The programmable controls support up to 500 recipes, with up to 10 stages per recipe.
It requires 208/240 Volts AC, 3-phase, 60 Hz service with 15.8–18.2 kW power. The listed line amperage is 43 Amps on L1 and 42 Amps on L2 and L3.
The oven measures 28.74 in wide, 33.47 in deep, and 46.65 in high, with a weight of 250.4 lb.
Yes. It includes 11 GN 1/1 stainless-steel grids and an installation kit containing drain system and water supply connections.
No. The cable and plug are not supplied.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
