Blodgett (Middleby) CNVX-14G/BCX-14G Blodgett Combi Convection Ovens
Description

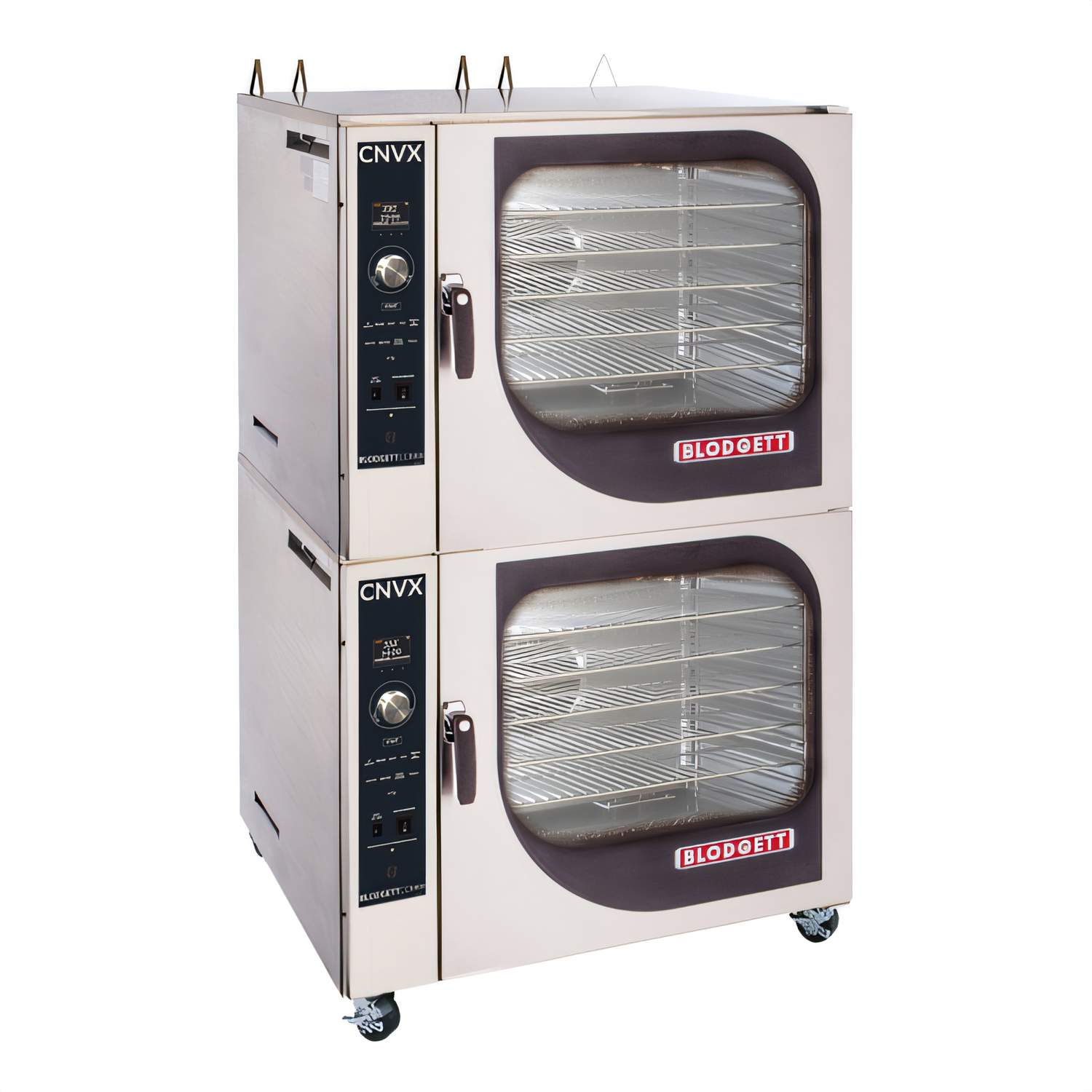

Blodgett Combi Stacked Gas Convection/Combi Oven
Model BCX-14G / CNVX-14G – Double-Deck, Boiler-BasedTwo powerful decks, one compact footprint. The Blodgett Combi delivers all-in-one convection baking and boiler-generated steam so you can roast, bake, retherm, poach or proof at the touch of a button – all while keeping pace with your highest-volume services.
Why You’ll Love It
- Massive 14 × 2.5" hotel pans or 7 full-size sheet pans per deck (28 / 14 total).
- 4-speed reversible fan and dual ½ HP motors for perfectly even browning.

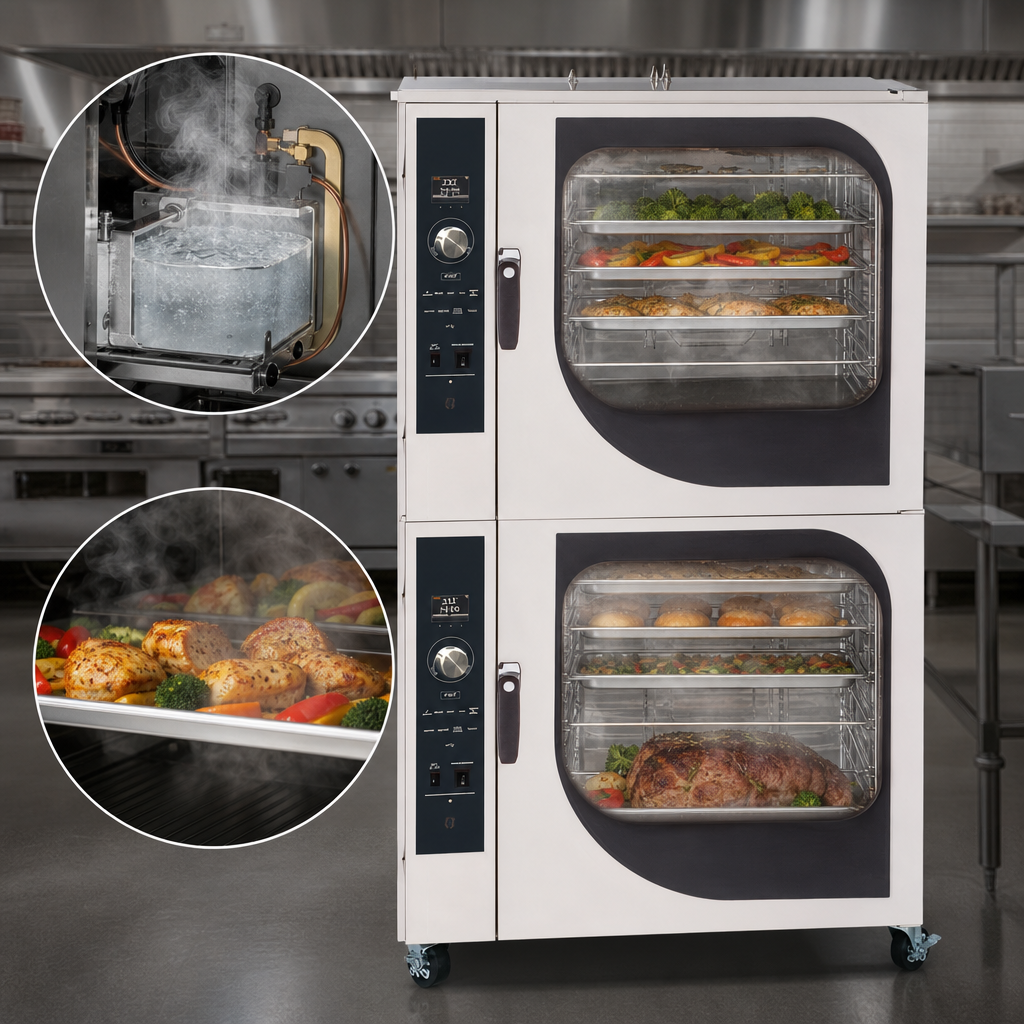

- Boiler-based steam plus hot-air cooking from 140 – 500 °F – no menu limits.
- On-board 4" core temperature probe with cook-and-hold logic.
- Manual/programmable control stores up to 100 recipes; USB upload-download ready.
- Built-in retractable hose reel & stainless self-draining liner – the industry’s only washable convection cavity.
- Bright halogen lighting and dual-pane hinged glass doors for maximum visibility & energy savings.
- Fully welded 316 stainless chamber and frame – engineered for years of commercial abuse.
- Factory-installed 4" locking casters & stacking hardware included.
- Certified cETLus & NSF, backed by a 1-year parts & labor warranty*.
Capacities & Connections

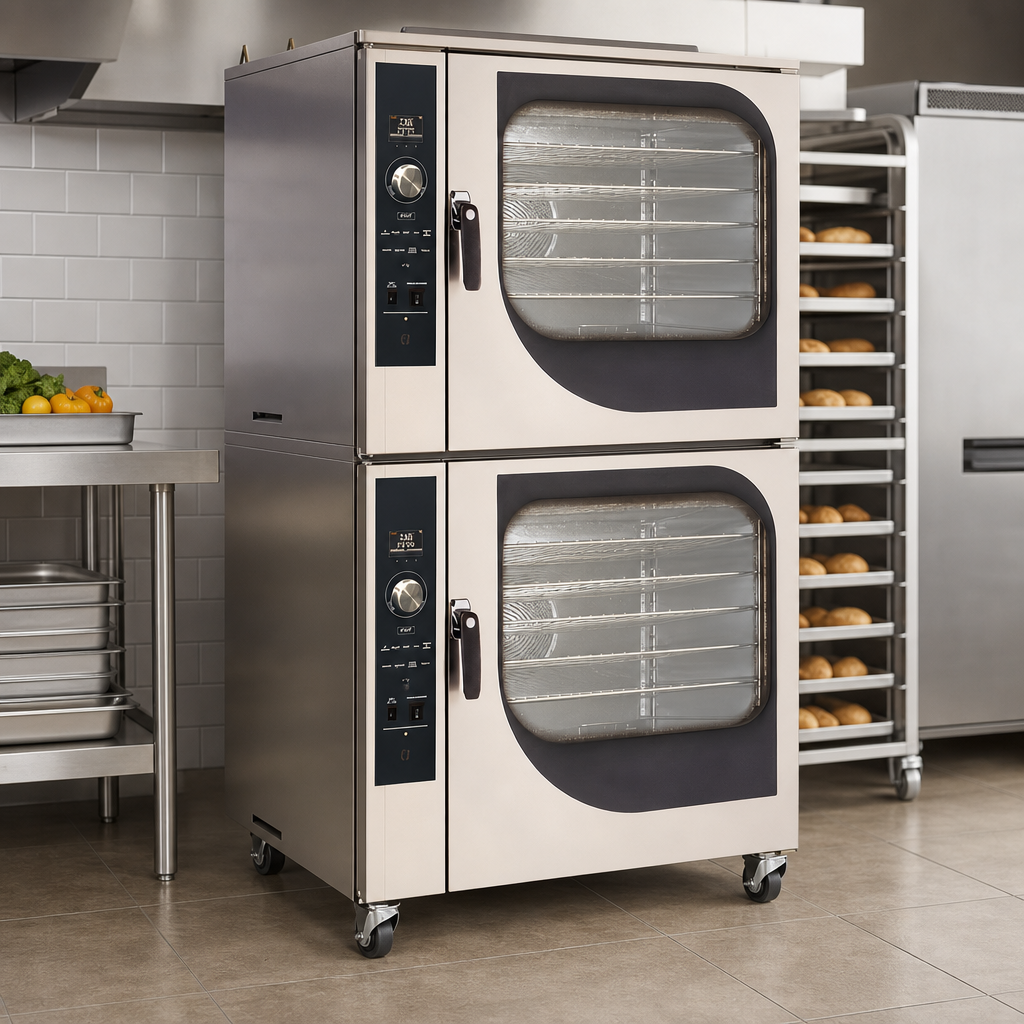

| Configuration | Two stacked boiler-based combi decks |
|---|---|
| Pan capacity (each deck) | (14) 12" × 20" × 2.5" hotel pans (7) 18" × 26" full-size sheet pans |
| Total heat input | 180,000 BTU/hr (natural or LP gas) |
| Electrical | 115 V, 1 Ø, 12 A per deck (208/240 V optional) |
| Water | ¾" GHT cold water, 40–50 psi Built-in backflow prevention |
| Drain | 2" connection, max 140 °F effluent |
| Fan system | 4-speed, bi-directional, (2) ½ HP motors |
| Overall dimensions (W × D × H) | 37.6" × 40.2" × 69.2" (with casters) |
| Shipping weight | Approx. 1,225 lb (double stack) |
What’s in the Box
- (14) Stainless steel wire shelves – 7 per deck
- 4" removable core probe
- Retractable hand shower with front shut-off
- Hardware & 4" locking swivel casters
- Startup inspection by a factory-authorized service agent
*Standard 1-year parts & labor warranty; 6-month gasket coverage. Commercial use only.
