Blodgett (Middleby)  |  Blodgett Combi  |  SKU: CNVX-14G/BX-14G

Blodgett (Middleby) CNVX-14G/BX-14G Blodgett Combi Convection Ovens

$38,358.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Professional installation Middleby financial flyer Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

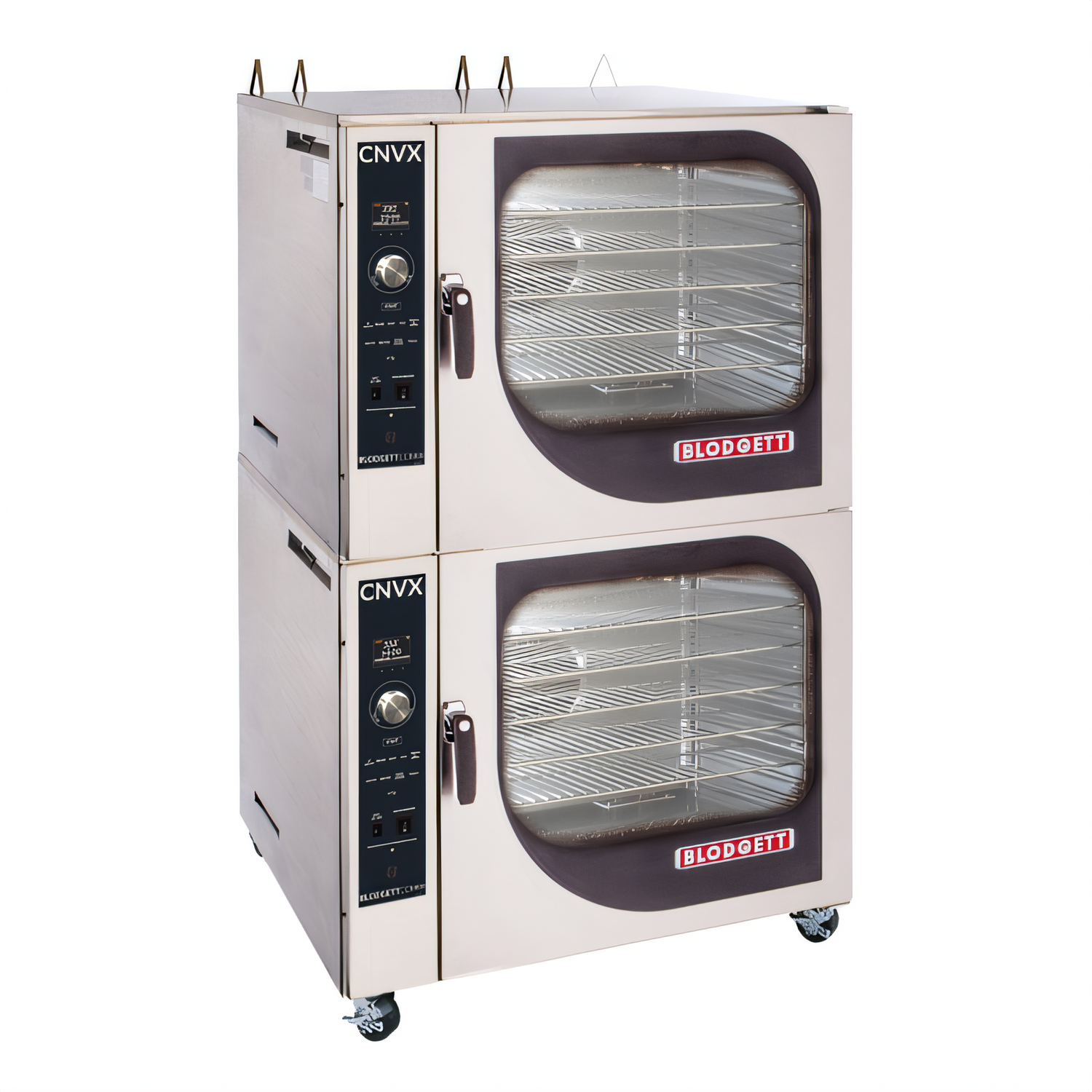

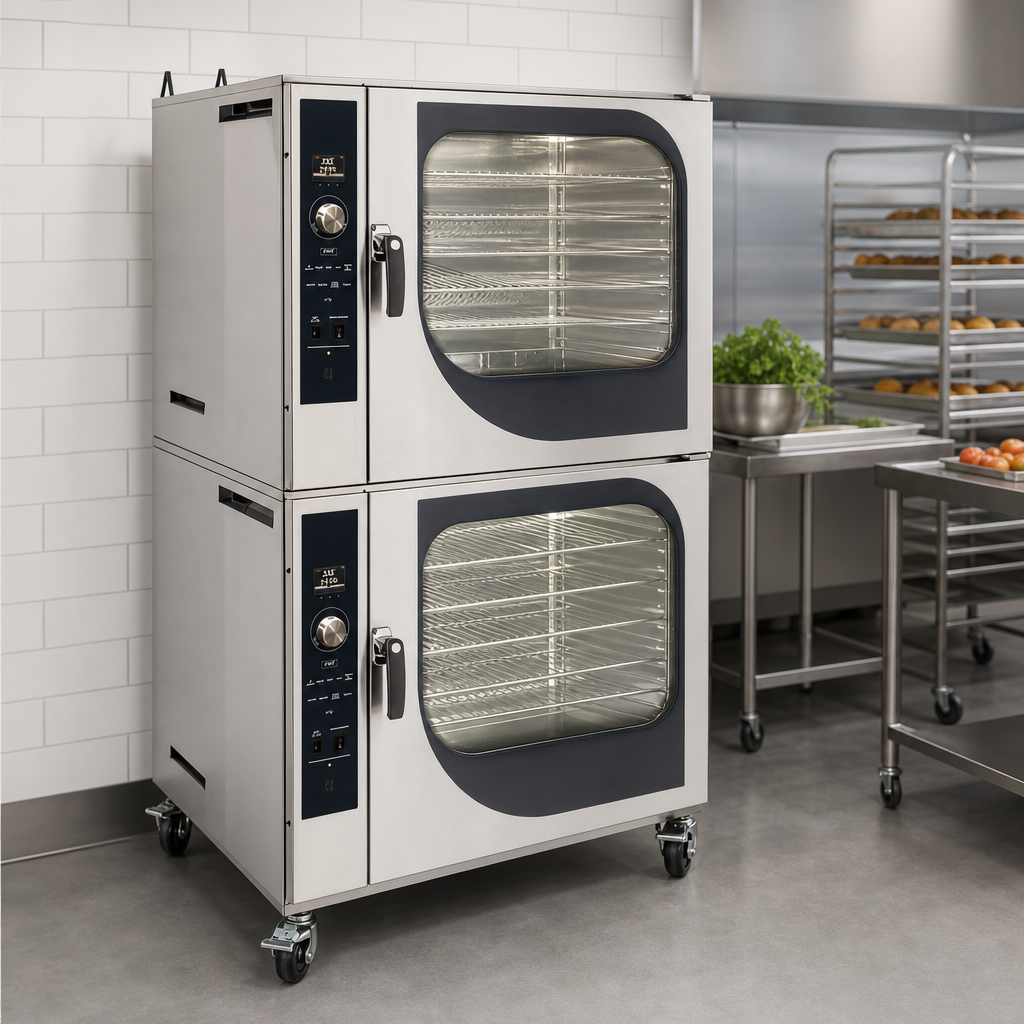

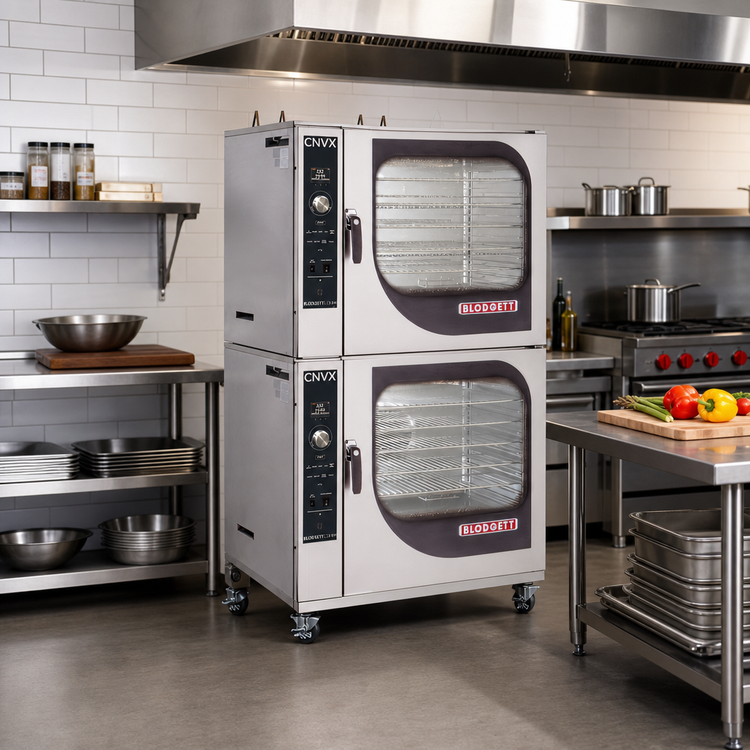

Blodgett Combi Stacked Gas Combi + Convection Oven

Model BCX-14G (boilerless combi) / CNVX-14G (washable convection)

Double your production, not your footprint. The Blodgett Combi stack pairs a 14-pan boilerless combi oven with a 14-pan convection oven, giving you independent steam, combi and dry-heat cooking in two powerful 65,000 BTU sections—all in less than 38 inches of floor space.

Highlights

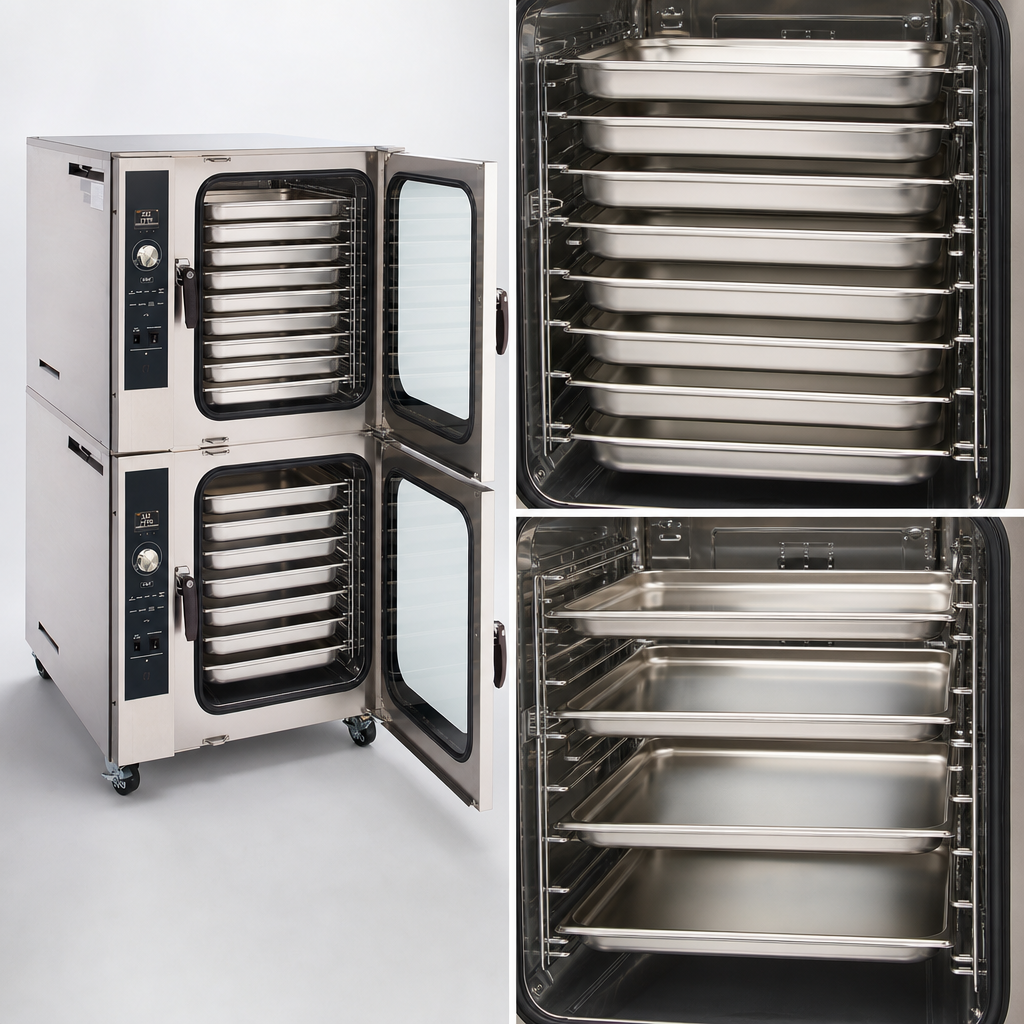

  • 28 hotel pans or 14 full-size sheet pans total capacity (14 / 7 per deck at 3-¼″ spacing).
  • Boilerless combi section delivers steam, hot-air or combination cooking up to 500 °F.
  • Convection section adds an on-demand Hydroburst shot of 100 % humidity for tender bakes.
  • 4-speed reversing fans in each cavity ensure even airflow for delicate or dense loads.
  • Programmable manual control stores 100 recipes; USB & 7″ SmartTouch2 touchscreen upgrade available.
  • Removable 4″ core temperature probe automates cook-&-hold cycles.
  • Industry-first washable convection cavity with retractable hand shower & front shut-off valve.
  • Dual-pane tempered viewing windows hinge open for effortless glass cleaning.
  • Fully welded 304/316 stainless frame, coved corners & halogen lighting stand up to daily abuse.
  • Ships complete with (14) stainless wire racks, hardware and 4″ locking casters.

At-a-Glance Specs

Configuration Gas, stacked boilerless combi + convection oven
Sections / Motors 2 independent cavities, each with a ½ HP fan motor
Total Input 130,000 BTU/hr (65,000 BTU per deck)
Pan Capacity (each) (14) 12″ × 20″ × 2.5″ hotel pans • (7) 18″ × 26″ sheet pans
Temperature Range 140 °F – 500 °F
Fan Speeds 4-speed, bi-directional
Controls Manual/programmable (100 recipes)  •  USB port  •  Optional SmartTouch2 (500 recipes)
Core Probe 4″ removable dual-sensing probe
Gas Connection 3/4″ NPT per section  •  Nat 7″ W.C.  •  LP 14″ W.C.
Electrical 115 VAC, 12 A, NEMA 5-20R per section (208–240 V option)
Water / Drain (combi) 3/4″ garden hose cold water, 40–50 PSI  •  2″ drain ≤ 140 °F
Exterior Dimensions 37.6″ W × 40.2″ D × 69.2″ H (overall stack)
Certifications cETLus, NSF
Warranty 1-year parts & labor (6-month gaskets)  •  Factory start-up included

Optional Upgrades

  • SmartTouch2 7″ color touchscreen with 500-recipe memory, rack timing & HACCP storage.
  • Extra wire shelves, chicken roasting racks and dual-sensing core probes.
  • Seismic or 6″/25″ adjustable legs in lieu of casters.
  • Extended parts & labor warranty coverage.
Water quality matters: Maintain 40-125 ppm TDS, hardness 35-180 ppm, chlorides < 25 ppm and chlorine/chloramine < 0.2 ppm to keep your warranty intact.

Ask about Blodgett Professional Installation and Middleby Equipment Financing to get up and running fast.

Features & Specs

Manufacturer

Blodgett (Middleby)

Brand_name

Blodgett Combi

Certifications

NSF, cETLus

Height

73.12in

Width

40.19in

Depth

45.13in

Shipping Weight

1295.0lbs

Capacity per Compartment

7 pan capacity, per compartment

Interior Finish

stainless steel interior

Exterior Finish

stainless steel front & sides

Deck Qty

2 decks

Control Type

programmable controls

Type

standard

Base

casters

Size

full/standard size

Specifications

Convection Oven and Combi Oven, gas, stacked, boilerless combi, (14) 12" x 20" x 2.5" full size hotel pan or (7) 18" x 26" full size sheet pan capacity per deck, double paned glass door, 4-speed reversible fan, 4" temperature probe, programmable manual control stores up to 100 recipes, (7) wire shelves, retractable hose reel, hardware & 4" casters, (2) 1/2 hp, 130,000 BTU total, cETlus, NSF
