Key specifications

Dimensions
86 in × 32 in × 75 in
Type
Conveyor Dishwasher
Style
Corner Load
Installation Type
Floor Model
Material
Stainless Steel
Finish
No. 4 Mill Finish
Spec sheet
Stero SKU: ER76SC

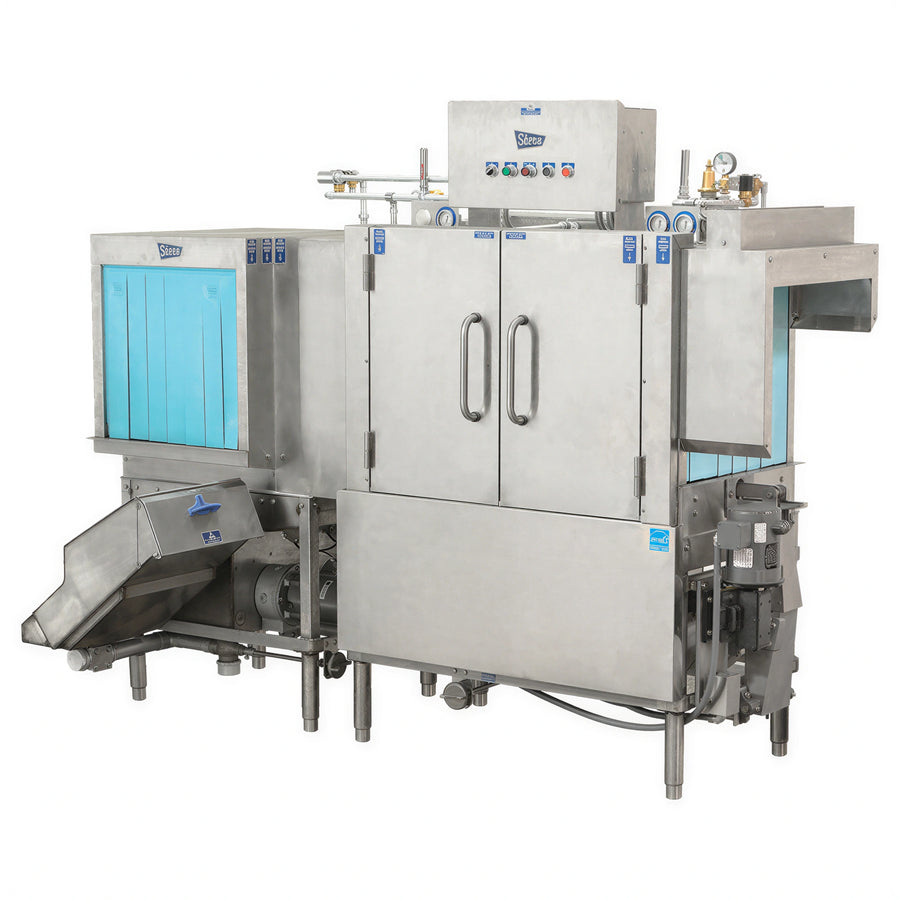

Stero ER76SC Corner-Load Power Scrapper Conveyor Dishwasher

$109,660.80
/each
Estimated to ship in 16–19 business days
Tank heat
Electrical
Operation direction
Included: Stero warranty One year from initial startup or 18 months from factory shipment, whichever comes first

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $10,144/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Conveyor Dishwasher
Style Corner Load
Installation Type Floor Model
Material Stainless Steel
Finish No. 4 Mill Finish
Capacity 223 Racks/Hour
Opening Width 21 in
Tank Design 2 Tank With Scrapper
Temperature High Temp
Booster Heater Without Booster
Tank Heat To Be Specified
Door Type Insulated Cabinet Style
Rinse Water Usage 0.52 Gallons/Rack
Final Rinse Flow 2.43 GPM
Wash Pump Motor 2 HP
Scrapper Pump Motor 1 HP
Wash Pump Flow 225 GPM
Conveyor Motor 1/4 HP
Inspection Doors 2
Energy Efficiency ENERGY STAR
Width 86 in
Depth 32 in
Height 75 in
Weight 1,450 lb

Description

The Stero ER76SC is a two-tank conveyor dishwasher with a 32 in corner-load power scrapper, high-temperature operation without a booster, and throughput of 223 racks per hour.

Automatic fill, rack-activated starting, automatic shutdown, and a recirculating 2 HP wash system support continuous dishwashing operation. Stainless steel construction and insulated cabinet-style doors are specified for the SC configuration.

  • The power scrapper strips food soil before the wash cycle.
  • Final rinse usage is listed at 0.52 gallons per rack.
  • Tank heat must be specified for the installation.

Product Weight:

1450.0 lb

Corner-Load Power Scrapper

The 32 in power scrapper strips food soil before the wash cycle.

Conveyor Wash System

A two-tank design combines power scrapping, recirculated washing, and a fresh-water final rinse.

Automatic Operation

Automatic fill maintains tank levels, rack activation starts the conveyor and pumps, and automatic shutdown stops operation during idle periods.

Water-Saving Rinse

The final rinse is listed at 2.43 GPM and 0.52 gallons per rack.

Recirculating Wash Motor

The wash system uses a 2 HP motor with a listed flow of 225 GPM.

High-Temperature Operation

The specified configuration is high temperature without a booster; tank heat must be specified.

Stainless Steel Construction

The tank and hood use 300 series No. 4 mill finish stainless steel, with a stainless steel front enclosure panel.

Cabinet-Style Doors

Insulated cabinet-style doors are specified for the SC configuration.

Safety and Access

Two inspection doors provide access, and door safety switches prevent operation when a door is open.

Frequently Asked Questions

The conveyor dishwasher is specified at 223 racks per hour.
Yes. It has a 32 in corner-load power scrapper with a 1 HP recirculating motor.
The specified configuration is high temperature without a booster. The cutsheet lists booster heaters as separate options.
Tank heat must be specified. The cutsheet documents electric and steam tank-heating options.
The cutsheet lists 208, 240, and 480 volt, 60 Hz, 3-phase configurations; the required voltage must be specified.
The ER76SC is listed with ENERGY STAR, NSF, and cULus certifications.
