Southbend (Middleby)

Southbend Platinum Heavy Duty 48-Inch Natural Gas Modular Sectional Range with 4 Open Burners and 4 Step-Up Rear Burners

SKU: P48N-BBBB-SU
$12,268.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum Heavy Duty 48-Inch Natural Gas Modular Sectional Range with 4 Open Burners and 4 Step-Up Rear Burners

Manual Controls, Stainless Steel, 280,000 BTU

Built for demanding line cooking, this modular sectional range combines eight 35,000 BTU burners, step-up rear burners, and rugged stainless steel construction.

  • Eight 35,000 BTU open-top burners deliver 280,000 BTU/hr total cooking power.
  • Four step-up rear burners add flexibility for pans and cookware placement.
  • Modular mount design is intended for countertop, refrigerated-base, or freezer-base installation.
  • Manual controls provide straightforward, durable burner operation.
  • Stainless steel front, sides, rear, and exterior bottom help withstand heavy use.
  • Removable welded steel grates, drip tray, and insulated burner box simplify maintenance.
  • 1-1/4-inch front manifold, 1-inch rear gas connection, and adjustable stainless steel legs support installation.

Overall Dimensions:

48.0"W x 37.5"D x 13.5"H

Product Weight:

276.0 lb

Eight 35,000 BTU Open-Top Burners

Eight patented clog-free burners provide a total of 280,000 BTU/hr for high-output cooking.

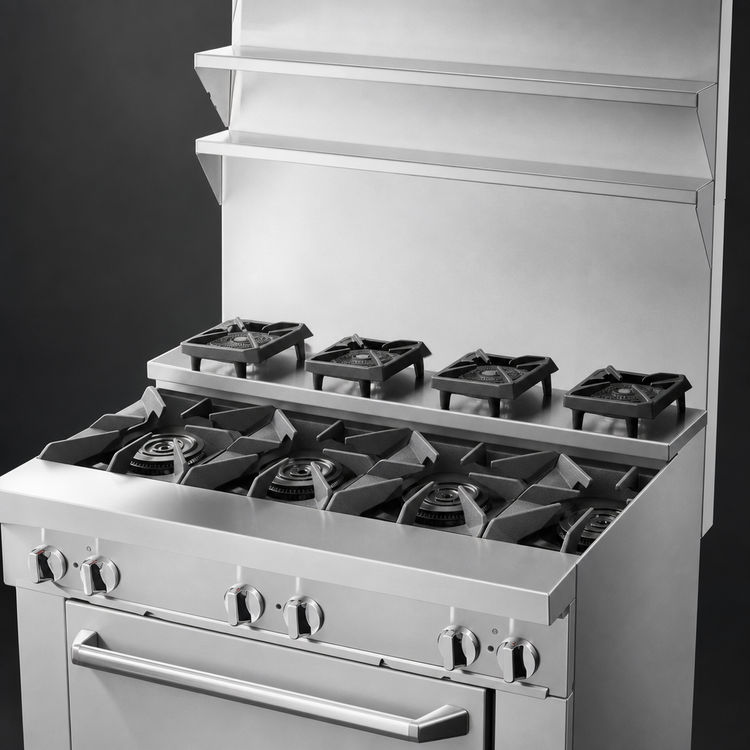

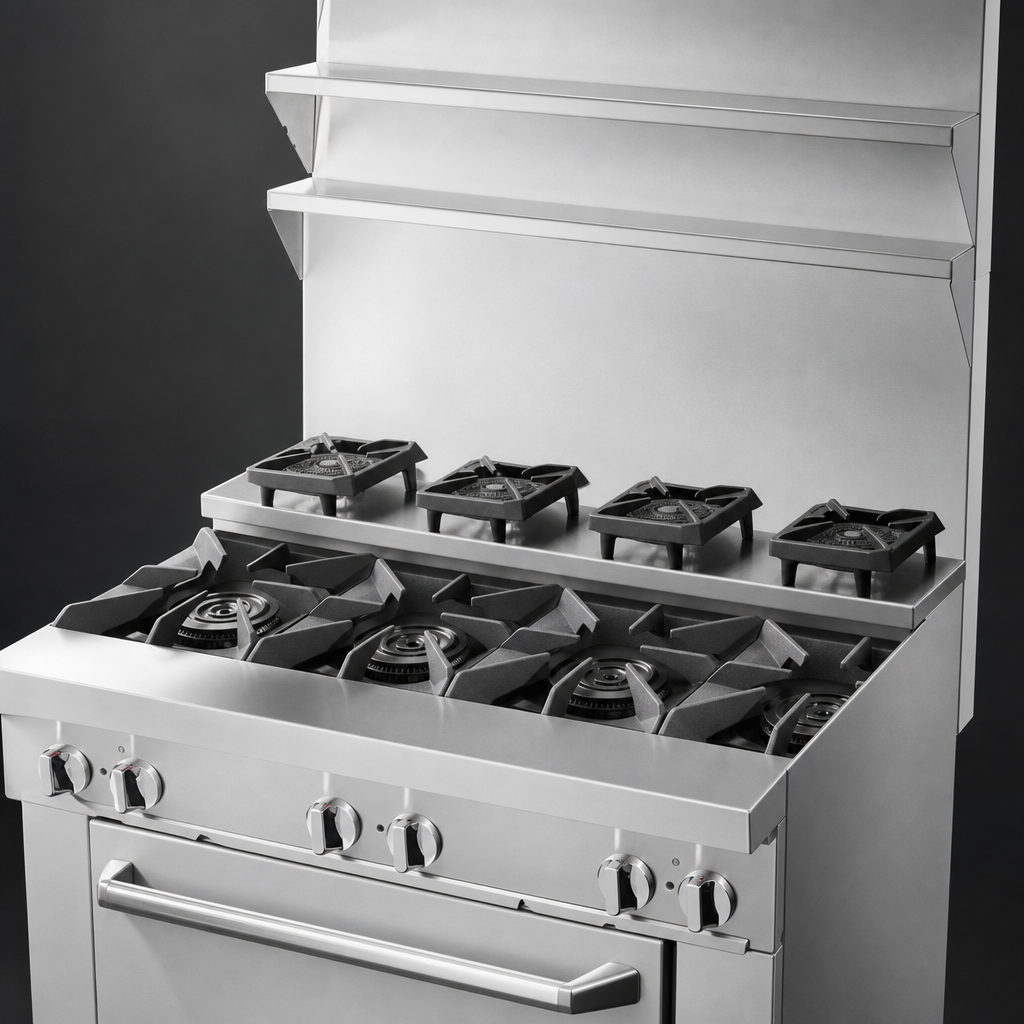

Step-Up Rear Burners

The SU configuration includes four elevated rear burners for added pan clearance and flexibility.

Modular Mount Design

Designed for mounting on a countertop, refrigerated base, or freezer base.

Manual Controls

Simple manual burner controls offer dependable operation in busy kitchens.

Stainless Steel Exterior

Front, sides, rear, and exterior bottom are stainless steel for durability and easier cleanup.

Removable Welded Steel Grates and Drip Tray

Removable components make daily cleaning and service easier.

Insulated Burner Box and Lining

Helps retain heat and protect internal components.

Gas Connections

Includes a 1-1/4-inch front manifold and 1-inch rear gas connection.

Standard Adjustable Legs

6-inch stainless steel adjustable legs are standard.

Front Rail and Flue Riser

A 9-1/4-inch front rail and 5-inch stainless steel flue riser are standard.

Type Sectional Range
Style Heavy Duty
Installation Type Countertop
Controls Manual
Gas Type Natural Gas
BTU 280,000 BTU
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C.
Material Stainless Steel
Finish Polished Stainless Steel
Shipping Width 48 Inches
Shipping Depth 38 Inches
Shipping Height 14 Inches
Shipping Weight 276 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It indicates the modular mount version with step-up rear burners.
It has eight 35,000 BTU open-top burners.
It uses a 1-1/4-inch front manifold and 1-inch rear gas connection, and it requires a regulated natural gas supply with 7 inches W.C. minimum pressure.
No. An external pressure regulator must be ordered separately.
The standard warranty is one year parts and one year labor.
Yes. Installation under a vented hood is recommended, and local codes should be checked.
