Southbend (Middleby) P24N-BB Platinum Gas Ranges
Description
Southbend Platinum 24" Modular Heavy-Duty Gas Range
Model P24N-BB | 4 Open Burners | 140,000 BTUPack maximum firepower into the smallest footprint on your cook line. The Southbend Platinum P24N-BB delivers a sizzling 140,000 BTU from four patented clog-free burners, yet mounts neatly on a chef base, equipment stand, or countertop. Built from stainless steel throughout, this modular range is engineered for high-volume, 24/7 duty and effortless cleanup.
Key Features

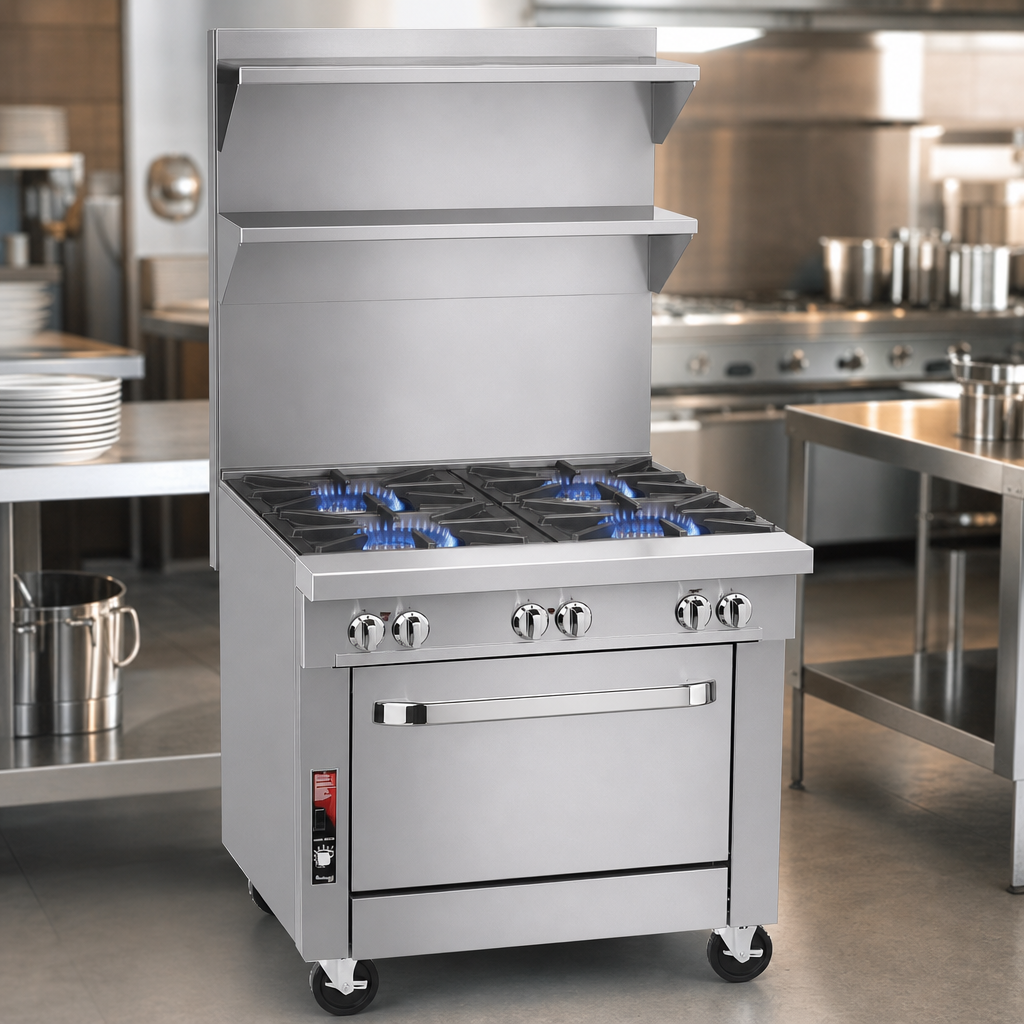

- Four 35,000 BTU open burners with removable welded-steel grates

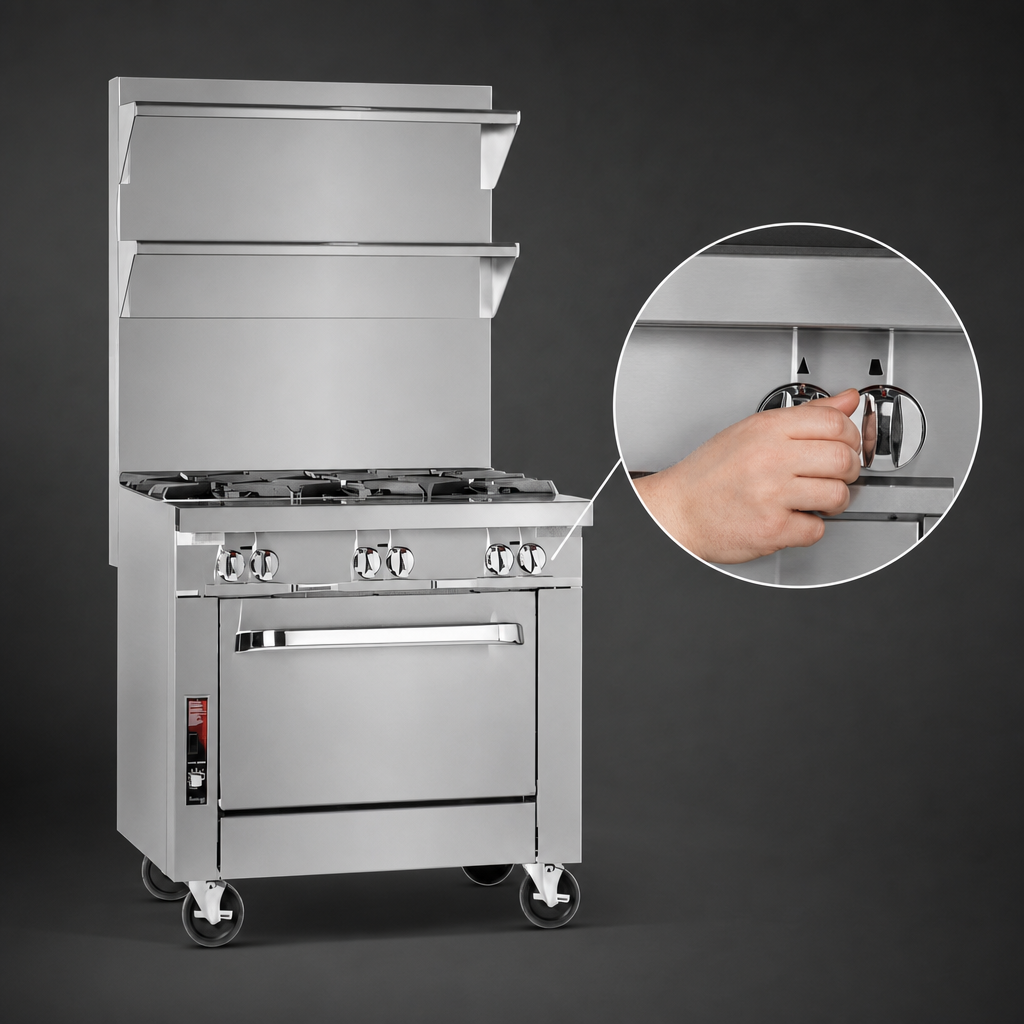

- Manual, front-mounted controls for instant flame adjustment
- 9-1/4" deep front rail doubles as a plating ledge
- 5" stainless-steel flue riser directs heat and fumes to your hood
- Fully insulated burner box keeps surrounding surfaces cooler
- Rugged stainless front, sides, rear & exterior bottom resist corrosion
- Zero clearance to non-combustible surfaces—perfect for tight kitchens
- 1-year limited parts & labor warranty, backed by nationwide service
Built for Your Battery
- Modular design—no base or legs—drops onto counters or refrigerated bases
- 1-1/4" front gas manifold mates with other Southbend Platinum sections
- Rear 1" NPT gas connection for single-point hook-ups
- Natural-gas factory set; field convertible to LP (kit required)
Specifications
| Cooking width | 24" / 610 mm |
|---|---|
| Overall depth | 34" / 864 mm |
| Cooking surface height | 33-3/4" / 857 mm (with 5" flue) |
| Total output | 140,000 BTU/hr (Natural or Propane) |
| Burners | 4 × 35,000 BTU open top |
| Gas connections | 1-1/4" front manifold | 1" rear NPT |
| Shipping weight | ≈ 260 lb / 118 kg |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor |
Popular Factory Options (extra cost)
- Step-Up rear burners (+4" height)
- 24" or 36" flue riser with storage shelf
- External pressure regulator or spark ignition
- 7-1/4" deep or cut-out front rail configurations
- Open-frame stand, cabinet base, or locking caster kit
Planning a full battery? Our specialists can integrate this section with charbroilers, griddles, and ovens for a seamless cook line—ask us for free design assistance.
