Southbend Platinum Heavy Duty 12-Inch Gas Full-Width Charbroiler with Cabinet Base

SKU: P12C-C
$5,844.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum Heavy Duty 12-Inch Gas Full-Width Charbroiler with Cabinet Base

32,000 BTU, Manual Controls, Stainless Steel Construction

This 12-inch Platinum charbroiler delivers powerful 32,000 BTU grilling performance in a durable stainless steel cabinet-base design.

  • 12-inch sectional gas charbroiler with a full-width cooking surface for high-output grilling.
  • 32,000 BTU performance with manual high/low control for straightforward heat adjustment.
  • Removable cast iron grates flip for either 1/8" or 1/4" grid width and include front-to-back slope adjustment.
  • Stainless steel front, sides, rear, and exterior bottom are built for long-term commercial durability.
  • Cabinet base includes a removable door that can hinge right or left for installation flexibility.
  • Standard 6-inch adjustable legs, removable drip tray, and 5-inch stainless steel flue riser are included.

Overall Dimensions:

12.0"W x 37.5"D x 41.0"H

Product Weight:

225.0 lb

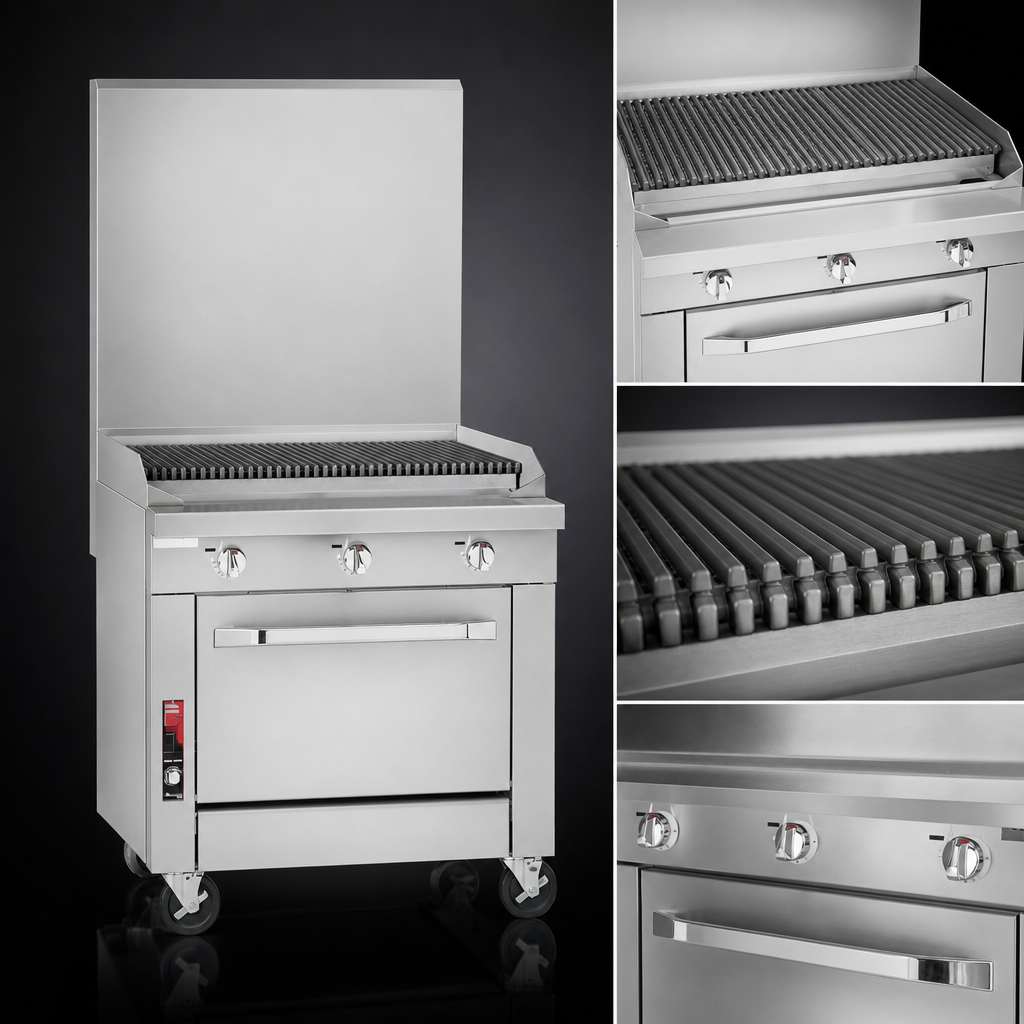

Full-Width Charbroiler

A 12-inch sectional charbroiler section designed to provide grilling coverage across the full width of the unit.

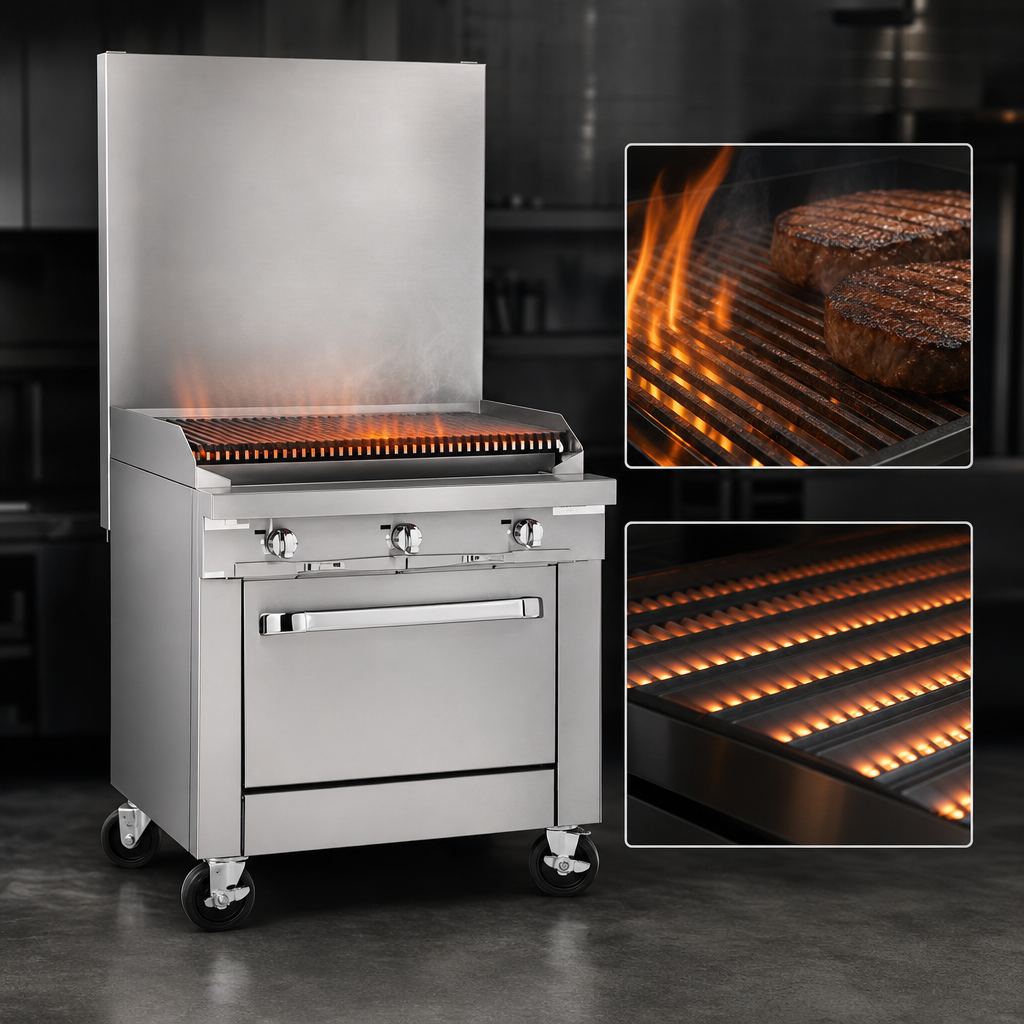

32,000 BTU Output

Delivers strong heat output for searing and quick recovery during busy service.

Cast Iron Grates

Removable grates have adjustable front-to-back slope and can be flipped for either 1/8" or 1/4" grid width.

Stainless Steel Radiants

Radiants help distribute heat evenly across the cooking surface.

Manual High/Low Controls

Simple manual control knob allows fast heat adjustment.

Stainless Steel Cabinet Base

The base includes a removable door that can hinge on the right or left side.

Durable Stainless Steel Construction

Front, sides, rear, and exterior bottom are stainless steel for commercial-grade durability.

Adjustable Legs and Flue Riser

Standard 6-inch adjustable legs and a 5-inch stainless steel flue riser provide installation flexibility.

Removable Drip Tray

Helps simplify grease management and cleanup.

Type Charbroiler
Style Sectional
Installation Type Floor Model (Cabinet Base)
Controls Manual
BTU 32,000 BTU
Temperature Range Up to 600°F
Material Stainless Steel
Gas Connection Size 1-1/4 Inch Front Manifold, 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Natural Gas, 11 Inches W.C. Propane
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a full-width charbroiler with removable cast iron grates and stainless steel radiants.
No. The cabinet base has a removable door that can hinge on either the right or left side.
It uses a 1-1/4 inch front manifold and a 1 inch rear gas connection.
The charbroiler is designed for an even surface temperature of up to 600°F on high.
Yes. The documentation recommends installation under a vented hood.
The unit includes a limited 1-year parts and labor warranty.
