Omcan USA 48189 Gas Ranges
Description

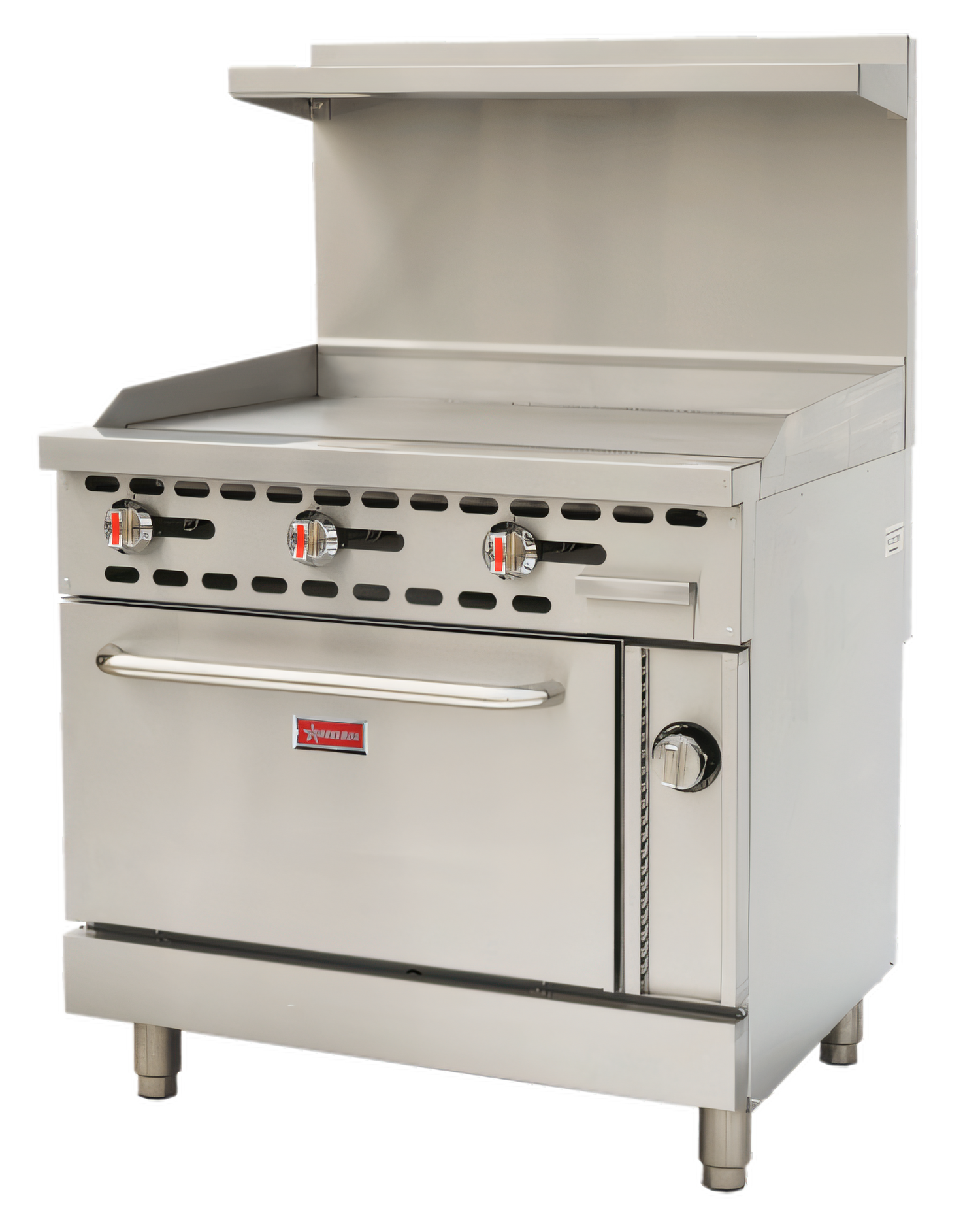

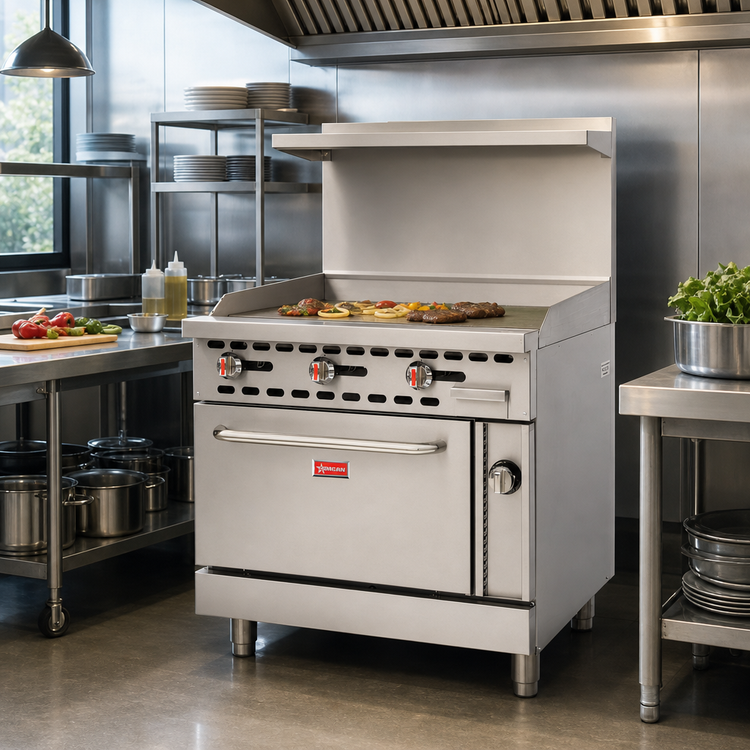

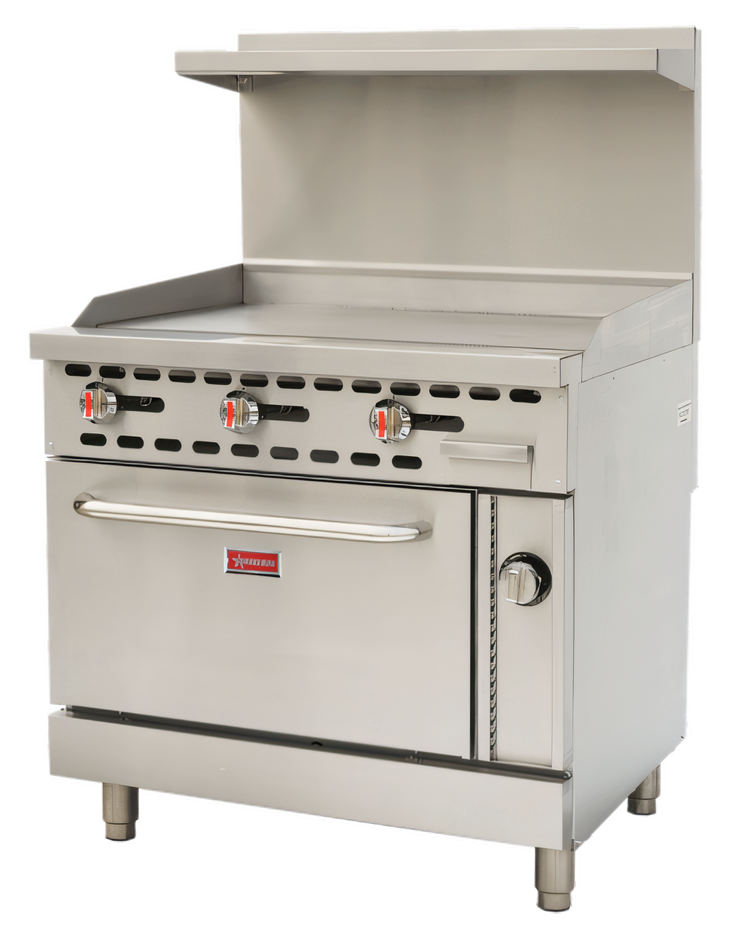

Omcan 36" Natural Gas Range with 36" Griddle & Standard Oven – 93,000 BTU
Model CE-CN-0914G-RC | Item 48189 | cETLus & ETL-Sanitation ListedBuilt for high-volume kitchens that demand versatility and reliability, this heavy-duty range combines a full-width 36" griddle with a powerful standard oven—delivering a total output of 93,000 BTU. From breakfast service to dinner rush, the CE-CN-0914G-RC delivers consistent searing, sautéing, baking, and roasting performance shift after shift.
Key Performance Features

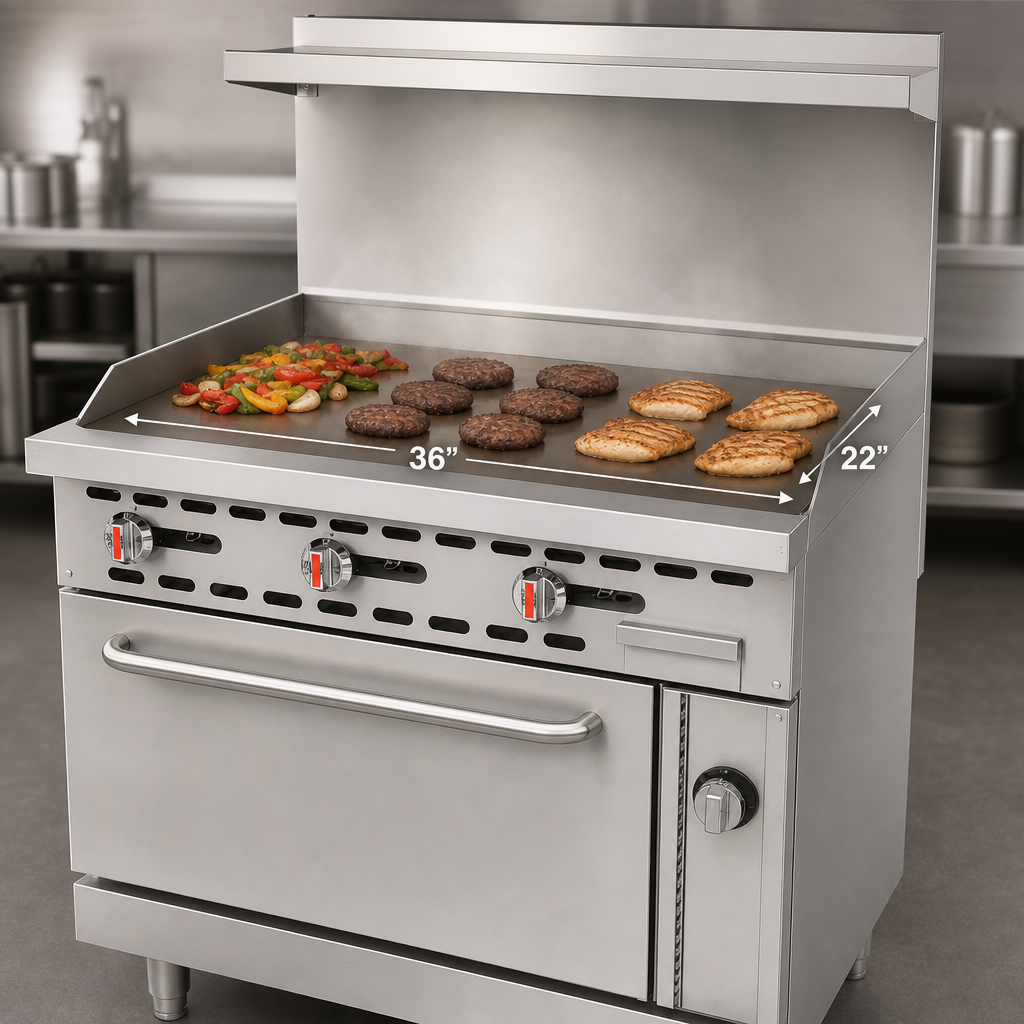

- Three U-shaped griddle burners (21,000 BTU each) ensure even heat across the 36" × 22" steel plate.

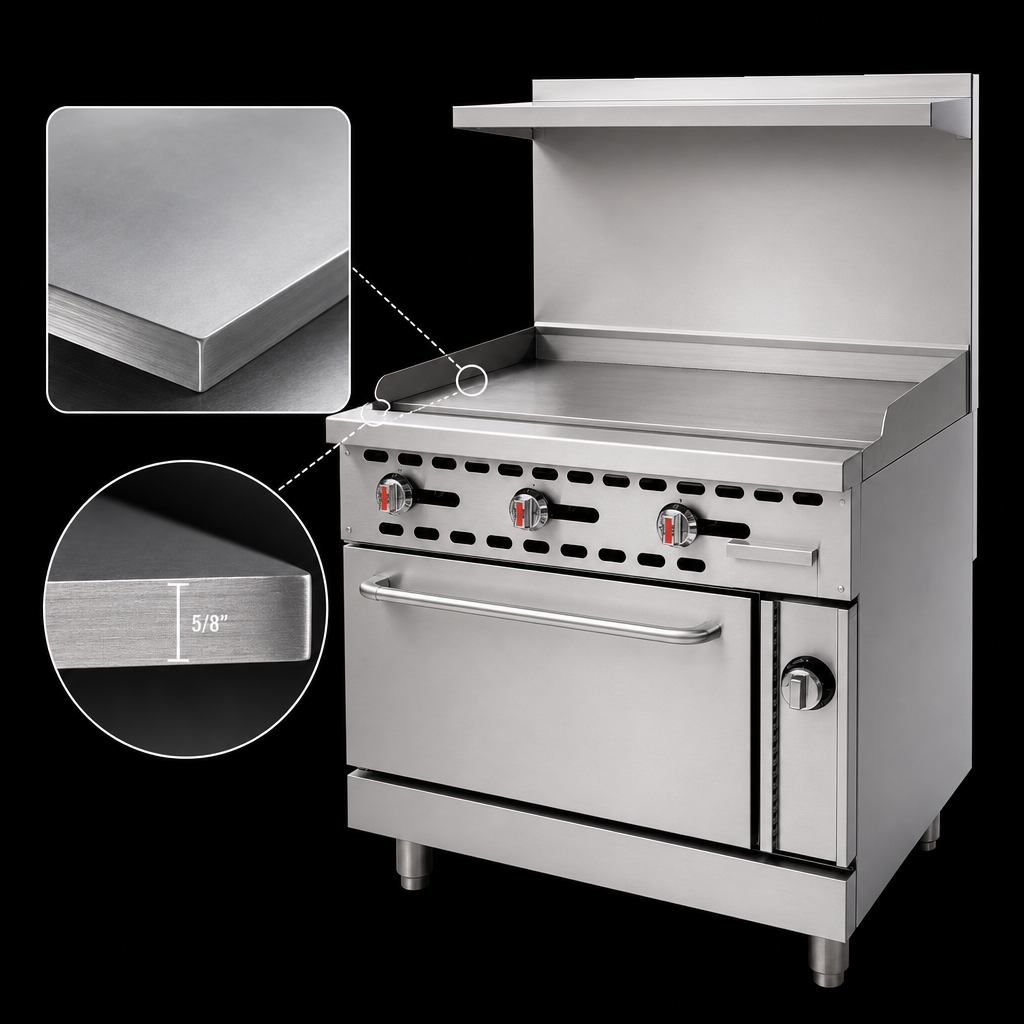

- 5/8" (15.9 mm) thick griddle plate with integrated splash guard retains heat and minimizes grease splatter.
- 30,000 BTU U-shaped oven burner with thermostat control from 250 – 550 °F (121 – 288 °C).
- Stainless steel front, oven door & handle; galvanized steel sides for lasting durability.
- Welded frame structure and heavy-duty adjustable legs add stability on uneven floors.
- Convenient front oil collector speeds up cleanup during peak hours.
- Kick plate provides quick service access to internal components.
- Factory-set for natural gas; ¾" NPT rear connection for quick hook-up.
Technical Specifications
| Gas Type | Natural Gas |
|---|---|
| Total Heat Output | 93,000 BTU/hr |
| Griddle Heat Output | 21,000 BTU/hr × 3 (63,000 BTU total) |
| Oven Heat Output | 30,000 BTU/hr |
| Griddle Cooking Surface | 36" W × 22" D (914 × 559 mm) |
| Griddle Plate Thickness | 5/8" (15.9 mm) |
| Oven Interior (W × D × H) | 26.5" × 25.8" × 13.9" (673 × 655 × 353 mm) |
| Oven Temperature Range | 250 – 550 °F (121 – 288 °C) |
| Overall Dimensions (W × D × H) | 36" × 32.6" × 56.7" (914 × 828 × 1,440 mm) |
| Net Weight | 456 lb (207 kg) |
| Gas Connection | ¾" NPT (rear) |
| Construction | Stainless steel front/door, galvanized sides, welded frame |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 1-year parts & labor |
Compatible Accessories (sold separately)
- Commercial Gas Hoses: 36" (47775), 48" (47871), 60" (47872), 72" (47873)
Covered by Omcan’s 1-year parts & labor warranty. For extended warranty options, please contact us.
