Key specifications

BTU
1,600 BTU/hour average; 2,350 BTU/hour peak
Amps
5.3 Amps
Phase
1-Phase
Dimensions
19.69"W × 22.34"D × 36.0"H
Type
Cube Ice Machine
Installation Type
Undercounter
Spec sheet
Manitowoc SKU: UDE0065A

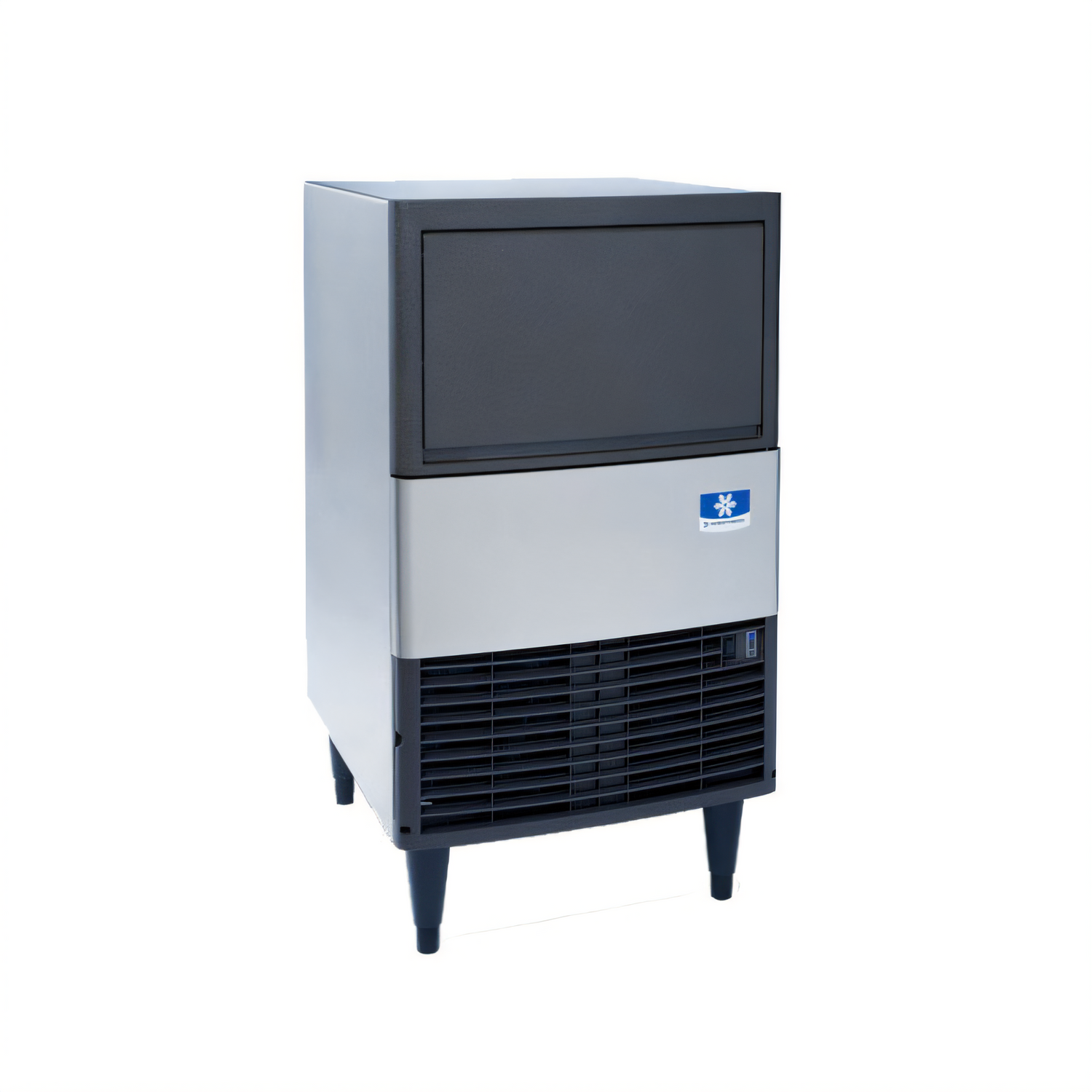

Manitowoc UDE0065A Undercounter Dice Ice Machine, 31 lb Bin

Discontinued
$2,494.14
/each
No longer available — the manufacturer has retired this model.
Production capacity
Included: Manitowoc warranty 3-year commercial parts-and-labor warranty

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cube Ice Machine
Installation Type Undercounter
Material Stainless Steel
Finish Stainless Steel
Capacity 31 lb
Production Capacity 57 lb/24 hours at 70°F Air/50°F Water
Refrigeration Type Air-Cooled
Ice Shape Dice
Size 7/8 in x 7/8 in x 7/8 in
Voltage 115 Volts
Amps 5.3 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 ft
Refrigerant Type R-134A
BTU 1,600 BTU/hour average; 2,350 BTU/hour peak
Controls On/Off/Clean Switch
Production Delay 4, 12, or 24 hours
Indicators Full Bin and Service
Leg Height 6 in to 7.25 in
Temperature Range 50°F to 110°F Ambient
Water Temperature Range 50°F to 86°F
Water Inlet 3/8 in NPT

Description

The Manitowoc UDE0065A is an undercounter, air-cooled, self-contained ice machine that produces dice cubes and stores up to 31 lb of ice.

  • Produces up to 57 lb of ice per 24 hours at 70°F air and 50°F water, or 46 lb at 90°F air and 70°F water.
  • Features a forward-sliding storage bin, sealed foodzone, full-bin and service indicators, and a selectable 4-, 12-, or 24-hour production delay.
  • The stainless steel cabinet includes front air intake and exhaust, an accessible air filter, and adjustable legs.

Overall Dimensions:

19.69"W x 22.34"D x 36.0"H

Product Weight:

109.0 lb

Air-Cooled, Self-Contained Operation

Uses an air-cooled, self-contained ice-making configuration.

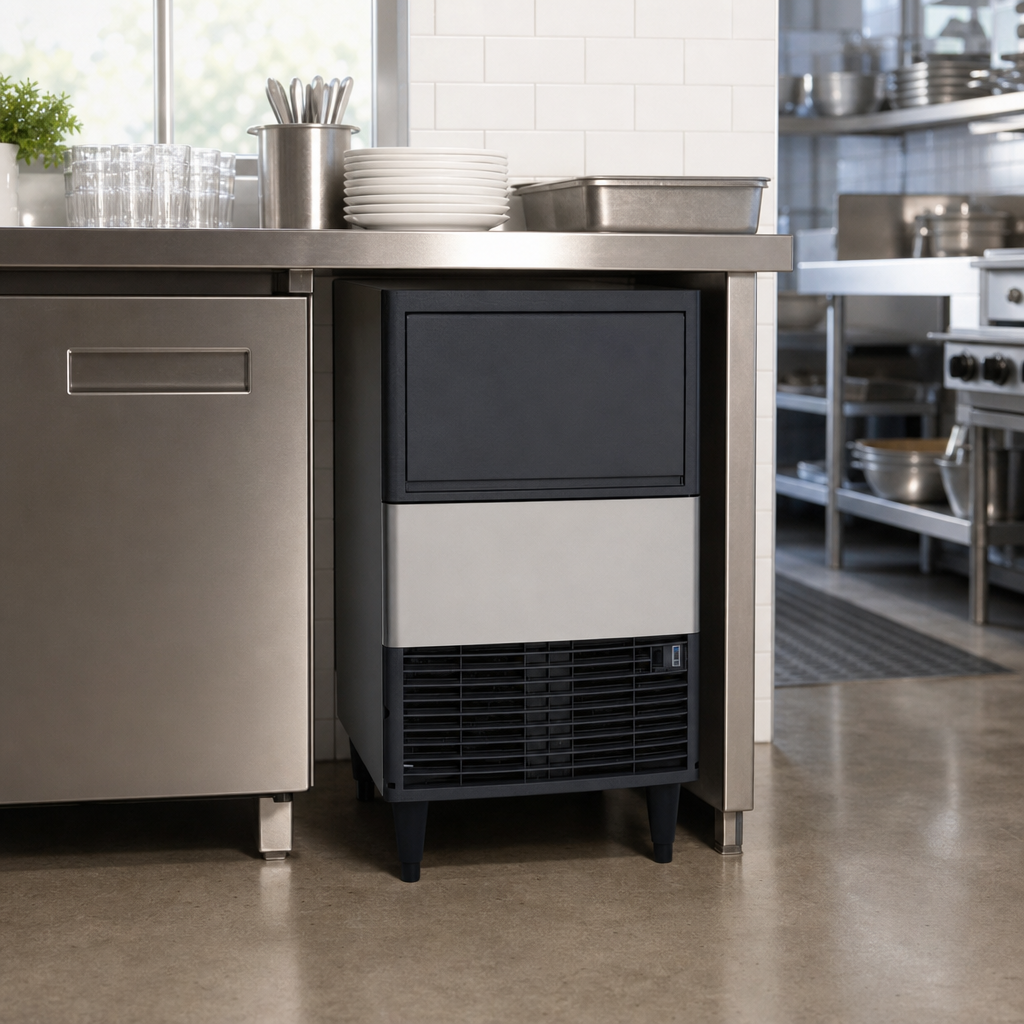

Undercounter Installation

Designed for placement under counters or as a standalone unit.

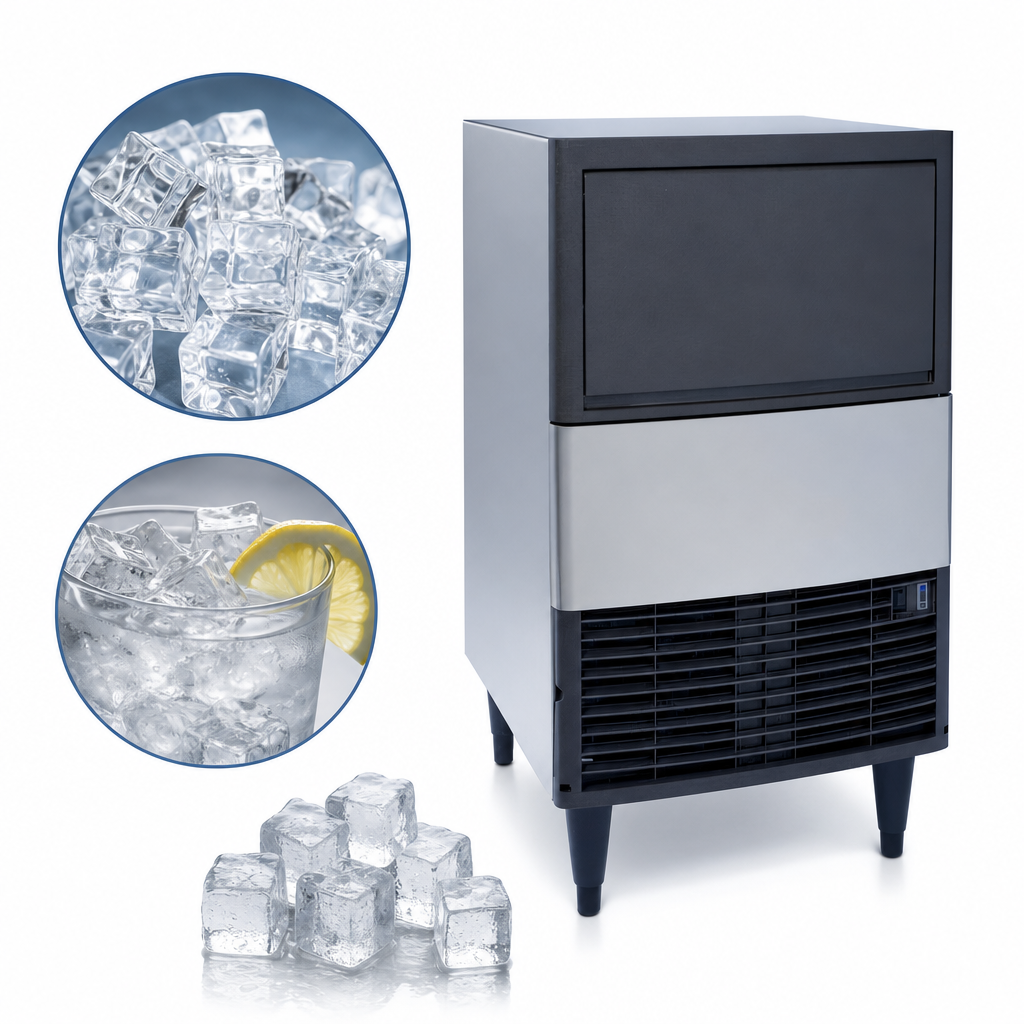

Dice Cube Production

Produces dice cubes measuring 7/8 in x 7/8 in x 7/8 in.

Ice Storage

Provides 31 lb of ice storage capacity.

Forward-Sliding Bin

The storage bin slides forward to provide access to refrigeration components.

Sealed Foodzone

Includes a sealed foodzone with removable water trough, distribution tube, and damper door.

Controls and Indicators

Features an on/off/clean switch plus full-bin and service indicators.

Production Delay

Allows a 4-, 12-, or 24-hour delay in ice production.

Alpha-San Protection

Provides Alpha-San antimicrobial protection in key internal components.

Front Airflow and Filter

Uses front air intake and exhaust with a reusable slide-out air filter.

Adjustable Legs

Includes legs adjustable from 6 in to 7.25 in.

Frequently Asked Questions

It produces up to 57 lb of dice ice per 24 hours at 70°F air and 50°F water, or 46 lb per 24 hours at 90°F air and 70°F water.
The storage bin holds 31 lb of ice.
It makes dice cubes measuring 7/8 in x 7/8 in x 7/8 in.
It requires 115 Volts, 60 Hz, 1-Phase power, draws 5.3 Amps, and uses a NEMA 5-15P plug with a 6 ft power cord.
The machine measures 19.69 in wide, 22.34 in deep, and 36 in high.
The commercial warranty provides 3-year parts-and-labor coverage.
