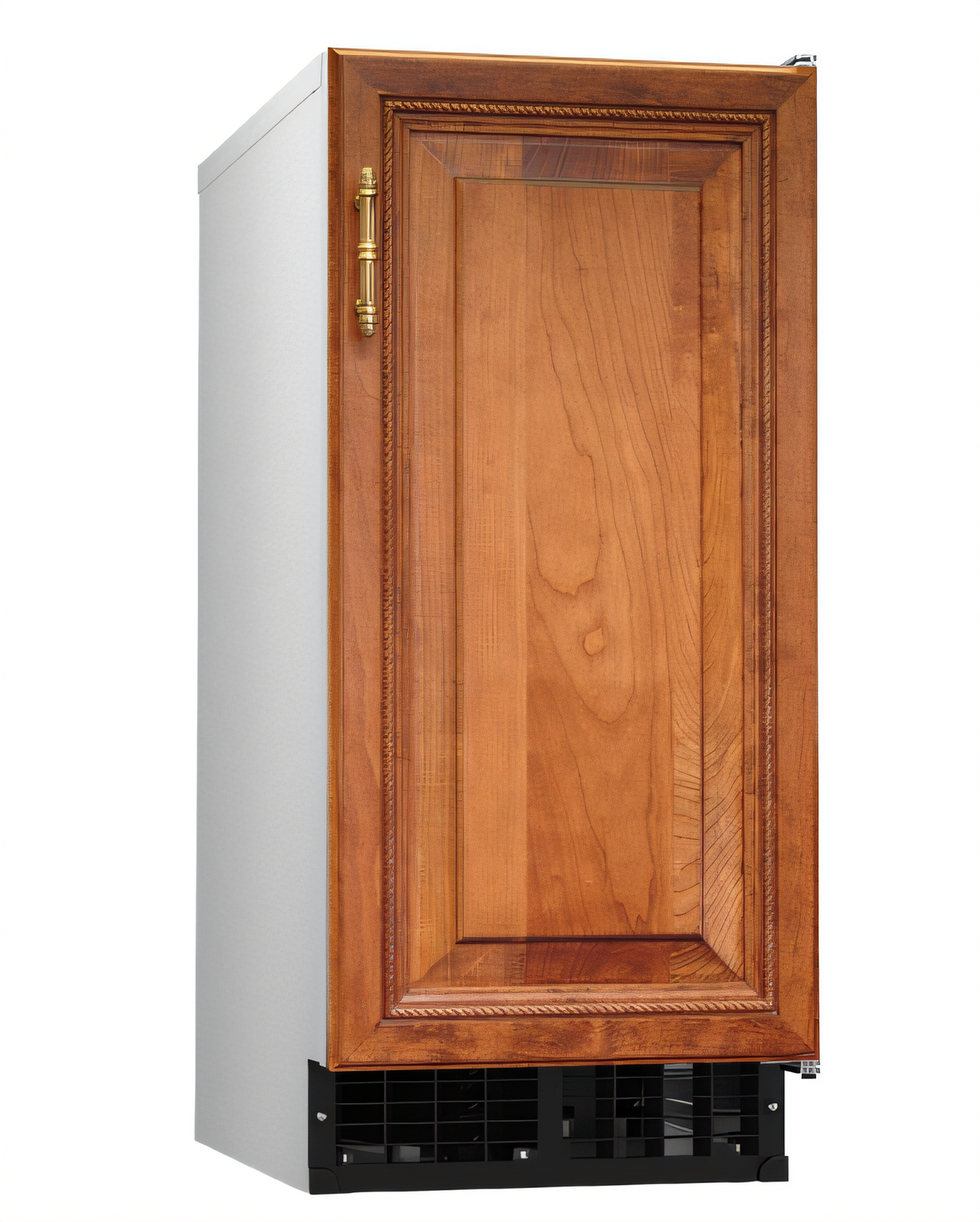

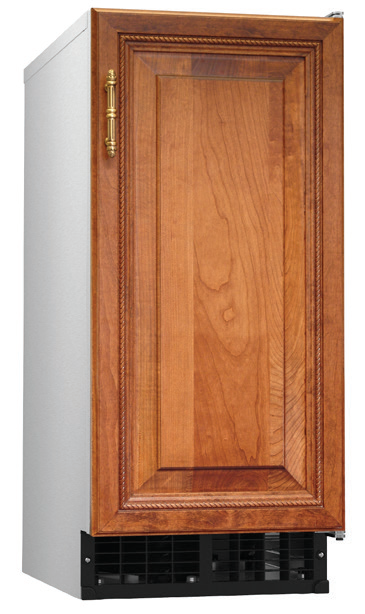

Hoshizaki C-80BAK-DS Undercounter Self-Contained Air-Cooled Nugget Ice Machine with Built-In 27 lb Storage Bin and Customized Cabinet Door System

SKU: C-80BAK-DS
$4,750.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Hoshizaki Ice Machines Ice Machines & Ice Equipment Ice Machines with Bins Ice Makers & Bins New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment

Hoshizaki C-80BAK-DS Undercounter Self-Contained Air-Cooled Nugget Ice Machine with Built-In 27 lb Storage Bin and Customized Cabinet Door System

92 lb/day production, 115V, R290 refrigerant

A compact undercounter nugget ice maker that pairs up to 92 lb. of daily production with a built-in 27 lb. storage bin and a customized cabinet door system.

  • Self-contained, air-cooled nugget/cubelet ice machine with built-in storage bin
  • Produces up to 92 lb. of ice per 24 hours and stores up to 27 lb.
  • Undercounter footprint with front in/out airflow for compact installation
  • Uses R290 hydrocarbon refrigerant and is ENERGY STAR qualified
  • Power switch is accessible without panel removal for easier service
  • Includes a 6 ft. cord with NEMA 5-15P plug; UL approved for outdoor use

Overall Dimensions:

14.89"W x 22.5"D x 33.5"H

Product Weight:

125.0 lb

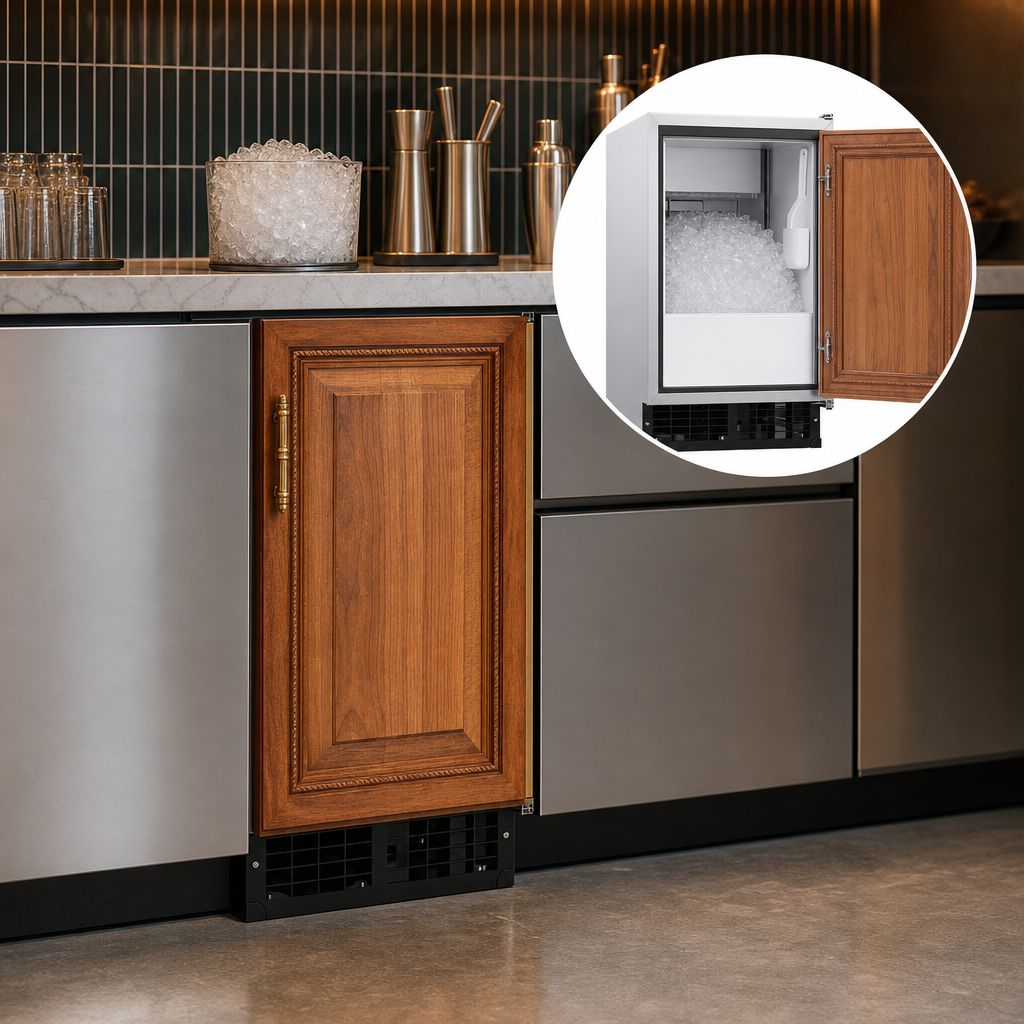

Self-Contained Air-Cooled Design

All-in-one ice machine and storage bin setup simplifies installation and day-to-day operation.

Self-Contained Air-Cooled Design

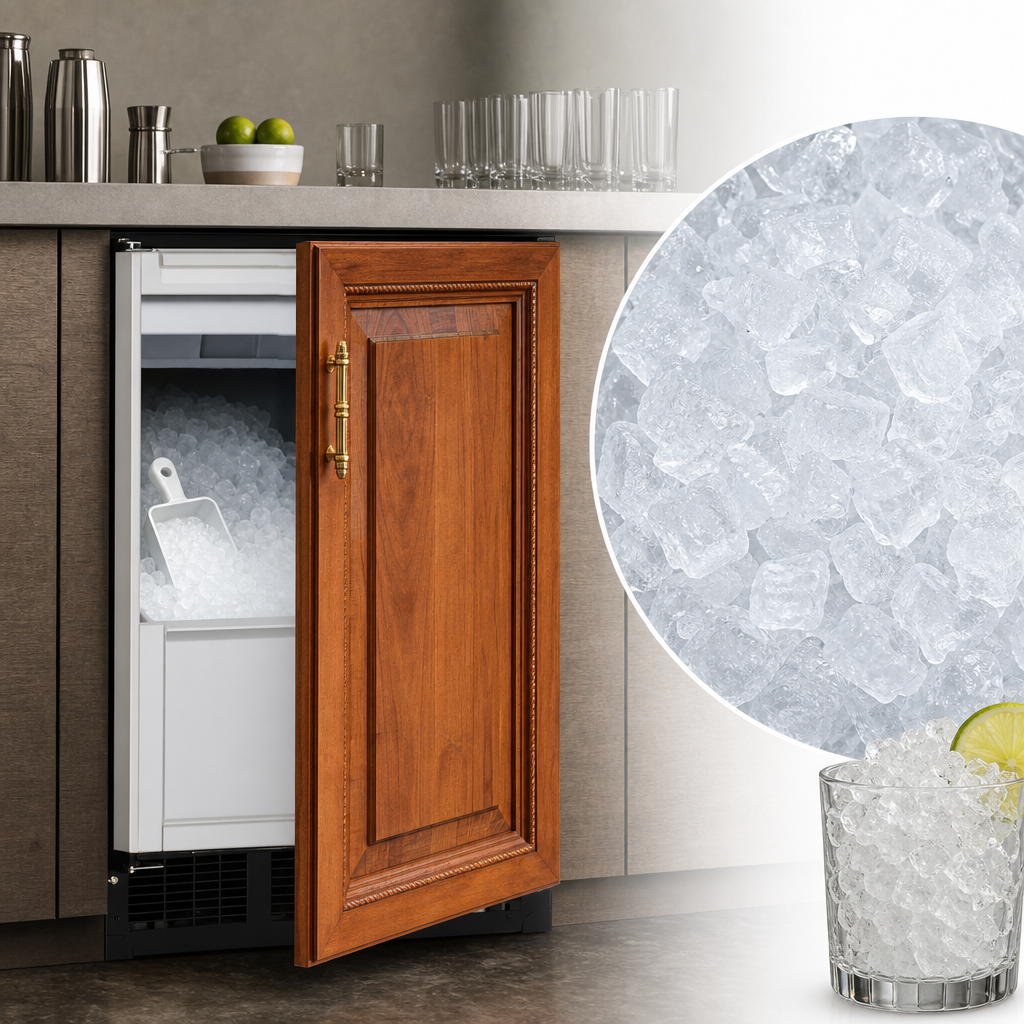

Nugget/Cubelet Ice Output

Produces soft nugget-style cubelet ice for beverage service.

Nugget/Cubelet Ice Output

Built-In 27 lb Storage Bin

Holds up to 27 lb. of ice in the integrated storage bin.

Up to 92 lb/Day Output

Delivers up to 92 lb. of ice production in 24 hours.

Customized Cabinet Door System

DS version is designed for customized cabinet door system integration.

Front In & Out Airflow

Front airflow helps support compact undercounter placement and proper ventilation.

Easy Service and Cleaning Access

Power switch is accessible without panel removal, and the water circuit disassembles for easier cleaning.

R290 Refrigerant and ENERGY STAR Qualification

Uses environmentally friendly R290 hydrocarbon refrigerant and is ENERGY STAR qualified.

Cord and Plug Included

Includes a 6 ft. cord with NEMA 5-15P plug for electrical connection.

UL Approved for Outdoor Use

Documented as UL approved for outdoor use.

Type Self-Contained Ice Machine with Built-In Storage Bin
Style Nugget
Installation Type Undercounter
Refrigeration Type Self-Contained
Capacity 27 lb.
Ice Production per 24 Hours 92 lb. per 24 Hours
Voltage 115 Volts
Amps 2.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Refrigerant Type R290 Hydrocarbon
Material Stainless Steel
Finish Stainless Steel
BTU 1,400 BTU/hr
Water Connection Required
Drain Connection Required
Water Inlet Size 1/2 Inch FPT
Drain Connection Size 1/2 Inch FPT
Shipping Width 20.75 Inches
Shipping Depth 30.5 Inches
Shipping Height 40 Inches
Shipping Weight 134 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified

Warranty & Protection

2-year parts and labor.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It produces nugget-style cubelet ice.
Up to 92 lb. per 24 hours.
Up to 27 lb. of ice.
115V/60/1-ph, 2.8 amps, with a 6 ft. cord and NEMA 5-15P plug.
DS denotes the customized cabinet door system version.
Yes. The power switch is accessible without panel removal, and the water circuit can be easily disassembled for cleaning.
