Manitowoc

Manitowoc NEO Undercounter Dice Cube Ice Machine with 31 lb Storage Bin and 62 lb/Day Production

SKU: UDP0065A
$2,494.13
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Machines & Ice Equipment Ice Machines with Bins Ice Makers & Bins Manitowoc New Arrivals Refrigeration, Freezing & Ice Restaurant Equipment

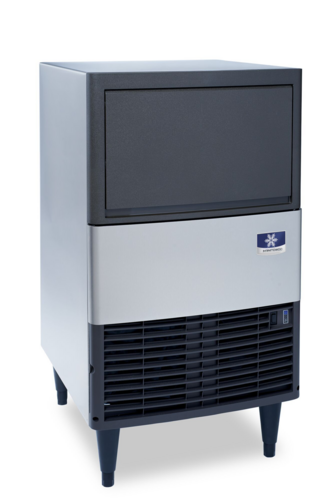

Manitowoc NEO Undercounter Dice Cube Ice Machine with 31 lb Storage Bin and 62 lb/Day Production

Air-Cooled, R290 Refrigerant, 115V

Compact undercounter ice machine that delivers dice cube ice, built-in storage, and front-access maintenance in one space-saving cabinet.

  • Produces up to 62 lbs of ice per 24 hours at 70°F/50°F, with 48 lbs at 90°F/70°F.
  • Built-in bin stores up to 31 lbs of ice for quick service.
  • Makes 7/8-inch dice cube ice.
  • Front ventilation and a removable slide-out air filter support undercounter installation and easy upkeep.
  • On/off/clean selector switch keeps daily operation simple from the front panel.
  • 115V, 1-phase power with a NEMA 5-15P plug and 6-foot cord.

Overall Dimensions:

19.69"W x 22.34"D x 36.0"H

Product Weight:

109.0 lb

Dice Cube Ice Shape

Produces 7/8-inch dice cubes for beverage service and quick cooling.

Daily Ice Production

Rated for up to 62 lbs of ice per 24 hours at 70°F ambient / 50°F water; 48 lbs at 90°F ambient / 70°F water.

Ice Storage Bin

Built-in bin holds 31 lbs of ice so service ice is ready when needed.

Front Ventilation

Front air flow supports installation under counters or beside other equipment.

Tool-Free Air Filter

Removable slide-out filter helps protect the condenser and makes cleaning easier.

On/Off/Clean Controls

Front selector switch lets operators start, stop, and clean the machine without removing the front panel.

R290 Refrigerant

Uses R290 refrigerant.

Indoor Installation Only

Designed for indoor use only.

Type Ice Machine
Style Dice Cube
Installation Type Undercounter
Refrigeration Type Air-Cooled
Refrigerant Type R290
Ice Production Per 24 Hours 62 lbs/24 Hours
Ice Storage Capacity 31 lbs
Controls On/Off/Clean Switch
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 2.6 Amps
Plug Type NEMA 5-15P
Cord Length 6 Feet
Water Inlet Size 3/4 Inch MPT
Drain Connection Size 5/8 Inch ID
Water Connection Required
Drain Connection Required
Finish Stainless Steel
Shipping Width 20 Inches
Shipping Depth 23 Inches
Shipping Height 36 Inches
Shipping Weight 109 lbs
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited commercial warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It makes dice cube ice in a 7/8-inch shape.
It produces up to 62 lbs per 24 hours at 70°F/50°F and stores up to 31 lbs of ice.
The standard electrical connection is 115/60/1 with a 6-foot cord and NEMA 5-15P plug. A 230/50/1 option is also available.
It requires a 3/4-inch MPT water inlet and a 5/8-inch ID drain connection.
Five inches of clearance is recommended for the top, sides, and back, although no minimum clearance is required.
Yes. The unit is intended for indoor installation only.
