Customize Hoshizaki Model no. C-80BAK-AD

Configuration
Accessories
Review
0 selected · total
$4,620.00
Hoshizaki

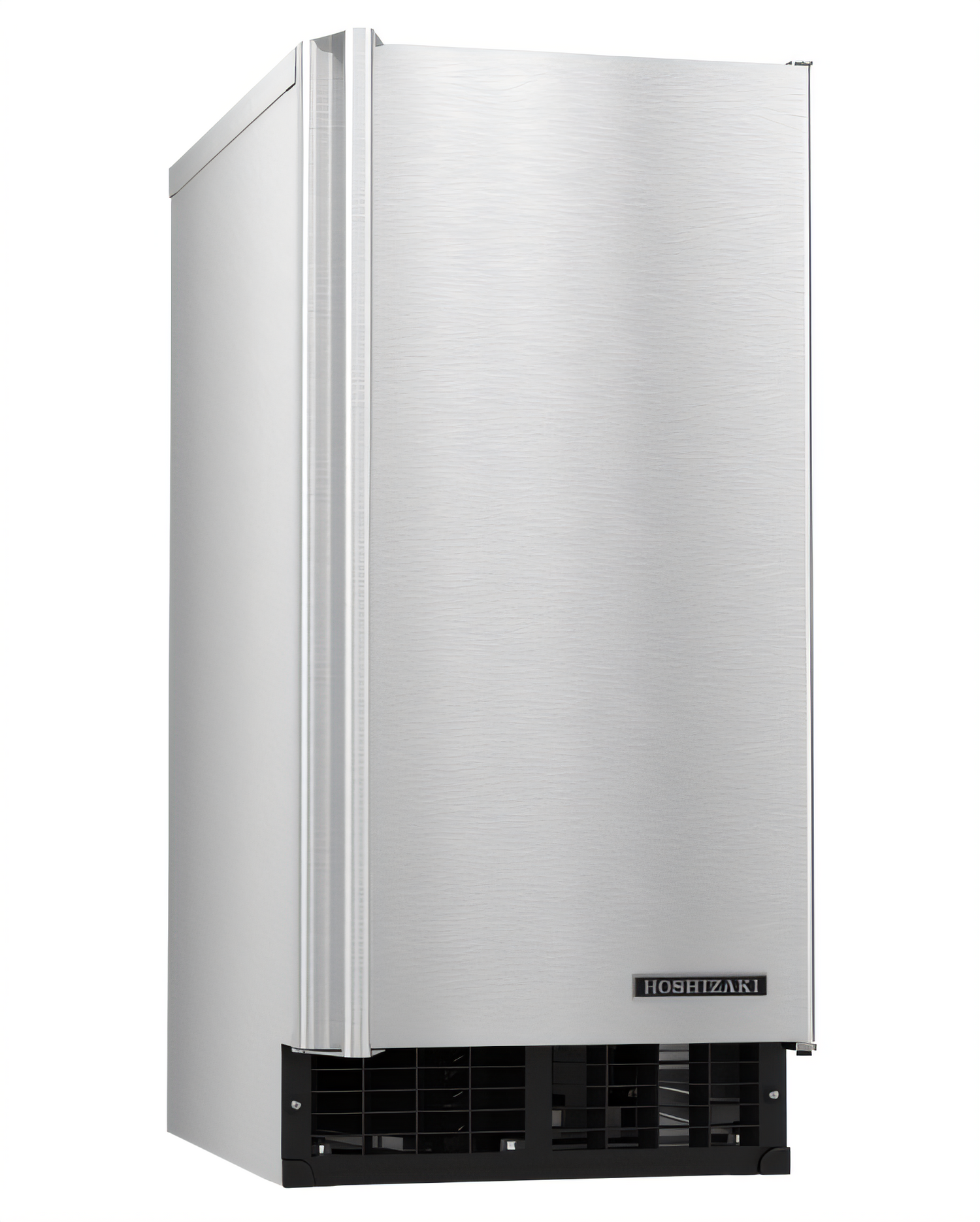

Hoshizaki C-80BAK-AD ADA-Compliant Undercounter Nugget Ice Machine with Built-In Bin, Air-Cooled, 27 lb Storage, 92 lb/24 hr

SKU: C-80BAK-AD
$4,620.00
/each Configurable
Free Shipping
Alternative products
C-80BAK-AD Current product Current
C-80BAK Loading live product details…
C-80BAK-DS Loading live product details…
C-80BAK-ADDS Loading live product details…
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Refrigeration, Freezing & Ice Reach-In Refrigerators & Freezers Undercounter, Worktop & Countertop Refrigeration Refrigerated Prep Tables & Cold Food Stations Merchandising & Display Refrigeration Bar, Beverage & Wine Cooling Walk-In Coolers & Freezers Chest, Glass-Door & Specialty Freezers Blast Chillers & Specialty Cooling Frozen Dessert & Ice Cream Equipment

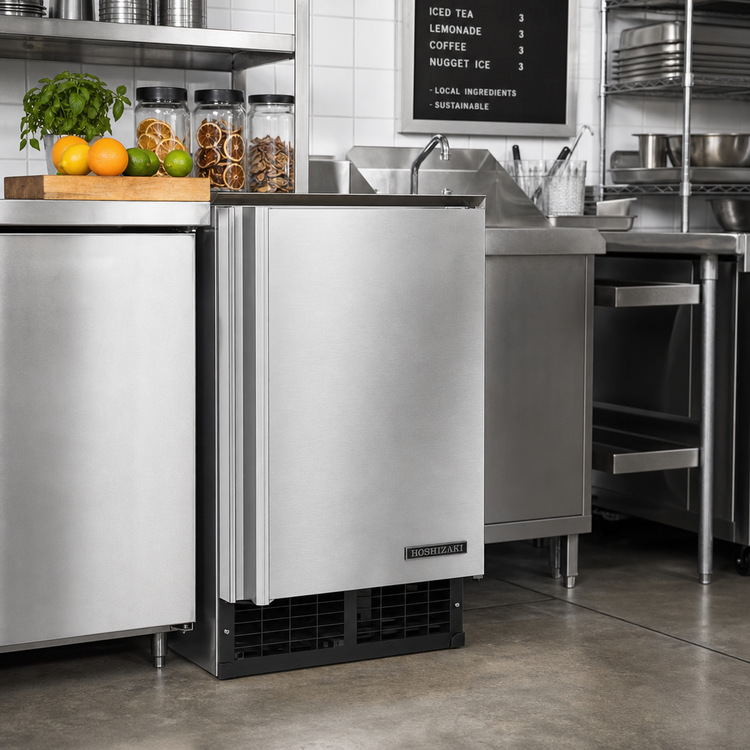

Hoshizaki C-80BAK-AD Air-Cooled ADA Compliant Undercounter Nugget Ice Machine with Built-In Bin

Self-Contained Refrigeration, 27 lb Storage, Up to 92 lb Per Day

This compact ADA-compliant undercounter ice machine produces nugget-style ice fast and stores it in a built-in bin for convenient service.

  • Produces up to 92 lb of nugget/cubelet ice per 24 hours.
  • Integrated bin stores up to 27 lb of ice.
  • ADA-compliant -AD model stands under 32 inches tall for lower-clearance installations.
  • Air-cooled, self-contained refrigeration uses R290 hydrocarbon refrigerant.
  • Front in/out airflow and an accessible power switch simplify installation and service.
  • Includes a 6 ft cord with NEMA 5-15P plug.

Overall Dimensions:

14.89"W x 22.5"D x 31.5"H

Product Weight:

125.0 lb

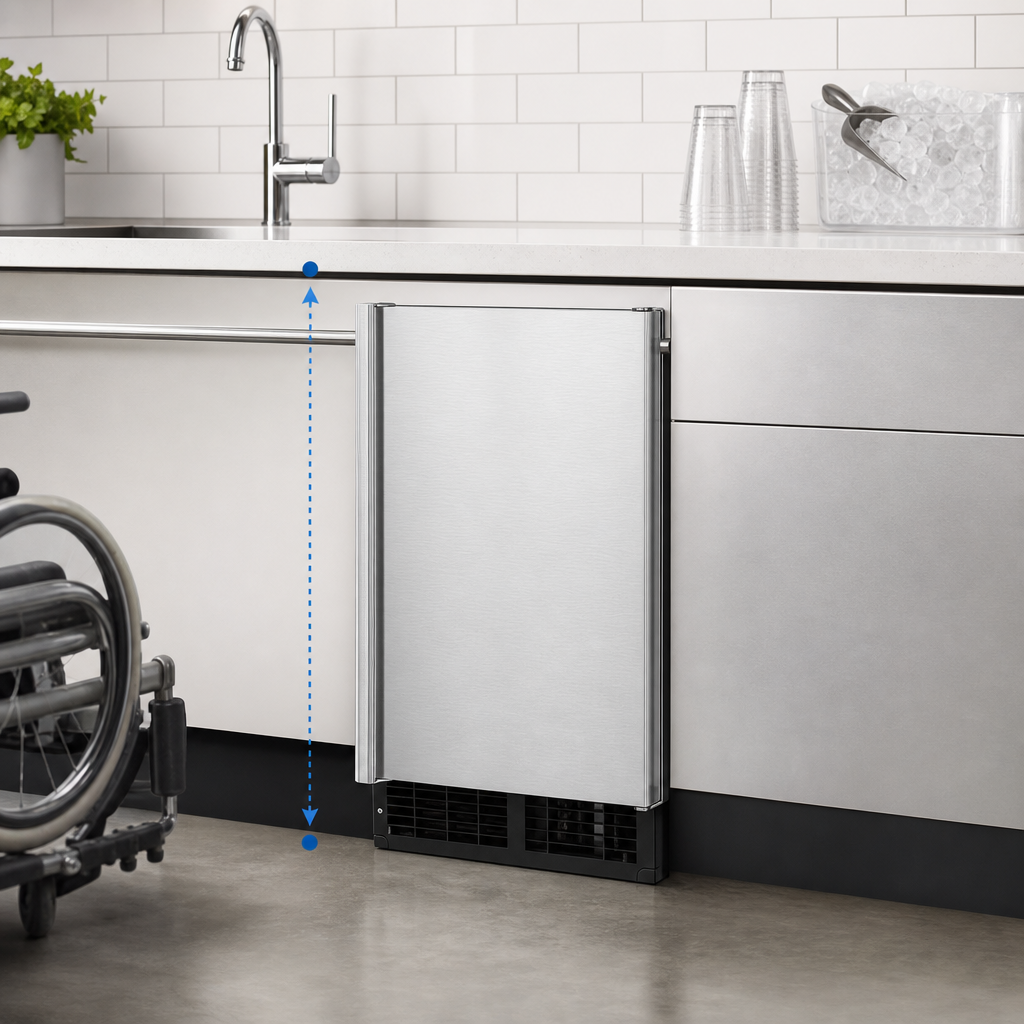

ADA-Compliant Height

The -AD configuration is less than 32 inches tall for ADA-compliant undercounter installation.

ADA-Compliant Height

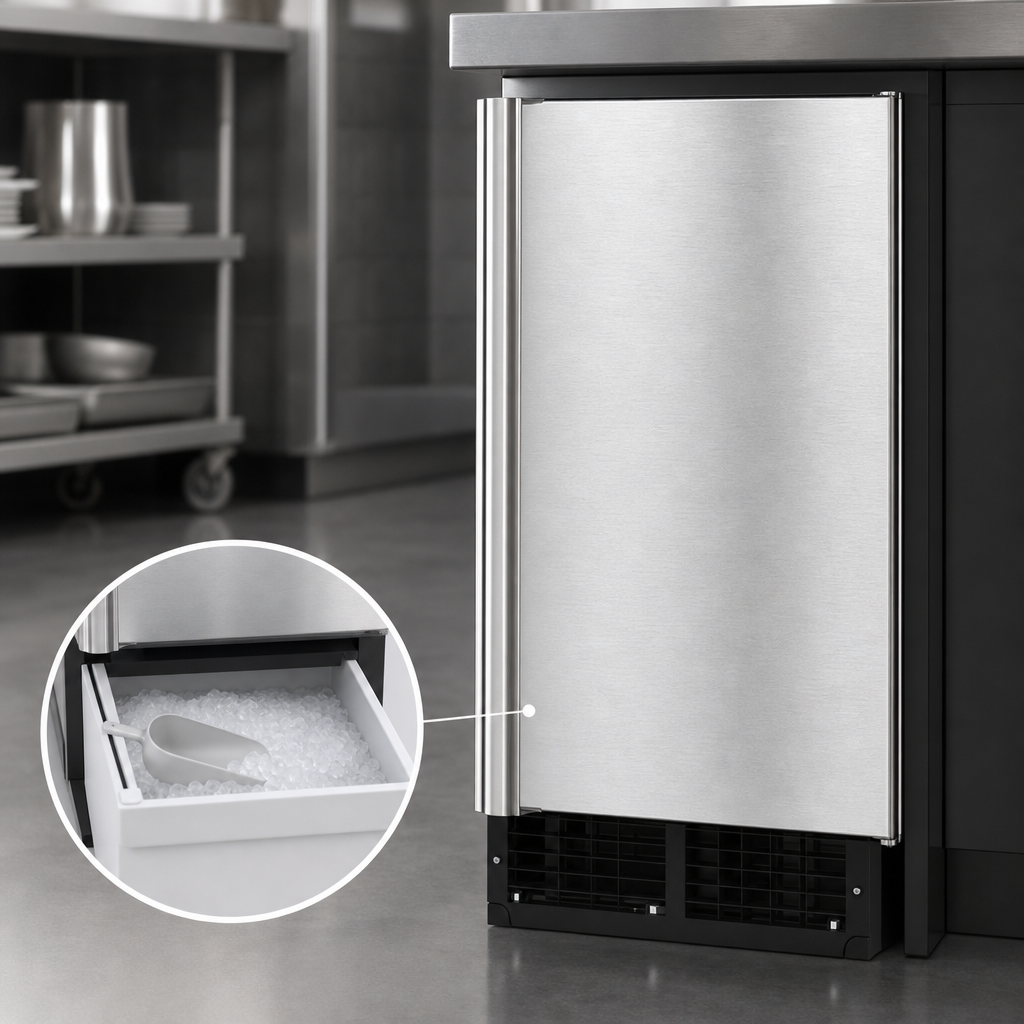

Built-In Storage Bin

Integrated bin holds up to 27 lb of ice.

Built-In Storage Bin

High Daily Ice Production

Produces up to 92 lb of ice per 24 hours.

Air-Cooled, Self-Contained Design

Compact refrigeration system designed for straightforward installation.

R290 Hydrocarbon Refrigerant

Uses an environmentally friendly natural refrigerant.

Front In & Out Airflow

Designed with front air intake and exhaust to support undercounter airflow.

Accessible Power Switch

Power switch can be reached without removing the front panel.

Full-Length Stainless Steel Door Handle

Durable handle provides a clean commercial appearance.

Easy-Clean Water Circuit

Water circuit can be disassembled for easier cleaning and maintenance.

Type Ice Machine with Built-In Storage Bin
Style Nugget-Style
Installation Type Undercounter
Refrigeration Type Self-Contained
Capacity 27 Pounds
Production Capacity 92 Pounds Per 24 Hours
Material Stainless Steel
Finish Stainless Steel
Refrigerant Type R290 Hydrocarbon
BTU 1,400 BTU/hr
Voltage 115 Volts
Amps 2.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Breaker Size 15 Amps
Width 20.75 Inches
Depth 30.5 Inches
Height 38 Inches
Weight 134 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

2-year parts and labor on the entire machine; 1-year parts and labor on the HS-5061 drain pump assembly.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. The -AD version is ADA compliant and less than 32 inches tall.
It produces up to 92 lb of ice per 24 hours.
The built-in storage bin holds up to 27 lb of ice.
It uses 115V/60Hz/1-phase power, draws 2.8 amps, and includes a cord with a NEMA 5-15P plug.
It produces nugget-style cubelet ice.
Allow enough rear clearance for water and drain connections and 15 inches of clearance in the front.
