Legion TWWT-60 Steam Kettles
Description

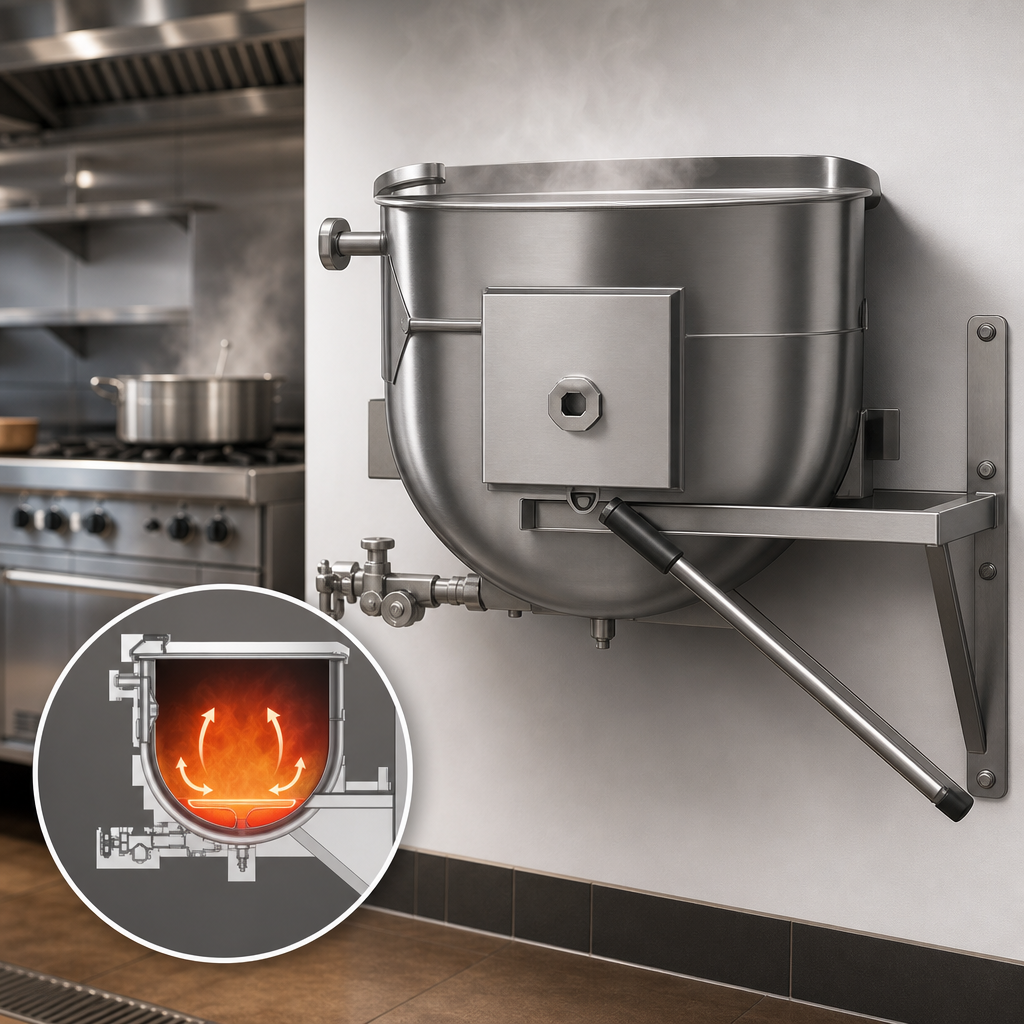

Legion TWWT-60 Direct-Steam Tilting Kettle
60 gal / 227 L • Wall-Bracket Mounted • Made in USAA true workhorse for commissaries, correctional kitchens, and high-volume foodservice, the TWWT-60 combines rugged 304 stainless construction with the speed and efficiency of direct steam. Mount it to any rated masonry or structural wall and enjoy smooth, self-locking tilting, easy cleanup, and reliable 30 psi operation meal after meal.
Why You’ll Love It
- Deep-drawn, seamless 304 stainless steel liner resists pitting and scorching.
- 2⁄3-jacketed design heats the entire sidewall for faster, more even cooking.
- Self-locking worm-gear tilt holds the kettle at any angle and prevents accidental movement.
- Reinforced 304 stainless gear box, support arms, and console for maximum durability.
- 30 psi operating pressure handles demanding production schedules.
- Wall-bracket mount frees up valuable floor space while keeping the pour path clear.
- ASME-code constructed & NSF listed for worry-free code compliance.
Technical Specifications
| Model | TWWT-60 |
|---|---|

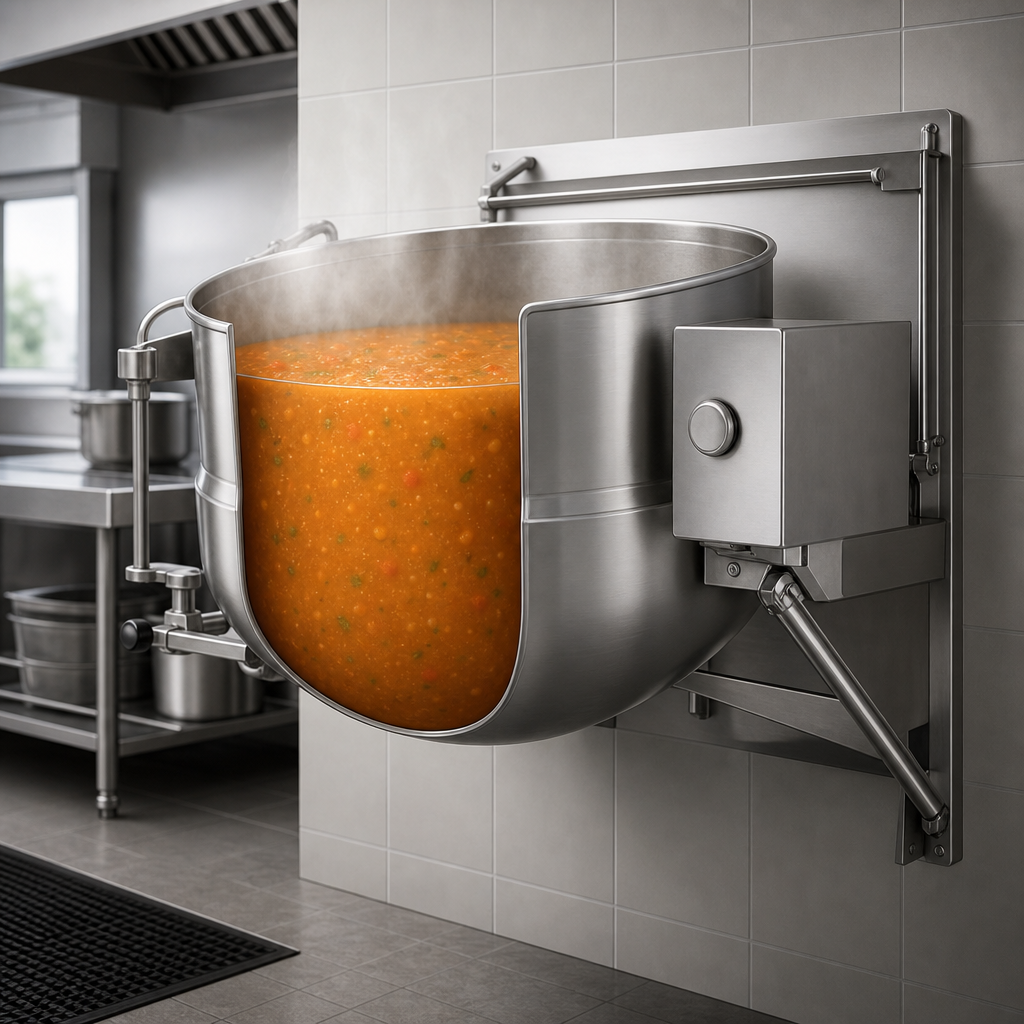

| Capacity | 60 gal | 227 L |
| Kettle Liner | Seamless deep-drawn 304 stainless steel |
| Jacket | 2⁄3 jacket, 304L stainless, ASME stamped 30 psi |
| Tilt Mechanism | Stainless steel, self-locking worm gear with hand crank |
| Mounting | Wall-bracket (in-wall carrier optional) |
| Steam Connections | ¾" NPT inlet • ½" NPT condensate outlet |
| Exterior Finish | Polished 304 stainless |
| Dimensions (in.)* | A 29.5 | B 25.0 | C 44.4 | D 19.6 | F 49.6 |
| Shipping Weight | Consult factory |
| Origin | Waynesboro, GA USA |
*See spec sheet for a complete dimensional diagram including pour path and mounting bolt pattern.
Included With Your Kettle
- Stainless steel control console with pressure gauge & steam valve
- Stainless seam-welded support arms
- Adjustable wall-mount bracket (hardware by installer)
- 12-month parts & labor warranty (15 months from ship date)
- Owner’s manual & installation guide
Factory-Installed Options
- Single or dual fill faucet (12" or 18" swing spout)
- 48" flexible spray hose (vinyl or stainless)
- 2" or 3" draw-off valve, compression or ball type
- Automatic water-fill meter
- Two-speed mixer/agitator
- Lift-off or actuator-assisted lid
- In-wall carrier for concealed mounting
Options must be ordered with the kettle and cannot be retro-fitted in the field.
