Legion TWWT-50 Steam Kettles
Description

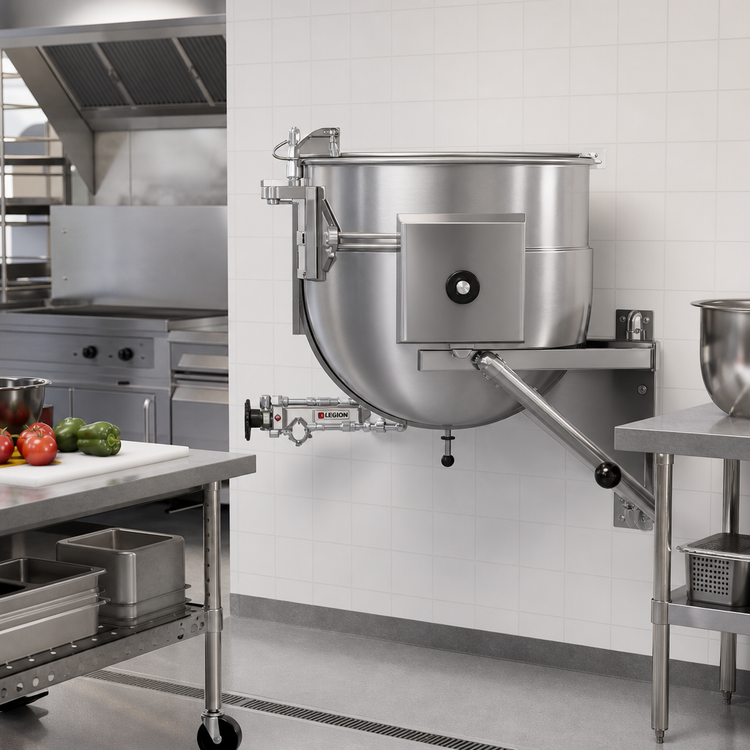

Legion TWWT-50 Direct Steam Tilting Wall-Mount Kettle
50 gal / 189 L • 2/3 Jacketed • Deep-Drawn 304 Stainless Steel • Made in USAEngineered for heavy-duty, high-volume kitchens, the Legion TWWT-50 gives you 50 gallons of precise, even heat with the convenience of a smooth, self-locking tilt. Seam-welded support arms anchor the kettle securely to the wall while freeing up valuable floor space—ideal for tight cooklines, prisons, schools, and commissaries that demand uncompromising durability and easy cleaning.
Why chefs choose the TWWT-50
- Deep-drawn, seamless 304 stainless steel liner resists pitting and is effortless to sanitize.
- 2/3-jacketed 304L stainless shell surrounds product for fast, uniform cooking without hot spots.
- Self-locking worm-gear tilt lets one person pour safely at any angle—no drift, no counterweights.
- 30 psi operating pressure delivers rapid heat-up for soups, sauces, stocks, pasta & more.
- Reinforced stainless gear box built for years of smooth, reliable service.
- Wall-mount design frees floor space and simplifies hose-down cleanup underneath the cook station.
- Built to comply with ASME, NSF, UL, ETL and other applicable standards.
Technical specifications
| Model | TWWT-50 |
|---|---|
| Capacity | 50 gal | 189 L (working) |
| Construction | Seamless deep-drawn 304 stainless steel kettle liner |
| Jacket | 2/3 jacket, deep-drawn 304L stainless; 30 psi (206 kPa) |
| Mounting | 304 stainless wall-bracket with seam-welded support arms |
| Tilting | Manual self-locking worm-gear; stainless reinforced gear box |
| Steam connections | ¾ in. NPT inlet | ½ in. NPT condensate outlet |
| Key dimensions* |
Diameter (A): 29.5 in. Depth (C): 41.1 in. Height to rim (F): 49.6 in. Minimum pour path (X): 26.9 in. |
| Origin | Waynesboro, Georgia, USA |
*See specification drawing for complete dimensional data.
Popular options & accessories
- 2 in. or 3 in. compression or ball-type draw-off valve
- Single or dual water fill faucet with 12 in./18 in. swing nozzle
- 48 in. flexible spray hose (vinyl or stainless)
- Two-speed mixer/agitator assembly
- Lift-off or actuator-assisted hinged cover
- In-wall carrier, lockable lid & other security packages
- Basket, tri-basket, or nylon bag inserts for bulk cooking
- Kettle care & cleaning kit
