Legion TWWT-30 Steam Kettles
Legion TWWT-30 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Legion TWWT-30 Steam Kettles
Description

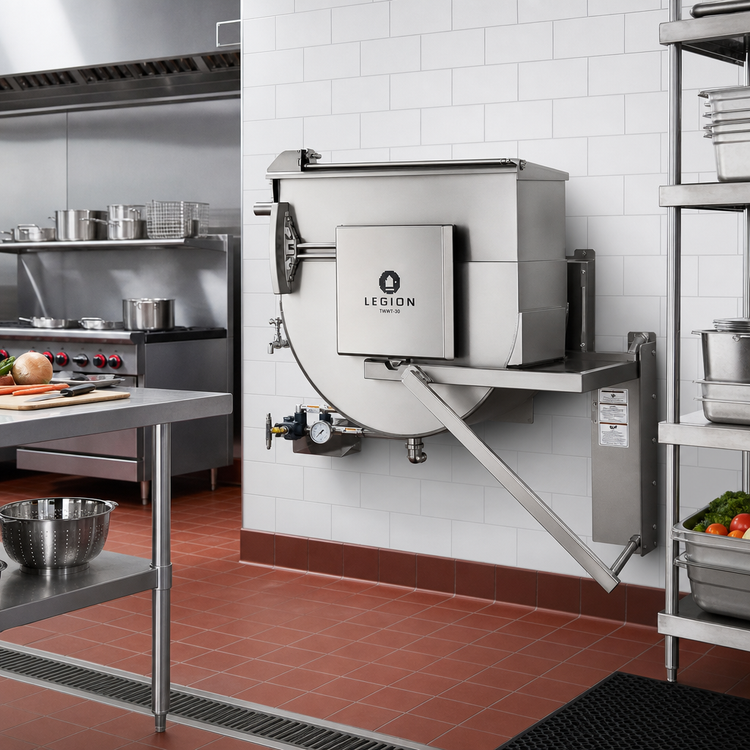

Legion TWWT-30 Direct Steam Tilting Wall-Mount Kettle
30 gal / 114 L • 2/3-Jacket • 304 Stainless Steel • 30 psiBuilt in the USA for uncompromising productivity, the Legion TWWT-30 combines seamless 304 stainless construction with a smooth, self-locking worm-gear tilt. When floor space is tight but high-volume, scratch-free cooking is non-negotiable, this wall-bracket mounted kettle is the solution chefs trust.
Why You’ll Love It
- Seamless deep-drawn 304 stainless kettle liner for maximum sanitation and easy cleaning.

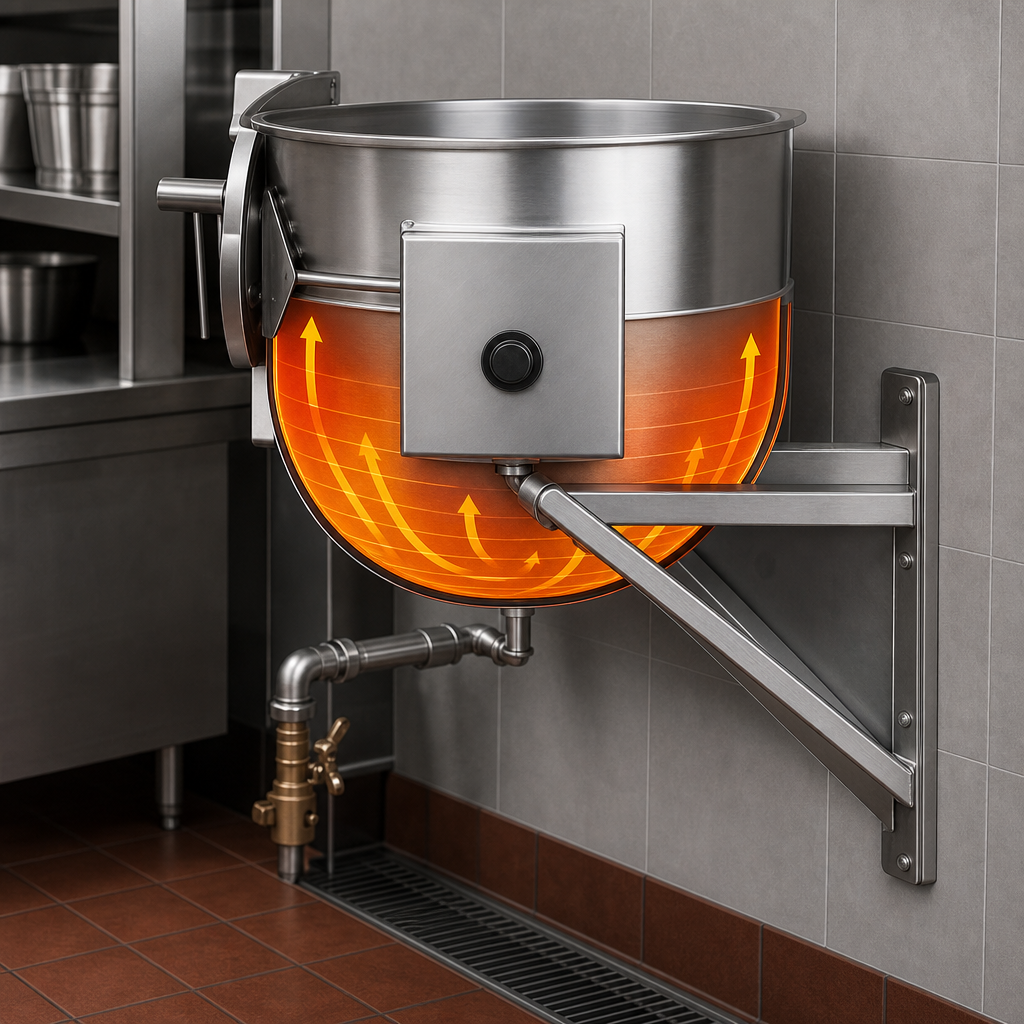

- 304L stainless 2/3 steam jacket delivers even heat distribution and rapid recovery.
- Self-locking worm-gear tilting mechanism—smooth, controlled pour with positive stop at any angle.
- Reinforced, stainless control console & gear box engineered for years of heavy-duty service.
- Stainless support arms seam-welded to the jacket for rock-solid wall mounting.

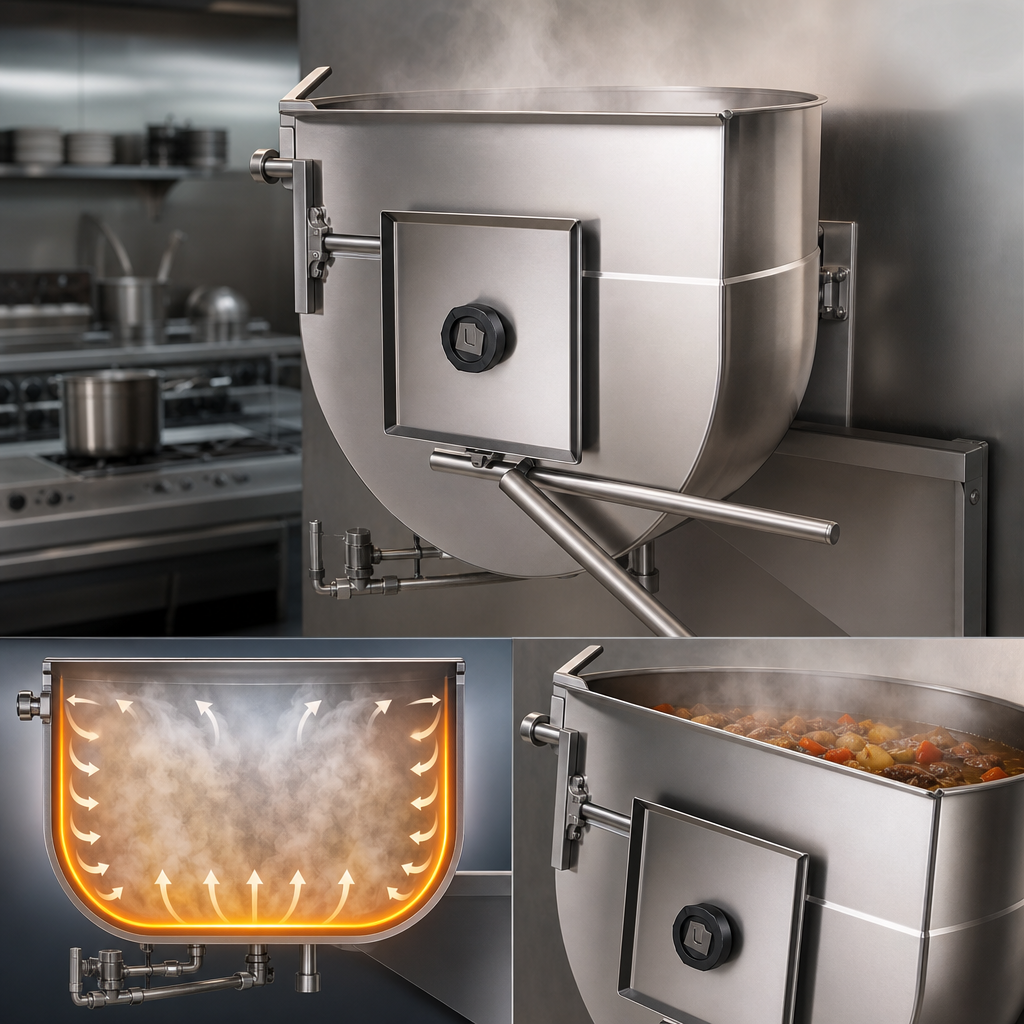

- Designed for 30 psi operating pressure—perfect for direct plant steam systems.
- Manufactured to meet or exceed ASME & NSF standards.
- Made in Waynesboro, Georgia, USA.
Technical Specifications
| Model | TWWT-30 |
|---|---|
| Capacity | 30 gal | 114 litres (working) |
| Kettle Interior | Seamless 304 stainless steel, polished finish |
| Steam Jacket | 2/3-jacketed, 304L stainless steel |
| Operating Pressure | 30 psi (2 bar) max |
| Mounting Style | Wall-bracket with welded stainless support arms |
| Tilting System | Manual, self-locking worm-gear with crank handle |
| Steam Inlet / Outlet | 3/4" NPT inlet • 1/2" NPT condensate outlet |
| Overall Width (A) | 23.0" / 584 mm |
| Overall Depth (B) | 20.3" / 516 mm |
| Overall Height (F) | 42.5" / 1 080 mm |
| Recommended Mount Height (T) | 7.3" / 185 mm from finished floor to lower wall plate hole |
| Minimum Pour Path (X) | 24.8" / 630 mm |
| Compliance | ASME, NSF, UL, ETL, CSA |
| Country of Origin | United States |
Popular Factory Options
- Single or dual water fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose (vinyl or stainless)
- 2" or 3" draw-off valve (compression or ball type)
- Automatic water-metering system
- Higher operating pressure jacket
- Mixer/Agitator, 2-speed
- Lift-off or actuator-assisted cover
Note: Options are factory-installed and must be specified at time of order.
Warranty
Legion backs every kettle with a 12-month parts & labor warranty (15 months from ship date). Extended warranty plans are also available.
