Legion TWWT-100 Steam Kettles
Description

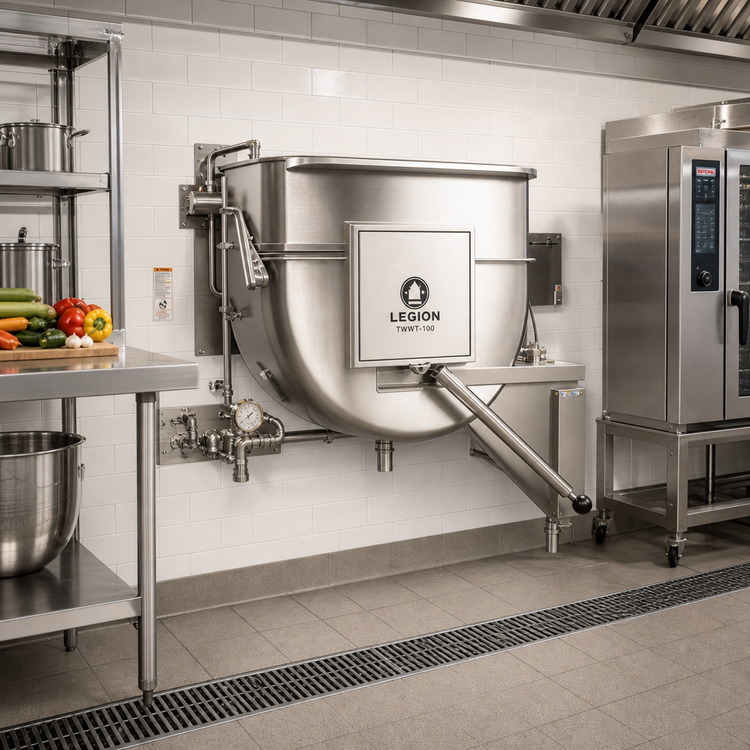

Legion TWWT-100 Direct Steam Tilting Wall-Mount Kettle
100 gal / 379 L • 2/3-Jacketed • 30 psi Operating PressureBuilt for high-volume, high-efficiency production kitchens, the Legion TWWT-100 delivers 100 gallons of consistent, even heating in a space-saving wall-mount configuration. Deep-drawn 304 stainless construction, a steam-powered 2/3 jacket and a self-locking worm-gear tilt mechanism combine for rugged durability and effortless portion-controlled pouring.
Why choose the TWWT-100?

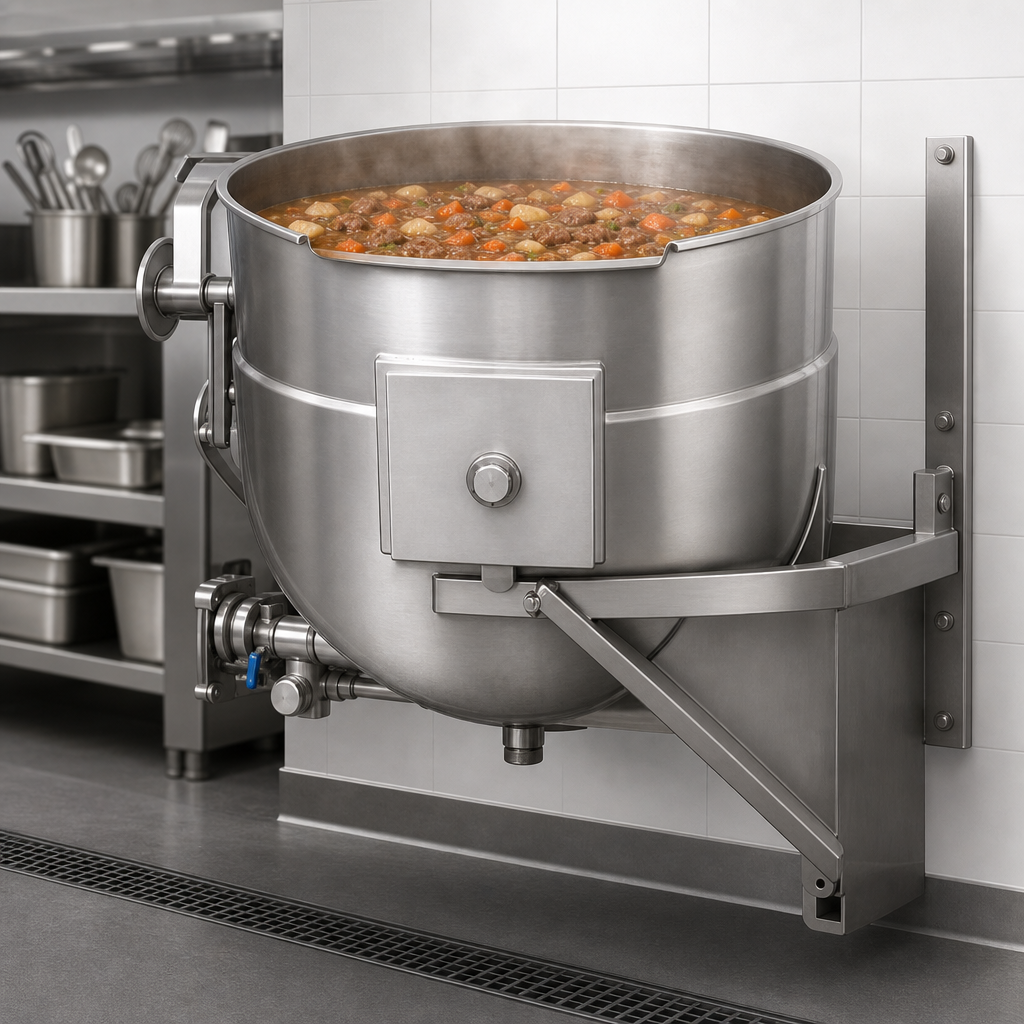

- 100 gallon / 379 liter working capacity – ideal for soups, sauces & bulk batch cooking
- Seamless deep-drawn 304 stainless steel liner for superior sanitation and easy cleaning

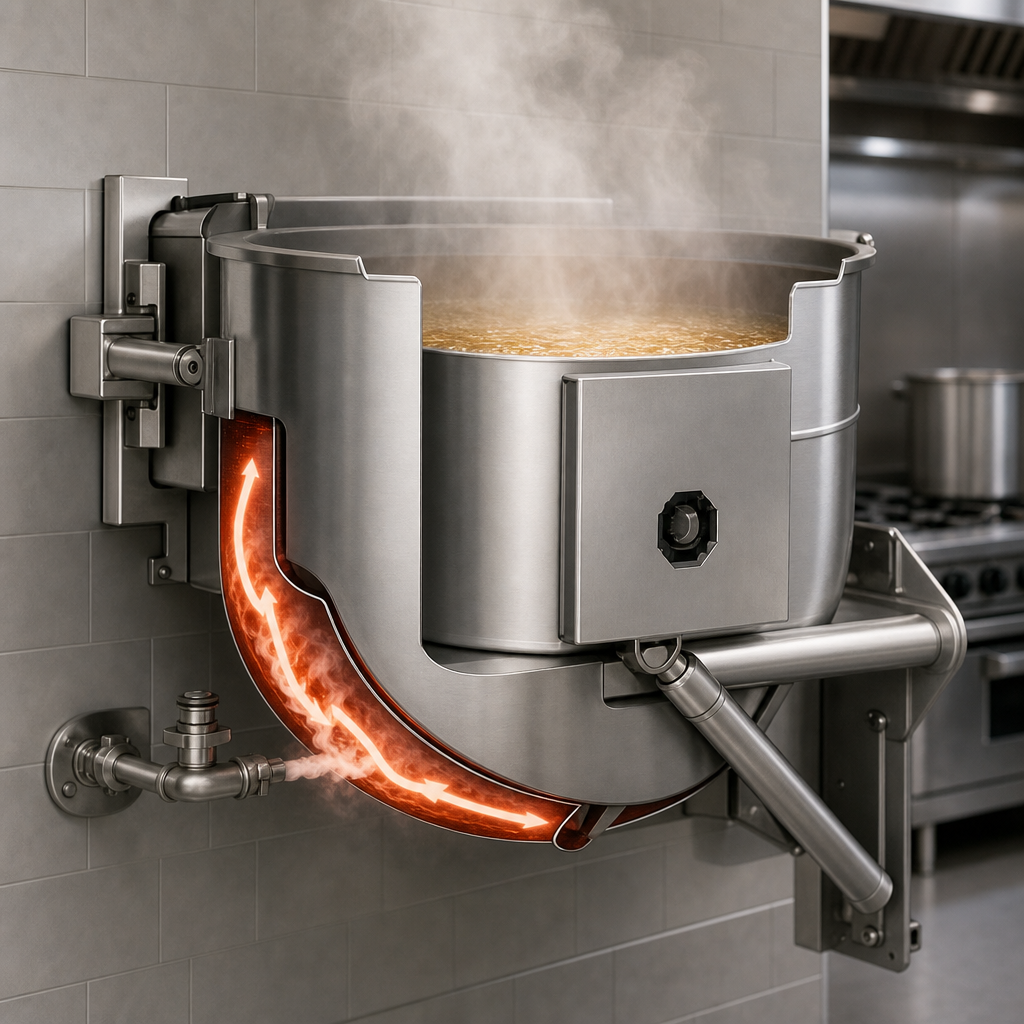

- 2/3 jacketed design delivers rapid, uniform heat transfer while minimizing hot spots
- 30 psi direct-steam rating handles demanding production cycles
- Self-locking worm-gear tilt with reinforced gearbox gives smooth, controlled pour at any angle
- Heavy-duty 304 stainless support arms seam-welded to jacket for rock-solid wall mounting
- Made in the USA and built to applicable ASME & NSF standards
Technical Specifications
| Model | TWWT-100 |
|---|---|
| Capacity | 100 gal / 379 L (liquid working volume) |
| Kettle Construction | Seamless deep-drawn 304 stainless steel liner with 304L stainless jacket |
| Jacket Coverage | 2/3 kettle body |
| Operating Pressure | 30 psi direct steam |
| Tilt Mechanism | Self-locking stainless worm-gear with reinforced gearbox |
| Mounting Style | Wall-bracket (in-wall carrier optional) |
| Steam Connections | ¾" NPT inlet / ¾" NPT outlet |
| Overall Dimensions (inches) |
A 39.0 | B 25.9 | C 44.3 | D 25.1 | F 58.8 O 30.0 | P 27.0 | S 17.8 | X 35.4 | Z 46.0 |
| Compliance | ASME, NSF; built to UL, ETL, AGA, CSA standards where applicable |
| Origin | Waynesboro, Georgia USA |
H-dimension varies with selected draw-off valve size. Consult installation guide for exact mounting height (dimension “T”).
Factory Options & Accessories
- 2″ or 3″ compression or ball-type draw-off valve
- Single / dual fill faucets with 12″ or 18″ swing nozzle
- 48″ flexible spray hose assembly (vinyl or stainless)
- Automatic water fill meter
- Mixer/Agitator – 2 speed
- Lift-off or actuator-assisted cover, basket inserts & pour-lip pan holder
Warranty
Legion backs the TWWT-100 with a 12-month parts & labor warranty from date of installation (15 months from shipment). Extended coverage is available.
