Legion TWSWT-40 Steam Kettles
Description
Legion TWSWT-40 Direct Steam Tilting Wall-Mount Kettle – 40 Gal.
Built in the USA for high-volume commercial kitchens, the Legion TWSWT-40 delivers 40 gallons of fast, even cooking power in a compact wall-bracket package. A full 304 L stainless jacket surrounds a seamless 304 stainless kettle liner, while a self-locking worm-gear tilt lets one person portion or completely empty the kettle with confidence. Rated at 30 psi, this workhorse is ready for your central steam system.
Key Advantages
- 40 gal / 151 L capacity – ideal for stocks, sauces & batch cooking.

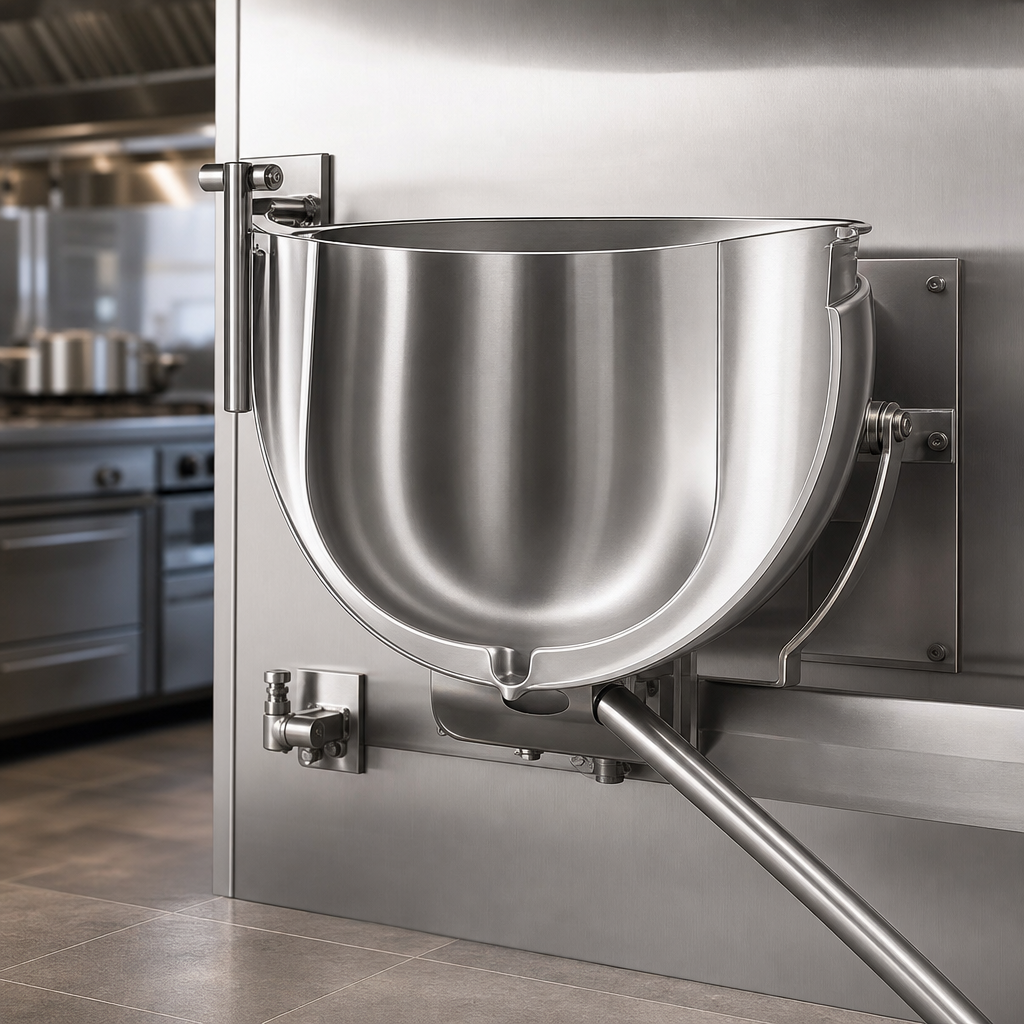

- Seamless deep-drawn 304 stainless liner for exceptional sanitation & easy cleaning.

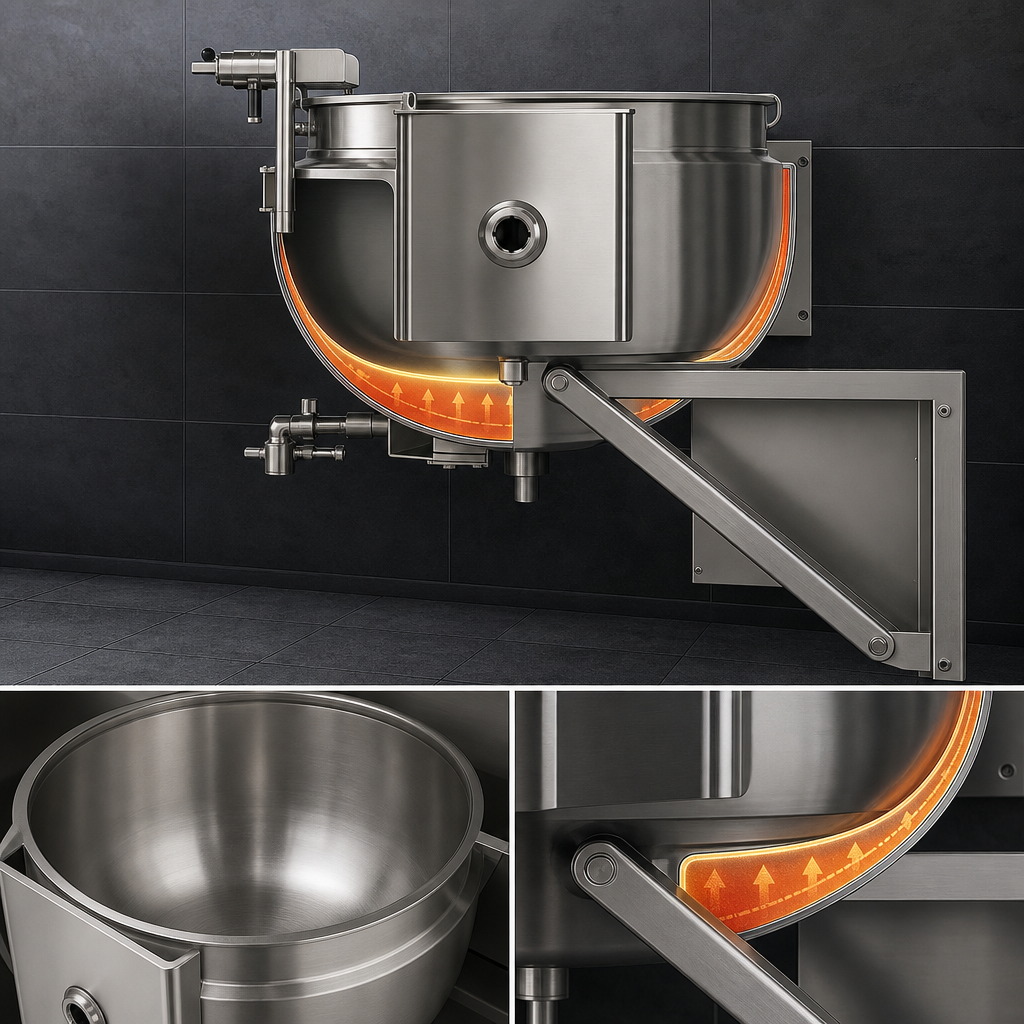

- Full 304 L stainless jacket ensures rapid, uniform heat transfer.
- Self-locking worm-gear tilt with reinforced gearbox prevents accidental pour-back.
- Wall-mount design frees up valuable floor space and simplifies cleaning below.
- Stainless support arms are seam-welded directly to the jacket for rock-solid stability.
- 30 psi operating pressure handles demanding production schedules.
- ASME & NSF compliant; manufactured and assembled in Waynesboro, GA.
Standard Features
- Direct steam, full-jacketed kettle (no internal boiler to maintain).
- Manual control console with ergonomic tilt handle.
- 3⁄4 in NPT steam inlet & 1⁄2 in NPT condensate outlet.
- Deep-drawn bowl with 2 in formed lip for clean, controlled pouring.
- Heavy-duty mounting flange and wall template for quick installation.
Technical Specifications
| Model | TWSWT-40 |
|---|---|
| Capacity | 40 gal | 151 L |
| Operating Pressure | 30 psi (207 kPa) max. |
| Liner Material | Seamless 304 stainless steel, deep-drawn |
| Jacket Material | 304 L stainless steel, full jacket |
| Mounting | Wall bracket with stainless seam-welded support arms |
| Tilt Mechanism | Manual, self-locking worm gear & reinforced gearbox |
| Steam Connection | 3⁄4 in NPT inlet | 1⁄2 in NPT outlet |
| Overall Width (F) | 49.6 in | 126 cm |
| Rim Diameter (A) | 29.5 in | 75 cm |
| Minimum Pour Path (X) | 25.6 in | 65 cm |
| Certifications | ASME, NSF (complies with applicable sections) |
| Country of Origin | USA |
Dimensions are nominal and subject to change. Consult engineering drawings for rough-in data.
Popular Options & Accessories (sold separately)
- Single or double fill faucet with 12 in / 18 in swing nozzle
- Flexible spray-hose assembly (vinyl or stainless)
- Air eliminator or pressure-reducing valve
- 2 in or 3 in draw-off valve with compression or ball-type fitting
- Lift-off or actuator-assisted cover
- Basket inserts, nylon bag kit & pour-lip pan holder
- In-wall carrier for concealed mounting
Warranty
Legion backs the TWSWT series with a 12-month parts & labor warranty (15 months from ship date when registered). Extended coverage is available.
