Legion TFN-10 Steam Kettles
$2,516.67
Unit price
/
Unavailable
Description

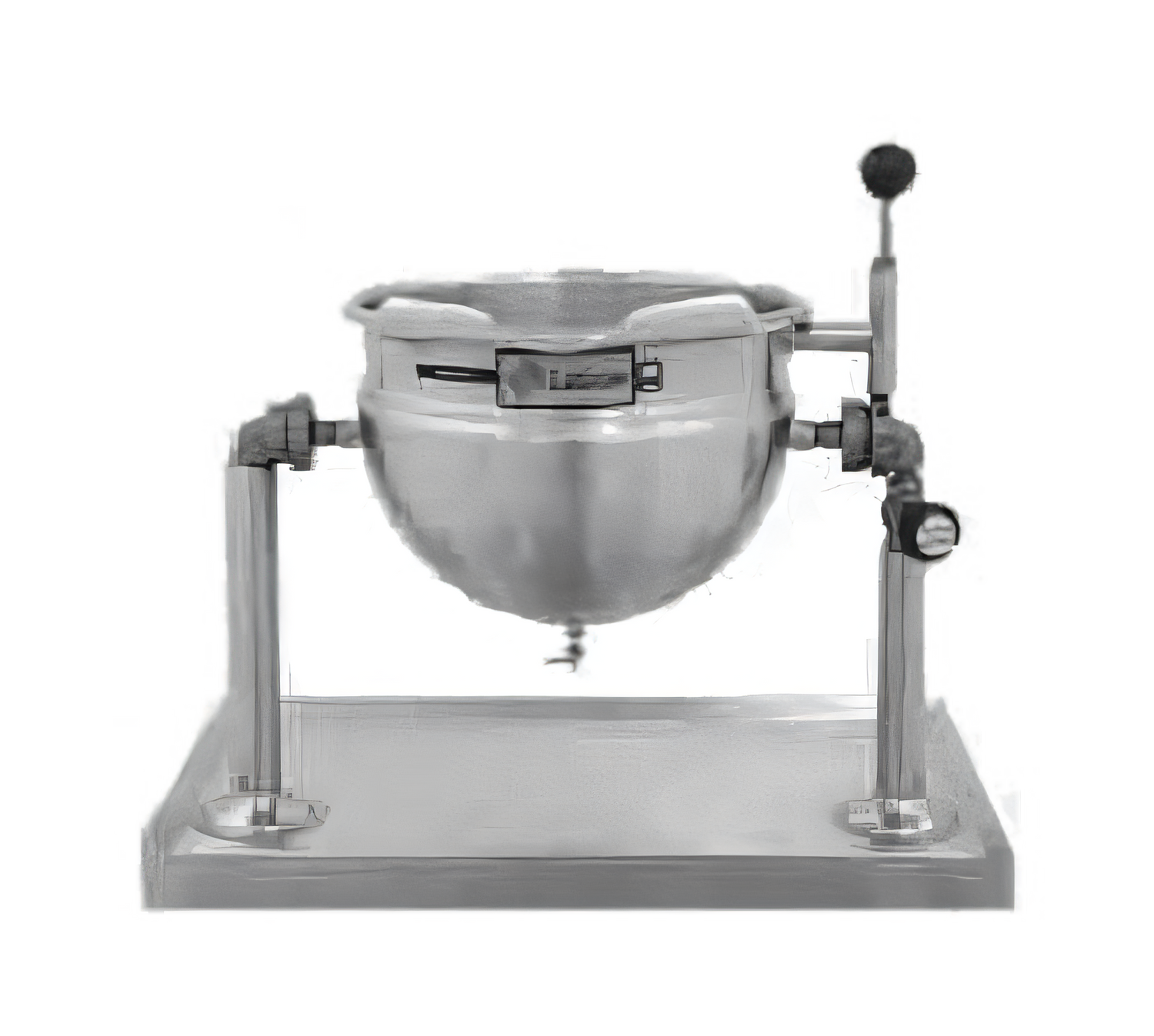

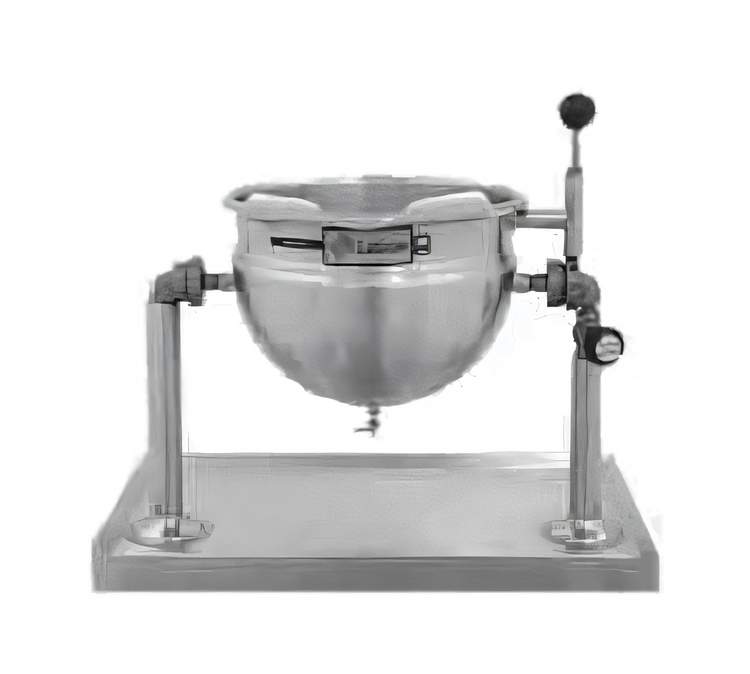

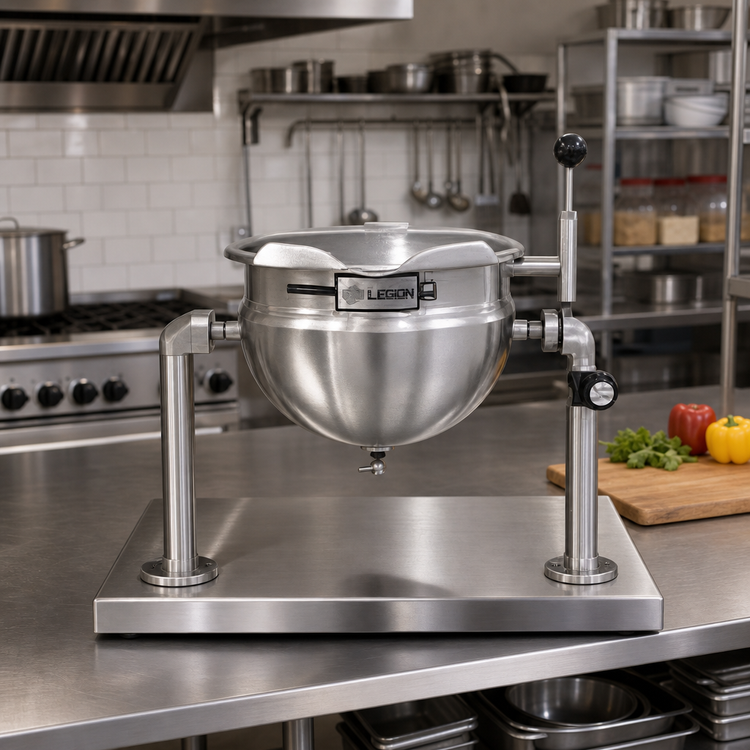

Legion 10-Qt Tilting Tabletop Direct-Steam Kettle
Model TFN-10 | 2/3-Jacketed • 30 PSI • Made in USAProduce small-batch soups, sauces and sides with powerhouse efficiency. The Legion TFN-10 combines a deep-drawn 304 stainless liner with a 2/3 steam jacket and a smooth tilting trunnion—delivering fast, uniform heat and effortless pour-off in a compact, table-mounted footprint.
Why You’ll Love It- 10 quart (9.5 L) capacity—ideal for à la minute & satellite production

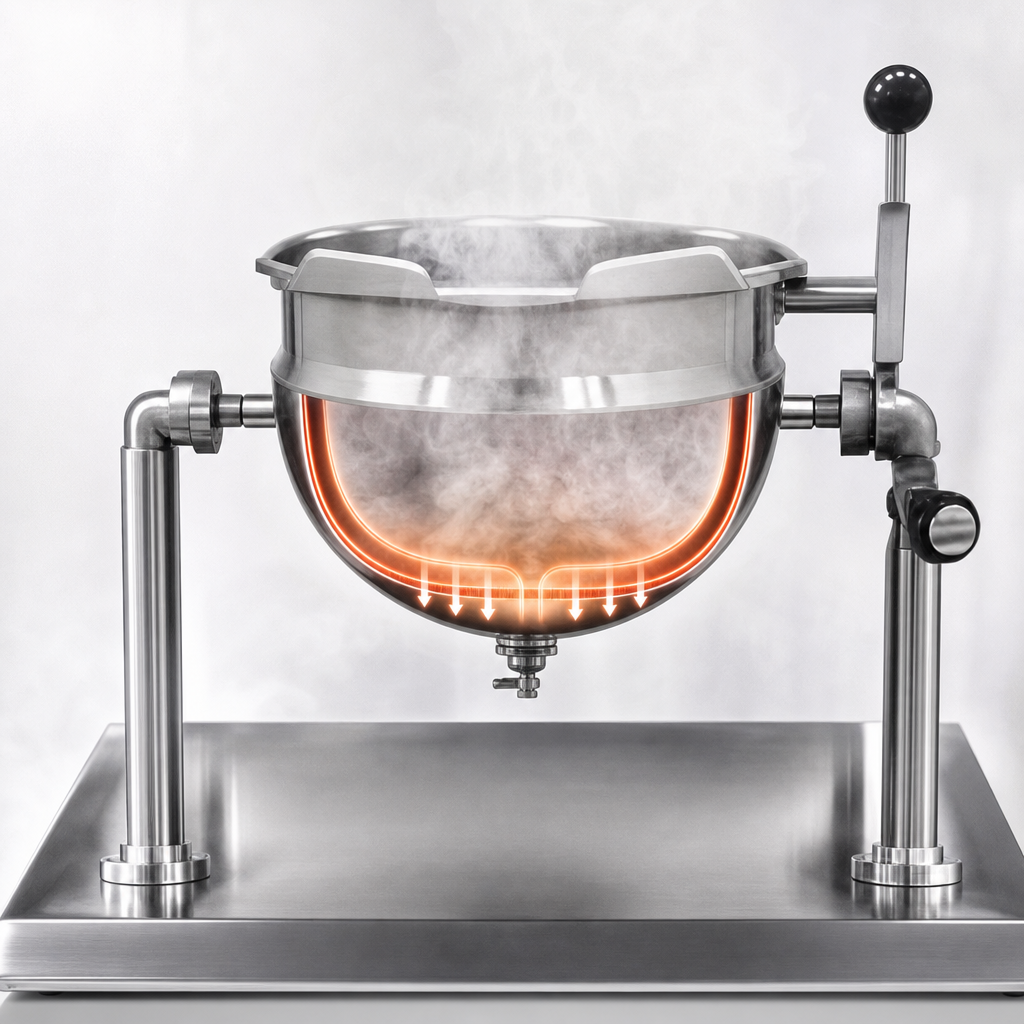

- 2/3-jacketed direct-steam design heats up to 190 °F/88 °C in minutes
- Seamless, deep-drawn 304 stainless kettle liner & 304L jacket resist pitting and make cleanup a breeze
- Heavy-duty 304 stainless support arms, base plate & trunnion housing for rock-solid stability

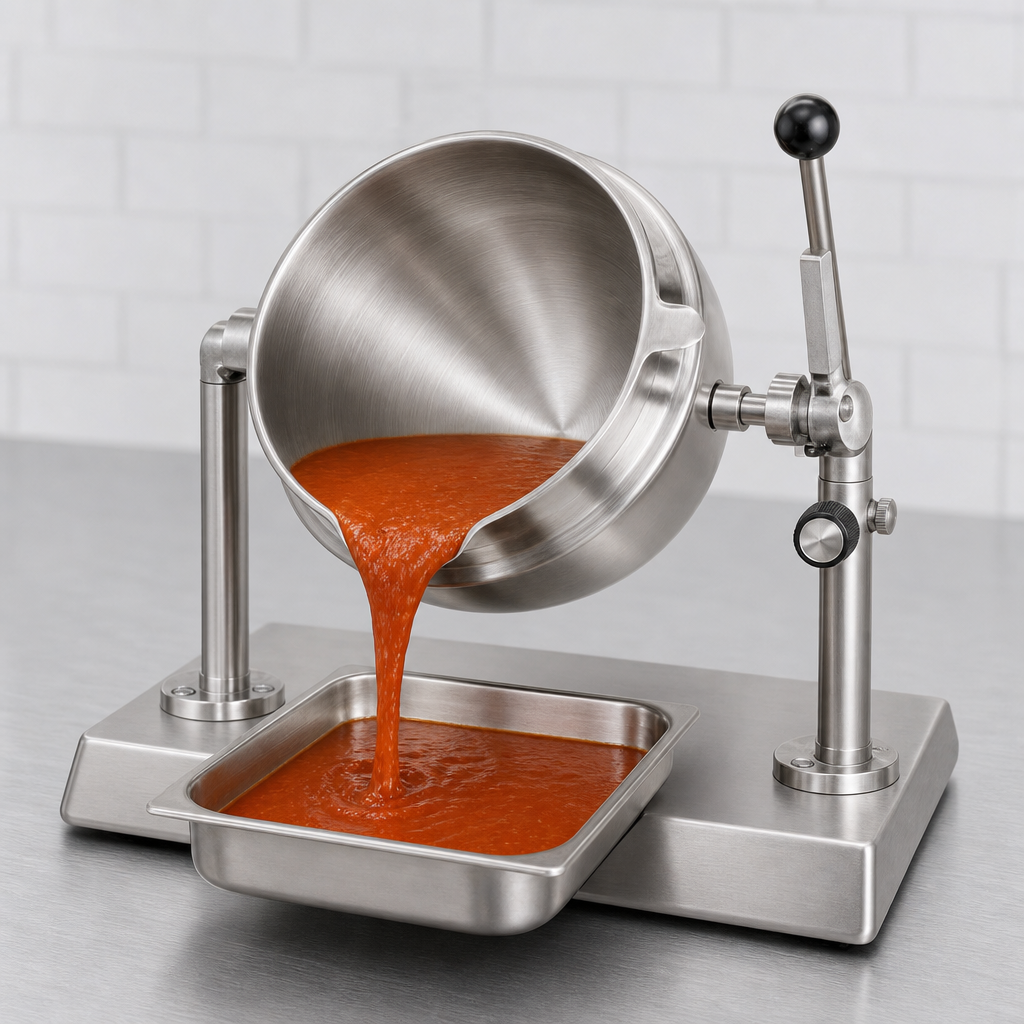

- Positive-lock tilting mechanism gives you precise, splash-free portion control
- Factory-mounted steam supply control valve for plug-and-play hookup
- Rated to 30 PSI operating pressure and built to meet or exceed ASME & NSF standards
| Capacity | 10 qt | 9.5 L |
|---|---|
| Jacket Type | 2/3 jacket, direct steam |
| Operating Pressure | 30 PSI (2.07 bar) |
| Construction | 304 stainless liner & jacket; 304 stainless arms, base & trunnion |
| Steam Inlet / Outlet | ½ " NPT (inlet & condensate outlet) |
| Bowl Diameter (A) | 10.0 in (254 mm) |
| Bowl Depth (B) | 10.0 in (254 mm) |
| Centerline Height (C) | 16.3 in (414 mm) |
| Overall Width (F) | 14.8 in (376 mm) |
| Overall Height (J) | 22.3 in (566 mm) |
| Mounting Footprint (L) | 7.5 in (191 mm) |
- Single or double fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose assembly (PVC or stainless)
- Automatic water-fill meter
- Lift-off cover (10 qt)
- L5C-1 stainless work table for single kettle mounting
- Care kit, nylon bag inserts & single steam basket
Backed by Legion’s 12-month limited parts & labor warranty. Extended coverage available—contact us for details.
Important: Unit requires a regulated 30 PSI direct-steam supply and
½ " NPT condensate return. Professional installation is recommended.
Features & Specs
Features & Specs
Manufacturer
Legion
Shipping Weight
83.0lbs
Kettle Jacket
partial jacket
Tilt type
single arm
Capacity
2-1/2 gal = 10 qt
Kettle Liner
stainless steel
Specifications
Kettle, Tilting Table Top, Direct Steam, 10 quart, 2/3 jacket, 304 stainless steel liner, support arms, with base plate and trunnion housing, stainless steel construction, 30 psi
