Legion LGB-30F Steam Kettles
Description
Legion LOW-RIM™ Self-Contained Gas Kettle – 30 Gal.
Model LGB-30F | 79,855 BTU Natural GasEngineered for high-volume, high-efficiency cooking, the 30-gallon Legion LOW-RIM™ stationary kettle delivers lightning-fast heat-up, uncompromising safety, and the rugged durability food-service professionals demand—all in a space-saving low-profile design that’s proudly made in the USA.
Why You’ll Love It

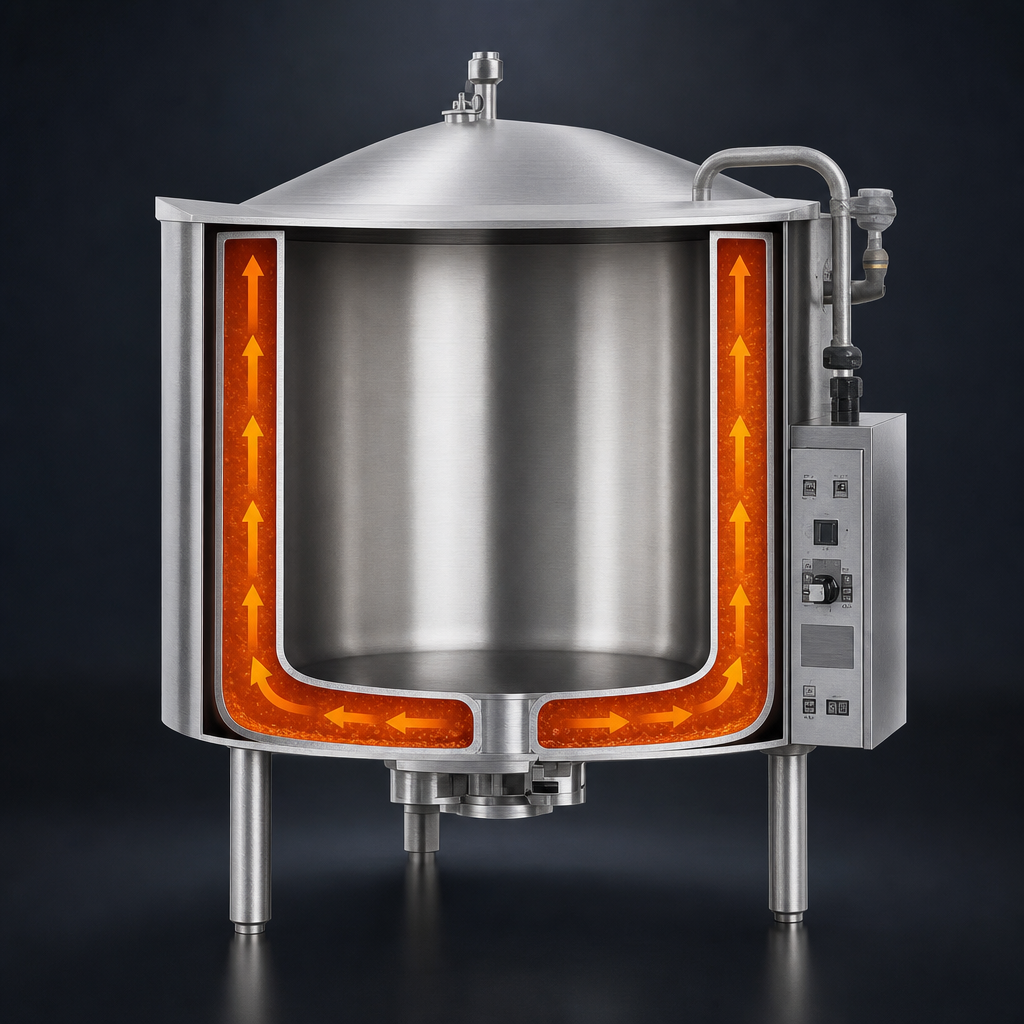

- Self-contained, full jacket: No external boiler required—just connect gas and power.

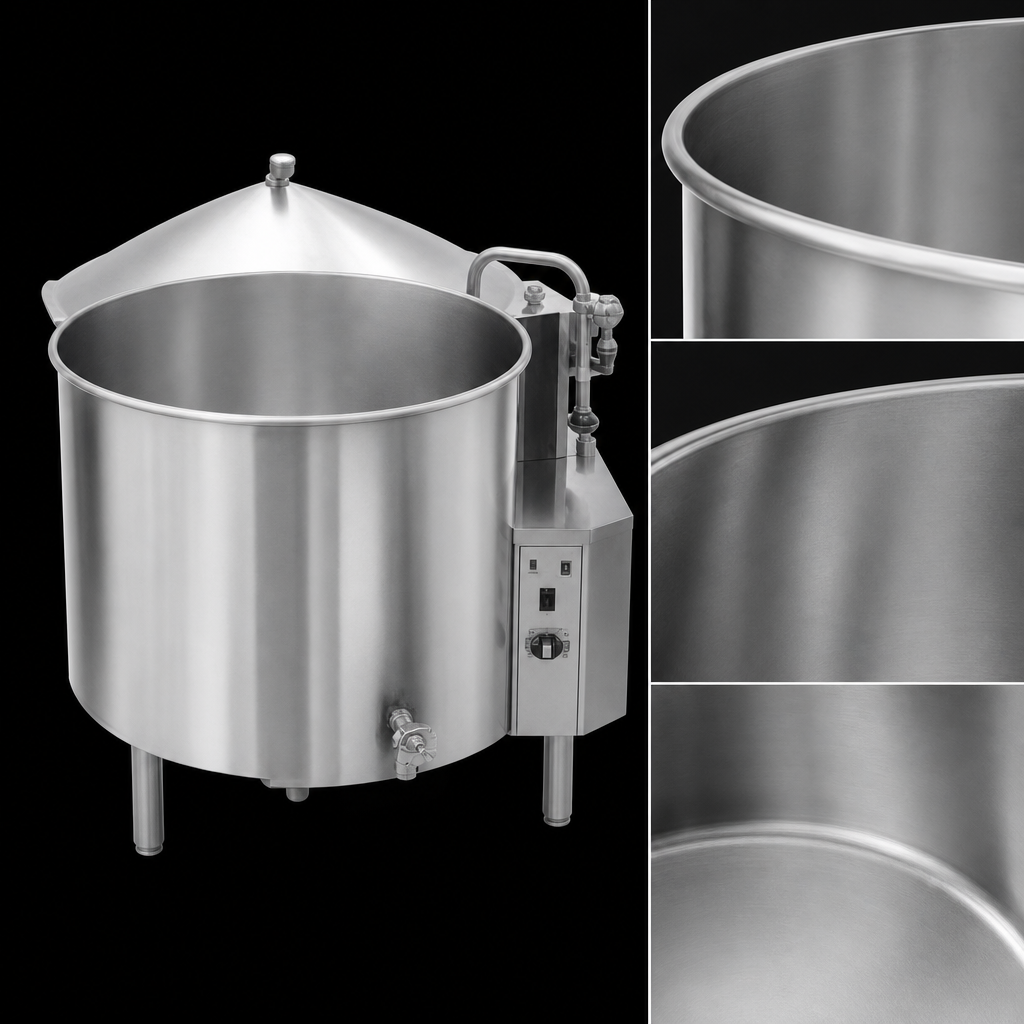

- Deep-drawn 304 stainless liner: One-piece seamless construction with an integrally formed radius lip for the ultimate in sanitation and strength.
- Complete kettle protection system: Thermostat (150 – 260 °F), pressure relief valve, air eliminator, pressure gauge, jacket-water sight glass, automatic low-water shut-off, and safety pilot control.
- Electronic ignition (120 V): Reliable push-button start—no standing pilot.
- Full-body insulation: Keeps heat where it belongs, lowers energy costs, and keeps the exterior cool to the touch.
- 2" 304 stainless compression draw-off valve: Fast, clog-free transfer of soups, sauces, stocks, and more.
- Adjustable stainless legs with bullet feet: Level installation on uneven floors.
- NSF, ASME & CSA compliant: Built to the latest food-service and safety standards.
Technical Specifications
| Capacity | 30 US gal | 114 L |
|---|---|
| Heat Source | Natural gas (propane model available) |
| BTU Rating | 79,855 BTU/hr |
| Operating Temp. Range | 150 °F – 260 °F (65 °C – 127 °C) |
| Ignition | Electronic spark, 120 V, 1 ph, 1 A |
| Draw-Off Valve | 2" compression, 304 stainless |
| Kettle Interior | Seamless 304 stainless steel |
| Jacket Material | 304L stainless, ASME-stamped, full coverage |
| Exterior Casing | 304 stainless, seam-welded |
| Gas Connection | ¾" NPT (natural) | ¾" NPT (propane) |
| Gas Supply Pressure | 5–7" W.C. (natural) | 12–14" W.C. (propane) |
| Made In | Waynesboro, GA USA |
Popular Options & Accessories
- Lift-off or two-piece hinged stainless cover
- 48" flexible spray hose (vinyl or stainless)
- Single or dual rinse faucets with 12" or 18" swing nozzles
- Electric timer with buzzer
- Gas quick-disconnect & flexible gas hose
- Tri-basket insert, measuring strip, or draw-off drain hose
Installation must comply with all applicable gas, electrical, and plumbing codes. A ¾" gas supply line and a 120 V receptacle (1 A) are required. For detailed dimensional drawings, please refer to the spec sheet in the “Downloads” tab.
