Legion LGB-125 Steam Kettles
Description

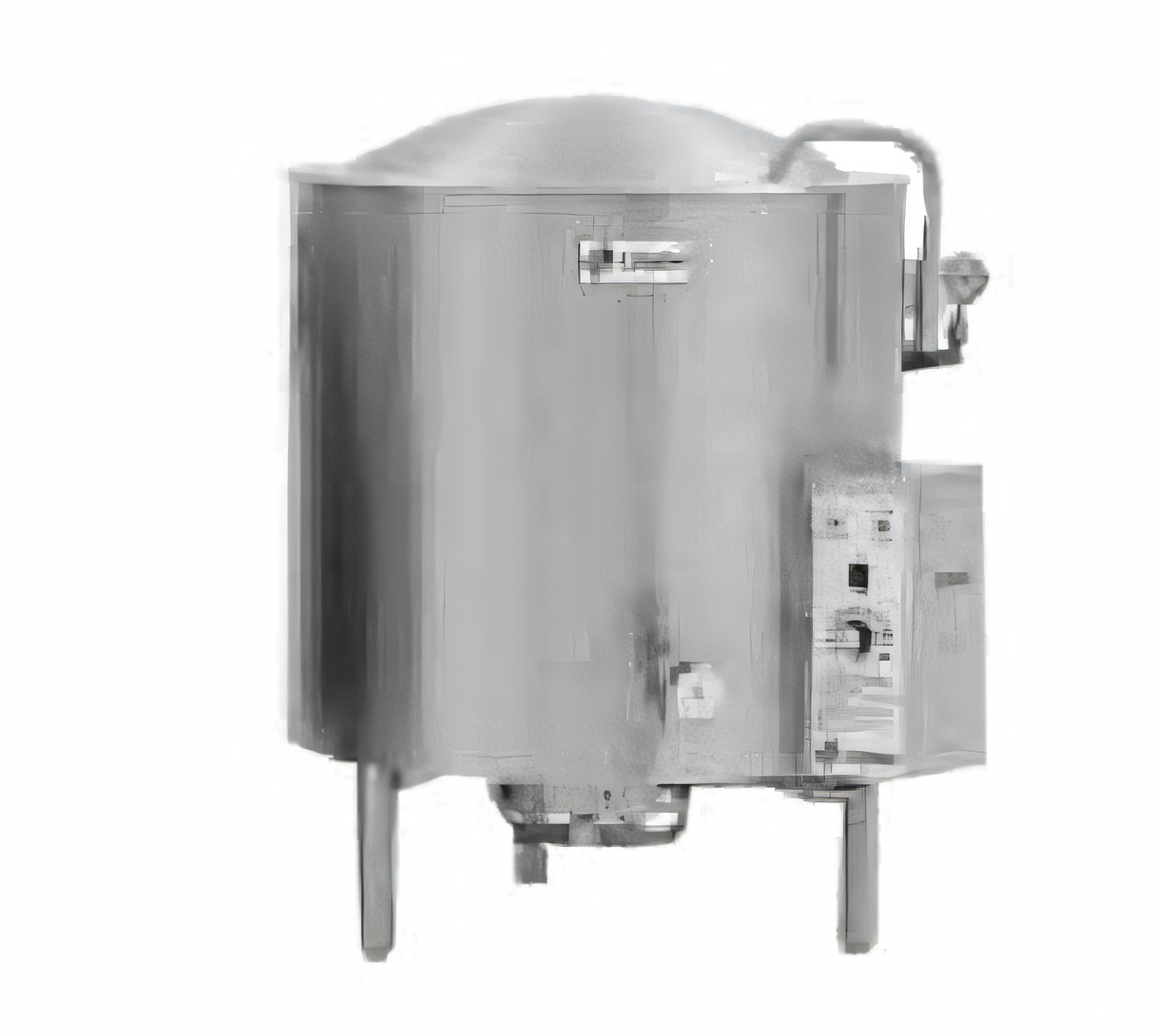

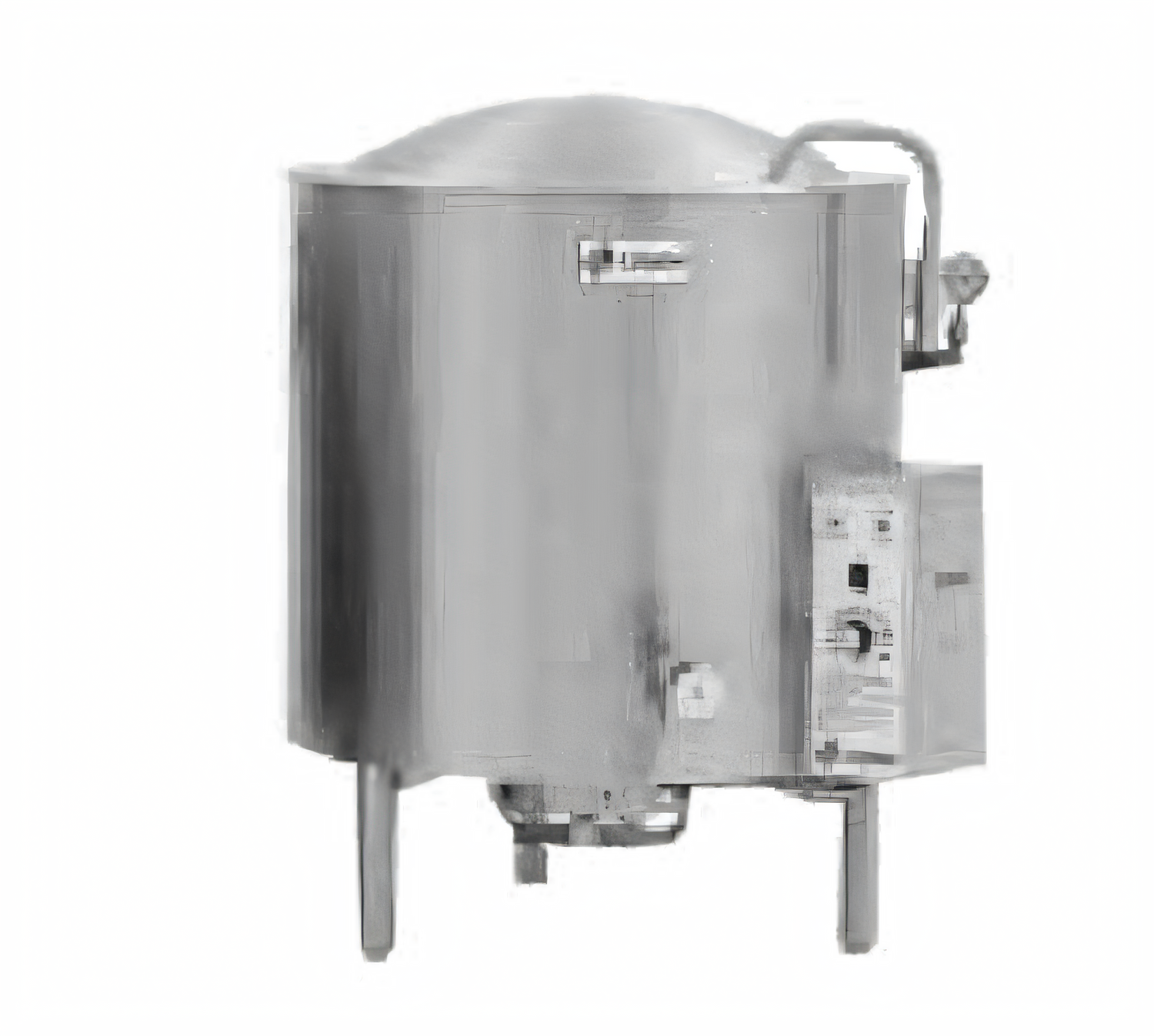

Legion LGB-125 Gas Stationary Kettle – 125 Gal
Insulated Self-Contained • 2/3-Jacket • 304 Stainless SteelBuilt for uncompromising volume and consistency, the American-made Legion LGB-125 delivers 125 gallons of perfectly even heat for soups, sauces and stews. A full 2/3 steam jacket, heavy insulation and a 154,800 BTU burner give you rapid recovery and precise simmer control—while the all-stainless construction stands up to the busiest production kitchen.
Stand-out advantages

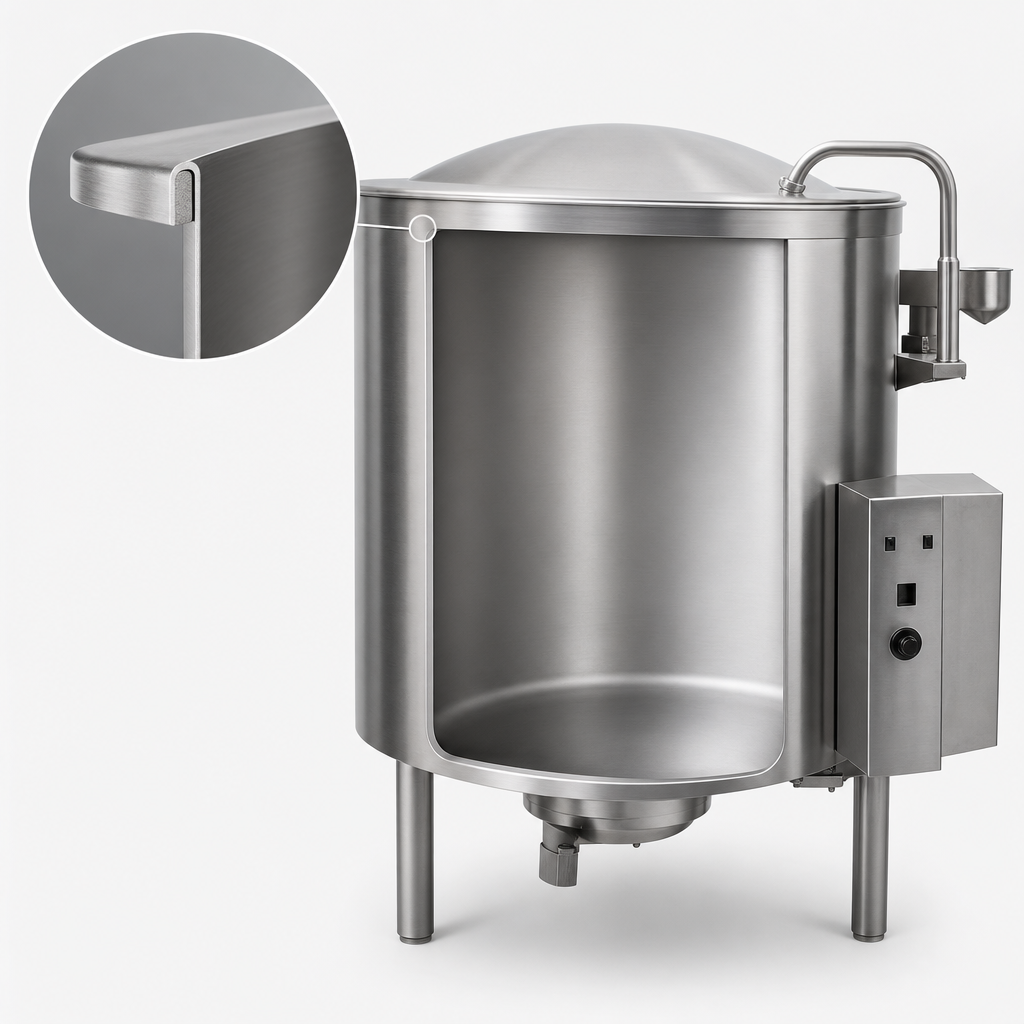

- Seamless deep-drawn 304 stainless liner with integrally formed radius lip—no internal weld seams.

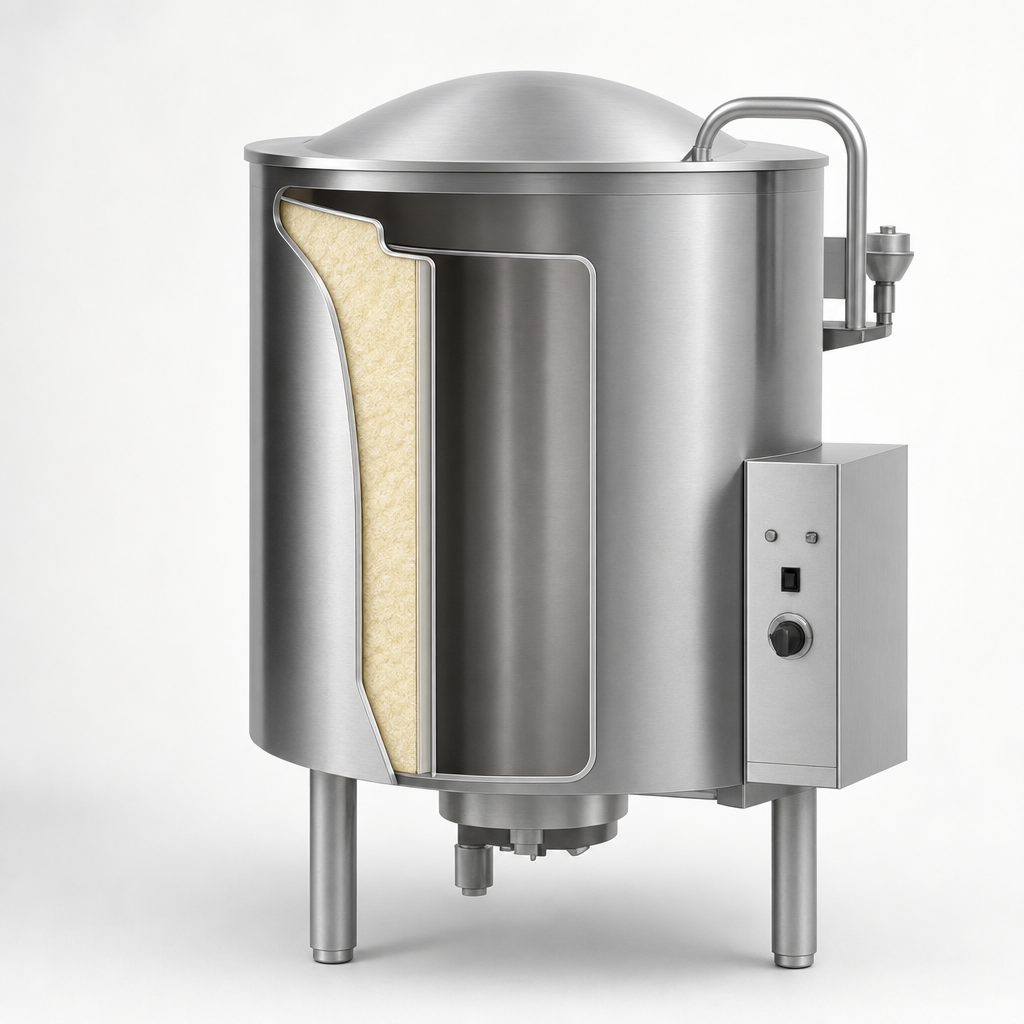

- 2/3 steam jacket (304L) wraps sides & bottom for fast, uniform heating.
- Legion’s Insulated for Safety™ full-body insulation keeps energy in and surface temps down.
- Gas-fired burner rated at 154,800 BTU (natural) with electronic ignition (120 V).
- Thermostat control from 150 °F – 260 °F for sauce, soup or rapid boil.
- Comprehensive protection package:
- Pressure relief & air eliminator valves
- Water-jacket fill with sight glass
- Low-water cut-off & indicator light
- Easy-read pressure gauge
- Safety pilot control
- One-piece domed cover, actuator-assisted for effortless opening and closing.
- 2" compression draw-off valve with 1/4" perforated strainer for clean portioning.
- Stainless steel outer casing, legs and seam-welded control console for maximum durability.
- Adjustable bullet feet for simple leveling on uneven floors.
- Made in the USA; ASME & NSF compliant.
Technical specifications
| Capacity | 125 gal / 474 L |
|---|---|
| Heat source | Gas – Natural or Propane |
| BTU input | 154,800 BTU/hr (Natural) • 149,200 BTU/hr (LP) |
| Gas connection | 3/4" IPS |
| Supply pressure | Natural 5–7" W.C. • LP 12–14" W.C. |
| Electrical | 120 V, 50/60 Hz, 1 Ph, 1 A (208/240 V optional) |
| Temperature range | 150 °F – 260 °F (65 °C – 127 °C) |
| Draw-off valve | 2" compression type, 304 SS |
| Cover | One-piece domed, actuator-assisted, 304 SS |
| Overall height (J) | 97.3" |
| Kettle diameter (A) | 44.0" |
| Kettle depth (C) | 43.3" |
What’s included
- Perforated disc strainer (1/4" holes)
- Actuator-assisted domed cover
- Adjustable stainless bullet feet
- Operator’s manual & Legion warranty
Popular add-ons (sold separately)
- Single or dual rinse/fill faucet with 12" or 18" swing nozzle
- 48" flexible spray hose assembly
- Automatic water-fill meter
- 2-speed mixer/agitator
- Draw-off drain hose, stainless baskets & measuring strip
- Flexible gas quick-disconnect (3/4")
Legion continually improves its products; specifications are subject to change without notice.
