Lang Manufacturing (Middleby)  |  SKU: ECOH-AP

Lang Manufacturing (Middleby) ECOH-AP Convection Ovens

$11,004.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

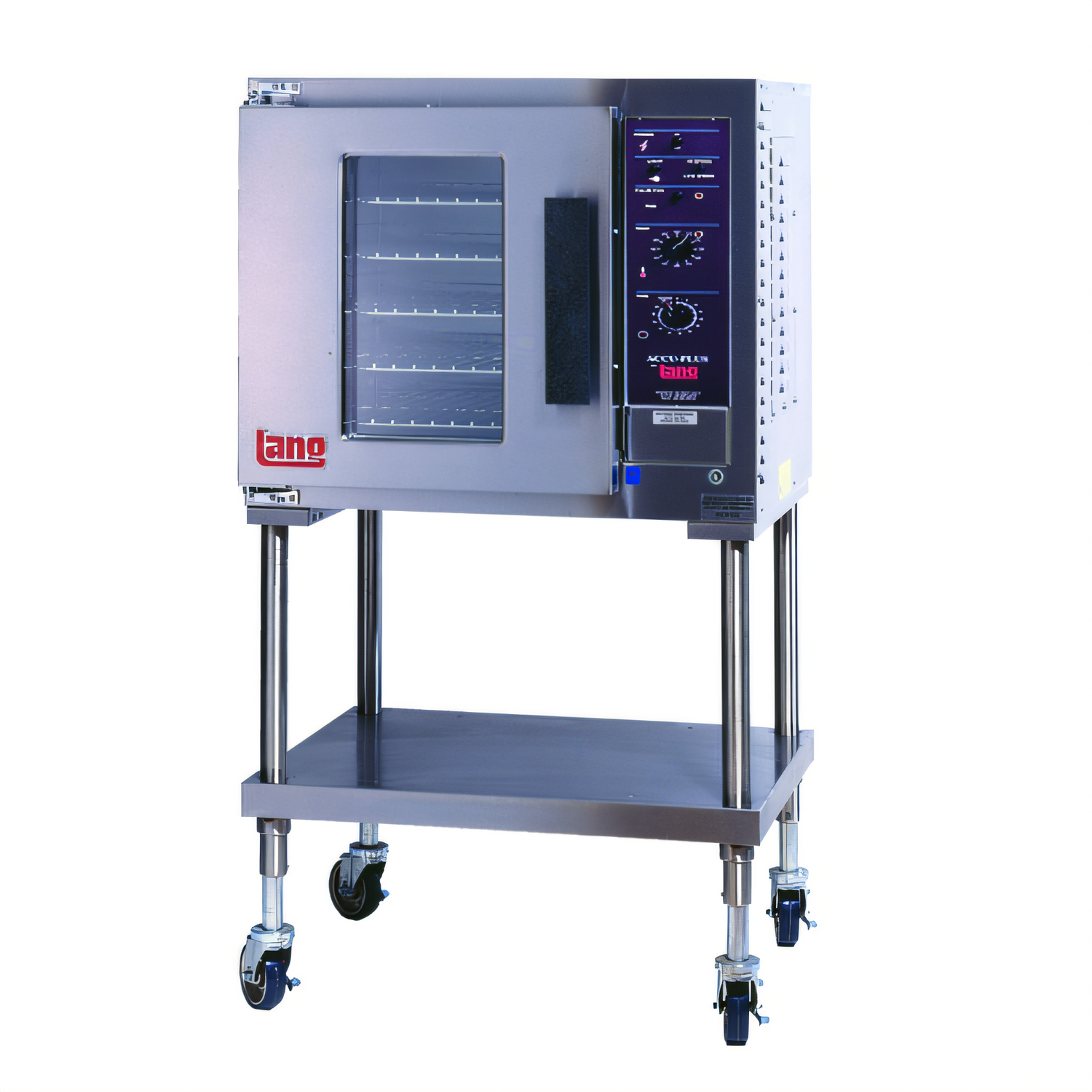

Lang ECOH-AP Half-Size Electric Convection Oven

5-Pan Capacity • Analog Controls • ENERGY STAR® Qualified

Put full-size performance on your countertop. The Lang ECOH-AP combines rock-solid stainless construction, pinpoint temperature accuracy and a space-saving 25-inch footprint—making it the perfect choice for cafés, convenience stores, satellite kitchens, and anywhere consistency matters.

Key Features
  • Solid-state thermostat maintains set temps to ±4 °F across a 150–450 °F range for repeatable results.
  • Two-speed blower with pulse mode sweeps heat evenly over every rack—no pan rotation required.

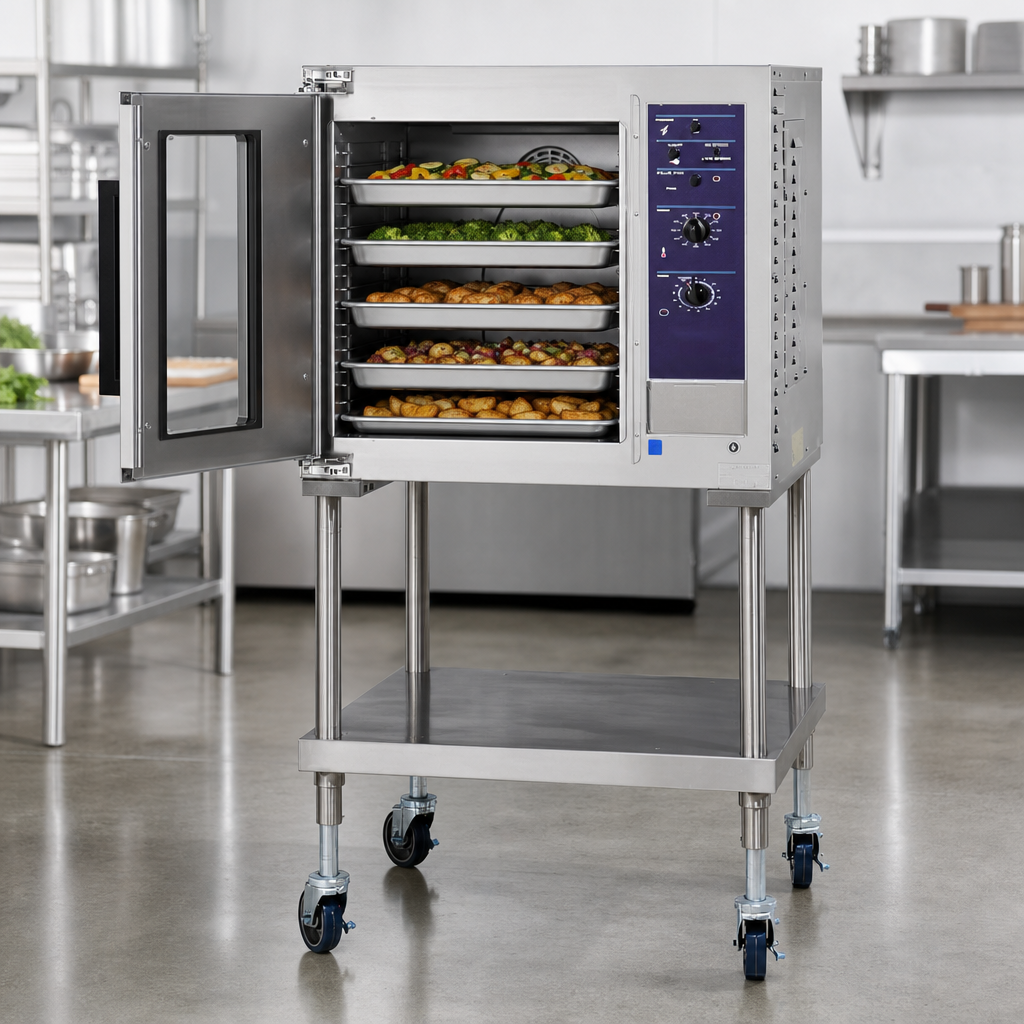

  • Holds (5) 18" × 13" half-sheet pans; 9 rack positions with 5 chrome racks included.
  • Accu-Plus analog panel—simple knob-set time & temperature plus 60-minute timer with nonstop buzzer.
  • Heavy-duty left-hinged door with large double-pane tempered glass window; field-reversible to right hinge.
  • Durable 430 stainless steel interior & exterior with 2" insulation and fully enclosed back.
  • Stackable design lets you double production without increasing the footprint (stand optional).
  • Door interlock switch cuts power to fan when the door is open for added safety.
  • ENERGY STAR®, NSF & cULus listed—for utility rebates and code compliance right out of the box.
Specifications
Pan Capacity (5) half-size sheet pans
Rack Positions / Racks Included 9 / 5 chrome wire racks
Temperature Range 150–450 °F (66–232 °C)
Controls Analog knob-set time & temperature (Accu-Plus); 60-minute timer with continuous buzzer
Fan 2-speed motor with selectable pulse mode; side-mounted blower
Electrical 208 V or 240 V, 1 Ø / 3 Ø, 7.8 kW
Optional 480 V, 3 Ø, 9.3 kW (factory option)
Amps 208 V: 37.5 A (1 Ø) / 22.1 A (3 Ø)
240 V: 32.5 A (1 Ø) / 19.1 A (3 Ø)
Exterior Dimensions 25.3"H × 30.2"W × 25.3"D (642 × 766 × 643 mm)
Clearances 6" sides, back & bottom
Shipping / Installed Weight 225 lb / 185 lb (102 kg / 84 kg)
Construction 430 stainless steel; 2" high-density insulation
Certifications ENERGY STAR®, NSF, cULus
Warranty 2-year parts & labor; lifetime door mechanism
Optional Accessories (sold separately)
  • 16" mobile oven stand with heavy-duty casters (ES-COH16C)
  • 5" locking caster kit (ECOH-C4)
  • 6" leg kit (ECOH-C6)
  • Factory cord kit for 208/240 V models (ECOH-CK)
Important: This unit is hard-wire only and must be installed by a qualified electrician. Maintain listed clearances for proper ventilation and service access.

Ask your representative about Middleby Equipment Financing for fast approvals and low monthly payments.

Features & Specs

Manufacturer

Lang Manufacturing (Middleby)

Certifications

NSF, cULus, ENERGY STAR

Height

25.3in

Width

30.2in

Depth

25.3in

Shipping Weight

225.0lbs

Energy Efficiency

ENERGY STAR®

Type

standard

kW (per deck)

6.0 - 10.99 kW

Interior Finish

stainless steel interior

Capacity per Compartment

5 pan capacity, per compartment

Control Type

solid state controls

Exterior Finish

all stainless steel exterior

Size

half size

Base

legs not included

Deck Qty

1 deck

Specifications

Convection Oven, electric, 1-deck, half-size, (5) 18" x 13" pan capacity, analog solid state knob controls & timer, 150-450°F range, 2-speed pulse fan, (9) rack positions, left hinged door with double pane window field reversible to right side, stainless steel exterior and interior, ENERGY STAR®, cULus, NSF
