Southbend (Middleby)  |  Platinum  |  SKU: PCE15S/SD-V

Southbend (Middleby) PCE15S/SD-V Platinum Convection Ovens

$15,750.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

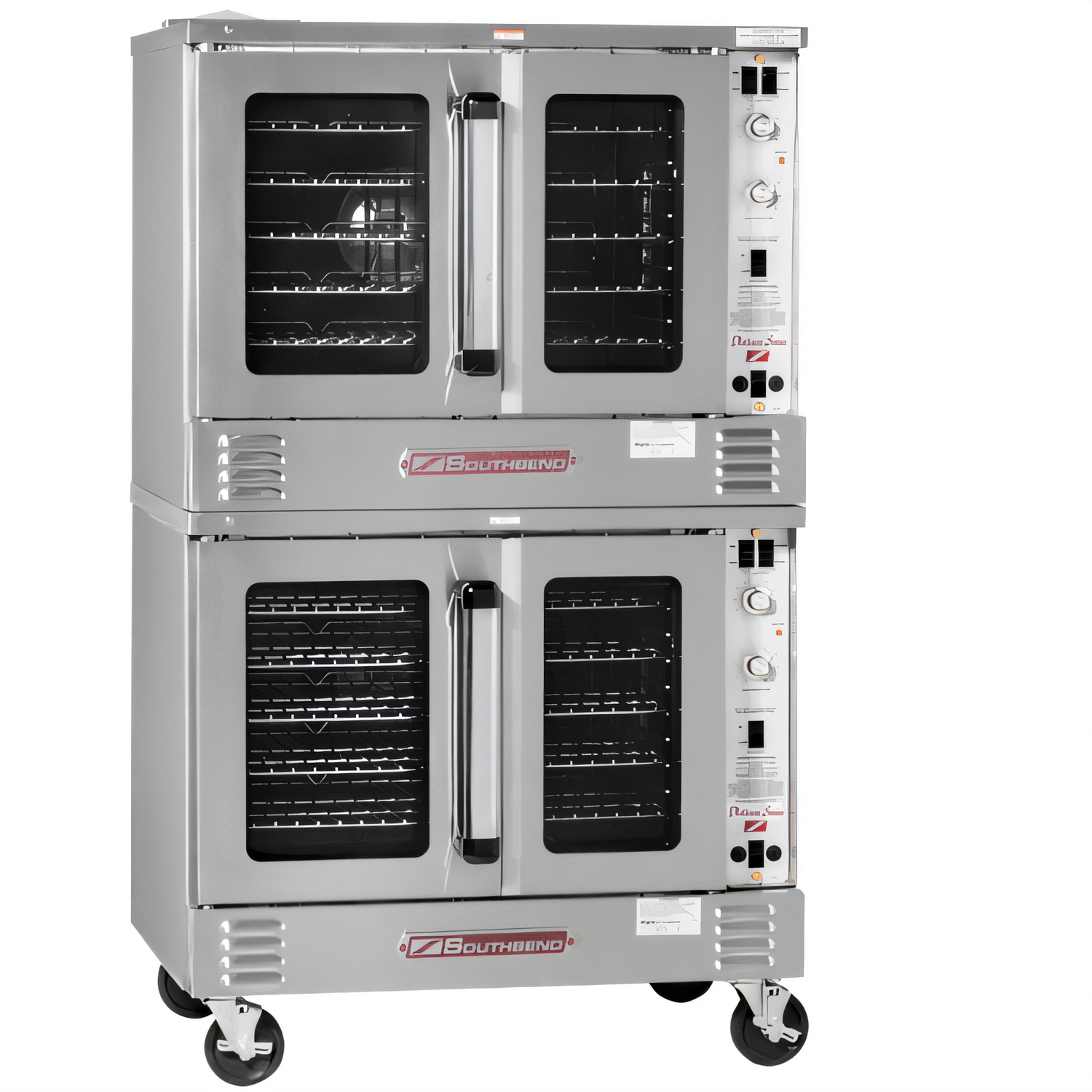

Southbend Platinum Series Ventless Double Convection Oven

Model PCE15S/S – Standard Depth • 7.5 kW per Deck • Standard Controls

Bake, roast, and reheat anywhere—even outside a traditional hood system. The Platinum Series ventless double convection oven from Southbend packs commercial-grade output, ENERGY STAR® efficiency, and service-friendly engineering into a sleek, stainless footprint that drops seamlessly into today’s open kitchens and non-traditional spaces.

Performance Highlights

  • Integrated UL-certified catalytic system eliminates grease-laden vapors for true ventless installation*
  • Two independent 7.5 kW decks (15 kW total) reach 140 – 500 °F quickly while sipping energy
  • SC Standard Controls: solid-state thermostat + 60-minute mechanical timer on each deck
  • ½ hp two-speed fan circulates air for even browning; “forced cool-down” mode protects product and components
  • Patented plug-in/plug-out control panel slides out 17" for full-view service access
  • 11-position rack guides  •  5 chrome-plated racks supplied (fits full-size sheet pans)
  • Full 180° dependent glass doors with dual heat seals and stay-cool handles
  • Coved, fastener-free porcelain enamel interior wipes clean in seconds

Built to Last

  • Stainless-steel front, sides, top, and rear jacket resist daily wear and harsh cleaning chemicals
  • Low-emission insulated windows and LED-lit cavity for at-a-glance cooking checks
  • 6" adjustable stainless legs standard; 4" or 6" locking casters available
  • 0" front/right clearance, 2" rear/left clearance from combustibles

Specifications

Configuration Double deck, electric, ventless
Model / Part # PCE15S/S (Standard depth, Standard Controls)
Heating Elements 7.5 kW per deck  •  15 kW total
Voltage Options 208, 220/240, 380, 415, or 480 VAC  •  50/60 Hz  •  1- or 3-phase (specify on order)
Fan Motor ½ hp, 2-speed (1710 / 1120 RPM)
Oven Interior (per deck) 29" W × 21.5" D × 20" H (737 × 546 × 508 mm)
Overall Dimensions 37.25" W × 30.25" D × 64.8" H (946 × 768 × 1645 mm)
Racks Supplied 5 (chrome-plated)
Rack Positions 11 on 1-5/8" centers
Shipping Weight Approx. 1,040 lb (472 kg)
Certifications ENERGY STAR®, CSA, NSF
Warranty 1-year limited parts & labor
Installation note: Ventless operation may eliminate the need for a traditional hood, but always confirm compliance with local codes and regulations prior to installation.

*Compared with Southbend non-ventless models. Performance can vary based on menu, loading, and utility conditions.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, ENERGY STAR

Height

64.0in

Width

38.0in

Depth

37.25in

Shipping Weight

1040.0lbs

Deck Qty

2 decks

Size

full/standard size

Type

standard

Specifications

Platinum Double Convection Oven, Electric, 7.5kW each, Standard Depth, Standard Controls, Dependent Doors, Ventless, CSA, NSF, ENERGY STAR®
