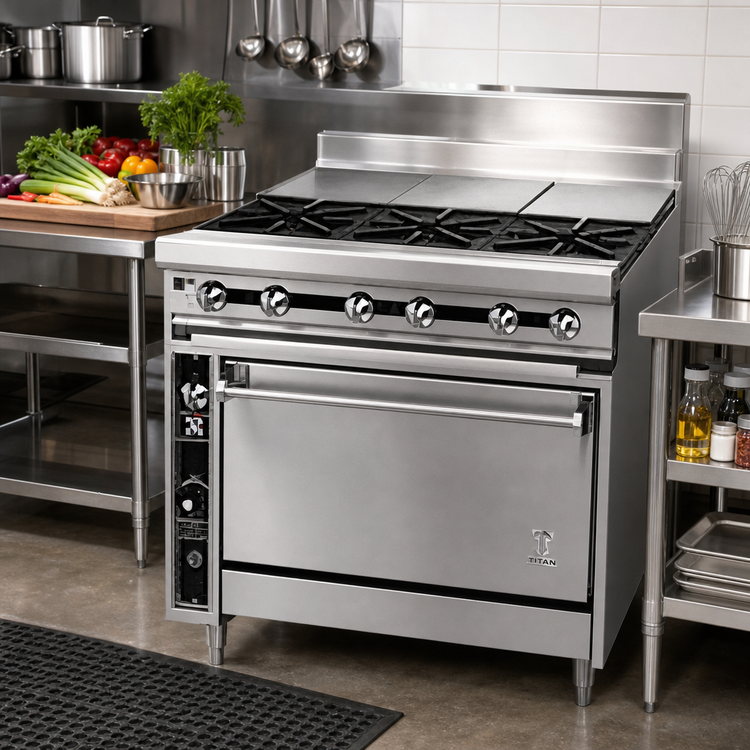

Titan JTRH-3ST-36 36-Inch Heavy Duty Gas Split Top Range with Standard Oven

Heavy Duty, (3) Open Front Burners, (3) Rear Hot Tops, 170,000 BTU

The Titan JTRH-3ST-36 heavy-duty gas split top range offers exceptional cooking versatility with both high-output open burners and gentle hot tops, combined with a spacious standard oven.

  • Experience commercial-grade performance with three 35,000 BTU/hr open burners for intense heat.
  • Utilize three 15,000 BTU/hr hot top burners for consistent simmering and holding at the rear.
  • Benefit from a standard oven base featuring a 35,000 BTU burner and adjustable thermostat (150°F to 550°F).
  • Enjoy long-lasting durability with 14 gauge all-welded body construction and stainless steel exterior.
  • Optimize your kitchen workflow with a versatile split top design and integrated 6" plate shelf.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

685.0 lb

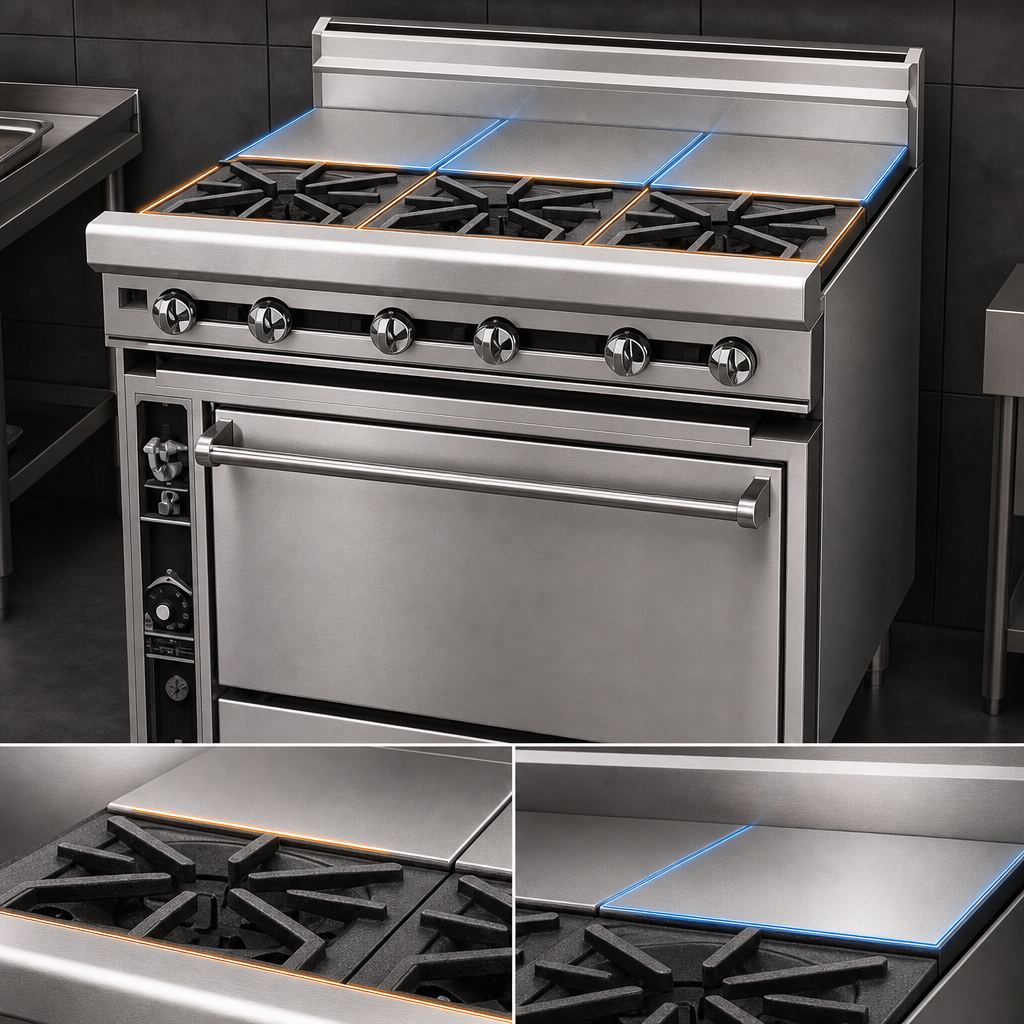

Split Top Cooking Surface

Features three 12" x 28" cast iron top grates with open top sections at the front and polished hot top sections at the rear, offering versatile cooking zones.

High-Performance Open Burners

Equipped with three 35,000 BTU/hr cast iron open top burners, controlled by infinite gas valves for precise heat adjustment.

Rear Hot Tops

Includes three 15,000 BTU/hr cast iron hot top burners at the rear, ideal for simmering, holding, or gentle cooking.

Standard Oven Base

A conventional oven base with a 35,000 BTU burner, stainless steel lining, and sides and bottom that are removable without tools for easy cleaning. Oven interior measures 28-1/4" W x 14" H x 27-3/4" D.

Adjustable Oven Thermostat

The oven thermostat allows temperature control from 150°F to 550°F.

Durable Construction

Built with a 14 gauge all-welded body, stainless steel front, sides, stub back, and tray bed for long-term durability in a commercial environment.

Stainless Steel Components

Features stainless steel gas tubing throughout, a 6" stainless steel plate shelf, and 6" adjustable stainless steel legs for stability and hygiene.

Chrome Plated Oven Racks

Comes with two chrome plated oven racks, designed with curled and welded wires for safety and no sharp ends.

Cool Zone Oven Control

Oven control is strategically located in a cool zone, preventing accidental adjustments and protecting components.

Gas Pressure Regulator Included

Supplied with a 3/4" gas pressure regulator, which must be installed for proper operation.

Type Split Top Range
Style Heavy Duty
Installation Type Floor Model (With Legs)
BTU 170,000 BTU
Open Burner BTU 35,000 BTU Per Burner
Hot Top Burner BTU 15,000 BTU Per Burner
Oven Burner BTU 35,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4" Front, 1" or 3/4" Rear
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum, 14 Inches W.C. Maximum
Gas Inlet Pressure (Propane Gas) 10 Inches W.C. Minimum, 14 Inches W.C. Maximum
Pan Capacity 2 Oven Racks
Compartments 1
Oven Interior Dimensions 28-1/4" W x 14" H x 27-3/4" D
Temperature Range 150°F to 550°F
Controls Infinite Gas Valves, Thermostat
Material Stainless Steel, Cast Iron
Exterior Finish Stainless Steel
Interior Finish Stainless Steel
Color Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 685 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-3ST-36 features three 35,000 BTU/hr open front burners, three 15,000 BTU/hr rear hot top burners, and a 35,000 BTU oven burner, for a total of 170,000 BTU.
The standard oven's thermostat is adjustable from 150°F to 550°F, providing versatile cooking temperatures.
The range is supplied with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection. A 3/4" gas pressure regulator is included and must be installed for proper operation. Required operating pressures are 5" W.C. minimum for Natural Gas and 10" W.C. minimum for Propane Gas, with a maximum of 14" W.C. for both.
Yes, the standard oven base features a stainless steel lining, and the oven sides and bottom are designed to be removable without tools for convenient cleaning and maintenance.
Yes, the JTRH-3ST-36 can operate on either Natural Gas or Propane, but the specific gas type must be specified when ordering to ensure the correct setup.
