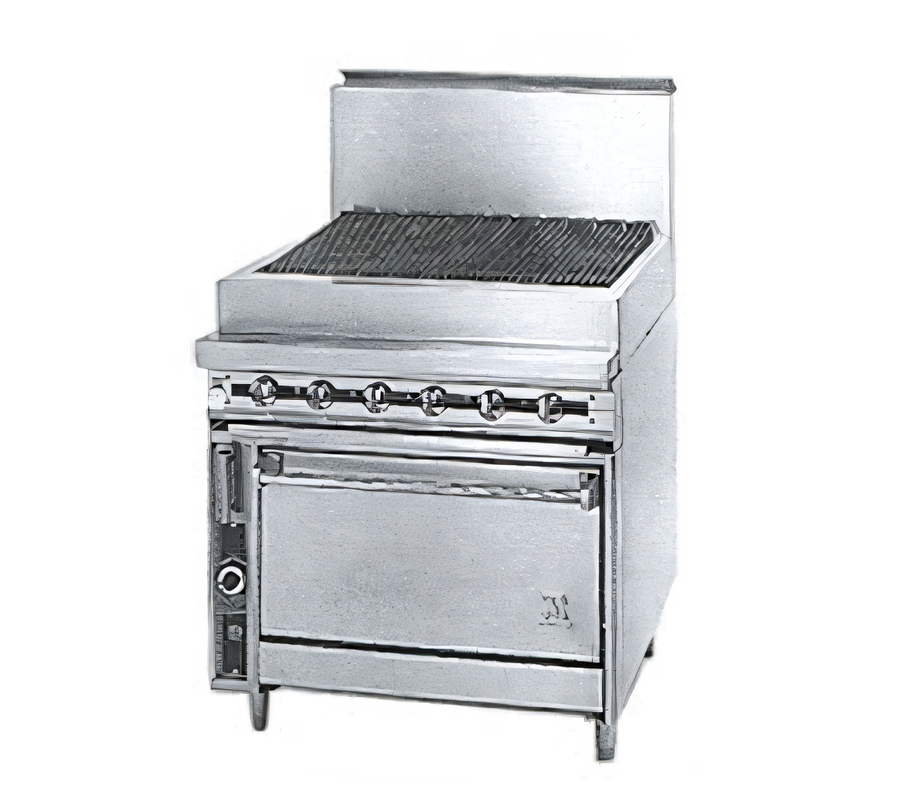

Jade Range Titan JTRH-36B-36C 36" Gas Charbroiler with Convection Oven Base
Jade Range Titan JTRH-36B-36C 36" Gas Charbroiler with Convection Oven Base
Full-Size, Natural Gas or Propane, Standard Depth
Experience robust cooking versatility and efficiency with the Titan JTRH-36B-36C, featuring a powerful charbroiler top and a high-performance convection oven base, built for demanding commercial kitchens.
- Heavy-duty 36-inch charbroiler with individually controlled 15,000 BTU/hr burners for precise grilling.
- Integrated convection oven base with a 30,000 BTU burner and blower motor for even heat distribution and faster cooking.
- All stainless steel exterior and 14 gauge all-welded body construction ensure maximum durability and longevity.
- Features heavy-duty cast iron top grates with built-in grease guides to channel away fat and reduce flare-ups.
- Includes a 6-inch plate shelf, two chrome-plated oven racks, and two separate drip trays for convenience and easy cleaning.
- Designed with infinite manual gas controls and an oven thermostat adjustable from 150°F to 550°F for versatile cooking.
Overall Dimensions:
36.0"W x 38.0"D x 36.5"HProduct Weight:

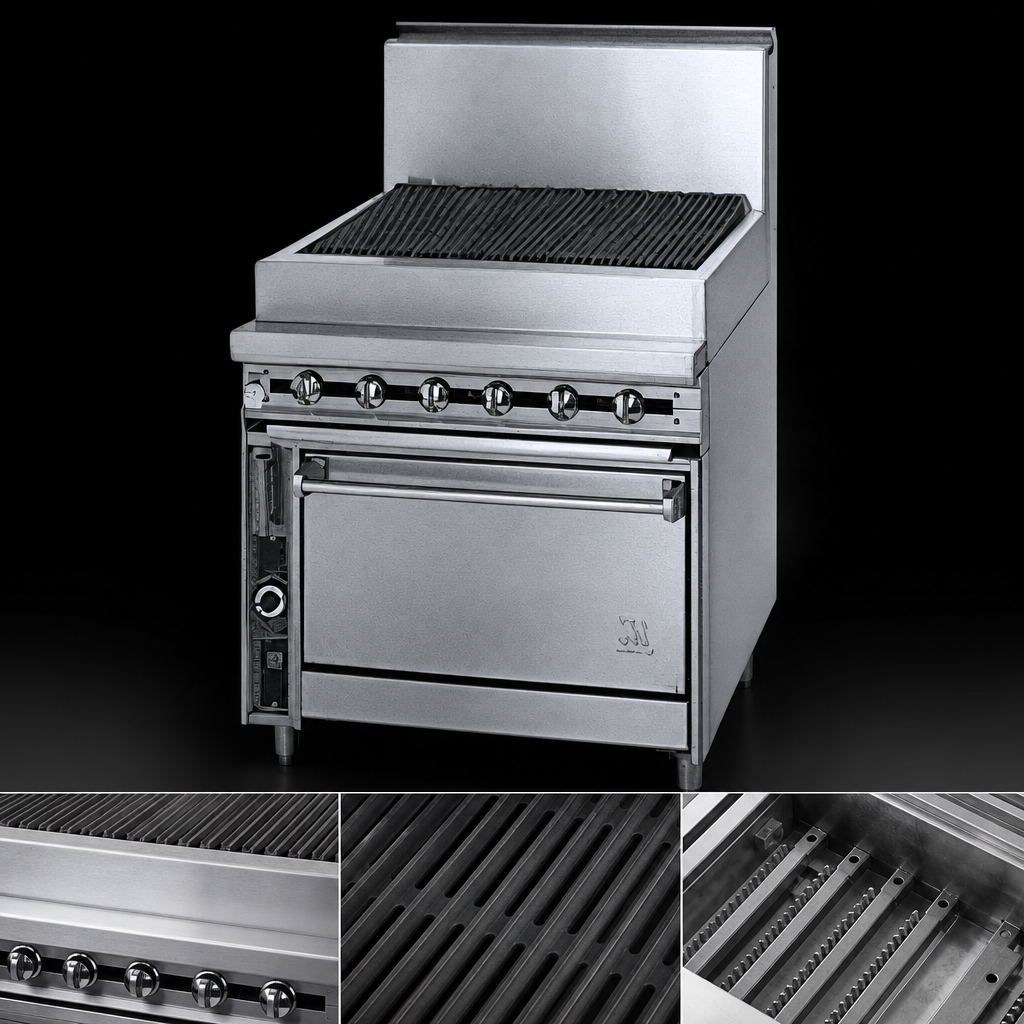

775.0 lbHeavy Duty Charbroiler
Equipped with individually controlled 15,000 BTU/hr burners every 6 inches, heavy-duty cast iron top grates with built-in grease guides, and cast iron burner radiants for efficient, precise grilling and reduced flare-ups.

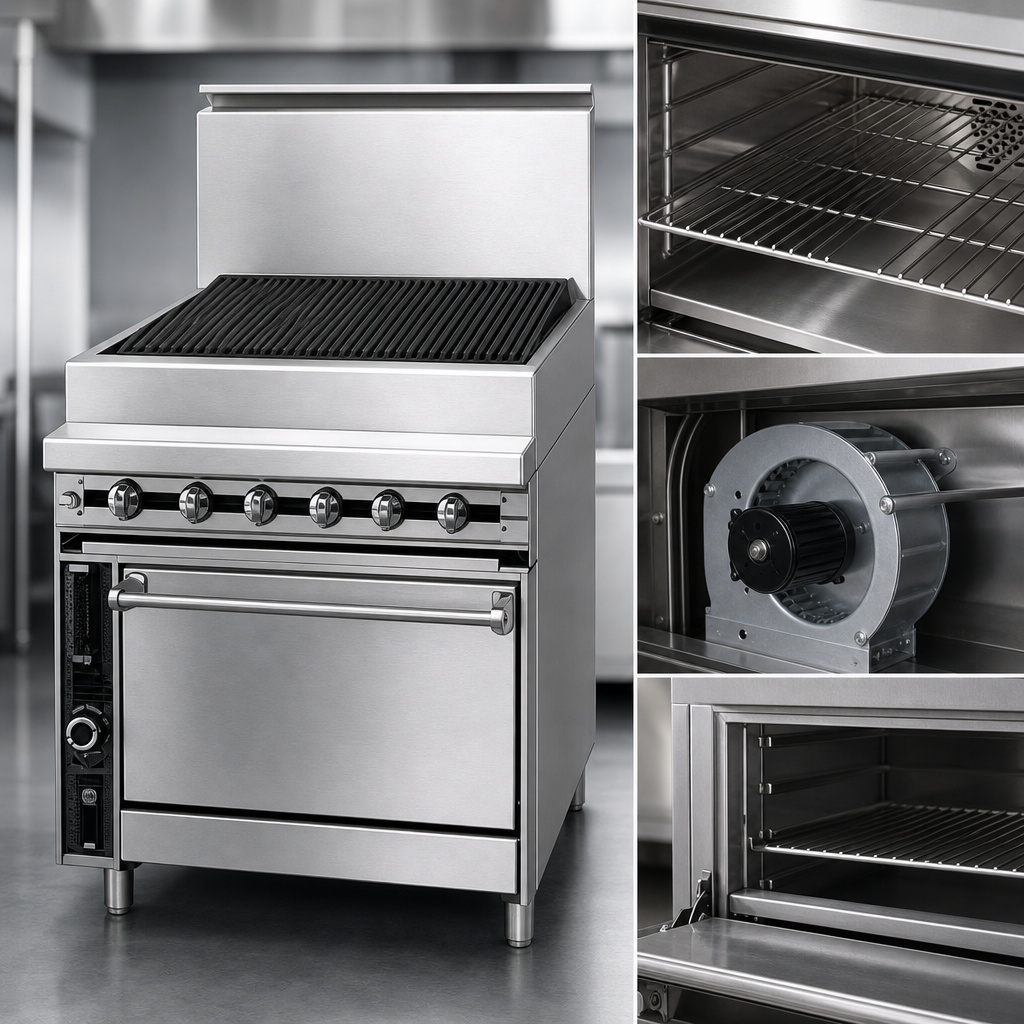

Convection Oven Base
Features a 30,000 BTU burner and a 1/3 HP 115/60/1 blower motor for consistent heat and faster cooking. The oven interior is 14 gauge stainless steel and measures 28" W x 13-3/4" H x 24-1/2" D.
Durable Construction
Built with 14 gauge all-welded body construction, a 12 gauge all-welded firebox, and a stainless steel front, top, sides, stub back, and tray bed for exceptional durability in commercial environments.
Precise Temperature Control
Infinite control manual gas valves are located at each charbroiler burner for precise heat management, while the convection oven thermostat adjusts from 150°F to 550°F.
Convenient Features
Includes two chrome-plated oven racks, two separate 14 gauge steel drip pans to control flare-ups, a 6-inch stainless steel plate shelf, and 6-inch stainless steel adjustable legs for stable and practical operation.
Flexible Gas Connection
Supplied with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection, offering versatility for installation, along with a 3/4" gas pressure regulator.
Certifications & Compliance
Warranty & Protection
Manufacturer's standard warranty applies.
