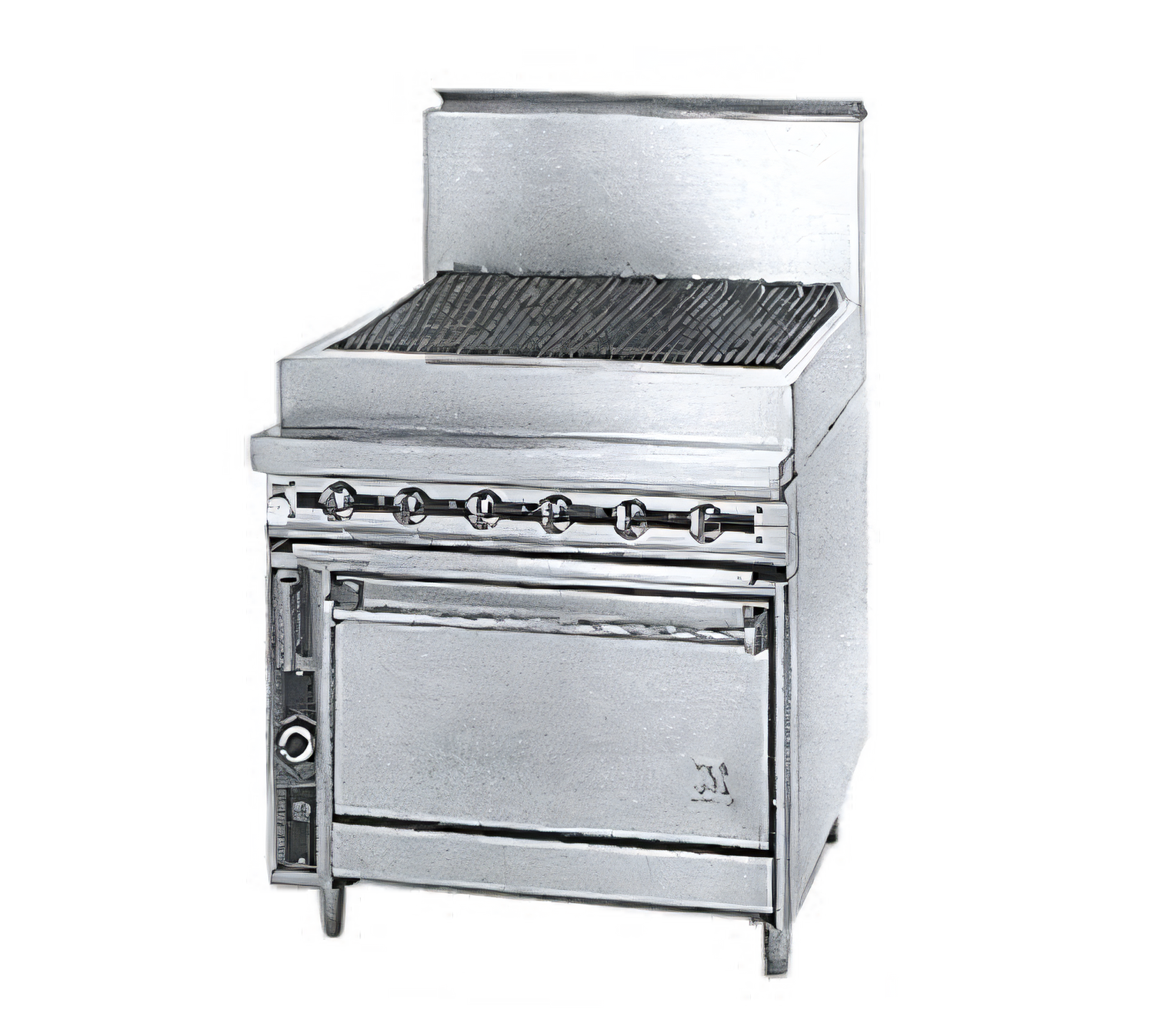

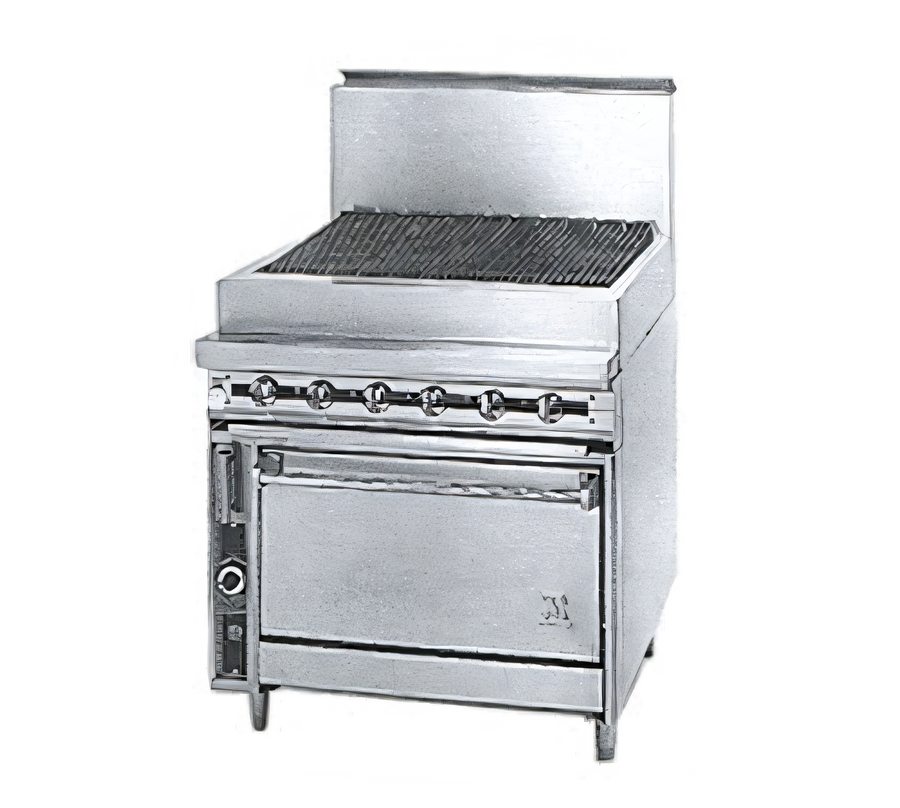

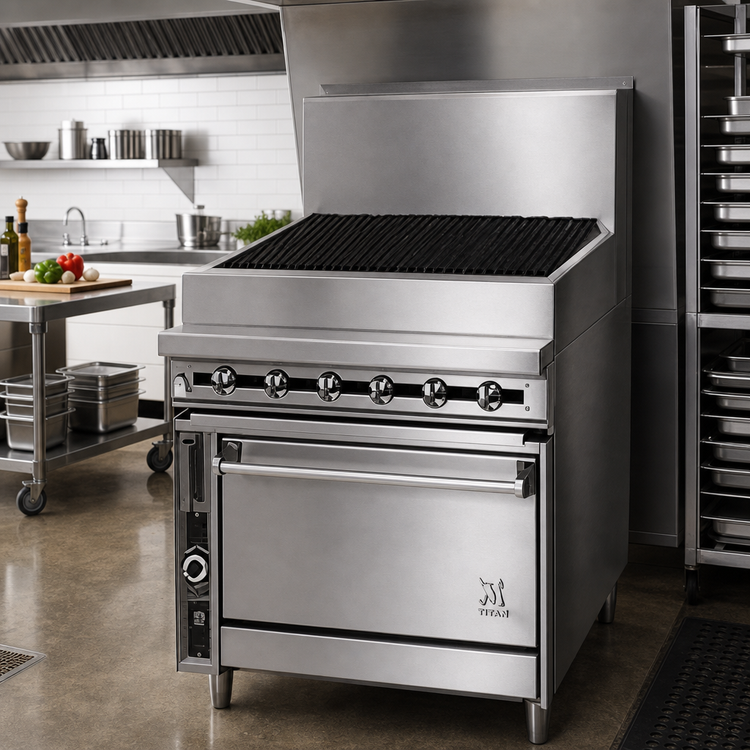

Titan JTRH-36B-36 36" Heavy Duty Gas Charbroiler Range with Standard Oven

Full-Size, Natural Gas or Propane, Standard Oven

Experience robust cooking versatility with the Titan JTRH-36B-36, combining a powerful charbroiler with a spacious standard oven, designed for demanding commercial kitchens.

  • Durable 14 gauge all-welded stainless steel body construction ensures longevity.
  • Equipped with a 36-inch charbroiler featuring 15,000 BTU/hr. burners every 6 inches for consistent searing.
  • Features a standard oven base with a 35,000 BTU burner and two chrome-plated racks, ideal for baking or roasting.
  • Heavy duty cast iron top grates and burner radiants provide excellent heat retention and even cooking.
  • Infinite manual gas controls allow for precise temperature management across the charbroiler.
  • Includes a 6" stainless steel plate shelf, adjustable legs, and two separate drip trays for convenience.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

750.0 lb

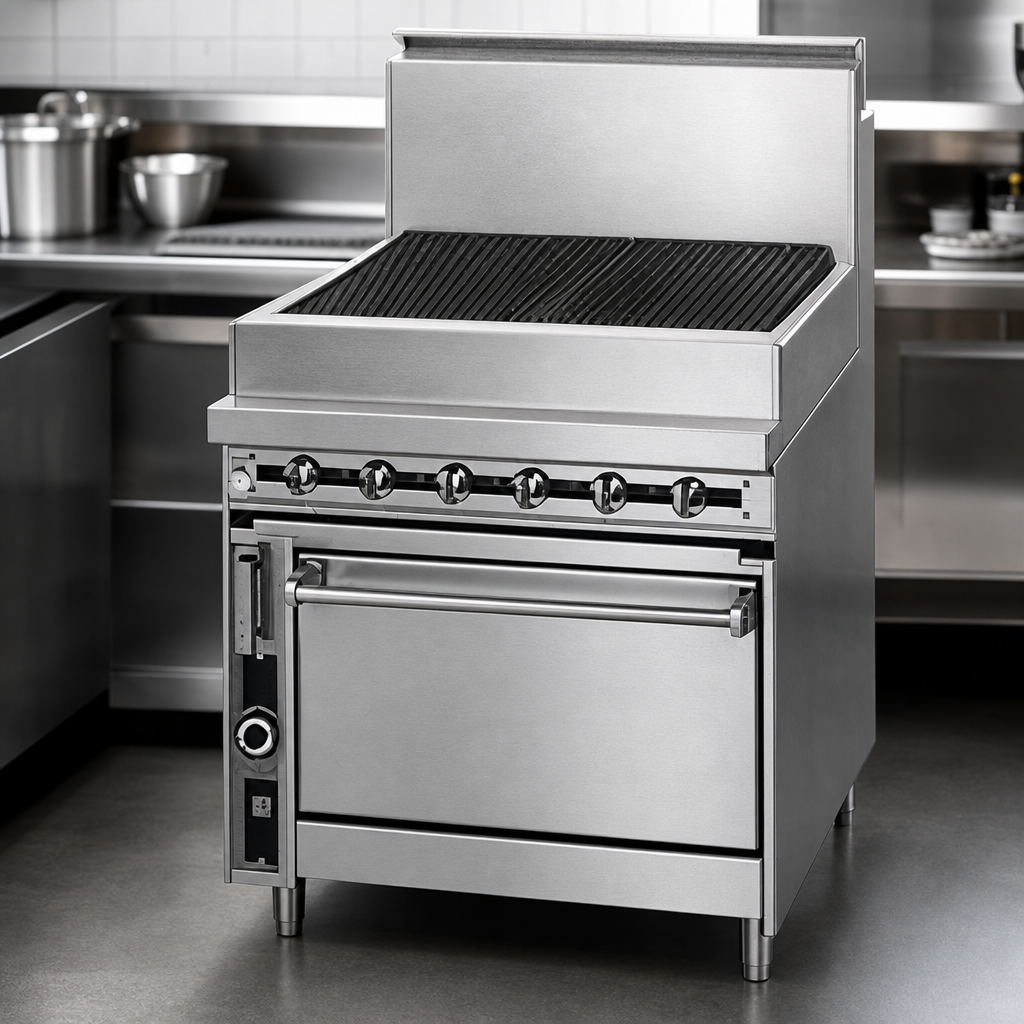

Heavy Duty Construction

Constructed with 14 gauge all-welded stainless steel for the body, front, top, and sides, ensuring durability and a professional appearance in demanding kitchen environments.

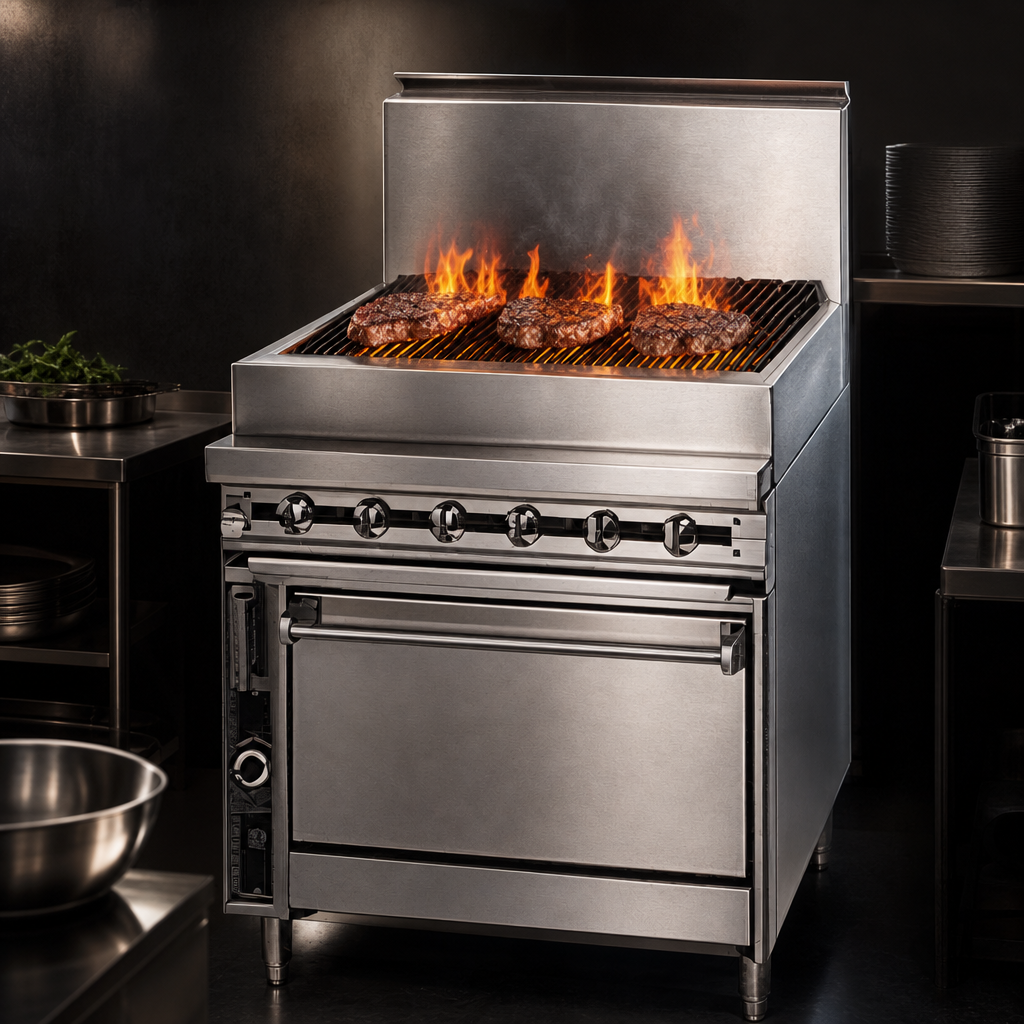

Powerful Charbroiler

The 36-inch charbroiler features a 15,000 BTU/hr. burner for every 6 inches, totaling 90,000 BTU for the charbroiler section, providing intense, even heat for perfect charring.

Standard Oven Base

Equipped with a conventional oven base featuring a 35,000 BTU burner and stainless steel lining. The oven interior measures 28-1/4" W x 14" H x 27-3/4" D.

Precise Temperature Control

Infinite control manual gas valves at each charbroiler burner allow for precise heat adjustment, while the oven thermostat adjusts from 150°F to 550°F.

Cast Iron Grates and Radiants

Heavy duty cast iron top grates with built-in grease guides channel away excess fat, reducing flare-ups. Heavy duty cast iron burner radiants ensure even heat distribution.

Removable Oven Interior

The oven's stainless steel sides and bottom are removable without tools for easy cleaning and maintenance.

Convenient Drip Pans

Two separate 14 gauge steel drip pans are provided to control flare-ups and collect grease, simplifying cleanup.

Adjustable Legs and Plate Shelf

Features 6" stainless steel adjustable legs for leveling and a 6" stainless steel plate shelf for added utility and workspace.

Type Charbroiler Range
Style With Standard Oven Base
Installation Type Floor Model (With 6" Adjustable Legs)
BTU 125,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inches
Natural Gas Inlet Pressure 5 Inches W.C. Minimum
Propane Gas Inlet Pressure 10 Inches W.C. Minimum
Charbroiler BTU Per Burner 15,000 BTU/hr. per 6" section
Oven BTU 35,000 BTU
Oven Temperature Range 150°F to 550°F
Pan Capacity 2 Full-Size Pans
Compartments 1
Controls Manual Gas Valves & Thermostat
Material Stainless Steel & Cast Iron
Interior Finish Stainless Steel
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 750 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The standard oven interior measures 28-1/4 inches Wide x 14 inches High x 27-3/4 inches Deep.
This range can operate on either Natural Gas or Propane. Please specify your gas type when ordering.
The range is supplied with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection. A 3/4" gas pressure regulator is supplied loose and must be installed. Required operating pressure is 5" W.C. minimum for Natural Gas and 10" W.C. minimum for Propane Gas, with a 14" W.C. maximum for both.
No, the JTRH-36B-36 model features a standard oven base which does not require an electrical connection for its primary functions.
Yes, the charbroiler features infinite control manual gas valves at each burner, allowing for precise heat control over every 6-inch section.
Yes, the standard oven comes with two chrome-plated oven racks, and the oven sides and bottom are also removable without tools for easy cleaning.
