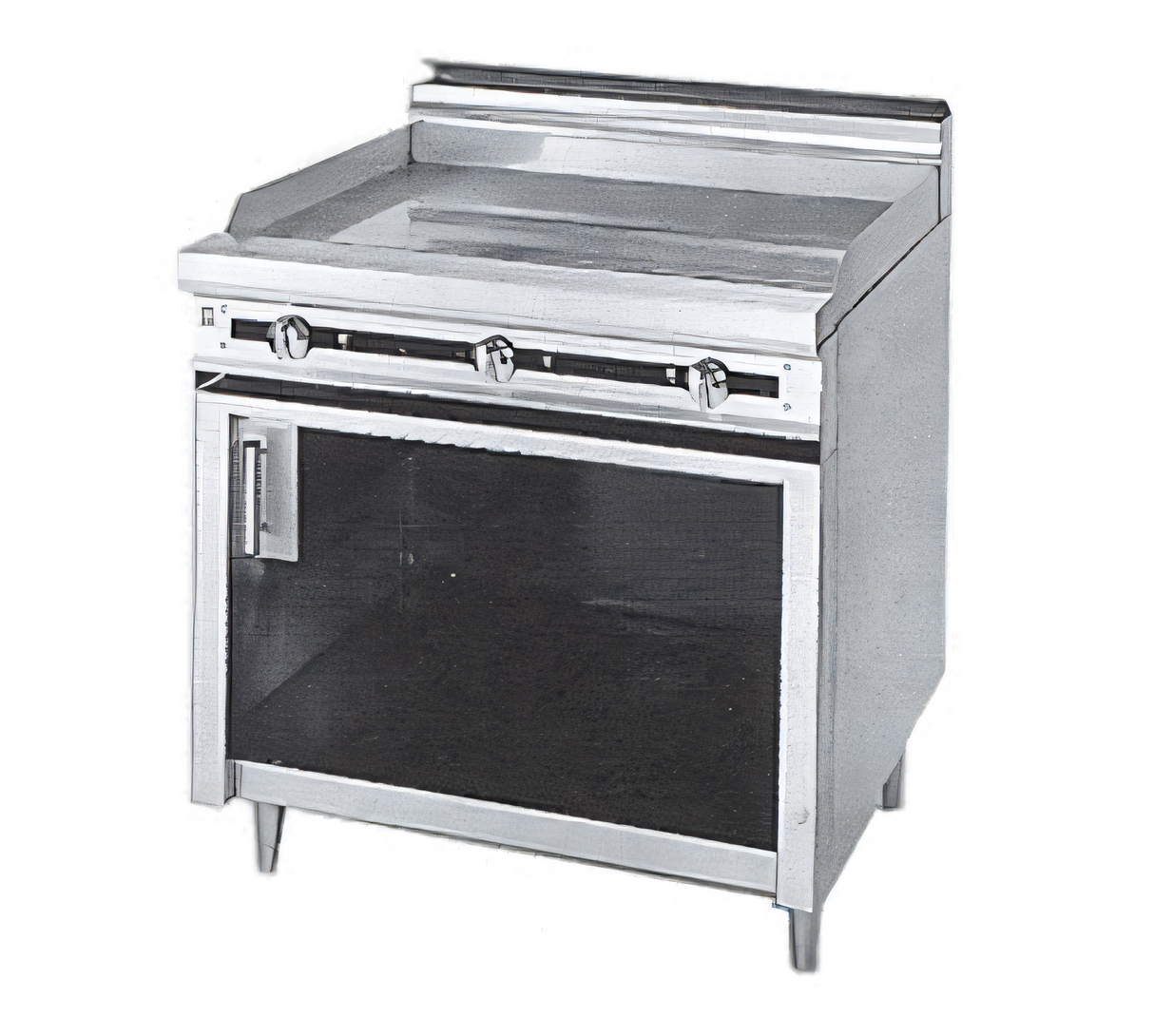

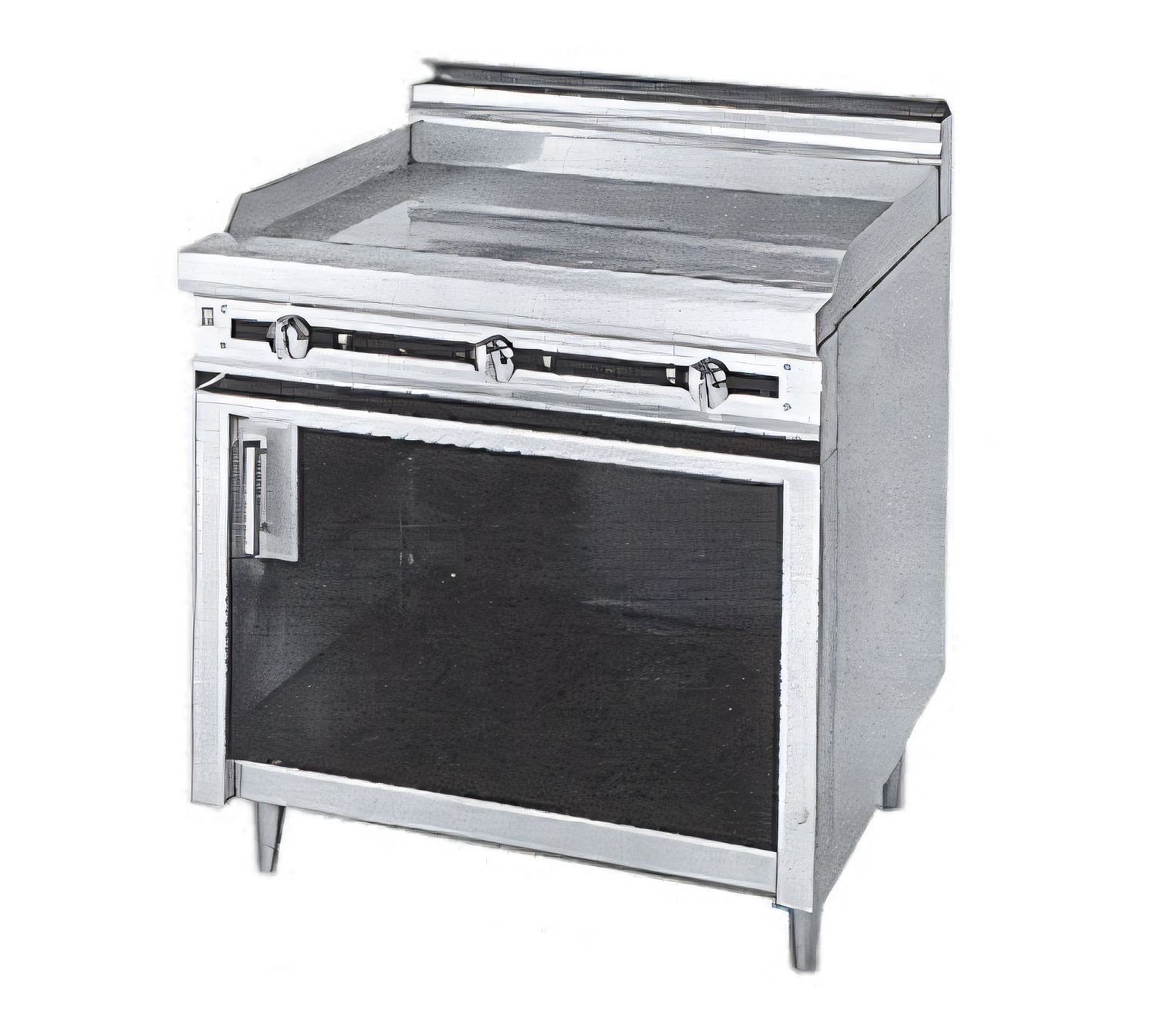

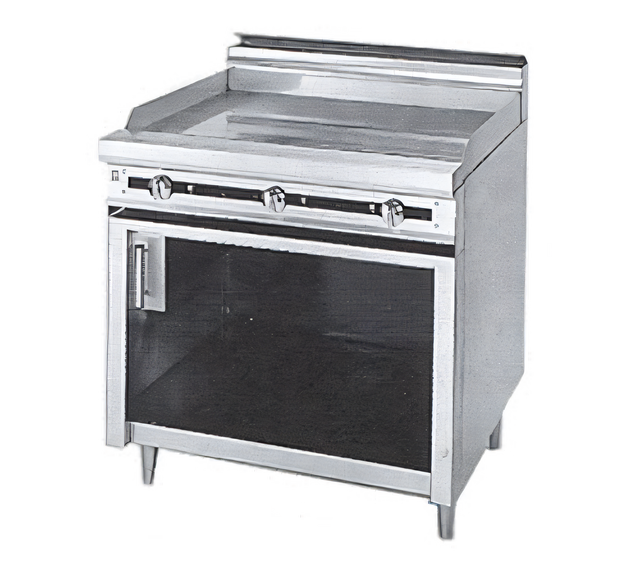

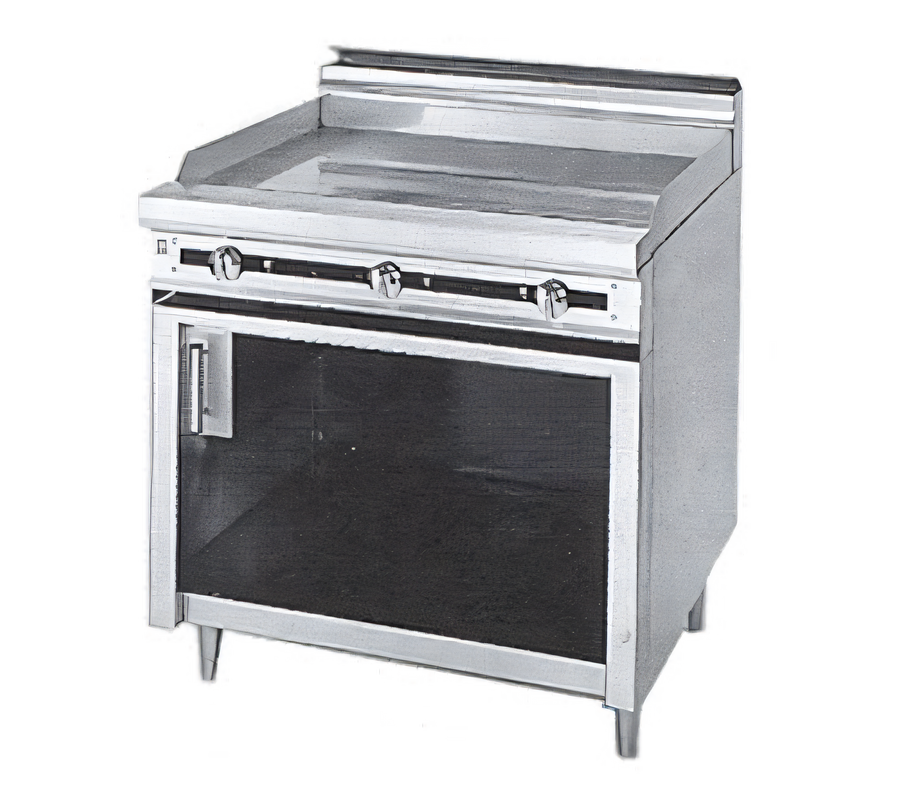

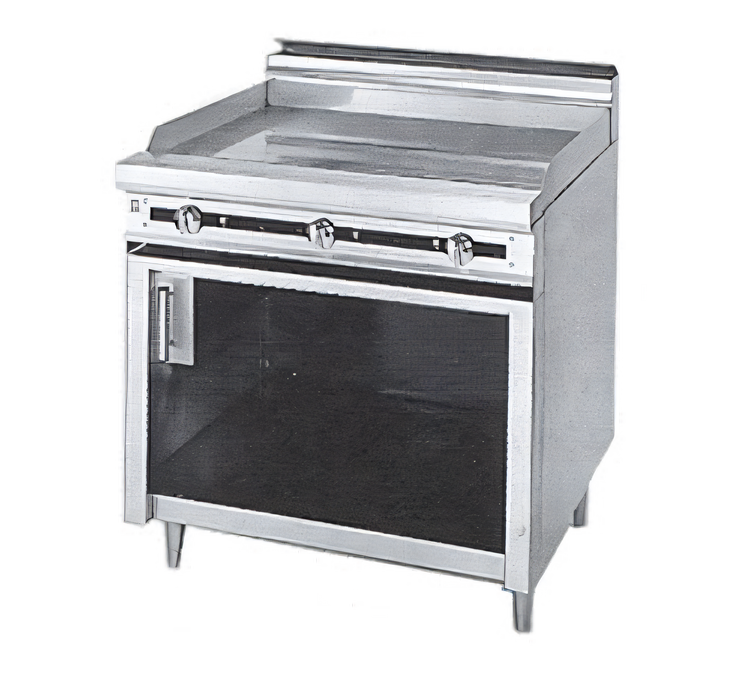

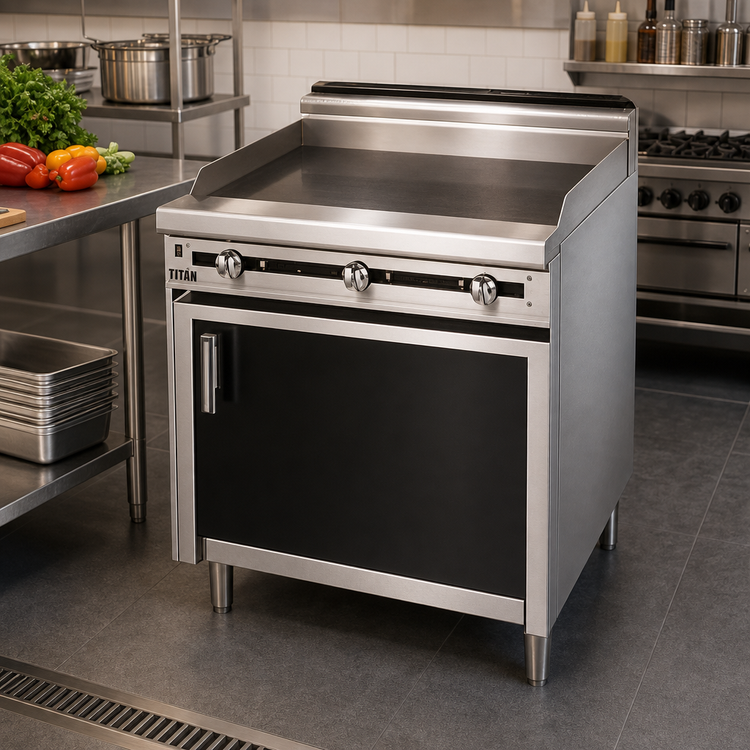

Titan JTRH-24G 24" Heavy Duty Gas Griddle Range with Cabinet Base

24 Inch, Manual Control, 1" Polished Steel Griddle Plate

Experience robust performance and consistent cooking with the Titan JTRH-24G heavy-duty gas griddle range, featuring a durable 1-inch polished steel plate for commercial kitchens.

  • Heavy-duty commercial gas griddle range built for demanding kitchen environments.
  • Features a 24-inch wide griddle with a 1-inch thick polished steel plate for superior heat retention and distribution.
  • Equipped with manual controls for precise and immediate heat adjustment across the griddle surface.
  • Generates a powerful 70,000 BTU output for efficient and high-volume cooking operations.
  • Includes a spacious cabinet base, offering convenient enclosed storage for utensils or ingredients.
  • Constructed entirely from durable 14 gauge stainless steel for exceptional longevity, hygiene, and ease of cleaning.
  • Comes standard with a 6" plate shelf and 6" adjustable legs for optimal ergonomics and versatile installation.

Overall Dimensions:

24.0"W x 38.0"D x 36.5"H

Product Weight:

300.0 lb

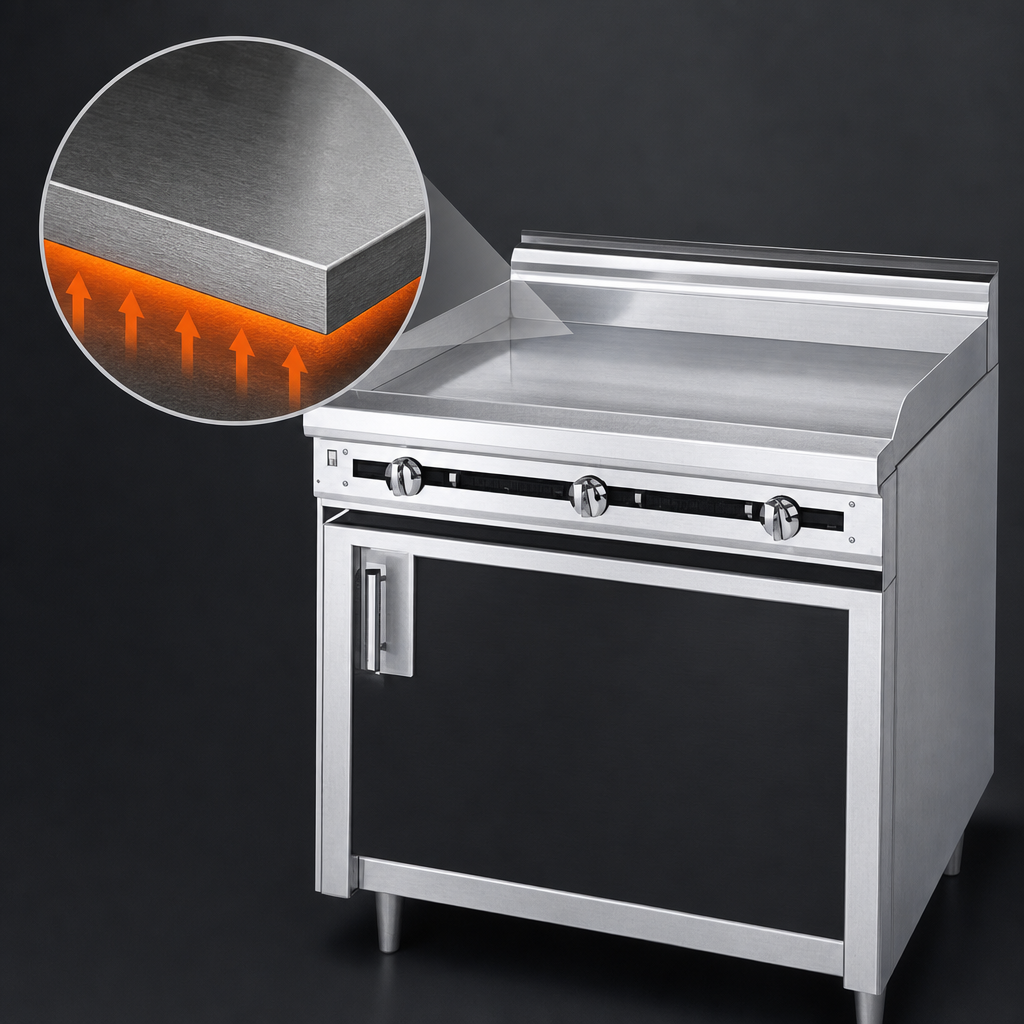

Heavy-Duty Griddle Plate

Features a polished 1-inch thick steel griddle plate, ensuring excellent heat distribution and retention for consistent cooking results under high demand.

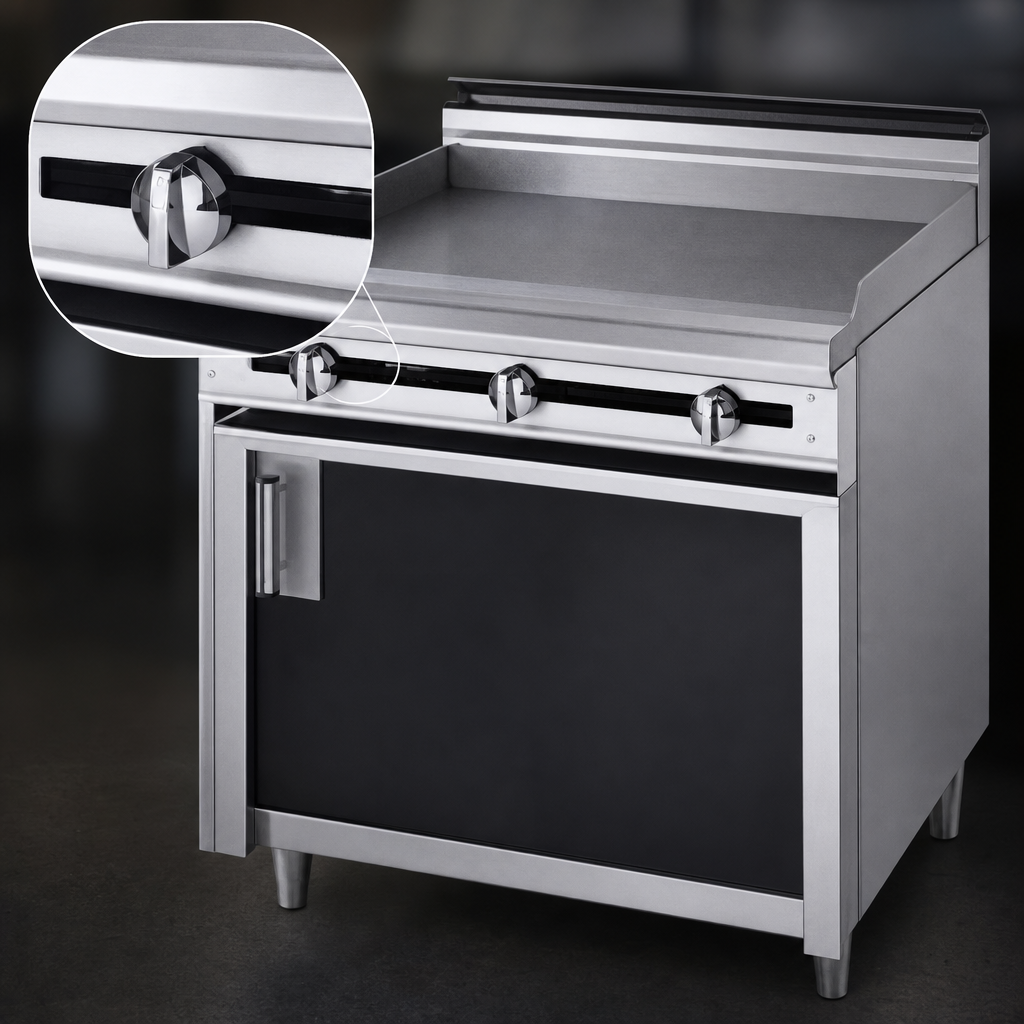

Manual Controls

Equipped with infinite gas valves for manual control, allowing chefs to precisely adjust heat settings across the griddle surface without a thermostat for tailored cooking.

All Stainless Steel Construction

The entire unit, including the front, sides, stub back, bottom, and cabinet interior/exterior, is constructed from durable 14 gauge stainless steel for maximum longevity, hygiene, and simplified cleaning routines.

Integrated Cabinet Base

Provides a convenient and enclosed storage area beneath the griddle, helping to keep your kitchen organized and essentials within reach.

Advanced Grease Management

Includes a 14 gauge stainless steel grease trough and robust stainless steel side and rear splashguards to effectively manage grease and maintain a cleaner, safer cooking environment.

Adjustable Legs and Plate Shelf

Comes with 6-inch stainless steel adjustable legs for stable and level installation, along with a 6-inch stainless steel plate shelf for convenient food preparation and plating.

Gas Pressure Regulator Included

A 3/4-inch gas pressure regulator is supplied (shipped loose) and must be properly installed to ensure safe and optimal operation of the range.

Type Heavy Duty Range
Style Griddle Top, Cabinet Base
Installation Type Floor Model (With Adjustable Legs)
Controls Manual
Cooking Surface Width 24 Inches
Cooking Surface Depth 38 Inches
Griddle Plate Thickness 1 Inch
BTU 70,000 BTU
Gas Type Natural Gas or Propane (Specify Type When Ordering)
Gas Connection Size 3/4 Inch NPT (Regulator Supplied)
Gas Inlet Pressure (Natural Gas) 5 Inches W.C. Minimum
Gas Inlet Pressure (Propane) 10 Inches W.C. Minimum
Material Stainless Steel
Interior Finish Stainless Steel
Exterior Finish Stainless Steel
Shipping Width 24 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 300 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-24G comes with a polished 1-inch thick steel griddle plate, designed for superior heat retention and even cooking, making it ideal for high-volume commercial use.
This specific model, JTRH-24G, is equipped with manual controls (infinite gas valves) and does not have a temperature thermostat, providing direct and immediate heat management across the griddle surface.
The JTRH-24G can operate on either Natural Gas (requiring a minimum of 5" W.C.) or Propane Gas (requiring a minimum of 10" W.C.). The specific gas type must be specified when placing an order. A 3/4" gas pressure regulator is supplied loose with the unit.
The Titan JTRH-24G measures 24 inches wide, 38 inches deep, and 36.5 inches high. Its approximate shipping weight is 300 lb.
The JTRH-24G is constructed predominantly from 14 gauge stainless steel for its body, front, sides, stub back, bottom, cabinet interior and exterior, grease trough, splashguards, plate shelf, and adjustable legs, ensuring durability and ease of cleaning.
