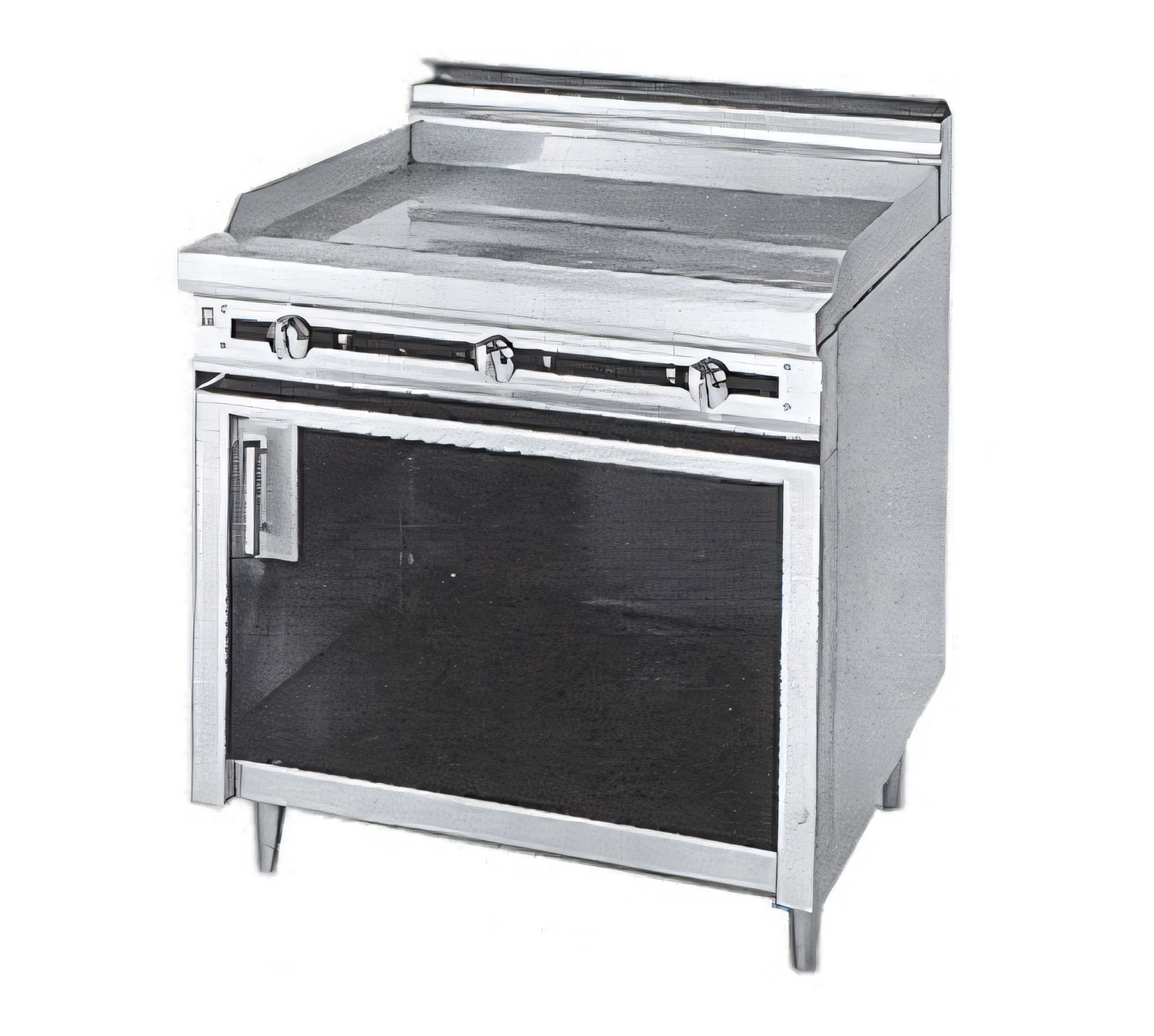

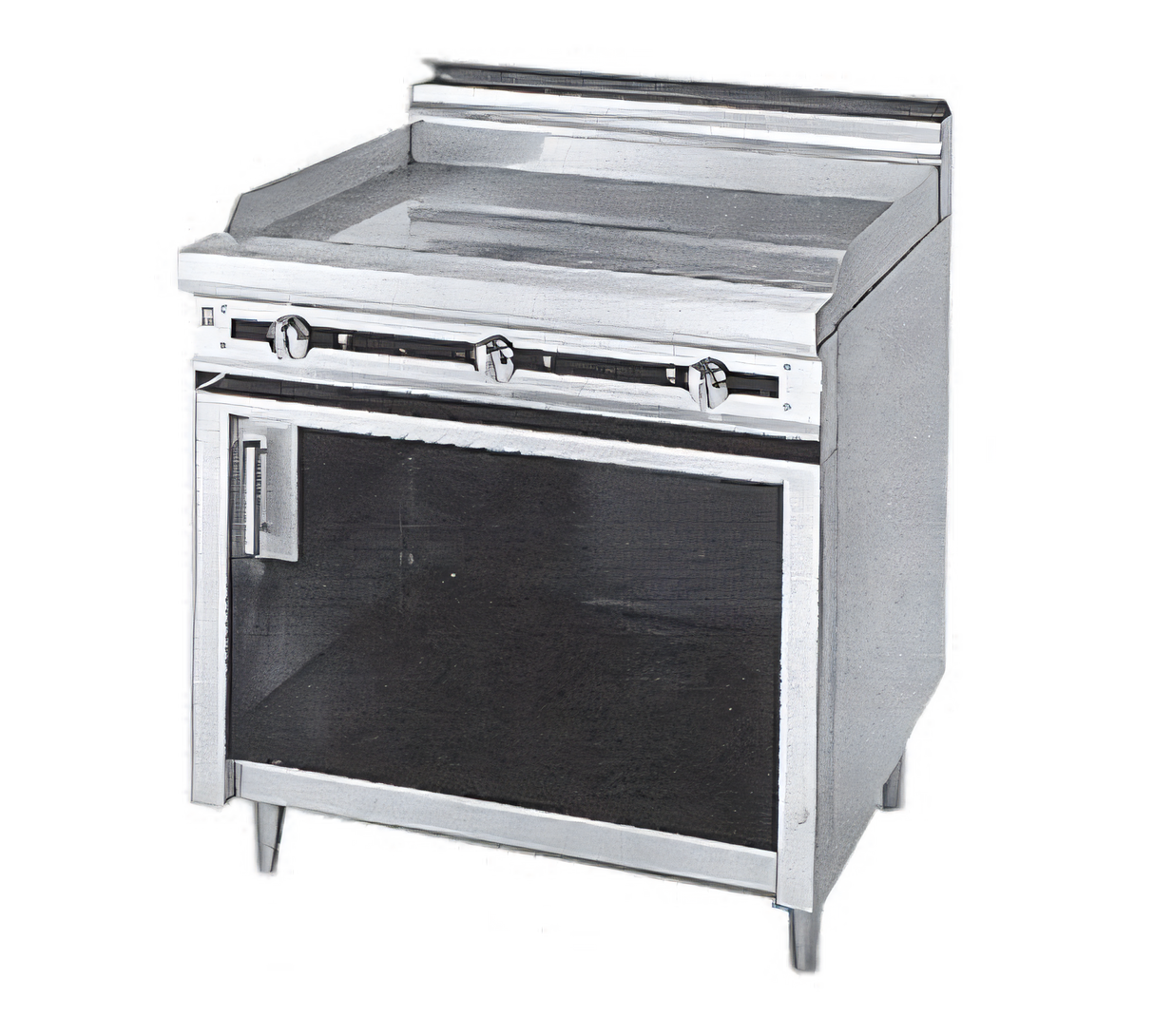

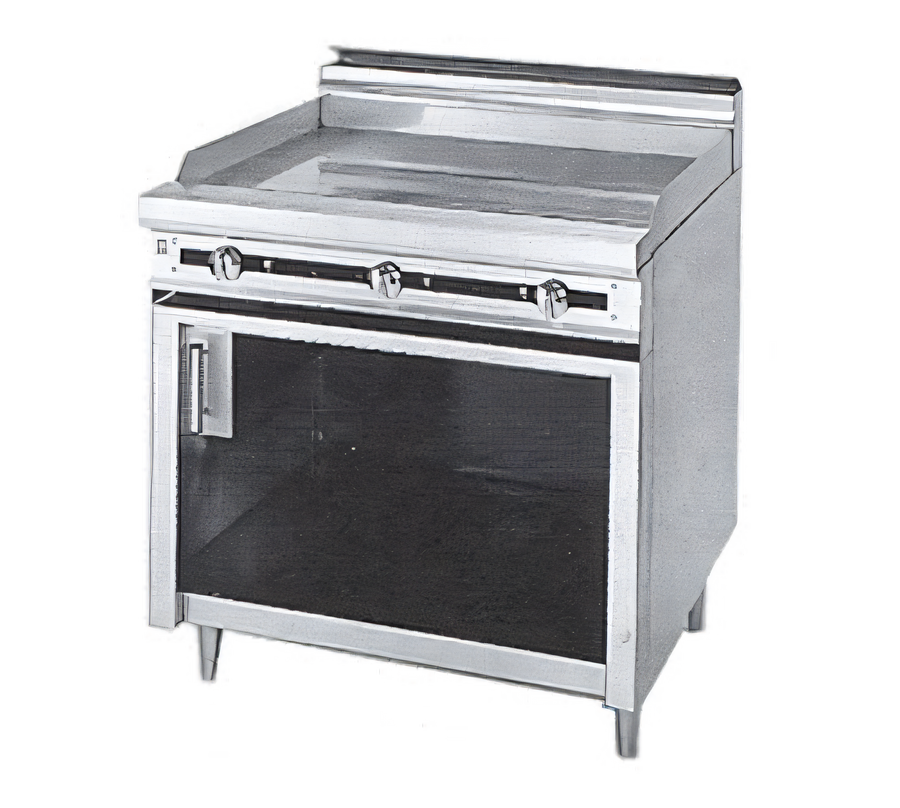

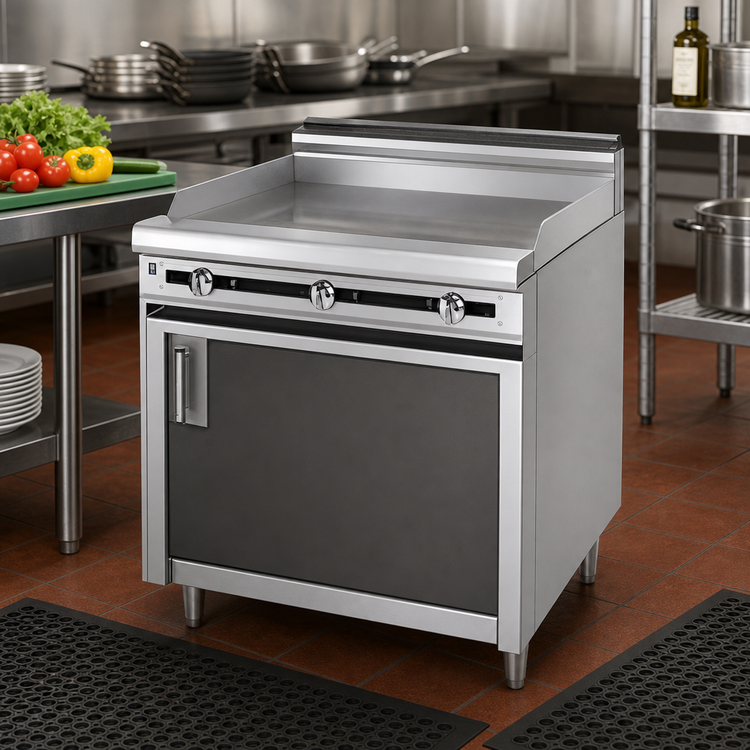

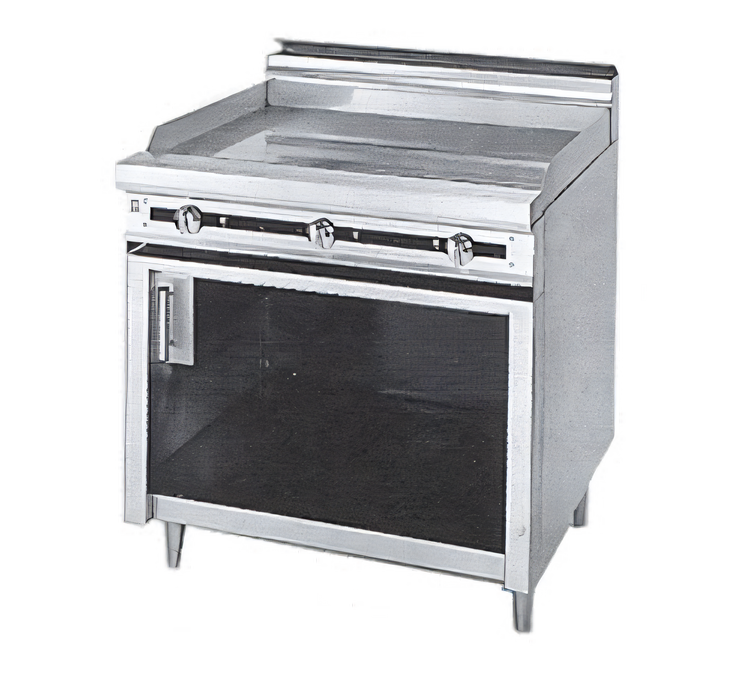

Jade Range Titan JTRH-18G 18" Heavy Duty Gas Griddle Top Range with Cabinet Base

18" Wide, Manual Controls, 1" Polished Steel Griddle, Floor Model

Experience robust performance and consistent cooking with the Titan JTRH-18G, a heavy-duty gas griddle top range designed for demanding commercial kitchens.

  • Equipped with a durable 1-inch thick polished steel griddle plate for even heat distribution and superior cooking.
  • Features manual controls, providing chefs precise command over cooking temperatures.
  • Boasts a robust 35,000 BTU burner section, ideal for high-volume griddle operations.
  • Constructed with an all stainless steel exterior, interior, and cabinet base for exceptional durability and easy cleaning.
  • Comes with a convenient 6-inch plate shelf and adjustable legs for operational flexibility.
  • Designed for heavy-duty commercial use, ensuring reliability and longevity in busy restaurant environments.

Overall Dimensions:

18.0"W x 38.0"D x 36.5"H

Product Weight:

250.0 lb

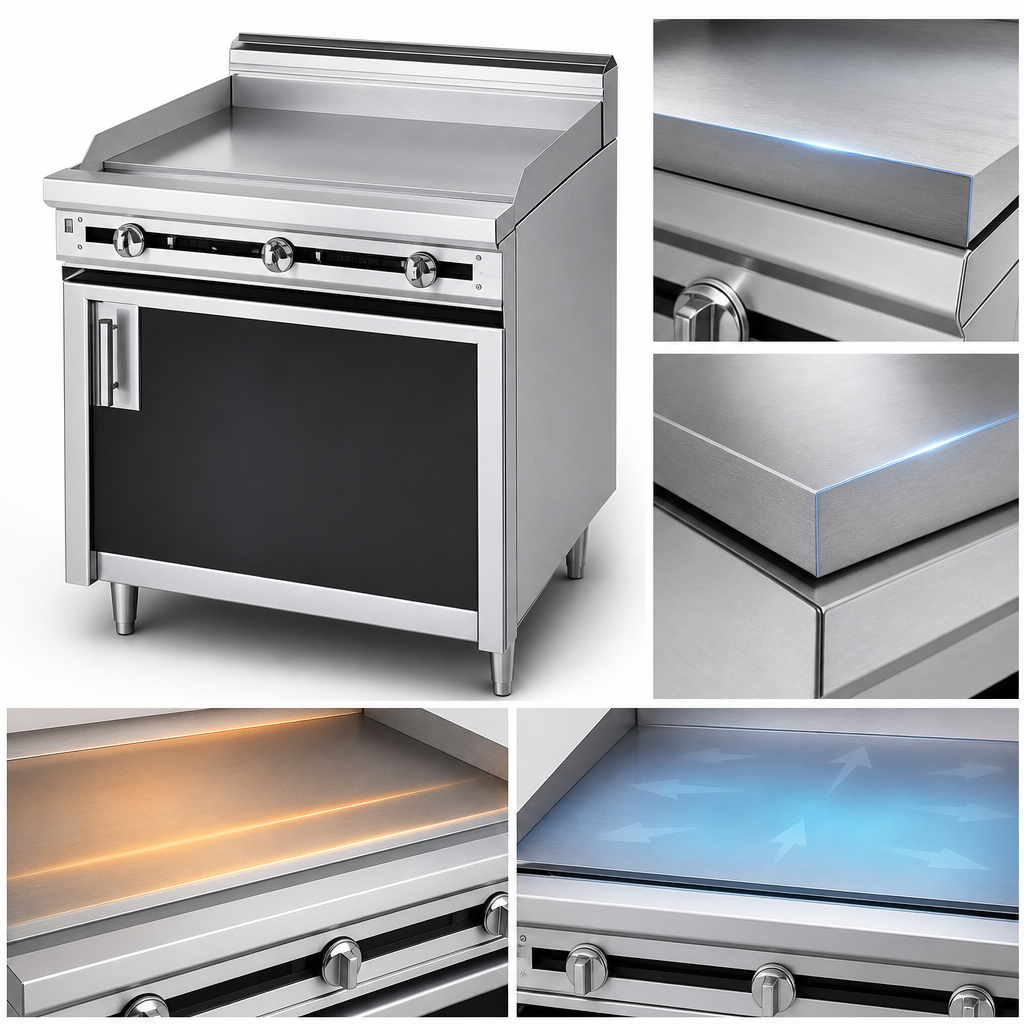

1" Polished Steel Griddle Plate

Features a reinforced 1-inch thick polished steel griddle plate that ensures quick heat-up, even temperature across the surface, and lasting durability for heavy commercial use.

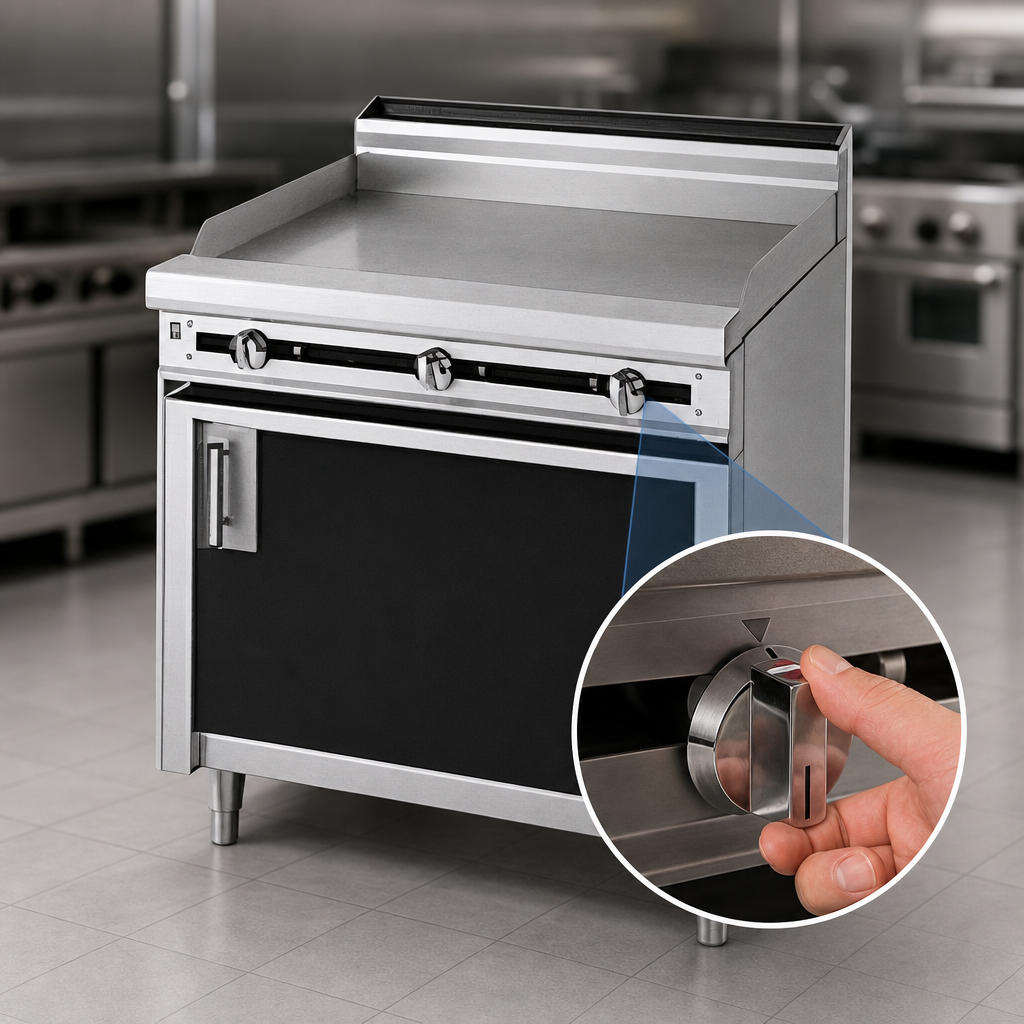

Manual Controls

Equipped with manual gas valves for precise, immediate control over the griddle temperature without a thermostat, allowing chefs to adjust heat settings directly.

Cabinet Base Design

Includes a fully enclosed stainless steel cabinet base, providing convenient storage space for kitchen essentials and ensuring a sturdy, floor-model installation.

Stainless Steel Construction

Built with 14 gauge stainless steel on the front, sides, stub back, bottom, and interior, offering superior corrosion resistance, structural integrity, and ease of cleaning.

Integrated Splashguards

Features 14 gauge stainless steel side and rear splashguards that contain grease and food splatter, maintaining a cleaner cooking area and enhancing kitchen hygiene.

Stainless Steel Grease Trough

Includes a 14 gauge stainless steel grease trough for efficient collection of cooking by-products, simplifying cleanup and maintenance.

6" Plate Shelf

A welded 6-inch stainless steel plate shelf is provided to offer a convenient staging area for plates and ingredients during cooking.

Adjustable Legs

Comes with 6-inch stainless steel adjustable legs, allowing for proper leveling on uneven floors and meeting various height requirements.

Gas Pressure Regulator

Supplied with a 3/4 inch gas pressure regulator (shipped loose) that must be installed for proper and safe operation of the unit.

Type Griddle Top Range
Style Heavy Duty
Installation Type Floor Model (With Cabinet Base)
Cooking Surface Width 18 Inches
Griddle Plate Thickness 1 Inch
Controls Manual
BTU 35,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT (regulator supplied)
Gas Inlet Pressure Natural Gas 5 Inches W.C. min, Propane Gas 10 Inches W.C. min, 14 Inches W.C. max
Material Stainless Steel (Exterior), Polished Steel (Griddle Plate)
Interior Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 18 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 250 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The JTRH-18G is designed to operate on either Natural Gas or Propane. Please specify the type of gas required when ordering.
No, the JTRH-18G model features manual controls with infinite gas valves, meaning it does not have a temperature thermostat for automatic heat regulation.
The griddle plate is 18 inches wide and is constructed from 1-inch thick polished steel.
Yes, a 3/4 inch gas pressure regulator is supplied loose with the range and must be installed for proper and safe operation.
The JTRH-18G features a 14 gauge all-welded body with a stainless steel front, sides, stub back, bottom, and cabinet interior. All gas tubing is also stainless steel.
The required minimum operating pressure for Natural Gas is 5 inches W.C., and for Propane Gas, it is 10 inches W.C. The maximum operating pressure for both is 14 inches W.C.
