Jade Range (Middleby)

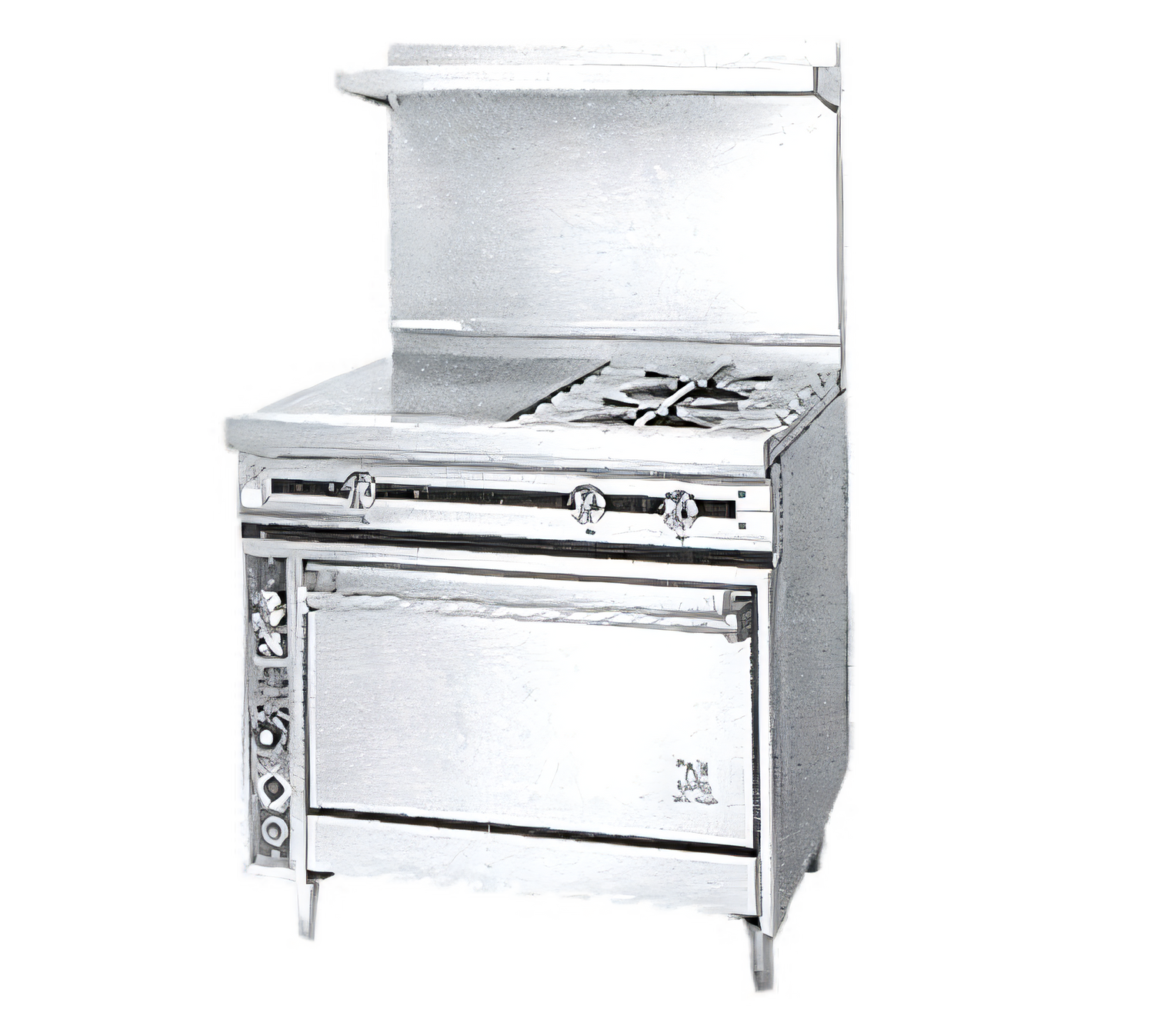

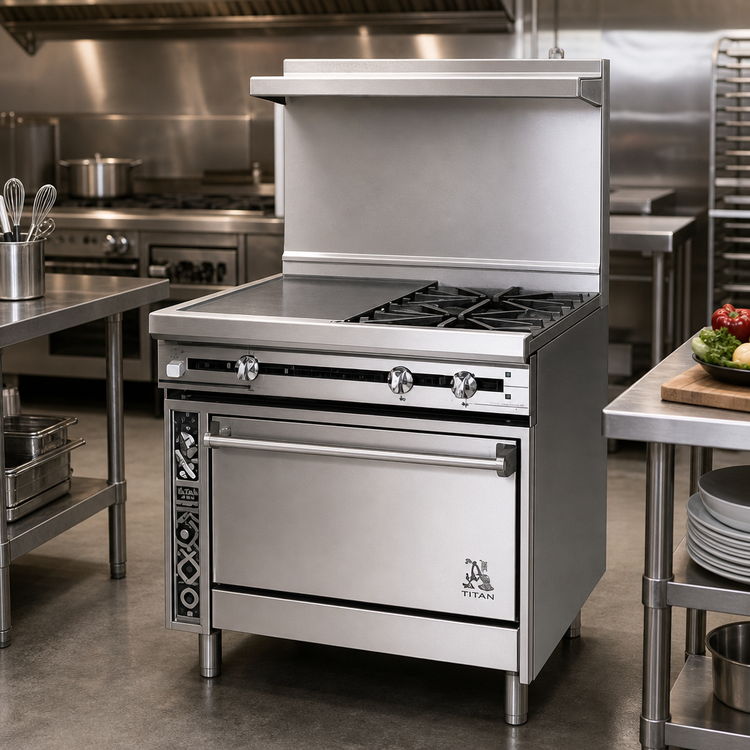

Titan JTRH-18G-2 36" Heavy Duty Gas Range with 18" Griddle, 2 Open Burners, and Cabinet Base

SKU: JTRH-18G-2
$14,704.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges Jade Range (Middleby) New Arrivals Ranges Restaurant Equipment

Titan JTRH-18G-2 36" Heavy Duty Gas Range with 18" Griddle, 2 Open Burners, and Cabinet Base

36 Inch, Natural Gas or Propane, Floor Model

Designed for demanding commercial kitchens, the Titan JTRH-18G-2 provides versatile gas cooking with a powerful griddle and open burners, all atop a convenient storage cabinet.

  • Durable heavy-duty construction with stainless steel exterior for long-lasting performance.
  • Features a 35,000 BTU/hr, 18-inch griddle with a 1-inch thick, high-polished steel plate and manual controls.
  • Equipped with two 35,000 BTU/hr cast iron open burners with individual lift-off grates for intense heat.
  • Includes a spacious stainless steel cabinet base for essential storage, helping to keep your kitchen organized.
  • Adjustable 6-inch stainless steel legs ensure stability and proper leveling on any floor surface.
  • Total 105,000 BTU for efficient and powerful cooking operations.

Overall Dimensions:

36.0"W x 38.0"D x 36.5"H

Product Weight:

535.0 lb

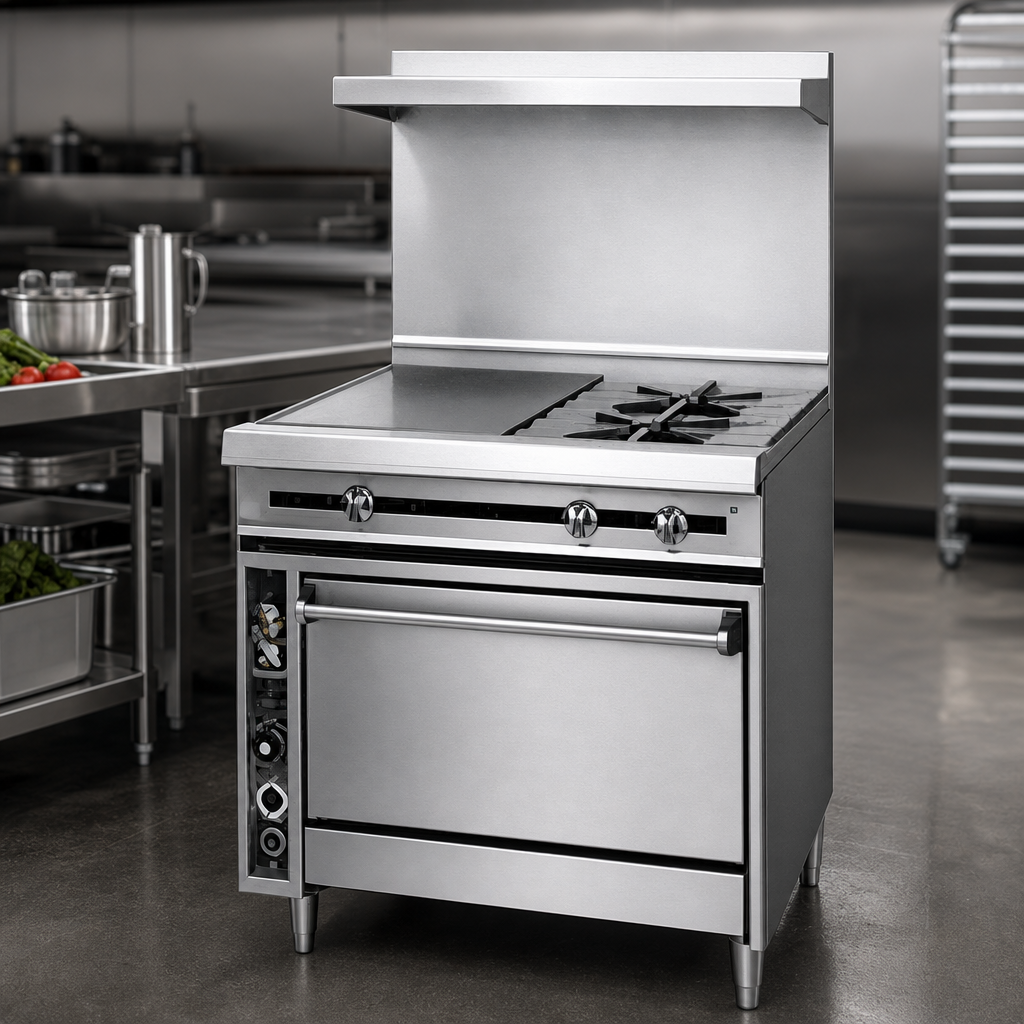

Heavy Duty Construction

Built with robust materials, including a stainless steel front, sides, and stub back, designed to withstand the rigors of a busy commercial kitchen environment.

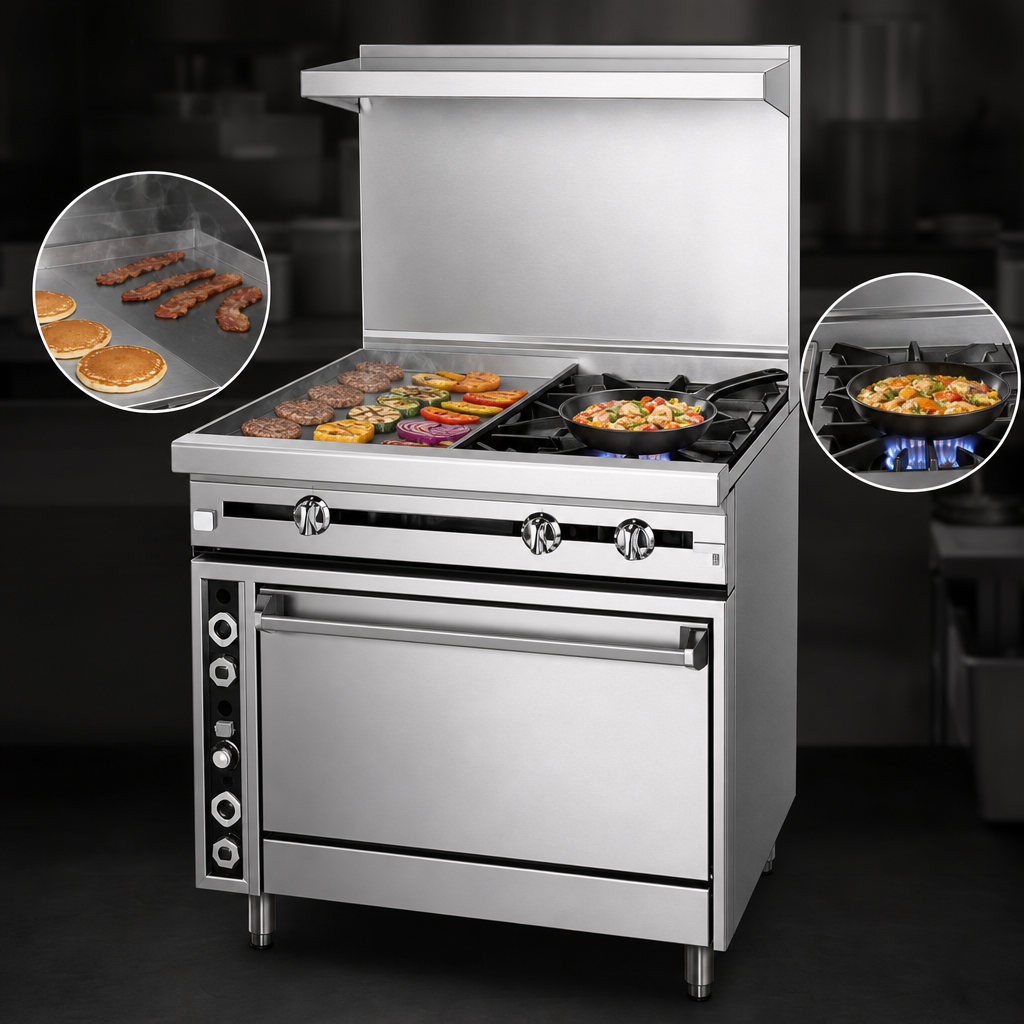

Versatile Cooking Top

Features a 36-inch wide cooking surface composed of one 18-inch griddle section and one 18-inch section with two open burners, offering flexibility for various cooking tasks.

High-Performance Griddle

The 18-inch griddle boasts a 1-inch thick, high-polished steel plate, heated by a 35,000 BTU/hr burner with manual controls, ideal for searing, frying, and grilling.

Powerful Open Burners

Two individual 35,000 BTU/hr cast iron open burners come with lift-off steel top grates for easy cleaning and maintenance, providing quick and intense heat.

Cabinet Storage Base

A full stainless steel cabinet base provides convenient and hygienic storage space for pots, pans, and other kitchen essentials.

Adjustable Stainless Steel Legs

Equipped with 6-inch adjustable stainless steel legs to ensure stable placement and allow for leveling on uneven floors.

Integrated Plate Shelf

Comes standard with a 6-inch stainless steel plate shelf, providing a convenient staging area or extra workspace.

Efficient Gas System

Features one stainless steel pilot per burner and stainless steel gas tubing throughout for reliable and safe operation.

Type Heavy Duty Range
Style Gas Range with Cabinet Base
Installation Type Floor Model (With 6" Adjustable Legs)
BTU 105,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 1-1/4 Inches Front Manifold, 1 Inch or 3/4 Inch Rear Manifold
Gas Inlet Pressure Natural Gas: 5-7 Inches W.C., Propane Gas: 10-14 Inches W.C.
Cooking Surface (1) 18" Griddle, (1) 18" Section with 2 Open Burners
Controls Manual Gas Valves
Griddle Plate Thickness 1 Inch
Material Stainless Steel
Interior Finish Stainless Steel (Cabinet)
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 37 Inches
Shipping Weight 535 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The range requires either Natural Gas (5-7 Inches W.C. operating pressure) or Propane Gas (10-14 Inches W.C. operating pressure). It is supplied with a 1-1/4 Inch front manifold connection and a 1 Inch or 3/4 Inch capped rear manifold connection. A 3/4 Inch gas pressure regulator is supplied, but 1 Inch or 1-1/4 Inch regulators are available as accessories.
No, the 18-inch griddle on the JTRH-18G-2 model features manual controls with infinite gas valves, meaning it does not have a temperature thermostat for automatic temperature regulation.
The 36-inch cooking surface includes one 18-inch wide griddle section and one 18-inch wide section equipped with two powerful open burners.
The JTRH-18G-2 model comes with a stainless steel cabinet base for storage, not an oven. Optional stainless steel doors are available for the cabinet base.
The griddle features a high polished steel plate that is 1 Inch thick, designed for excellent heat retention and durability.
