Jade Titan JMRH-60GT Heavy Duty 60 Inch Modular Gas Griddle Top Range with Thermostatic Controls

Full-Size, Natural Gas or Propane, Standard Depth

Engineered for high-volume commercial kitchens, the Jade Titan JMRH-60GT delivers consistent, powerful griddle performance with heavy-duty construction and precise thermostatic controls.

  • 60-inch wide griddle top with a 1" thick polished steel plate for superior heat retention and even cooking.
  • Equipped with thermostatic controls for precise temperature management across the griddle surface.
  • Durable 14 gauge stainless steel construction on front, sides, and stub back ensures longevity and easy cleaning.
  • Features an integrated 14 gauge stainless steel grease trough and high splashguards for a cleaner workstation.
  • Includes a convenient 6" stainless steel plate shelf for quick access to plating or holding cooked items.
  • Modular design allows for flexible kitchen layout and integration with other Titan series equipment.
  • High BTU output of 150,000 BTU ensures rapid preheating and recovery for continuous operation.

Overall Dimensions:

60.0"W x 36.25"D x 36.5"H

Product Weight:

830.0 lb

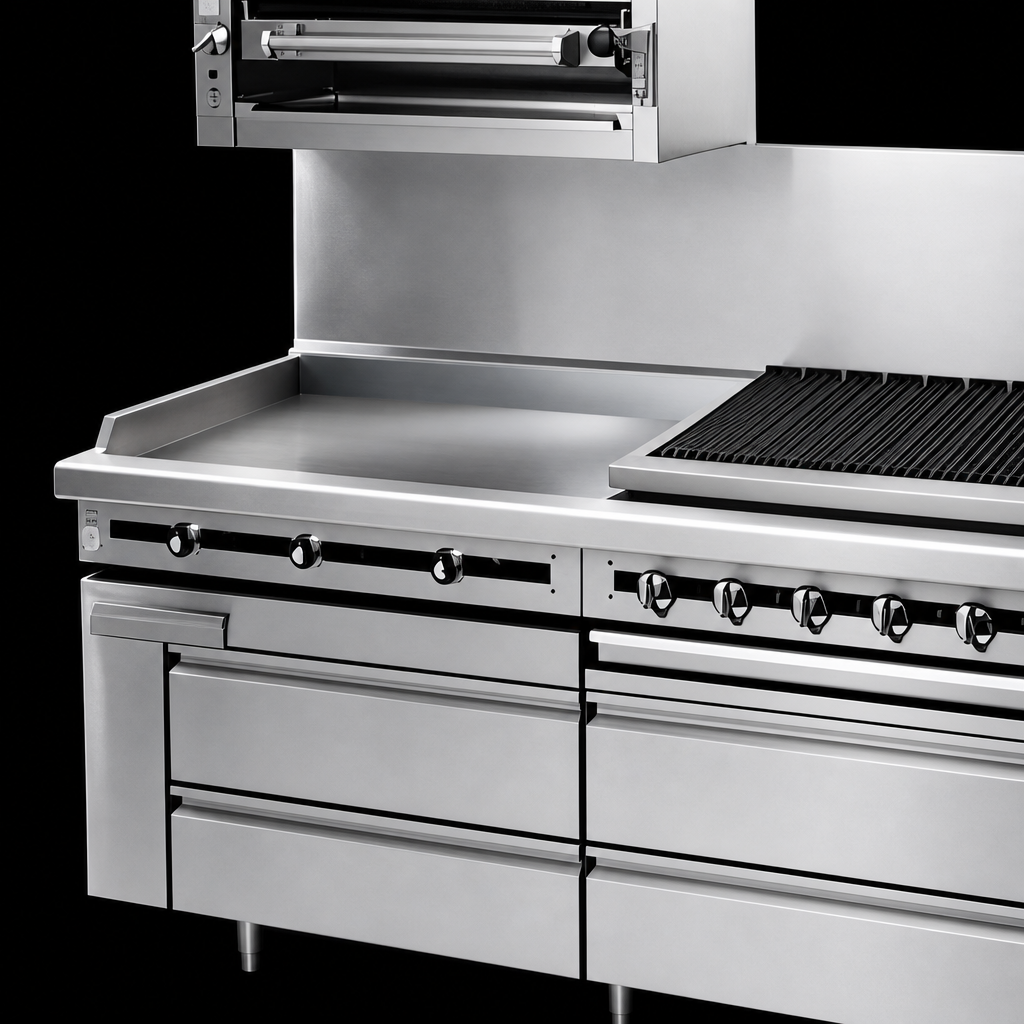

Polished 1" Thick Steel Griddle Plate

Provides excellent heat distribution and retention for consistent cooking results across the entire cooking surface.

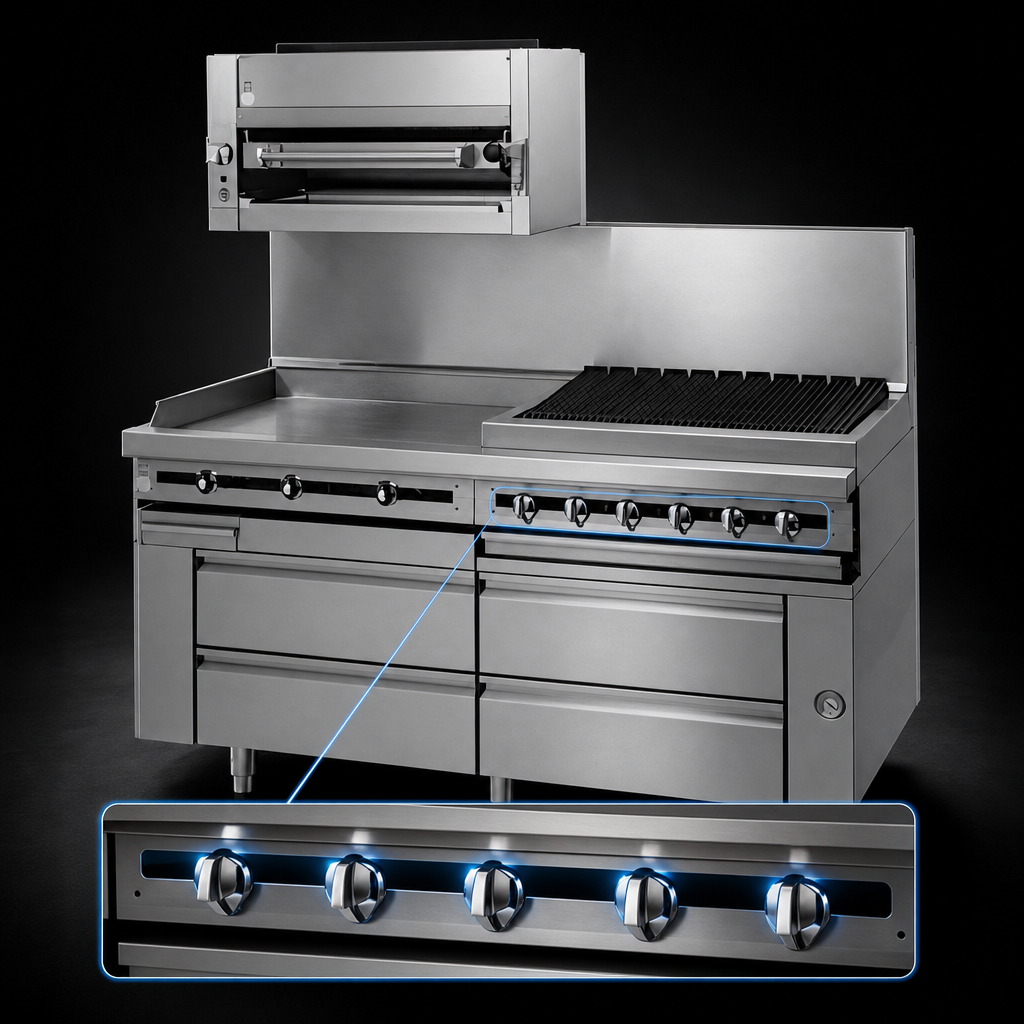

Thermostatic Controls

Allows for precise and consistent temperature regulation across the griddle surface, ideal for various cooking needs and uniform product quality.

Heavy-Duty Stainless Steel Construction

Features a 14 gauge stainless steel front, sides, and stub back, ensuring robust durability, corrosion resistance, and a professional appearance in demanding commercial environments.

Integrated Grease Trough and Splashguards

A 14 gauge stainless steel grease trough and high side/rear splashguards facilitate easy cleaning and protect surrounding surfaces from splatters, promoting a cleaner and safer workstation.

6" Stainless Steel Plate Shelf

Provides convenient storage or holding space for plates, finished products, or frequently used utensils, enhancing workflow efficiency.

Variable Multi-Point Gas Connection

Offers flexibility in gas line hook-up with a 1-1/4" front manifold connection and a 1" or 3/4" capped rear manifold connection.

Adjustable Legs

Comes standard with 6" stainless steel adjustable legs, providing a sturdy base and allowing for easy cleaning underneath the unit.

Type Modular Griddle Top Range
Style Heavy Duty
Installation Type Floor Model (With Legs)
Cooking Surface Width 60 Inches
Cooking Surface Depth 36.25 Inches
Plate Thickness 1 Inch
Controls Thermostatic
BTU 150,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 5 Inches W.C.
Gas Inlet Pressure (Propane Gas) 10 Inches W.C.
Material Stainless Steel
Finish Stainless Steel
Color Stainless Steel
Shipping Width 60 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 830 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Jade Titan JMRH-60GT is designed to operate with either Natural Gas or Propane. Please specify your desired gas type when ordering to ensure proper configuration.
For Natural Gas, a minimum operating pressure of 5" W.C. is required. For Propane Gas, a minimum of 10" W.C. is necessary. The maximum operating pressure for either gas type is 14" W.C.
Yes, the JMRH-60GT is supplied with a 3/4" gas pressure regulator, which must be installed for proper and safe operation of the unit.
The griddle plate is constructed from 1" thick polished steel, which ensures excellent heat retention, even temperature distribution, and durability for consistent cooking results.
The JMRH-60GT model is equipped with thermostatic controls, allowing for precise and consistent temperature management across the griddle surface.
Yes, this range can be installed at high altitudes. It is important to specify your altitude when ordering if it is above 2,000 feet, as adjustments may be required for optimal performance.
