Titan 12-Inch Heavy-Duty Modular Gas Griddle Top Section

Manual Controls, 1-Inch Polished Steel Plate, Stainless Steel Construction

This compact 12-inch gas griddle section delivers 35,000 BTU of manual-controlled cooking power on a 1-inch polished steel plate built for heavy-duty commercial use.

  • Compact 12-inch modular griddle section for space-saving cooklines
  • 1-inch polished steel griddle plate provides durable, even-heating performance
  • Manual infinite gas controls let operators adjust heat without a thermostat
  • 35,000 BTU output delivers fast recovery and strong cooking power
  • Stainless steel body, grease trough, and splashguards support daily commercial use
  • 6-inch stainless steel plate shelf adds a durable front landing area

Overall Dimensions:

12.0"W x 36.25"D x 36.5"H

Product Weight:

175.0 lb

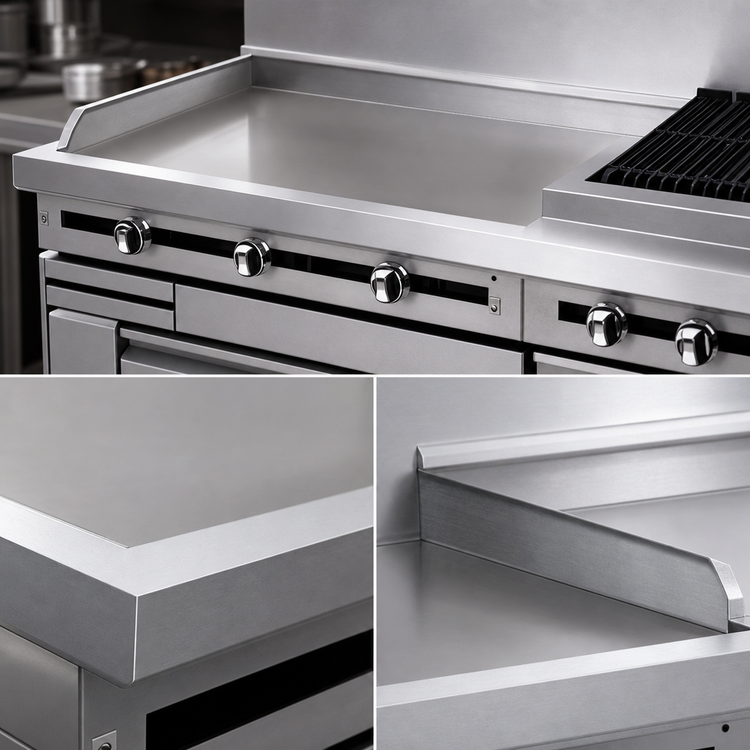

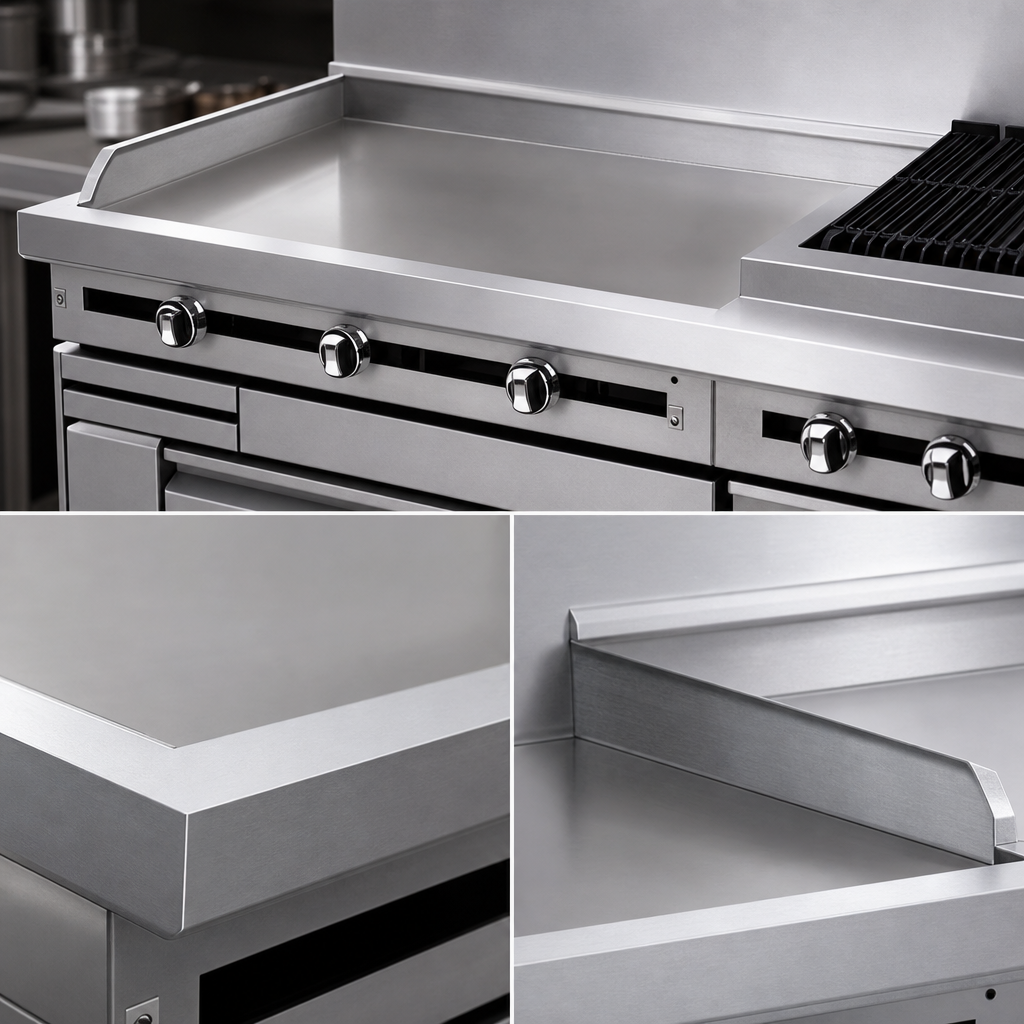

1-Inch Polished Steel Griddle Plate

Heavy-duty reinforced cooking surface designed for durability and even heat transfer.

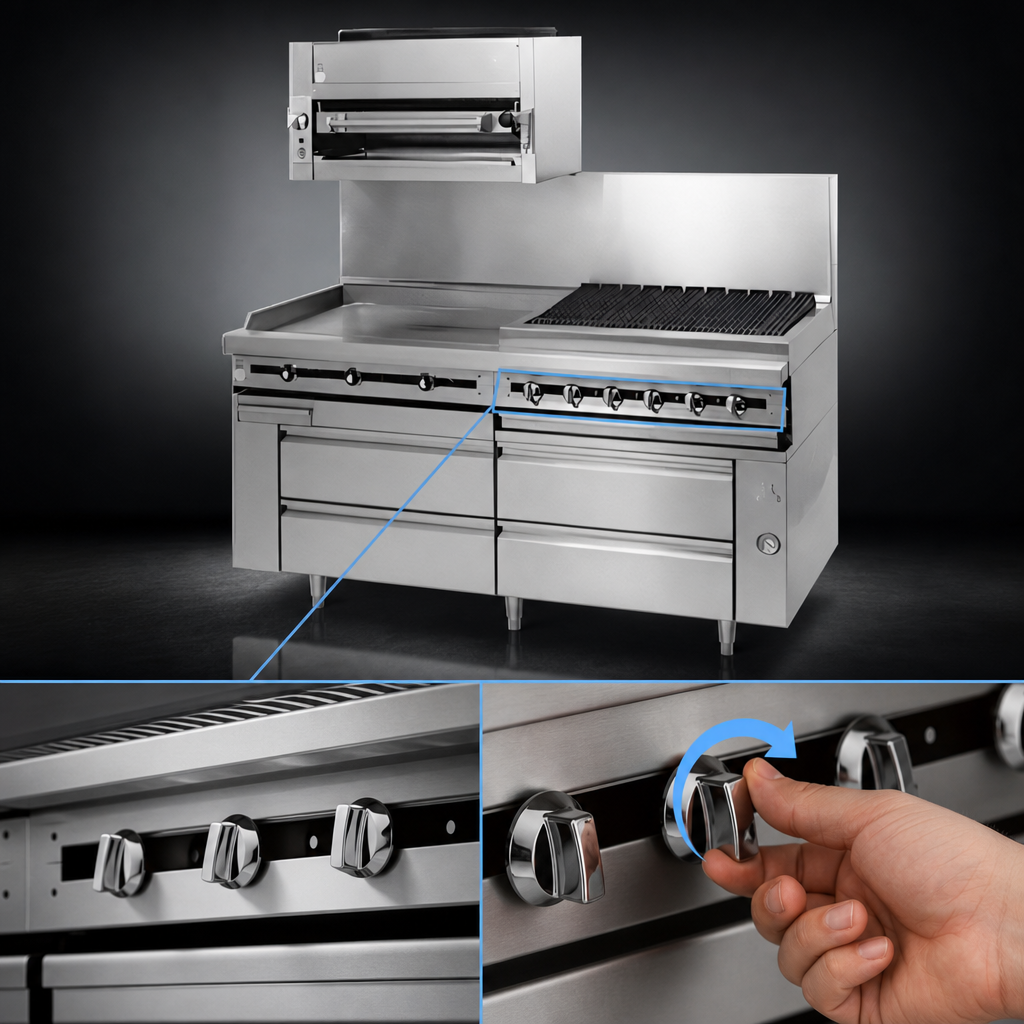

Manual Infinite Gas Controls

Simple operator control with no temperature thermostat.

35,000 BTU Burner Section

High-output heat for responsive cooking performance in demanding kitchens.

Stainless Steel Body

All-welded stainless steel front and sides built for long-term commercial use.

Grease Trough and Splashguards

Stainless steel grease trough and 14-gauge side and rear splashguards help contain mess.

6-Inch Stainless Steel Plate Shelf

Provides a durable front shelf area for plating and workflow support.

Stainless Steel Gas Tubing

Stainless tubing throughout supports reliable gas flow and durability.

Gas Regulator Included

Ships with a 3/4-inch gas regulator that must be installed for proper operation.

Type Griddle Top Section
Style Modular
Installation Type Floor Model
Material Stainless Steel
Controls Manual
Plate Thickness 1 Inch
BTU 35,000 BTU
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch Or 3/4 Inch Rear Manifold
Gas Inlet Pressure 5 Inches W.C. Minimum (Natural Gas); 10 Inches W.C. Minimum (Propane); 14 Inches W.C. Maximum
Shipping Width 12 Inches
Shipping Depth 37 Inches
Shipping Height 37 Inches
Shipping Weight 175 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. JMRH-12G uses manual controls and does not include a temperature thermostat.
The unit uses a 1-inch thick polished steel griddle plate.
This model is rated at 35,000 BTU per burner section.
It is supplied with a 1-1/4-inch front manifold connection and a capped rear manifold connection. Operating pressure is 5-inch W.C. minimum for natural gas or 10-inch W.C. minimum for propane, with 14-inch W.C. maximum.
Yes. The manufacturer says to specify altitude when ordering if the unit will be installed above 2,000 ft.
Available accessories include casters, 36-inch and 48-inch flex hoses with quick disconnects, and 1-inch or 1-1/4-inch gas pressure regulators.
