Jackson WWS AJX-66CE Conveyor Dishwashers
Description

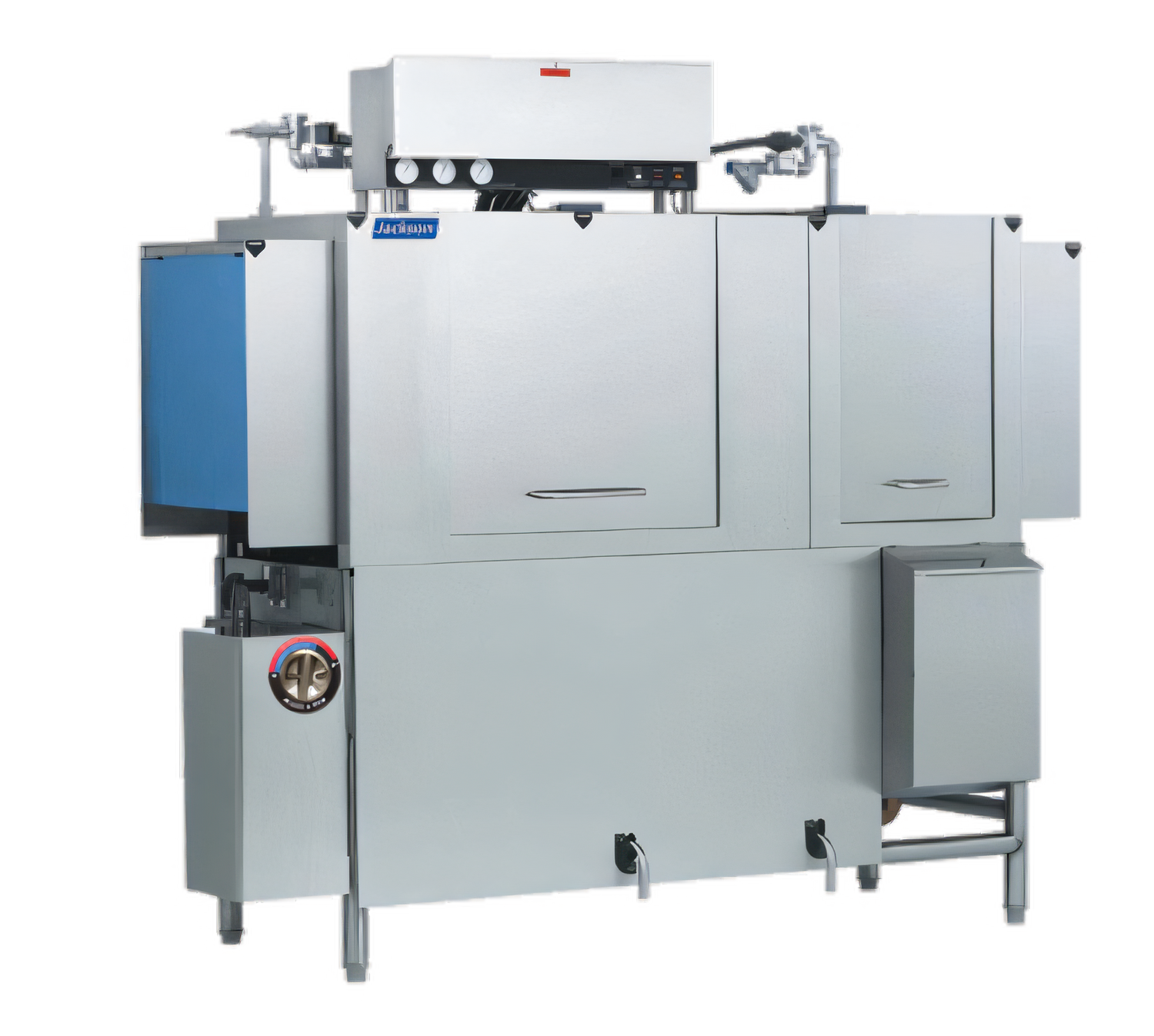

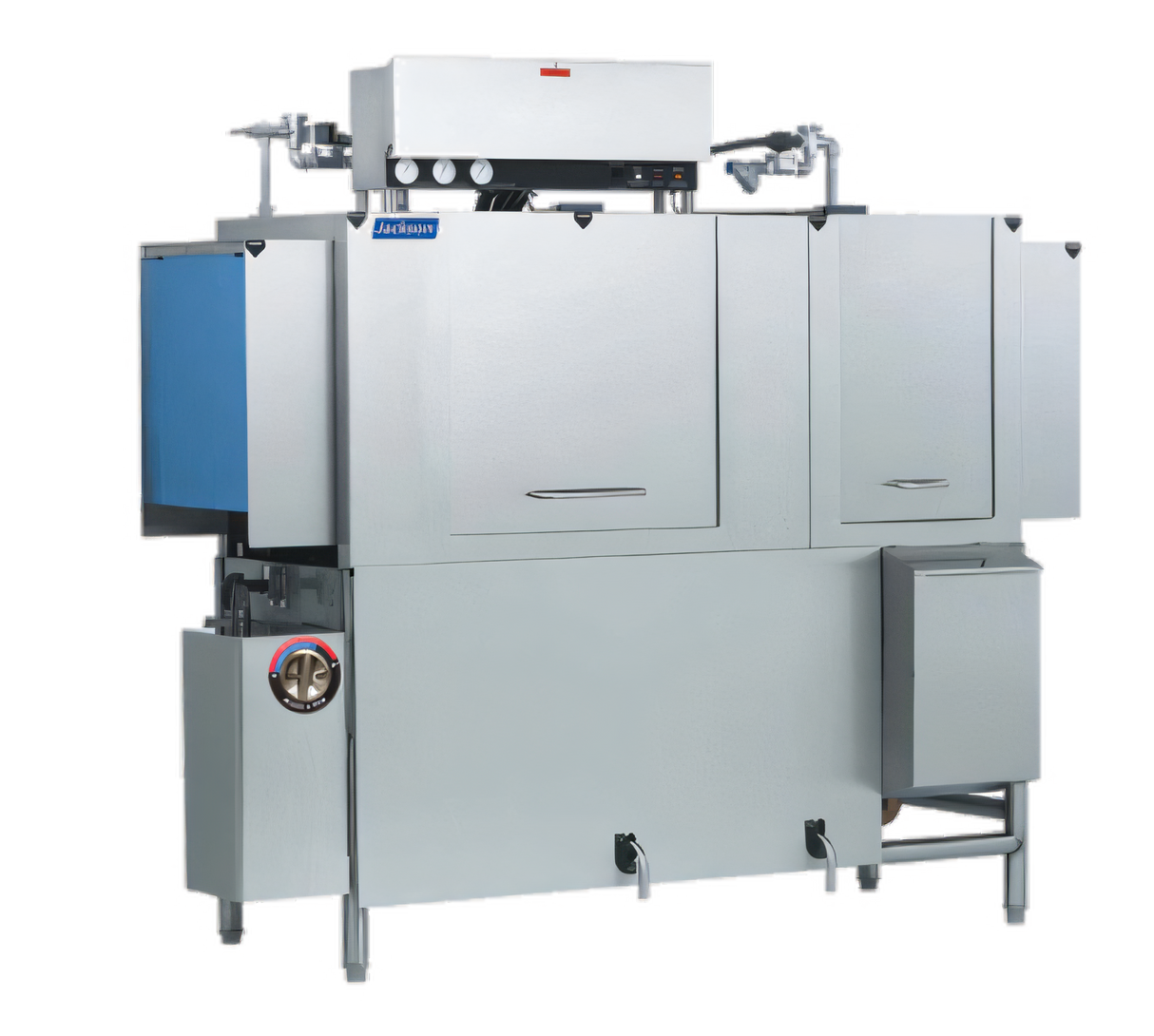

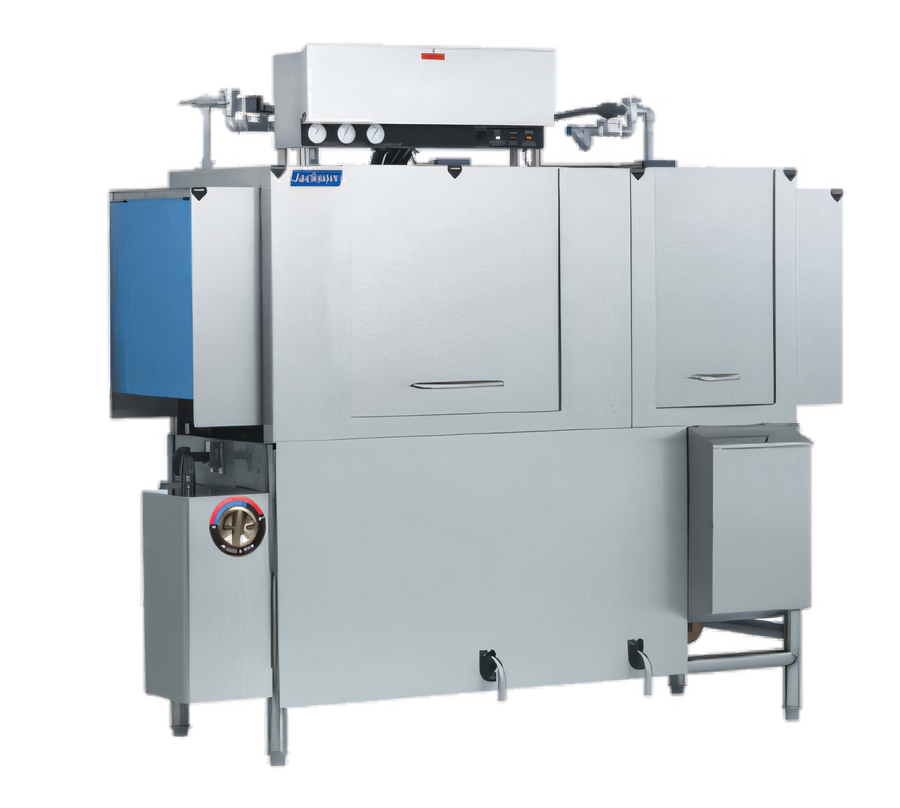

Jackson AJX-66 High-Temp Conveyor Dishwasher
225 racks/hr • 0.68 gal per rack • 25 in clearanceEngineered for the busiest kitchens, the Jackson AJX-66 combines rugged stainless-steel construction with water-saving, high-temperature performance. A 22 in. recirculating pre-wash knocks off heavy soils, while Jackson’s EnergyGuard™ controls and Adjust-A-Peak™ conveyor speed keep utility costs in check— all at a blistering 225 racks per hour.
Why You’ll Love It

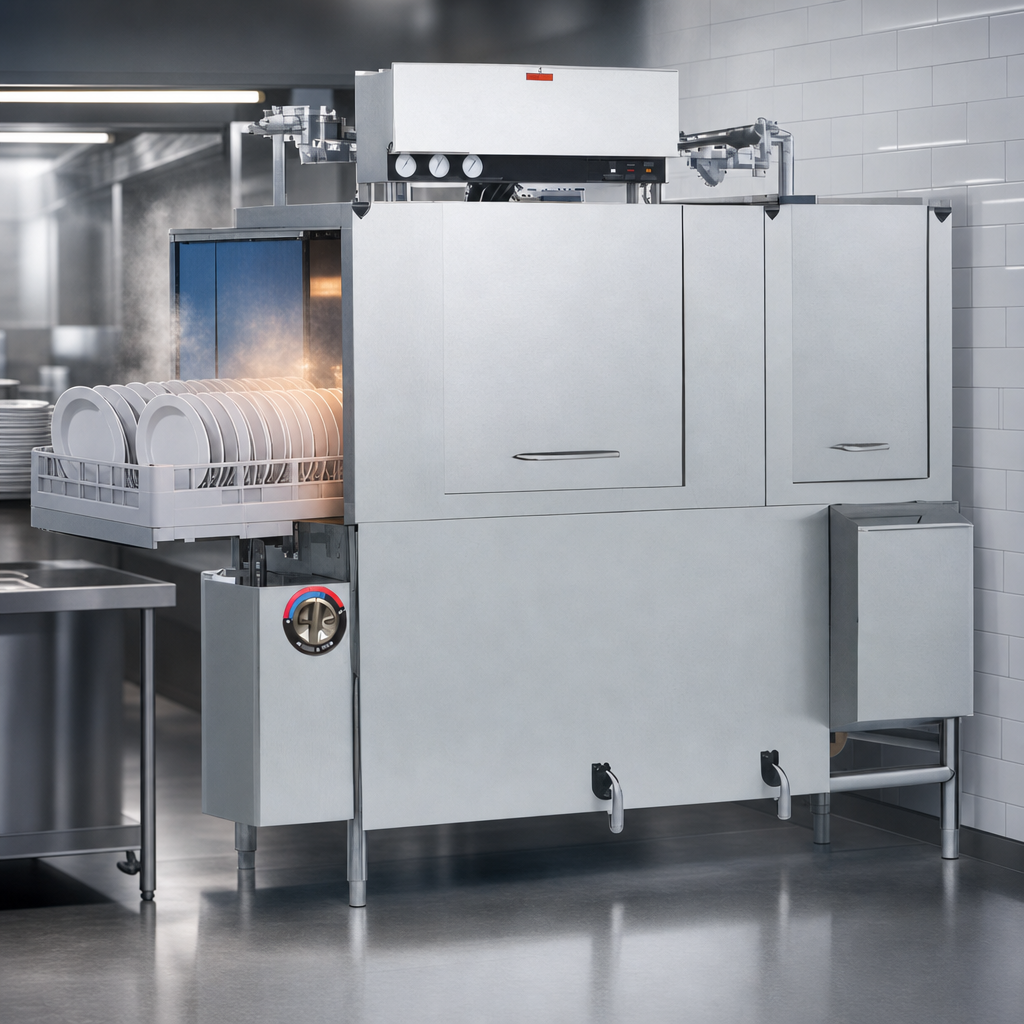

- High-temperature sanitizing (180 °F final rinse) — no chemicals required.

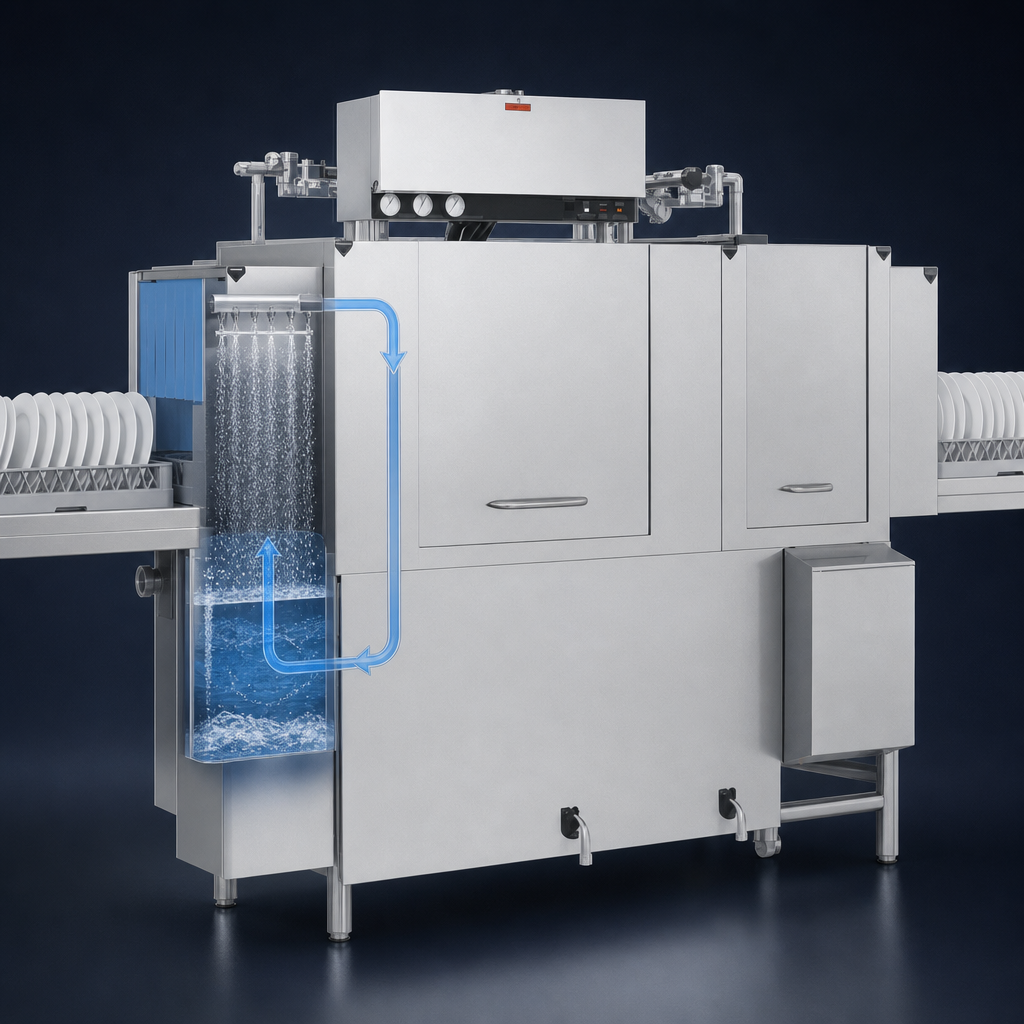

- 22 in. pre-wash section with (2) upper & (1) lower arms for superior soil removal.
- 25 in. chamber height handles sheet pans, stock pots & 60 qt mixing bowls.
- Adjust-A-Peak™ variable conveyor speed lengthens wash & rinse on tough loads.
- 18 kW electric wash tank heater maintains a consistent 160 °F wash.
- Self-draining stainless wash pump & externally operated drain lever simplify clean-up.
- Built-in vent fan control connection reduces dishroom heat and steam.
- All-stainless frame, legs & panels with adjustable bullet feet.
- Certified cETLus & NSF for food-service safety and sanitation.
Performance & Specs
| Model | AJX-66 (High-Temp) |
|---|---|
| Rack capacity | 225 racks/hour |
| Fresh water use | 0.68 gal (2.57 L) per rack ≈ 153 gal (579 L) per hour |
| Conveyor speed | 6.2 FPM (1.9 MPM) – adjustable |
| Chamber clearance | 25 in. (635 mm) |
| Pre-wash tank | 17.25 gal (65.3 L) • 1 hp pump @ 120 GPM |
| Wash tank | 21 gal (79.5 L) • 2 hp pump @ 270 GPM |
| Overall size | 75.5 H × 66 L × 31 D in. (1919 × 1676 × 787 mm) |
| Height – door open | 84 in. (2134 mm) |
| Shipping weight | ≈ 1,000 lb (454 kg) |
| Electrical load | 18 kW tank heat – 60.1 A @ 208 V/3 ph (other voltages available) |
| Water inlet | 3/4 in. NPT, 110–140 °F, 15 psi min. |
| Drain connection | 1-1/2 in. NPT, gravity |
| Vent requirement | 200 CFM input / 400 CFM output |
Detailed electrical configurations, side-loader options and table fabrication guidelines are available in the AJX-66 spec sheet—just ask our team!
What’s Included
- Stainless scrap baskets & splash shields
- Front dress panel
- Vent cowl (standard)
- Adjustable bullet feet
- 1-year parts & labor warranty (USA/Canada with registration)
Upgrade your dishroom with the Jackson AJX-66 and experience conveyor power that slashes water, energy and labor costs—shift after shift, year after year.
