Jackson WWS AJX-44CE Conveyor Dishwashers
Description

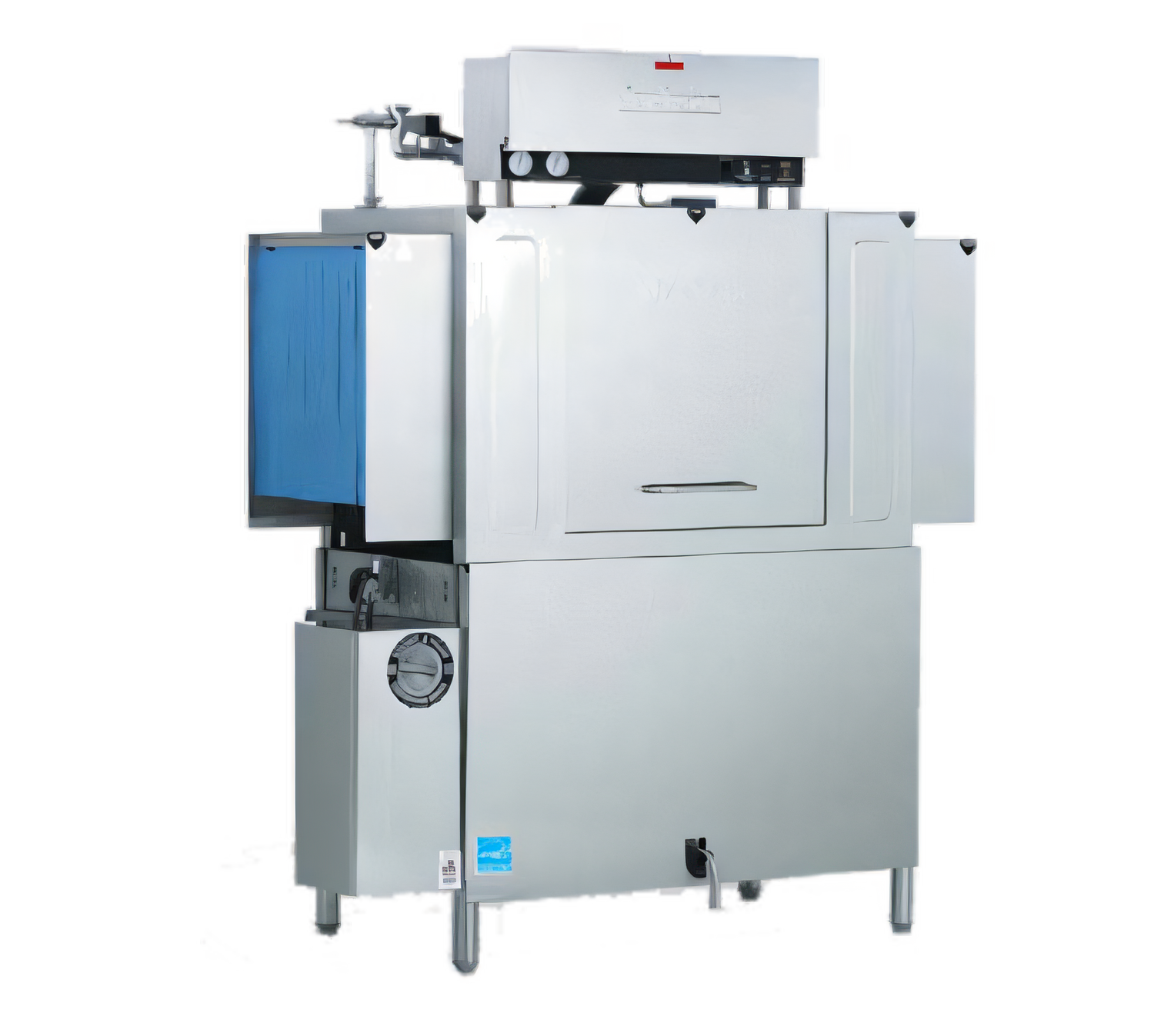

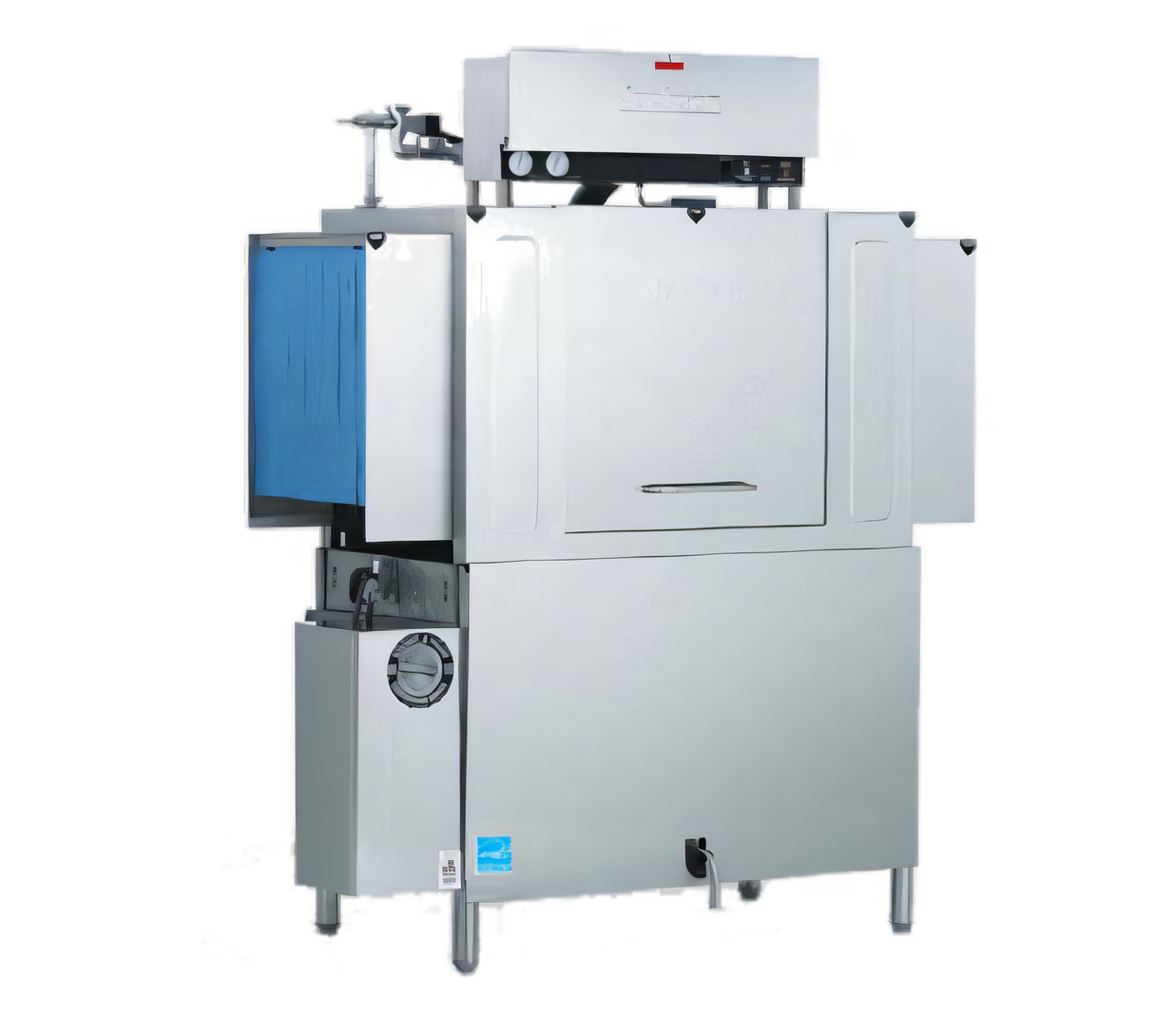

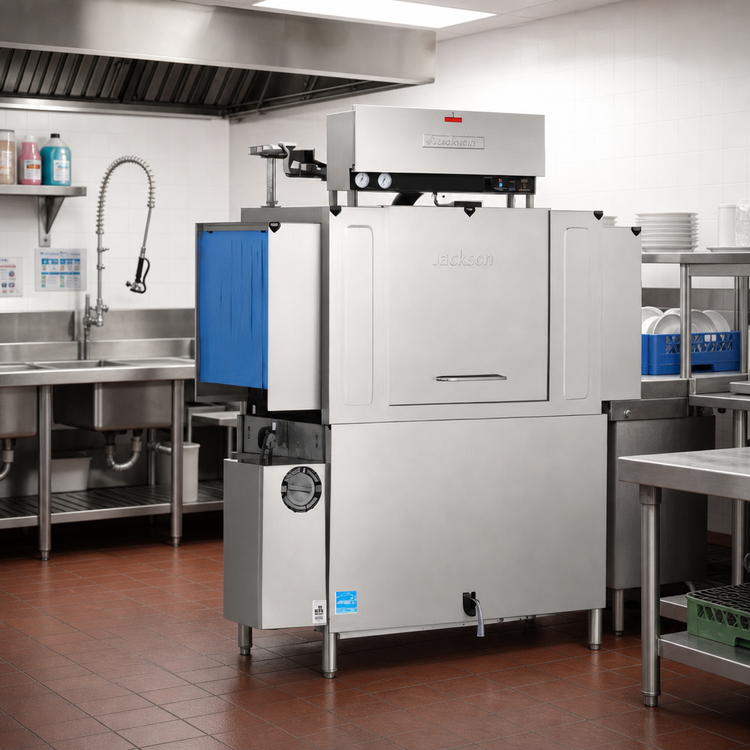

Jackson AJX-44 Conveyor Dishwasher
High-temperature | Single-tank | 44" conveyorBuilt for high-volume kitchens that demand speed, reliability and low operating costs, the AJX-44 processes up to 225 racks per hour while using just 0.68 gal of water per rack. Its 25-inch chamber clearance swallows sheet pans, mixing bowls and other oversize wares with ease, delivering NSF-approved sanitation every cycle.
Why Choose the AJX-44?

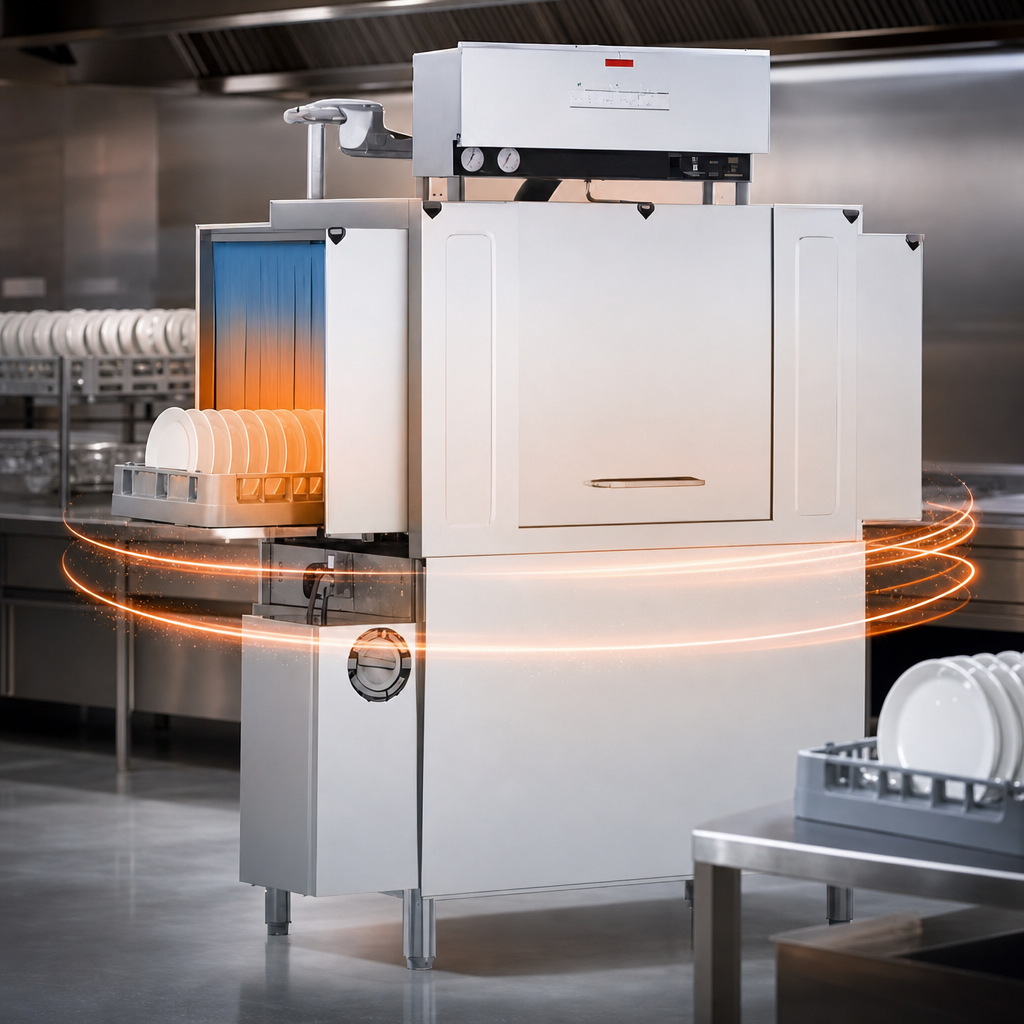

- High-temperature sanitizing eliminates chemical additives—180 °F final rinse.

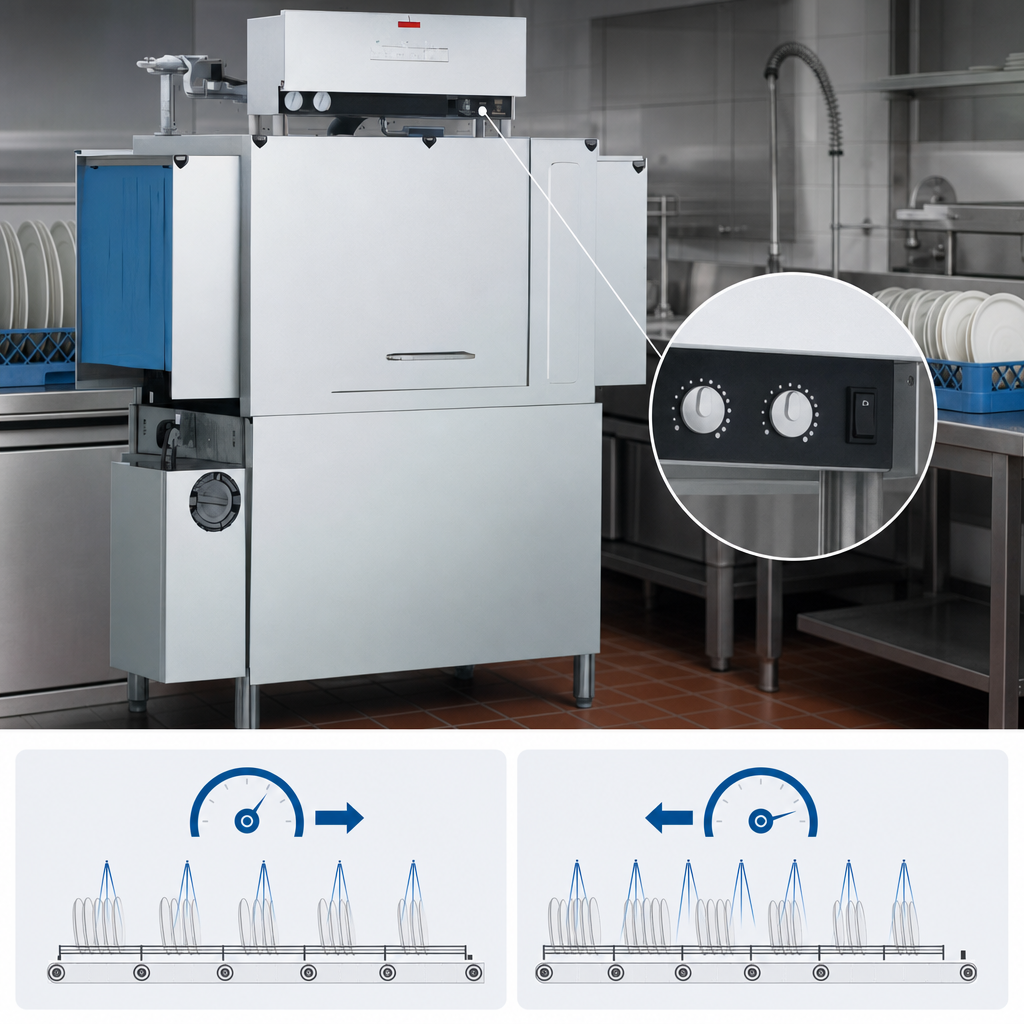

- Adjust-A-Peak™ variable conveyor speed extends wash & rinse time for heavily soiled loads.
- EnergyGuard™ controls activate wash/rinse only when a rack is present, cutting utility costs.
- Self-draining 2 HP stainless steel wash pump moves 270 GPM for consistent results.
- 18 kW electric tank heater maintains 160 °F wash temperature even during peak periods.
- Built-in vent fan control—no separate interlock required.
- cETLus & NSF listed for easy code compliance.
Designed for Busy Operators
- Fully automatic start-up with auto-fill.
- Electromechanical controls for fast, affordable service.
- Externally operated drain lever speeds end-of-shift clean-down.
- Stainless steel scrap baskets and 8" splash shields contain mess and debris.
- Adjustable bullet feet level the unit on uneven floors.
Performance & Utility Requirements
| Racks per hour | 225 |
|---|---|
| Water use | 0.68 gal / rack | 153 gal / hr |
| Conveyor speed | Up to 6.2 ft / min |
| Clearance height | 25 in |
| Wash tank capacity | 21 gal |
| Wash temperature | 160 °F minimum |
| Final rinse temperature | 180 °F minimum |
| Wash pump | 2 HP, 270 GPM (self-draining) |
| Total amps @ 208 V / 3 ph | 56.7 A |
| Vent requirement | 600 CFM (200 CFM inlet / 400 CFM outlet) |
| Certifications | NSF, cETLus |
| Overall dimensions | 84"H (door open) × 44"W × 25"D |
All-Stainless Construction
- Heavy-gauge stainless tank, frame, legs and panels resist corrosion.
- Front dress panel provides a clean, professional appearance.
- 8" splash shields keep surrounding areas dry.
Peace-of-Mind Warranty
Covered by Jackson’s 1-year parts & labor warranty, supported by a nationwide network of factory-authorized service agencies.
Register at jacksonwws-warranty.com within 30 days of installation to activate coverage.
Popular Factory Options
- Built-in booster heater (40 °F or 70 °F rise)
- Side-loader modules (23" & 30", hooded or un-hooded)
- Drain-water tempering kit
- Blower dryer & vent cowl collars
- Specialty racks: sheet-pan, peg, combination & 36-compartment glass racks
