Key specifications

Dimensions
102.0"W × 25.0"D × 75.5"H
Type
Conveyor Dishwasher
Style
Rack Conveyor
Installation Type
Floor Model
Material
304 Stainless Steel
Capacity
Approximately 287 Racks/Hour
Spec sheet
Jackson WWS SKU: AJ-86CS

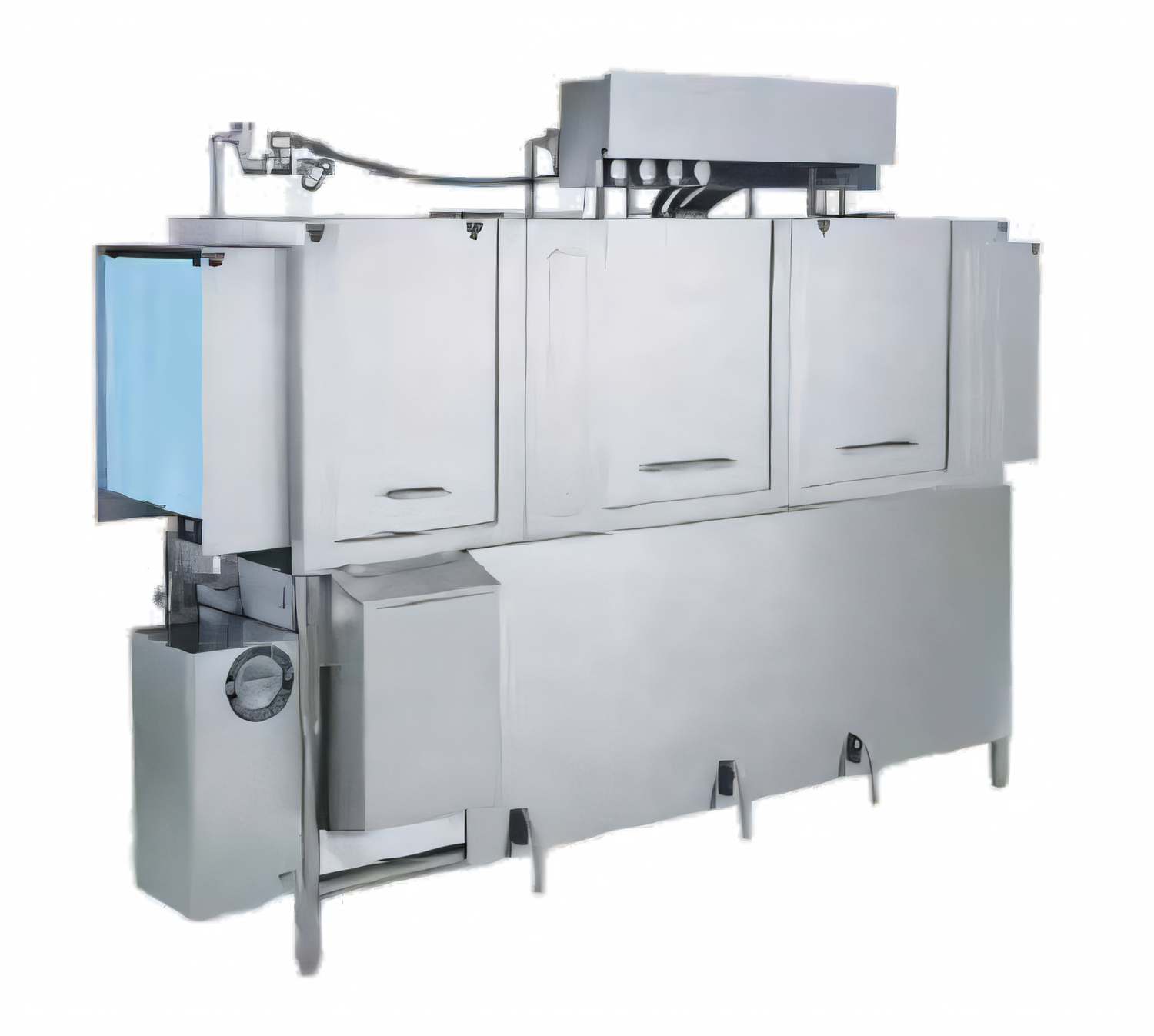

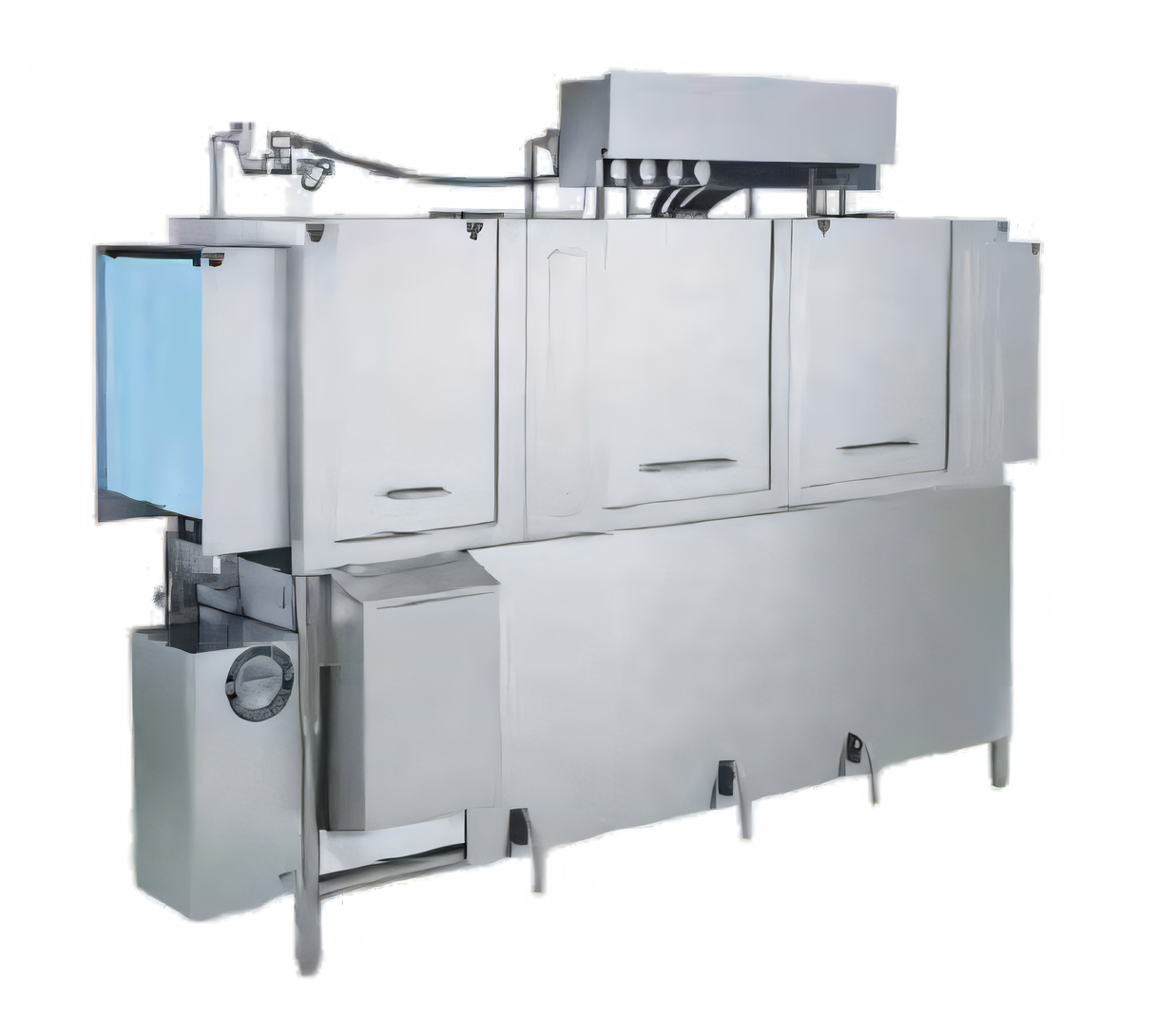

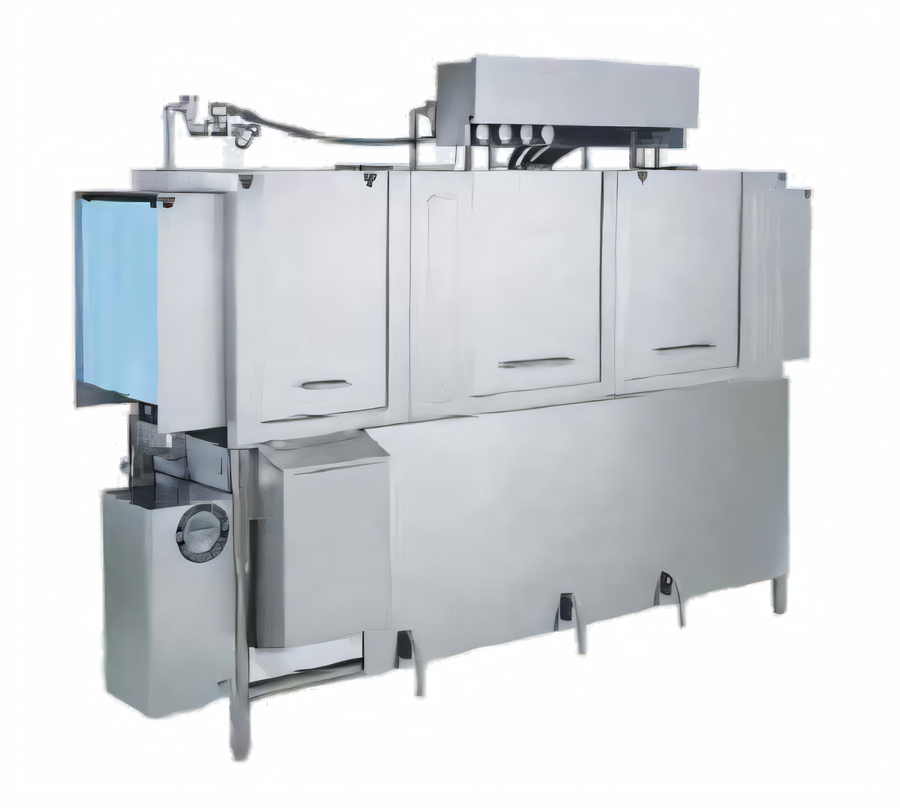

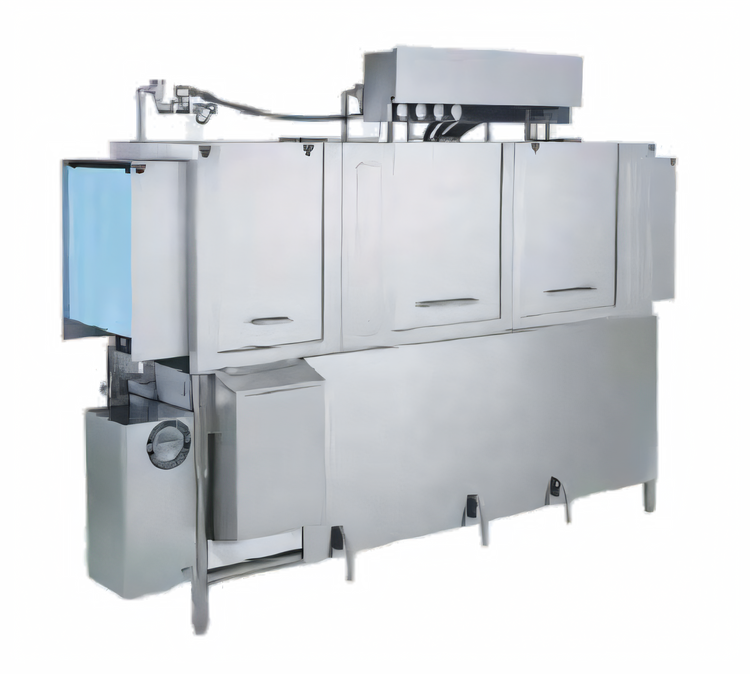

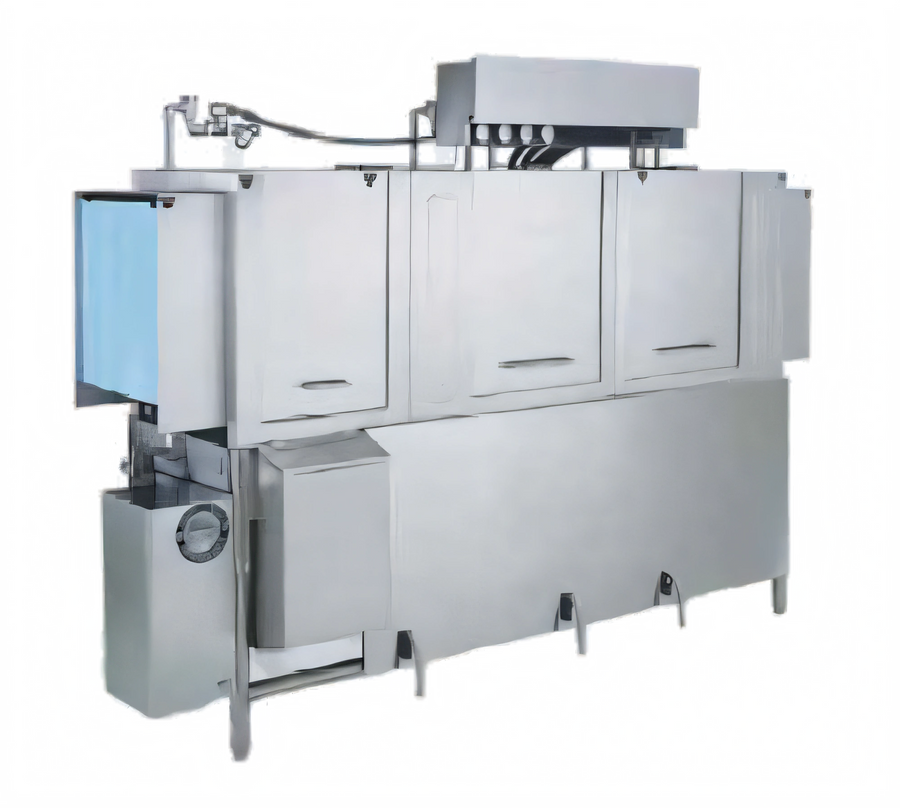

Jackson WWS AJ-86CS 2-Tank High-Temp Conveyor Dishwasher

$71,501.51
/each
Estimated to ship in 4–7 business days Free Shipping
ElectricalRequired
Rack flow directionRequired
Included: Jackson WWS warranty One-year limited parts and labor warranty for the original Jackson dishmachine

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $6,614/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Conveyor Dishwasher
Style Rack Conveyor
Installation Type Floor Model
Material 304 Stainless Steel
Capacity Approximately 287 Racks/Hour
Conveyor Speed 144-287 Racks/Hour
Tank Heat Steam Coil
Tank Design 2 Tanks with Prewash
Sanitizing Type High Temperature
Clearance 25 Inches
Water Consumption 0.77 Gallons/Rack
Final Rinse Temperature 180-195°F
Ventilation Requirement 600 CFM

Description

The Jackson WWS AJ-86CS is a high-temperature conveyor dishwasher with steam coil tank heat, a two-tank wash and power-rinse design, and a recirculating prewash section.

Adjust-A-Peak conveyor speed can be manually set from 144 to 287 racks per hour. The machine provides 25-inch clearance, stainless steel construction, automatic fill, and high-temperature sanitizing with a fresh-water final rinse.

  • Capacity: Approximately 287 racks per hour.
  • Tank heating: Steam coil heating for the wash and power-rinse tanks.
  • Construction: 304 stainless steel components.
  • Clearance: 25 inches through the machine.

Overall Dimensions:

102.0"W x 25.0"D x 75.5"H

Product Weight:

1040.0 lb

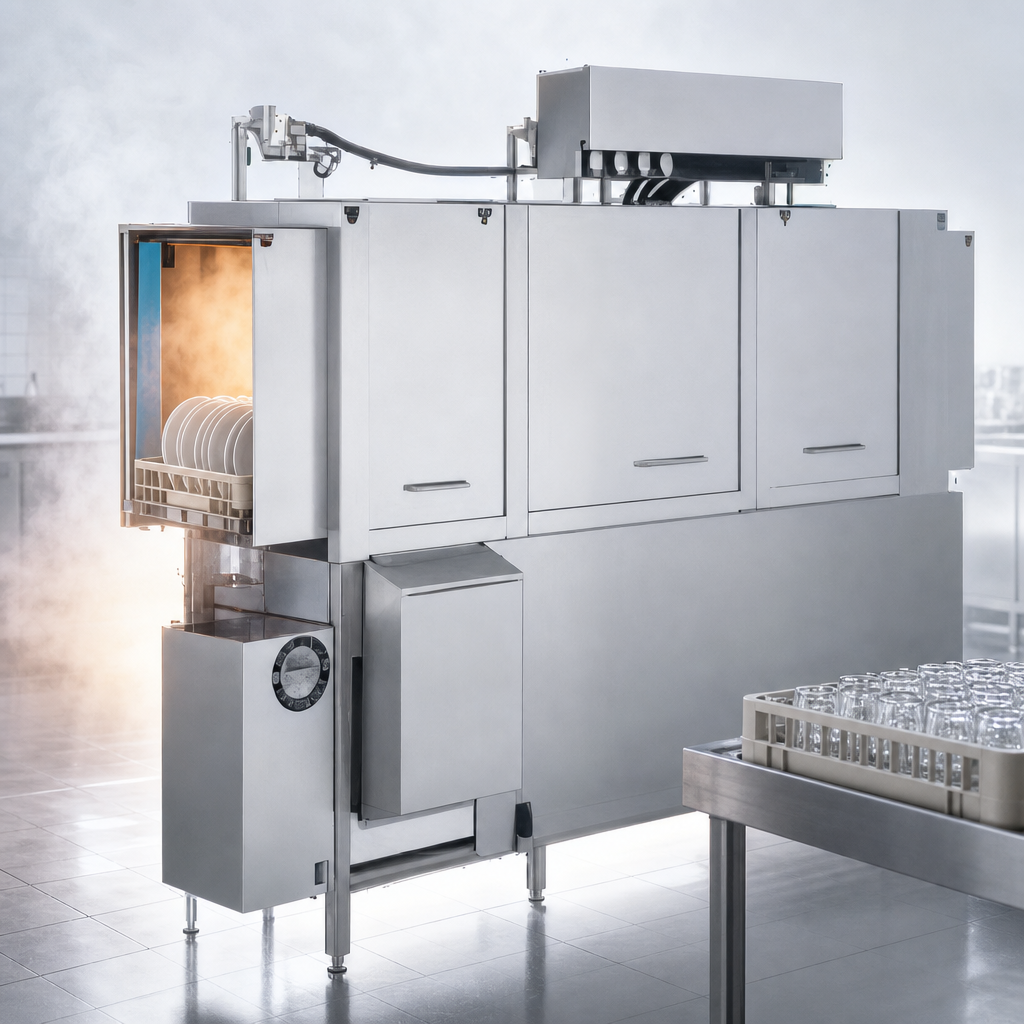

High-Temperature Sanitizing

Fresh-water final rinse is specified at 180-195°F for high-temperature sanitizing.

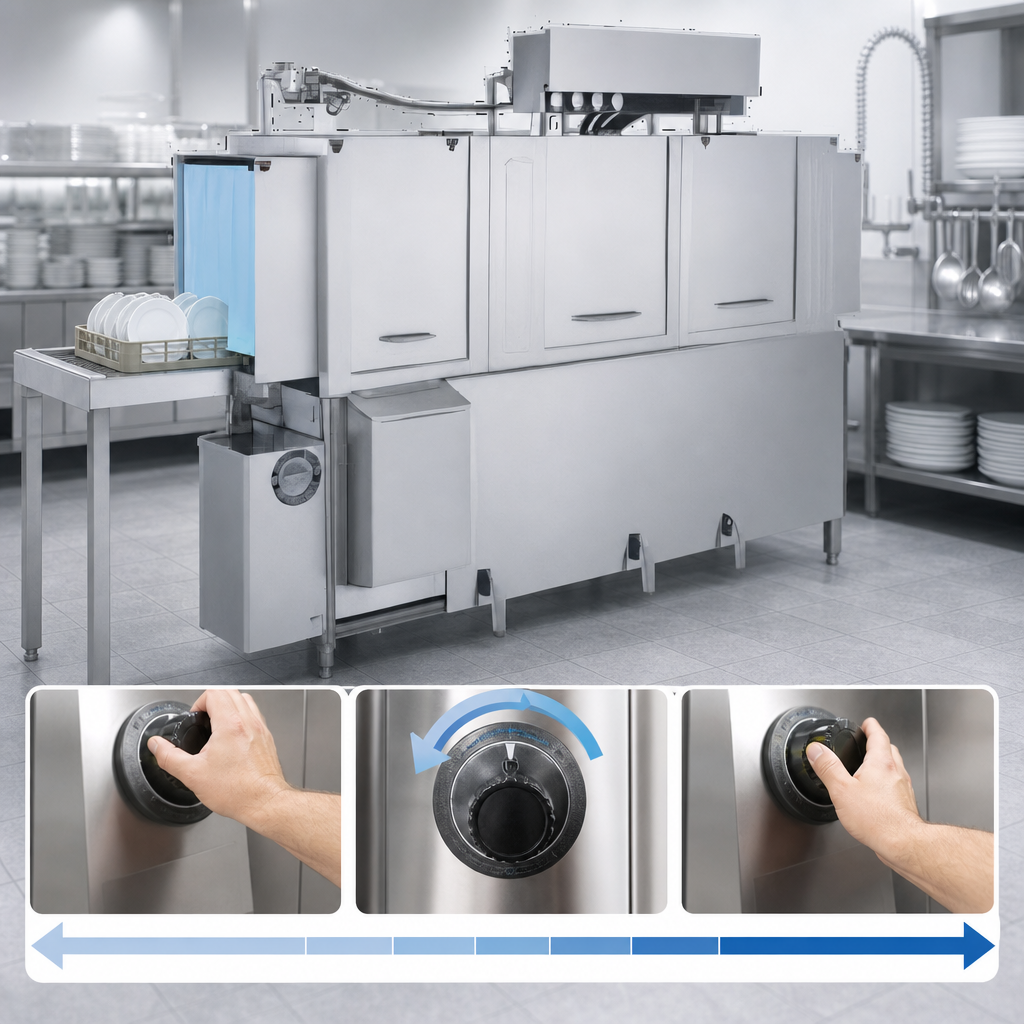

Adjust-A-Peak Conveyor Speed

Manual conveyor adjustment allows operation from 144 racks per hour to the maximum capacity of 287 racks per hour.

Recirculating Prewash

A recirculating prewash section precedes the wash and rinse sections.

Steam Coil Tank Heat

Stainless steel steam coils heat the wash and power-rinse tanks.

Energy Guard Controls

The prewash, wash, recirculating rinse and final rinse sections operate when a rack is in place.

Automatic Operation

Fully automatic operation includes automatic tank filling.

Stainless Steel Construction

The machine uses 304 series stainless steel components.

Vent Cowls and Splash Shields

Standard 8-inch vent cowls and splash shields are provided at the wash and rinse ends.

Frequently Asked Questions

The AJ-86CS is specified for approximately 287 racks per hour. Its adjustable conveyor speed can be set from 144 to 287 racks per hour.
The wash and power-rinse tanks use steam coil heat.
The machine provides 25 inches of clearance through the dishwasher.
It uses high-temperature sanitizing with a fresh-water final rinse specified at 180-195°F.
Jackson provides a one-year limited parts and labor warranty from the date of original installation, not exceeding 18 months from shipment, for installations in the United States and Canada.
