Insinger | Dishwashers | SKU: SPEEDER (64")

Insinger SPEEDER (64") Dishwashers Conveyor Dishwashers

Name: Insinger SPEEDER (64") Dishwashers Conveyor Dishwashers
Brand: Insinger
SKU: SPEEDER (64")
Price: 49768.29 USD
Availability: InStock

$49,768.29

Expected delivery date of , to your door

if ordered within hours and minutes

Not Shipping to ?

More Delivery Options

Documents

Cutsheet Product catalog Warranty sheet

Description

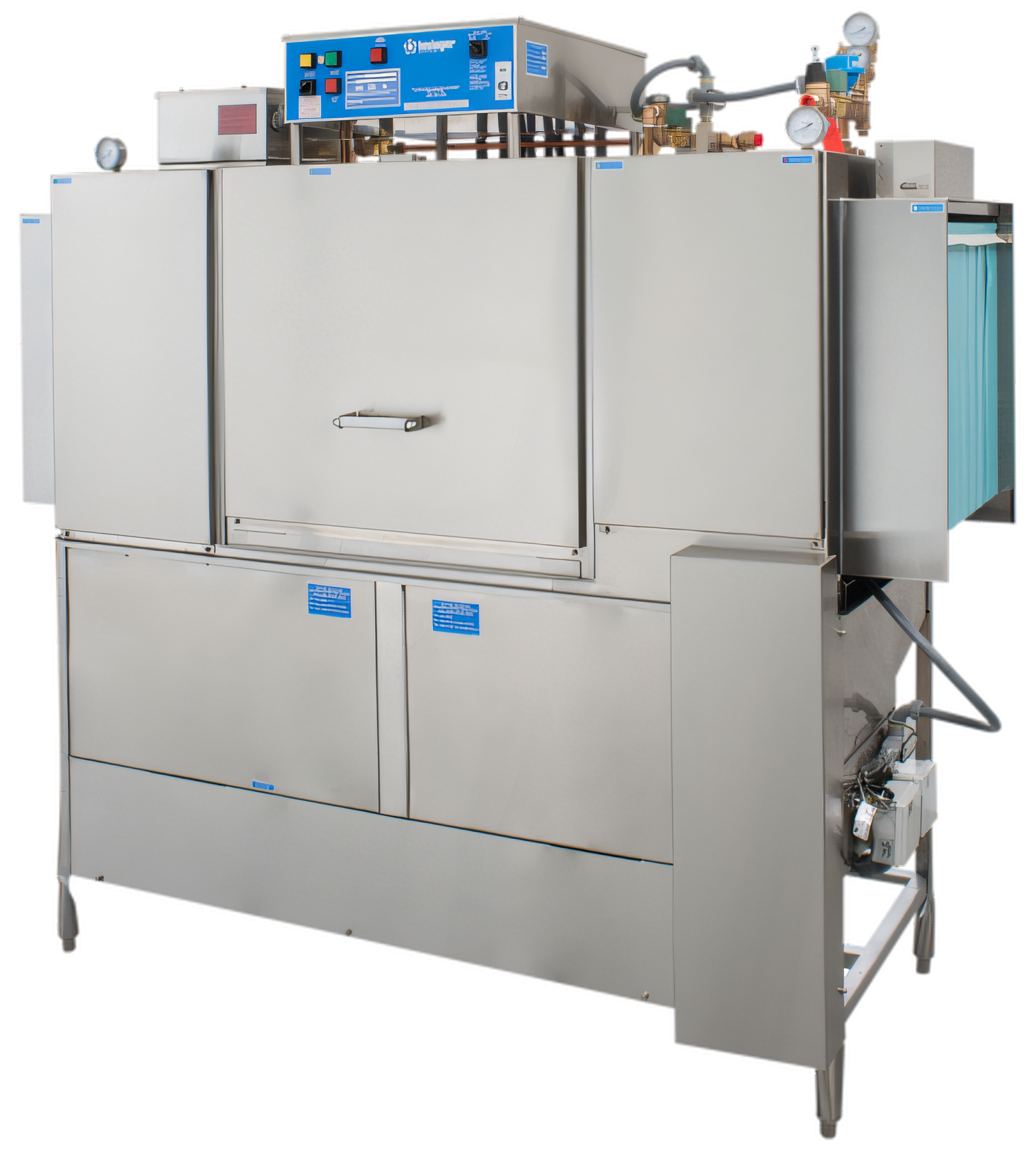

Insinger Speeder 64 Double-Tank Conveyor Dishwasher

High-temperature • CrossFire® Wash System • 277 racks/hr

Engineered for high-volume foodservice operations, the Speeder 64 powers through up to 6,925 dishes per hour while using just 0.52 gallons of fresh water per rack. Its rugged, all-stainless construction and industry-leading CrossFire® wash pattern ensure spotless results shift after shift.

Key Advantages

CrossFire® dual-direction spray completely envelopes ware for superior soil removal.
Conveyor moves 277 racks per hour—ideal for 300 – 600 meal periods.
High-temperature sanitation eliminates chemical sanitizer costs and residue.
Two-tank design (wash / rinse) maintains optimal temperature in each stage.
Timing-belt conveyor drive runs quieter and requires less maintenance than chains.
Real-time capillary & in-line thermometers verify wash and final-rinse temperatures.
Automatic tank fill & low-water protection safeguard heaters and extend equipment life.
Made in the USA with 304 stainless-steel frame, legs, feet and front panel.

Standard Features

Color-coded curtains for easy loading & unloading visibility
Vacuum breakers on all incoming water lines
Top-mounted NEMA 12 control panel sealed against moisture
Crowned, easy-clean hood with large inspection door
Door safety interlock switch
Manifold clean-out brush & de-liming override switch
Vent-fan connection provision (350 CFM each end)
Drip-proof wash & rinse motors (1 HP each)

Performance & Utilities

Rack / Dish Capacity	277 racks / ≈ 6,925 dishes per hour
Water Consumption	0.52 gal per rack (110 °F supply)
Wash Tank	12 gal • 7.5 kW electric immersion or steam injector heat
Rinse Tank Heat	15 kW
Conveyor Drive	Timing belt • 1/15 HP motor
Wash / Rinse Pumps	1 HP each
Steam Consumption (tank)	81 lbs/hr @ 20 PSI
Dimensions (L × W × H)	63.5″ × 31.7″ × 67.5″
Shipping Weight	800 lbs

Electrical Options

Voltage / Phase	Machine Only	+ 15 kW Booster	+ 27 kW Booster
208 V / 60 Hz / 3 Ø	73.1 A	41.7 A	75 A
240 V / 60 Hz / 1 Ø	112.8 A	62.5 A	112.5 A
240 V / 60 Hz / 3 Ø	63.9 A	36.1 A	65 A
380 V / 50 Hz / 3 Ø	40.0 A	Contact factory
480 V / 60 Hz / 3 Ø	31.9 A	18.1 A	32.5 A

Popular Factory Options

Stainless-steel steam-coil tank heat
Electric or steam booster heater for final rinse
End cowls with vent & adjustable dampers
Stainless splash guards & security package
Totally-enclosed motors & rack-limit switch
Power Loader / Power Unloader modules
Insulated or extra-high hood
Door-activated drain closers & drain water cool-down
Plastic 20″ × 20″ racks (plate or flatware)

Important: A booster heater is required to achieve the 180 °F NSF final-rinse temperature if your hot-water supply is below specification.

NSF, cETLus & AQ listed. Includes a one-year parts & labor warranty (15 months from shipment when registered).

Features & Specs

Manufacturer

Insinger

Brand_name

Dishwashers

Certifications

NSF, Made in USA

Height

67.5in

Width

83.5in

Depth

31.25in

Shipping Weight

900.0lbs

Tank Heat

electric

Rack Capacity

approximately (270) racks/hour

Construction

stainless steel

Temperature

high temp without booster

Tank design

(2) tank without pre-wash

Specifications

Speeder Dishwasher, conveyor type, high temperature, no booster, two-tank design (wash/rinse), CrossFire® wash system, approximately 277 racks/hour capacity, stainless steel frame, legs & feet, electric immersion or steam injector tank heat
