Insinger ADMIRAL VG (44") Dishwashers Conveyor Dishwashers
Description

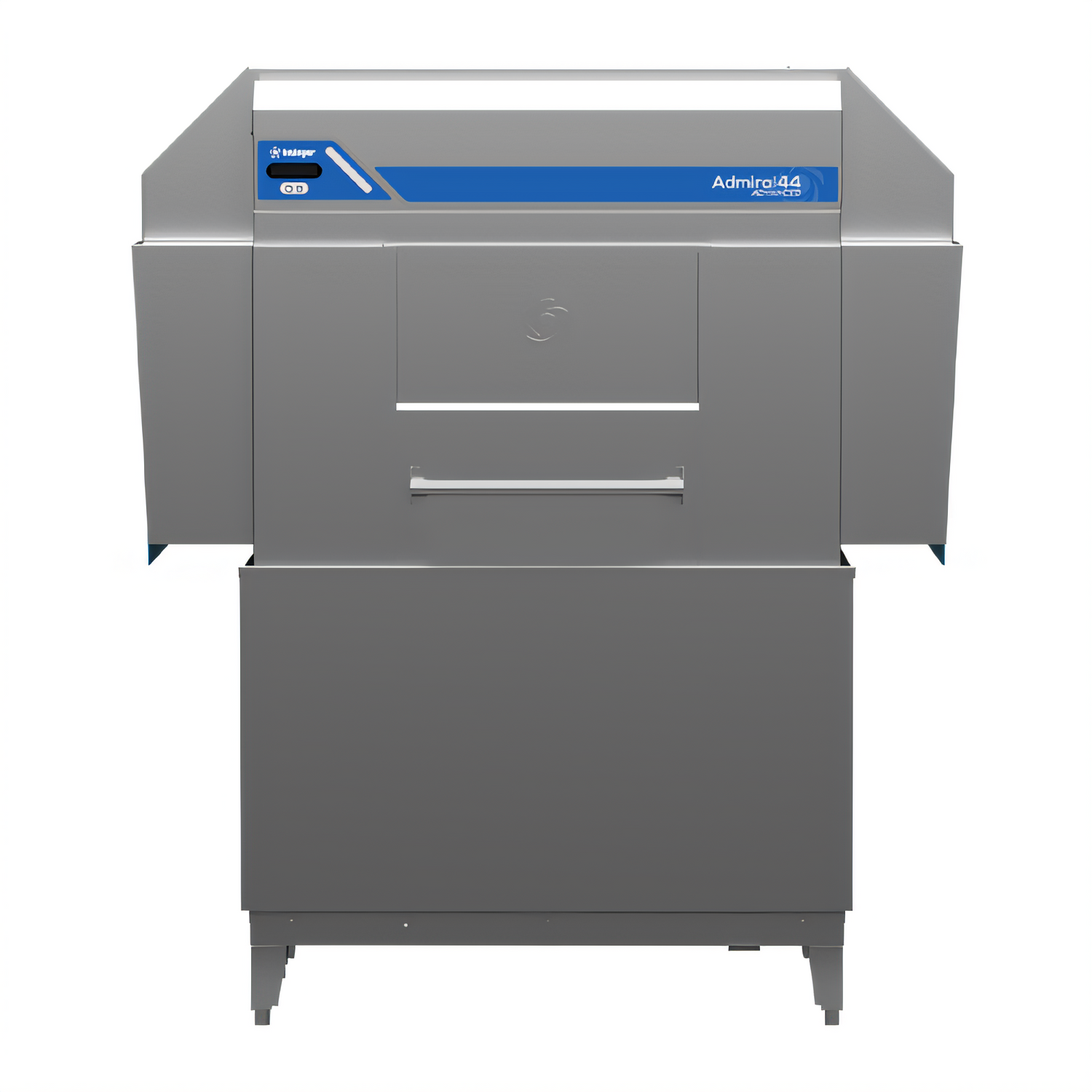

Insinger Admiral VG (44″) Single-Tank Rack Conveyor Dishwasher

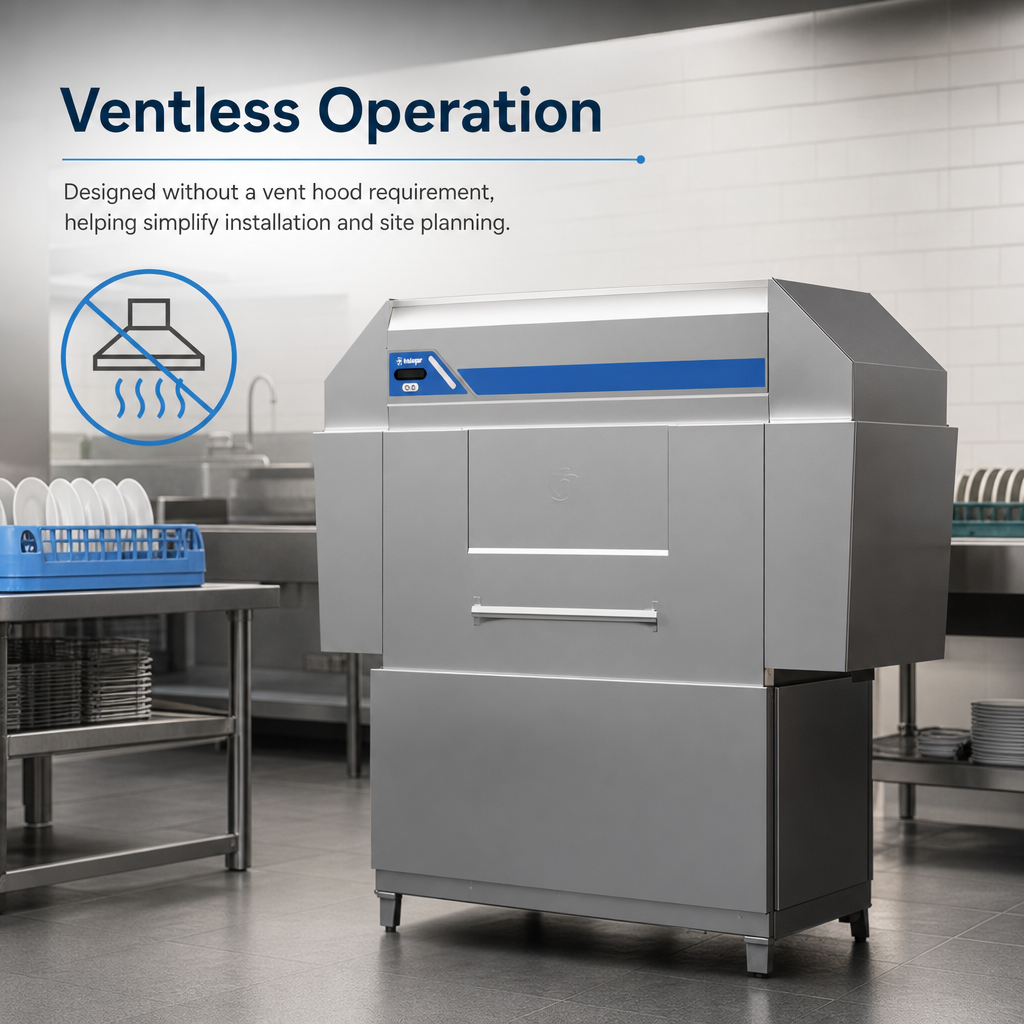

ENERGY STAR® | NSF & ETLus Listed | Made in USAKeep pace with even the busiest kitchens. The Admiral VG delivers conveyor-class speed with under-counter water and energy usage, while the optional VaporGuard™ ventless system removes steam before it escapes into your dishroom—no dedicated hood required.
Why You’ll Love It
- Up to 234 racks per hour (20″ × 20″) – that’s roughly 5,225 dishes every hour.
- Ultra-low 0.63 gal water/rack at 20 PSI saves thousands of gallons a year.
- CrossFire™ Wash System blankets every rack with high-velocity spray for spotless results.
- Dual HeatCore™ boosters ensure a 180 °F sanitizing final rinse without waiting on recovery.
- Built-in drain cool-down protects PVC plumbing—no extra tempering valve needed.
- VFD-controlled conveyor delivers smooth, quiet operation and gentle rack handling.
- Color-coded curtains & secured wash-arm end caps make daily inspections fast and fool-proof.
- SureFire™ Start-Up & Check-Out service included for worry-free commissioning.
Performance & Utility Specs
| Racks / Dishes Per Hour | 234 racks / ≈ 5,225 dishes |
|---|---|
| Water Use | 0.63 gal per rack @ 20 PSI (110 °F incoming) |
| Wash Tank Capacity | 33.75 gal (recirculating) |
| Peak Drain Flow | 9 gal / min |
| Drive / Wash Motors | 1⁄15 HP conveyor | 2 HP wash |
| Electrical (dual-point) |
208 V 60 Hz 3φ – 57.5 / 81.6 A 240 V 60 Hz 3φ – 50.8 / 70.7 A 480 V 60 Hz 3φ – 26.0 / 35.4 A |
| Shipping Weight | 900 lb |
| Certifications | ENERGY STAR®, NSF, ETLus |
Standard Features
- 304 stainless steel construction, inside and out
- Automatic tank fill & low-water protection
- Elevated, top-mounted digital control panel
- Door safety interlocks & telescoping access doors
- Override switch for easy de-liming cycles
- End caps / pipe plugs secured to prevent loss
- Standard frame drip-proof motors
Popular Factory Options
- VaporGuard™ ventless heat-recovery system
- Power Loader &/or Power Unloader modules
- Electric or steam-coil tank heat
- Heat & energy-saving transfer system
- Single-point utility connection package
- Security package & rack limit switch
- Plastic 20″ × 20″ racks (plate or silverware)
Includes 1-year parts & labor warranty and Insinger’s SureFire start-up service. Full warranty terms available on request.
