Insinger

Insinger ADMIRAL 66 66-Inch Single Tank Rack Conveyor Dishwasher

SKU: ADMIRAL 66
$45,089.80
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Dishwashers Conveyor Dishwashers Conveyor Dishwashers Dishwashers Insinger New Arrivals Restaurant Equipment

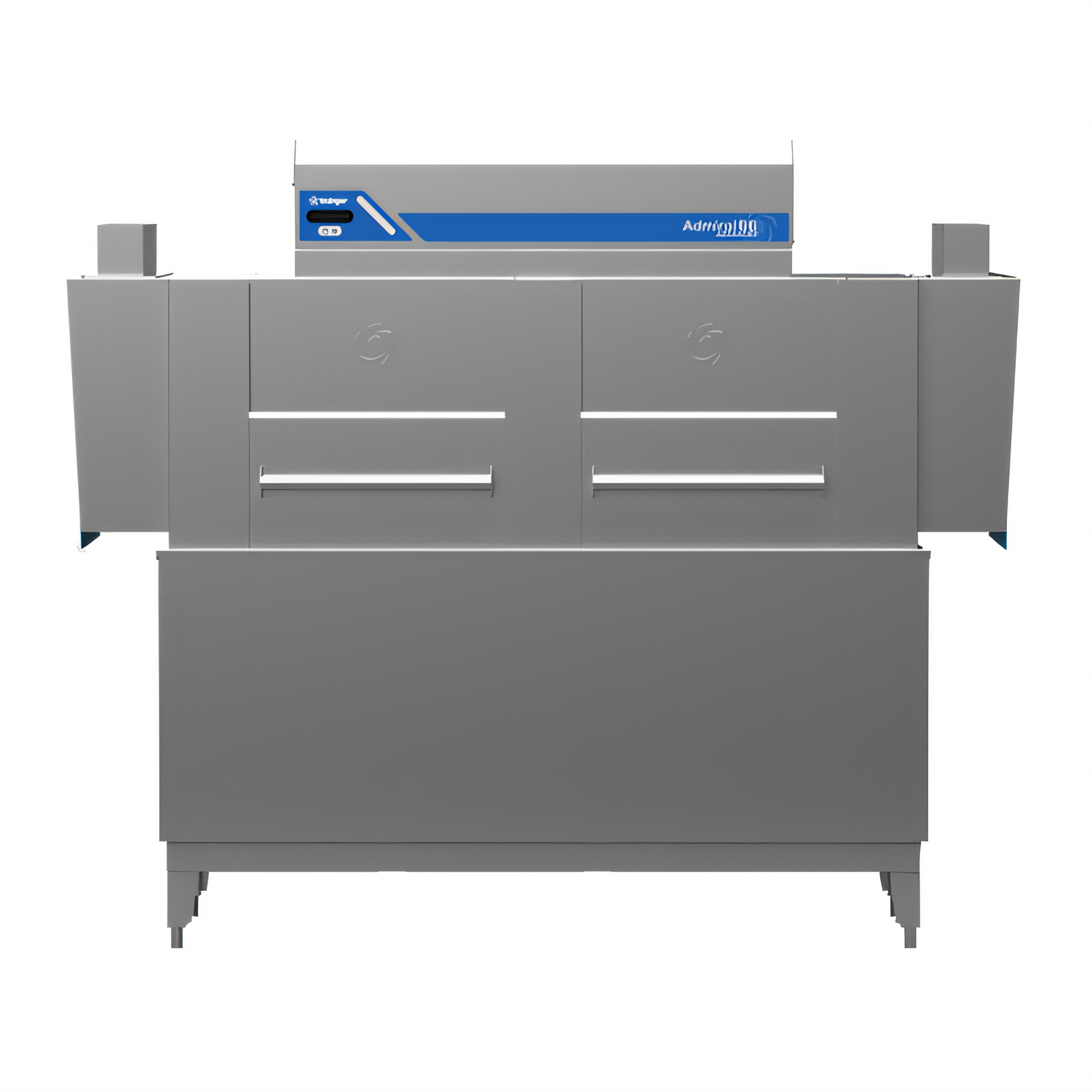

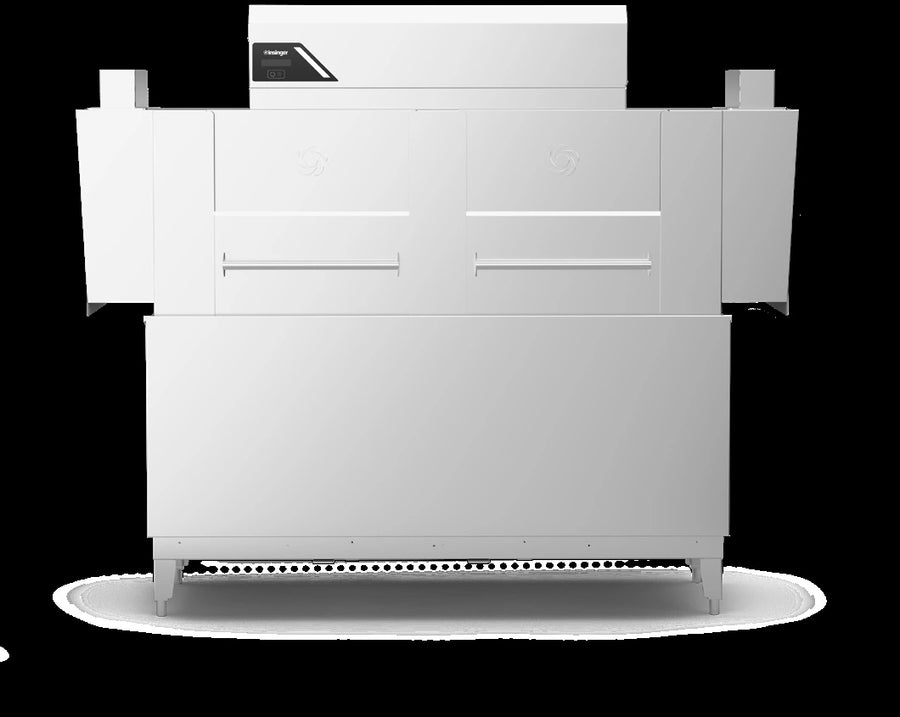

Insinger ADMIRAL 66 66-Inch Single Tank Rack Conveyor Dishwasher

233 Racks/Hour, 20 x 20 Racks, High-Temp Dual Boosters

Built for busy dishrooms, this high-temp conveyor dishwasher combines a CrossFire wash system, dual boosters, and smart rack detection to keep racks moving efficiently.

  • Handles 233 racks per hour for high-volume warewashing performance.
  • CrossFire wash system with recirculating pre-wash and fresh-water final rinse helps deliver consistent cleaning.
  • Dual built-in HeatCore boosters support high-temp sanitizing performance.
  • RackAware detection, InfoPanel display, and StatusGlow LED feedback make operation easier to monitor.
  • 304 stainless steel construction, telescoping doors, and color-coded curtains are built for daily commercial use.
  • ENERGY STAR, NSF, ETLus, and Made in USA credentials add buyer confidence.

Overall Dimensions:

65.5"W x 31.25"D x 37.38"H

Product Weight:

800.0 lb

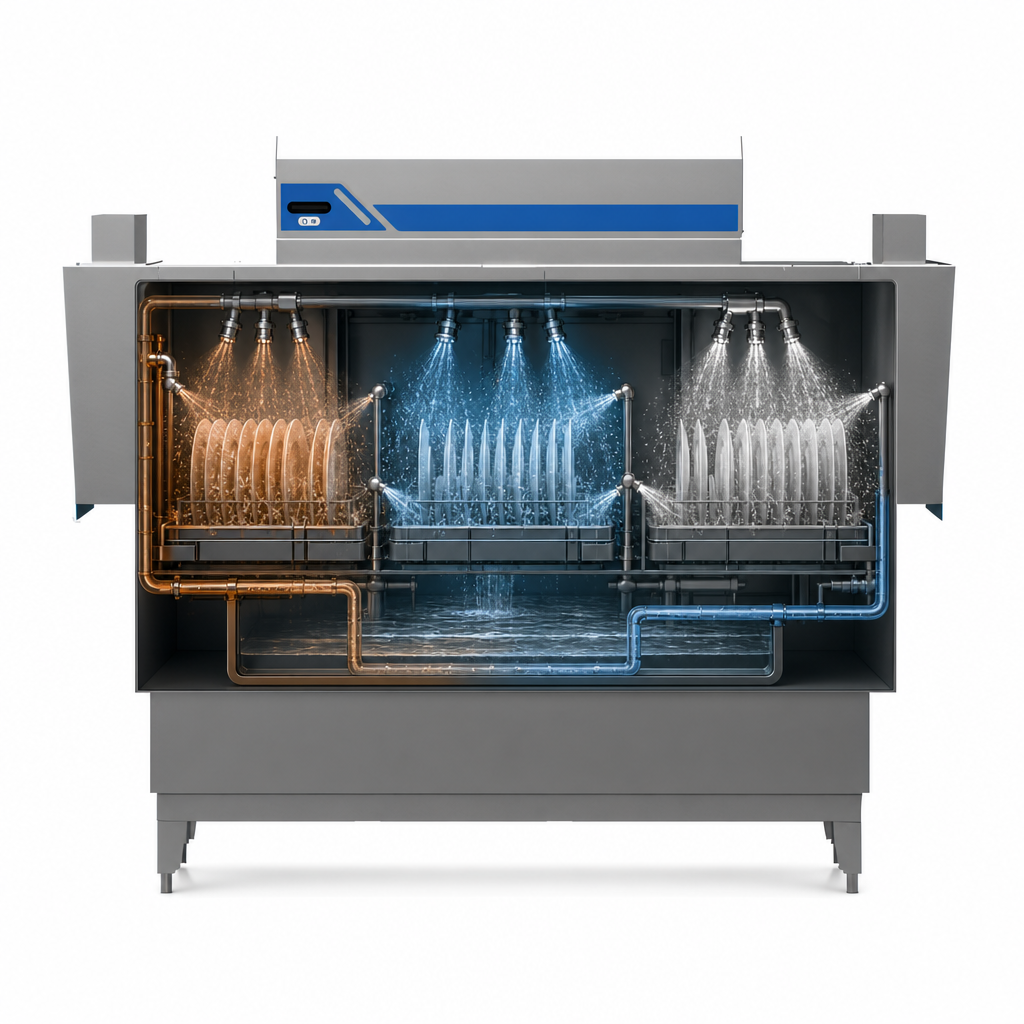

CrossFire Wash System

Uses a recirculating pre-wash, wash, and fresh-water final rinse for strong cleaning performance.

CrossFire Wash System

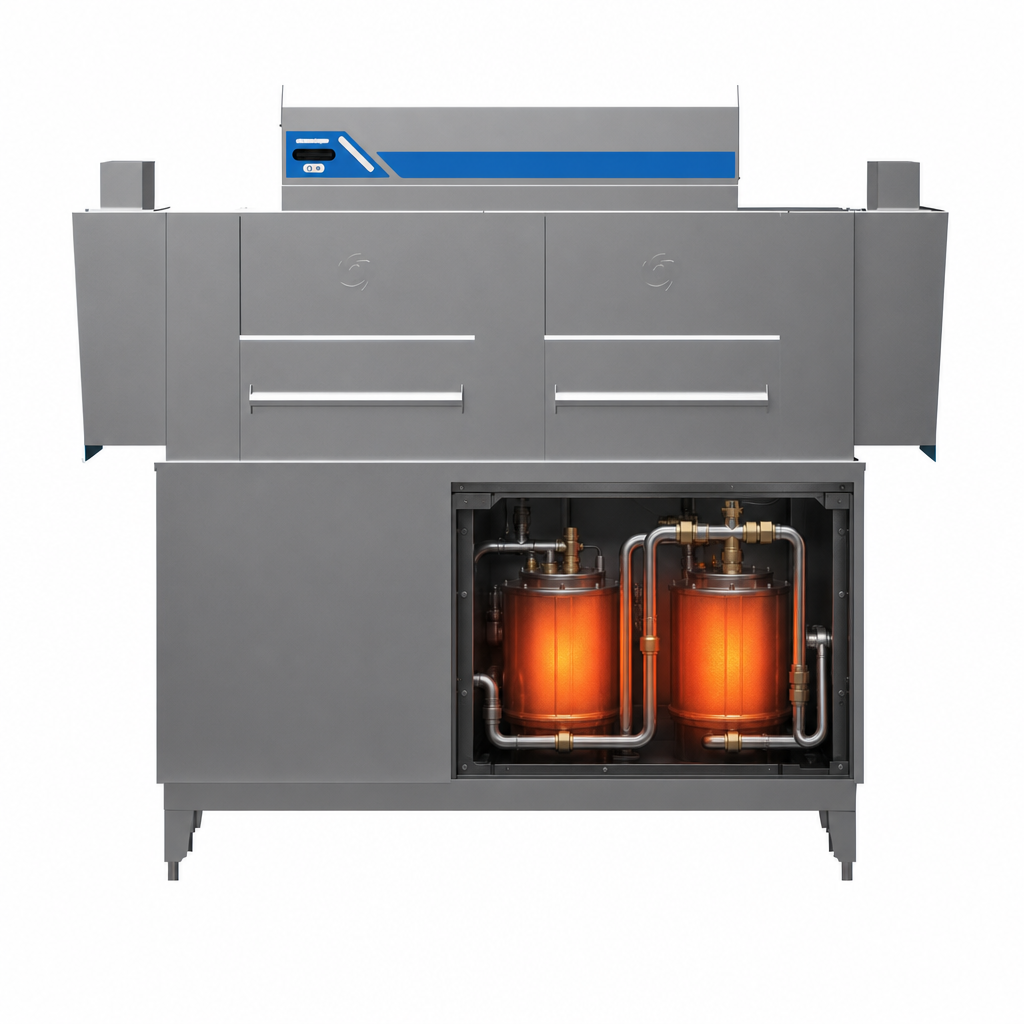

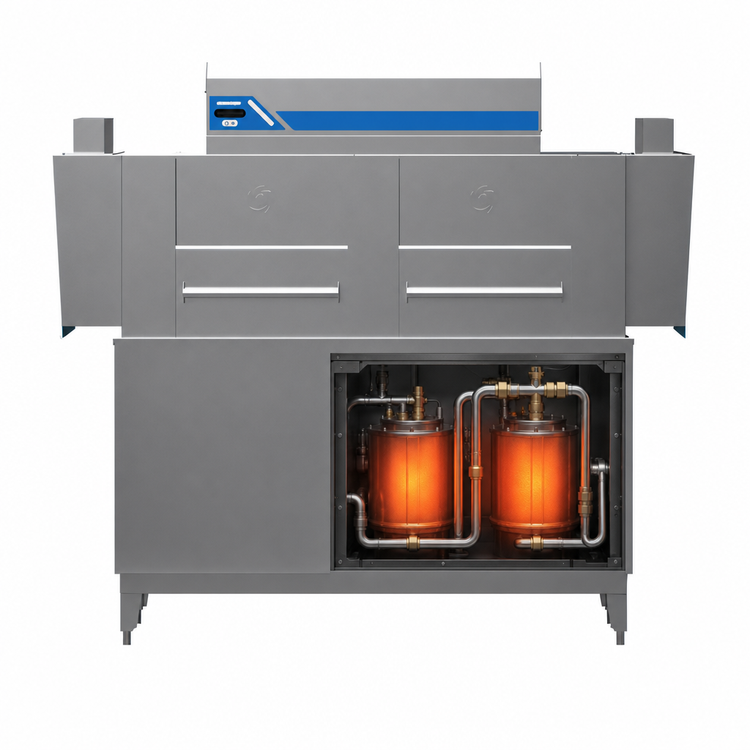

Dual Built-In HeatCore Boosters

Integrated booster system supports high-temperature final rinse results.

Dual Built-In HeatCore Boosters

RackAware Rack Detection

Helps detect rack presence for more reliable conveyor operation.

InfoPanel Multi-Line Display and StatusGlow LED Indicator Bar

Provides clear machine status and operator feedback at a glance.

VFD Controlled Continuous Drive Conveyor

Variable-frequency drive keeps rack movement smooth and efficient.

304 Stainless Steel Construction

Durable stainless steel build designed for demanding commercial kitchens.

Telescoping Doors

Helps simplify access and loading in the dishroom.

ScrapShield Oversized Scrap Screens, Color-Coded Curtains, and Secure Wash Arm End Caps

These features help manage debris, simplify service, and protect components.

Automatic Tank Fill and Low Water Protection

Supports easier startup and helps protect the machine during operation.

Type Rack Conveyor Dishwasher
Style Single Tank
Installation Type Floor Model
Material 304 Stainless Steel
Capacity 233 Racks Per Hour
Voltage 208 Volts
Amps 56.5 Amps
Hertz 60 Hz
Phase 3-Phase
Watts 18 kW Tank Heat / 29.4 kW Booster Heat
Water Consumption 0.63 Gallons Per Rack at 20 PSI
Water Inlet Temperature 110°F
Shipping Width 66 Inches
Shipping Depth 32 Inches
Shipping Height 38 Inches
Shipping Weight 800 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Product catalog PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for 20 x 20 racks and is rated at 233 racks per hour.
Yes. The unit includes dual built-in HeatCore boosters and a high-temp final rinse setup.
The cutsheet lists 208/60/3 as the standard electrical setup, with dual-point options at 240/60/3 and 480/60/3.
Yes. The technical drawings show both left-to-right and right-to-left directions of travel.
The product description states a 1-year parts and labor warranty.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.

Talk to a Specialist
or call (888) 307-5030
