Imperial (Middleby) IHR-2HT-2-M Spec Series Gas Ranges
Description
Spec Series 36" Heavy-Duty Modular Gas Range
2 Open Burners • 2 × 12" Hot Tops • 80,000 BTUBuilt for the punishing pace of a busy line, the Imperial Spec Series 36" modular range delivers powerful, even heat in a compact, drop-in footprint. Two open burners tackle sauté & sear work, while a pair of wide hot tops acts as a versatile holding or finishing station—all wrapped in easy-clean stainless steel.
Why you’ll love it
- Dual open burners with cast-iron “S” grates offer fast heat-up, easy pot movement and dependable performance.
- Two 12" hot tops feature polished plates that radiate uniform heat—ideal for stocks, sauces and slow simmers.
- Manual gas valves give chefs instant, precise flame control without the complexity of thermostats.
- Rugged all-stainless front, sides, 7" landing ledge & 6" stub back stand up to daily wash-downs.
- 80,000 BTU (23 kW) total output keeps pace with peak-hour demand.

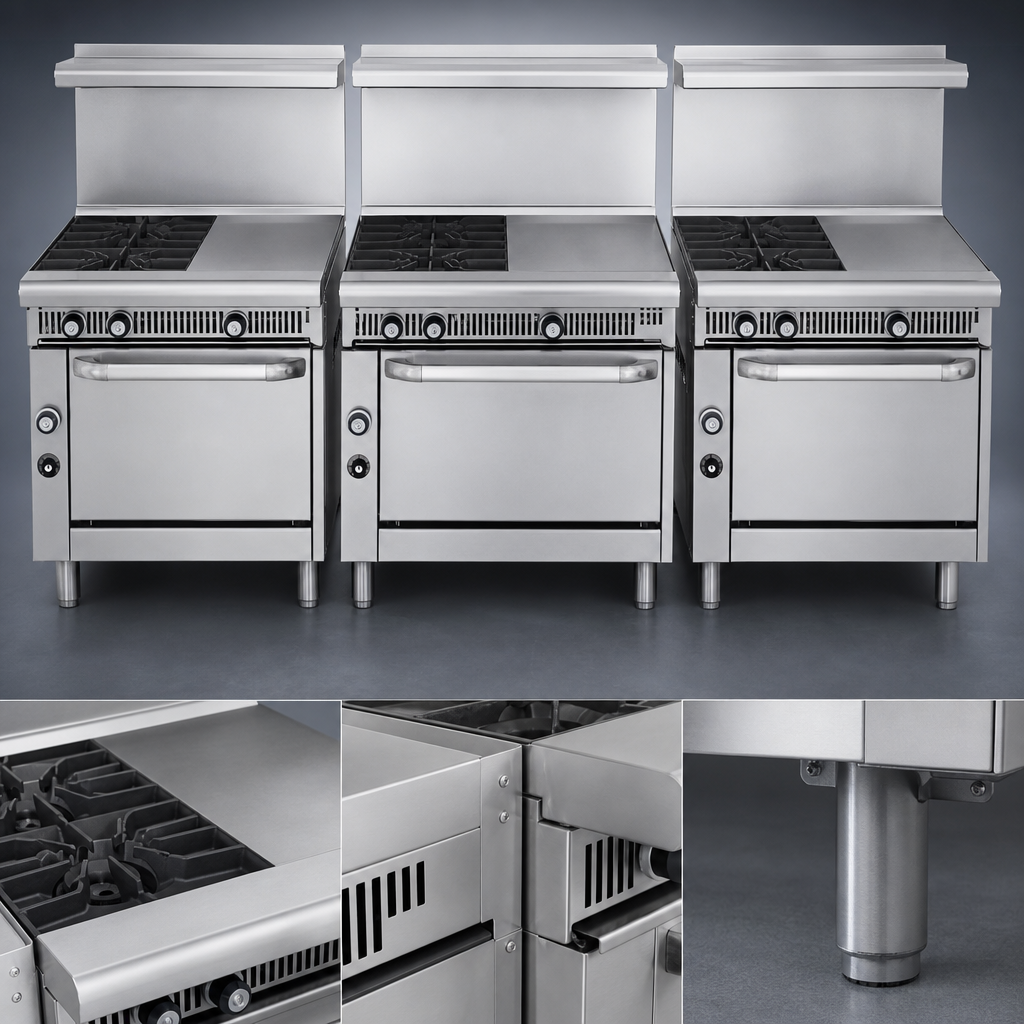

- Modular 36" width drops onto a refrigerated base, equipment stand or custom counter for a seamless cookline.
- Field convertible for natural or LP gas; ships with front 1-1/4" NPT manifold and rear 3/4" connection option.
- cETLus & NSF listed for sanitation and safety compliance.
At-a-glance specs
| Model | Spec Series 36" 2-Burner / 2-Hot-Top Modular Range |
|---|---|
| Cooktop configuration | (2) open burners & (2) 12" hot tops |
| Total BTU | 80,000 BTU | 23 kW |
| Gas type | Natural or Propane (field convertible) |
| Dimensions (W × D × H to cooktop) | 36" × 38" × 11" (914 × 965 × 279 mm) |
| Landing ledge depth | 7" (178 mm) |
| Stub back height | 6" (152 mm) |
| Gas connection | Front 1-1/4" NPT manifold (rear 3/4" option) |
| Clearances | 0" to non-combustible, 6" to combustible surfaces |
| Approx. ship weight | ≈ 335 lb (152 kg) |
| Certifications | cETLus, NSF |
Popular add-ons (sold separately)
- Stainless steel equipment stand with or without casters
- High backguard with shelf for utensil storage
- Common front landing ledges for multi-unit line-ups
- Quick-disconnect hose & gas shut-off valve kits
Specifications, accessories and availability are subject to change without notice. Always refer to the latest Imperial installation manual for gas supply and clearance requirements.
