Hobart CL64-DWR+BUILDUP Warewash - Flow Conveyor Dishwashers
Description

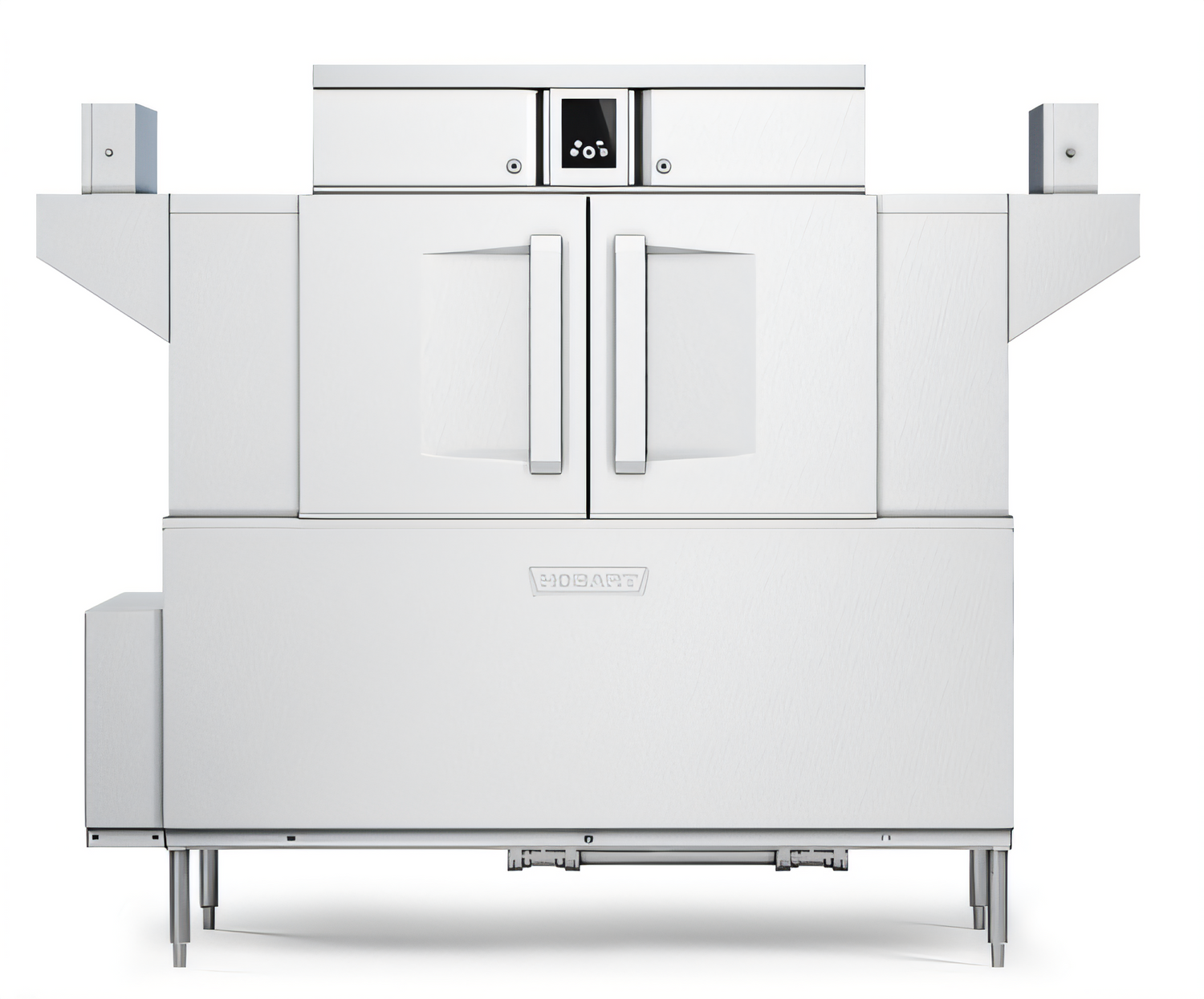

Hobart CL64-DWR “Flow” High-Temp Rack Conveyor Dishwasher

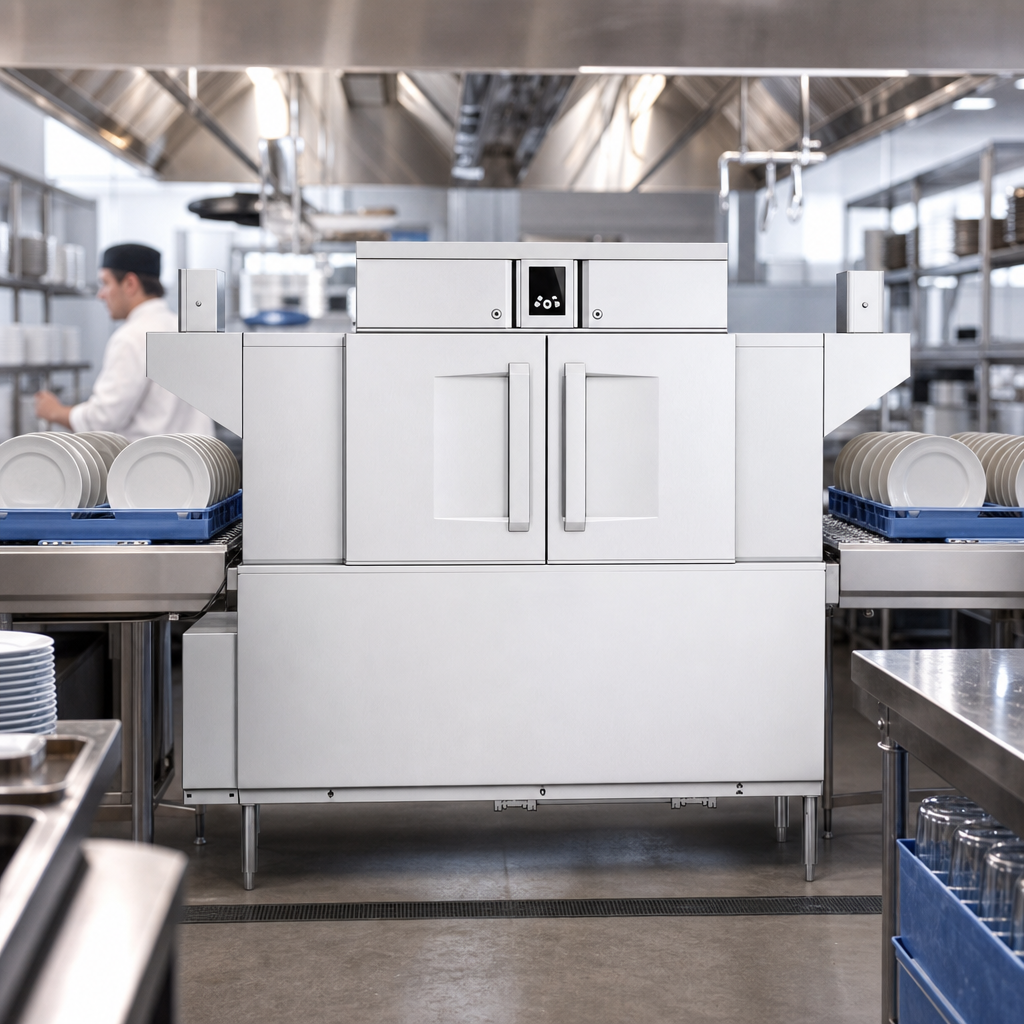

342 racks/hr • Drain Water Energy Recovery • ENERGY STAR® CertifiedMeet the next level of warewashing performance for busy kitchens that simply can’t slow down. The Hobart CL64-DWR “Flow” combines industry-leading water and energy savings with smart, connected controls—delivering spotless results on up to 342 racks every hour while using just 0.33 gal per rack.
Why Operators Love the CL64-DWR

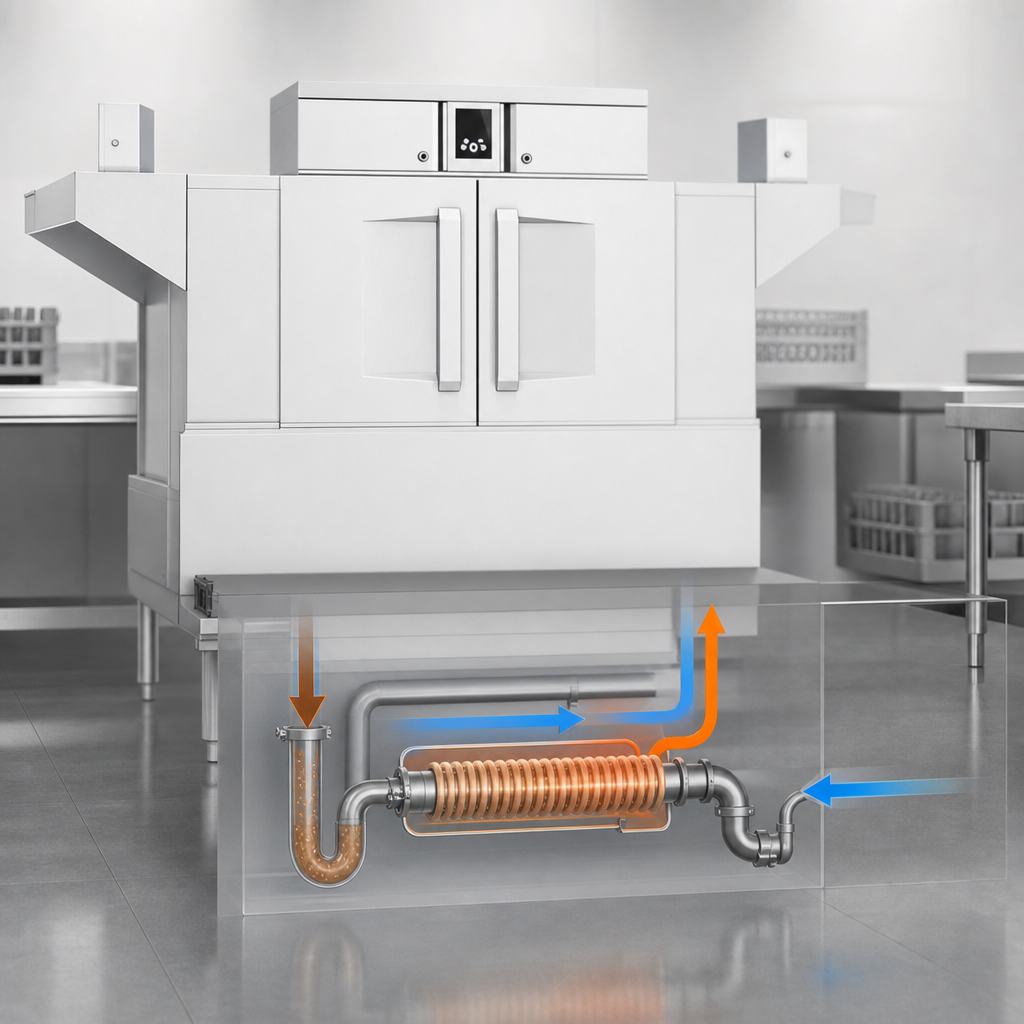

- Drain Water Energy Recovery (DWER): captures heat from exiting water to pre-heat incoming water—cutting utility costs and eliminating the need for a dedicated external vent.*
- Factory-installed drain water tempering kit: ensures code-compliant discharge temperatures without additional field work.
- Complete Delime™ with Booster Guard™: automatic delime notification and dispensing protect the boiler and wash system for longer life and consistent sanitation.
- 24 kW built-in booster heater: 70 °F rise delivers a consistent 180 °F final rinse for NSF sanitation.
- Touchscreen intelligence: full-color display provides real-time temperatures, diagnostics, and troubleshooting steps right at the machine.
- SmartConnect™ cloud app: Wi-Fi enabled monitoring for usage data, error codes, and HACCP-ready temperature logs from any device.
- Capless, anti-clogging wash arms: snap out for lightning-fast cleaning—no lost end caps, no blocked jets.
- NSF Pot & Pan mode: on-screen selection lengthens wash contact time for heavily soiled cookware.
- Insulated, hinged double doors: stay-cool surfaces, reduced noise, and tool-free interior access.
- Pumped final rinse & pumped drain: install flexibility without floor slope requirements.
Engineered for High-Volume, Low-Stress Service
- 19.5 in. chamber opening swallows full-size sheet pans, mixing bowls, and stock-pot racks.
- Sloping stainless scrap screen and deep baskets keep food soil out of the wash water.
- Rapid-return conveyor with self-aligning manifolds for smooth, jam-free operation.
- Energy-Saver Mode automatically shuts the machine down after a programmable idle time.
- Stainless, self-draining pumps and impellers stand up to years of punishment.
Technical Specifications
| Throughput (NSF rated) | 342 racks/hr |
|---|---|
| Water Usage | 0.33 gal per rack | 114 gal per hour pumped final rinse |
| Tank Capacities | Wash 23 gal • Power Rinse 22 gal |
| Conveyor Speed | 9.5 ft/min |
| Chamber Clearance | 19.5 in. H × 24.9 in. W (fits 6 sheet pans per rack) |
| Heat | 25 kW tank heat (electric) | 24 kW built-in booster |
| Electrical | 208, 240, 480 or 600 V / 60 Hz / 3 ph – single-point connection |
| Certifications | ENERGY STAR®, NSF, cULus |
| Shipping Weight | Approx. 870 lb | Crated dims 74 "L × 38 "W × 79 "H |
Hobart will provide one free start-up visit for installations located within 100 miles of a Hobart Service Office (accessible by public roadway) during normal business hours with prior notice. Locations outside this range will be quoted separately.
*Vent requirements may vary by local code. Always consult your mechanical engineer or Hobart representative for site-specific guidelines.
