Hobart CL54-DWR+BUILDUP Warewash - Flow Conveyor Dishwashers
Description

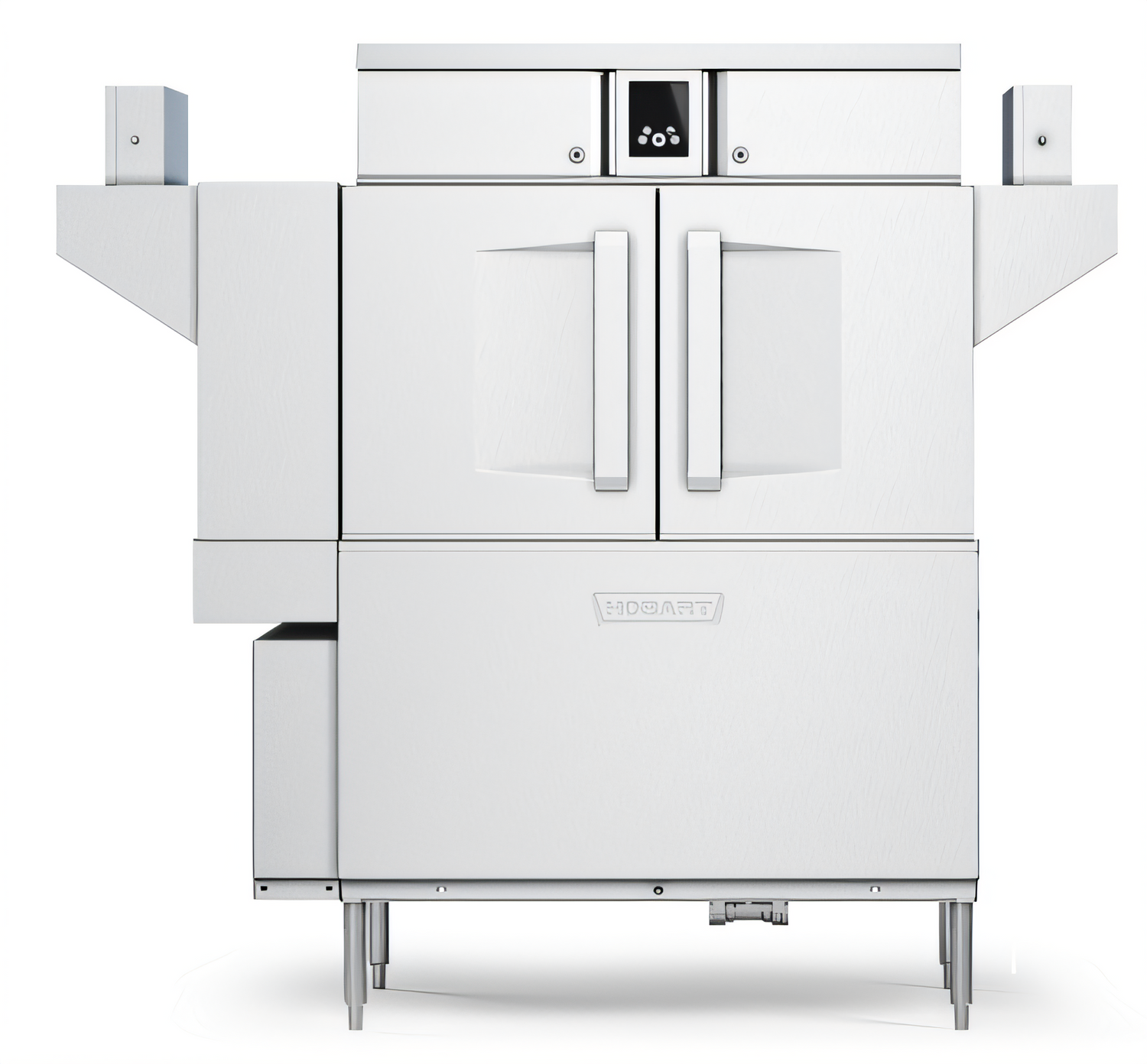

Hobart CL54-DWR “Flow” Rack Conveyor Dishwasher

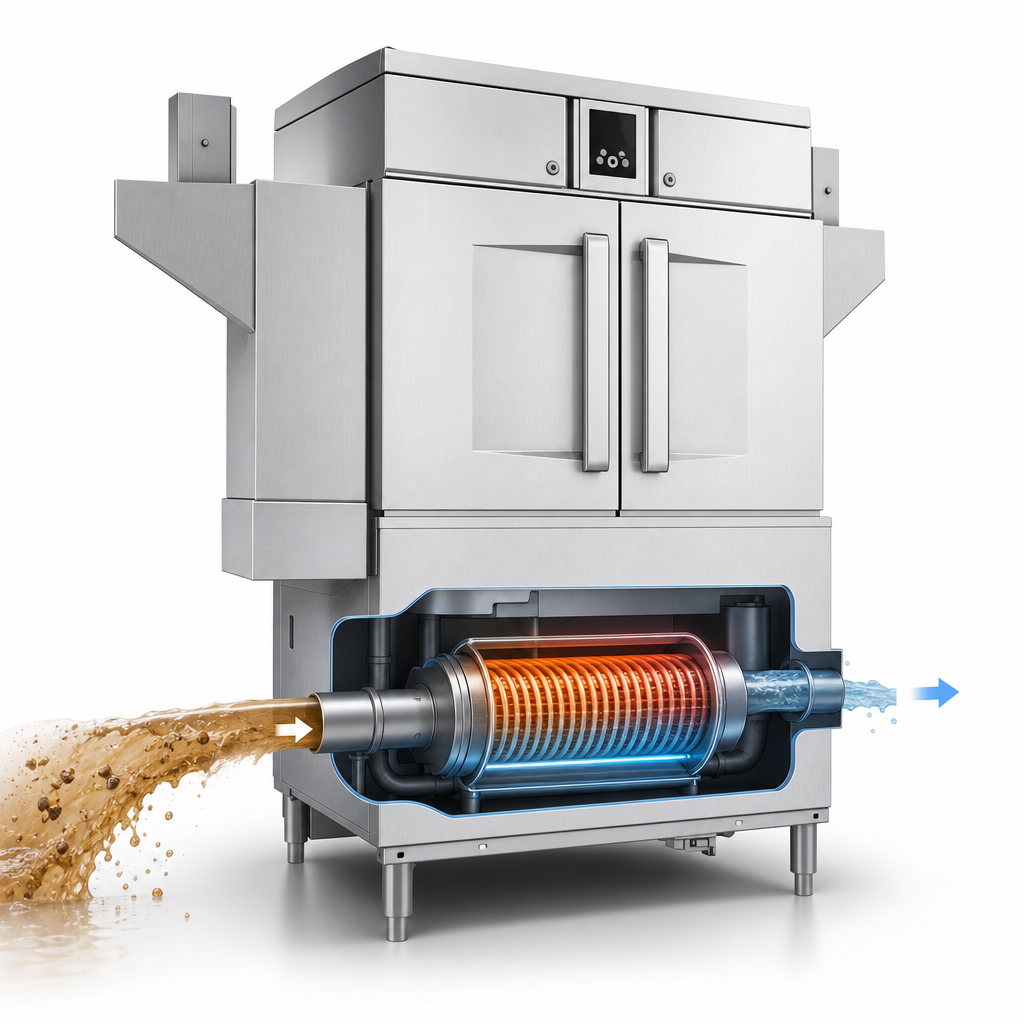

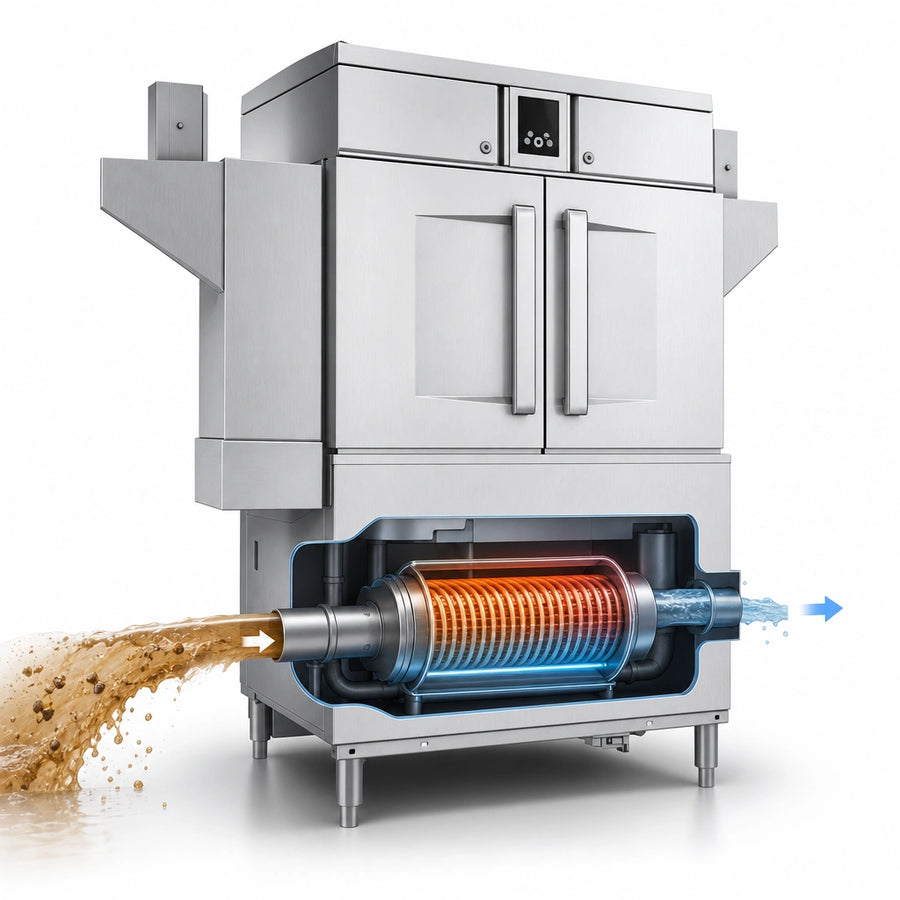

High-Temperature • Drain Water Energy Recovery • ENERGY STAR®Designed for the busiest kitchens, the CL54-DWR “Flow” powers through up to 245 racks every hour while using just 0.47 gal of fresh water per rack. Its Drain Water Energy Recovery (DWER) system harvests heat from waste water to pre-warm the incoming supply, cutting energy costs and eliminating the need for additional drain tempering hardware.
Why kitchens choose “Flow”
- 245 racks/hr throughput with only 114 gal/hr pumped final rinse
- Single-tank, high-temp sanitising with built-in 24 kW booster (70 °F rise)

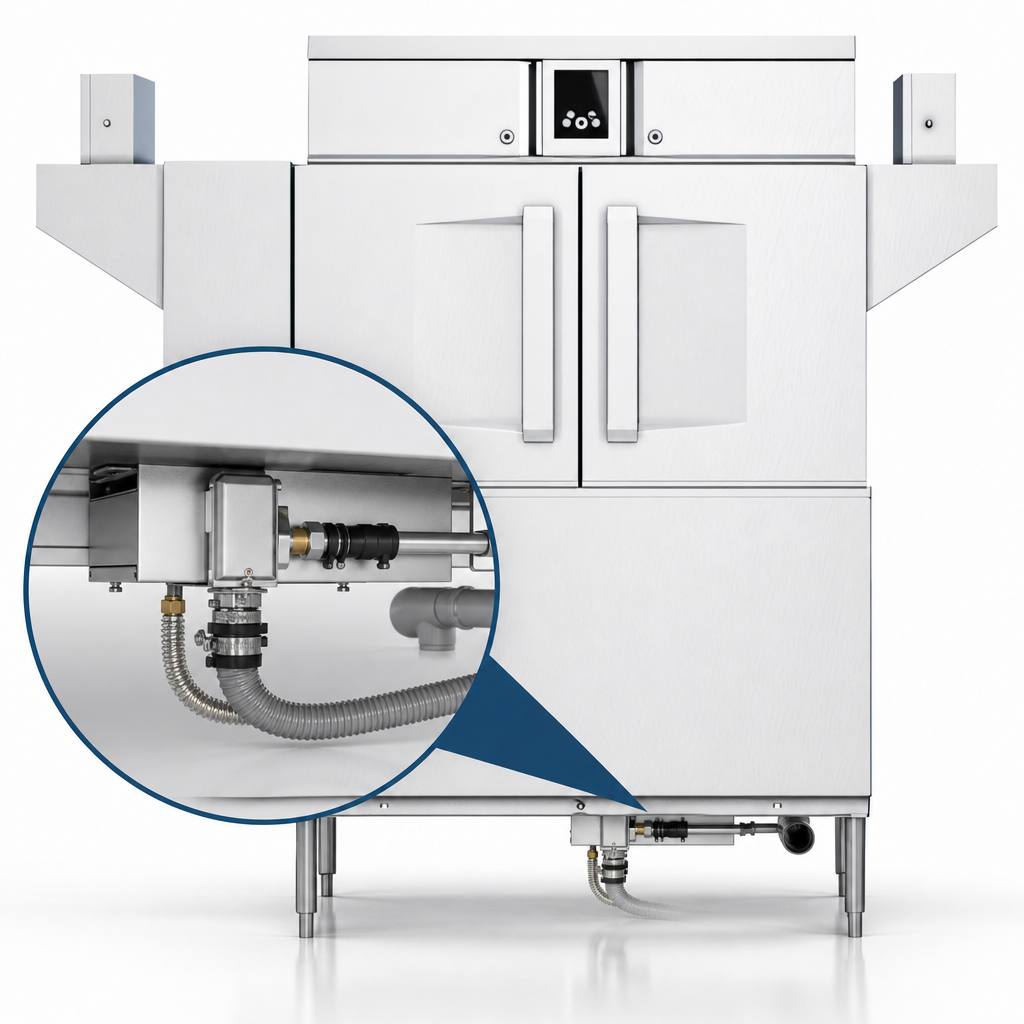

- Drain Water Energy Recovery + factory-installed tempering kit
- Complete Delime™ system with Booster Guard™ & automatic chemical dosing
- Smart touchscreen controls featuring step-by-step diagnostics & troubleshooting
- Wi-Fi enabled SmartConnect app for real-time status, temperature logs & cost analytics
- Capless, anti-clogging stainless wash arms & self-aligning manifolds
- NSF-rated Pot & Pan mode for extra-dirty wares
- Pumped final rinse ensures consistent pressure regardless of building supply
- 19.5 in chamber opening accepts six 18 × 26 in sheet pans at once
- Insulated, hinged double doors with safety interlock retain heat & reduce noise
- Programmable Energy-Saver auto-shutoff lowers idle utility consumption
- Certified cULus, NSF & ENERGY STAR®
Performance & utility data
| Production rate (NSF) | 245 racks/hr |
|---|---|
| Water usage | 0.47 gal/rack | 114 gal/hr pumped rinse |
| Conveyor speed | 6.8 ft/min |
| Wash tank volume | 23 gal |
| Booster heater | 24 kW, built-in (70 °F rise) |
| Tank heat | 5 kW electric |
| Motor horsepower | Drive 1/6 HP, Wash 2 HP, Final Rinse 2/3 HP, DWER 1/5 HP |
| Chamber clearance | 19.5 in (sheet-pan capable) |
| Overall length | 65-1/2 in (L-R) / 68-1/2 in (R-L orientation) |
| Minimum water supply | 110 °F hot | 55 °F cold (DWER) |
| Water pressure | 20 – 65 psi |
| Approx. shipping weight | 655 lb |
What’s included
- Factory start-up & operator training FREE* within 100 mi of a Hobart Service Office
- Pre-installed drain water tempering kit
- Owner’s manual, wiring diagrams & maintenance guide
*Free start-up performed during normal business hours with prior scheduling. Avoid using liquid bleach on items containing silver, aluminum or pewter.
