Key specifications

BTU
100,000 BTU
Dimensions
30.0"W × 33.0"D × 8.0"H
Type
Charbroiler Rangetop
Style
Heavy Duty
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Hestan SKU: HCH30

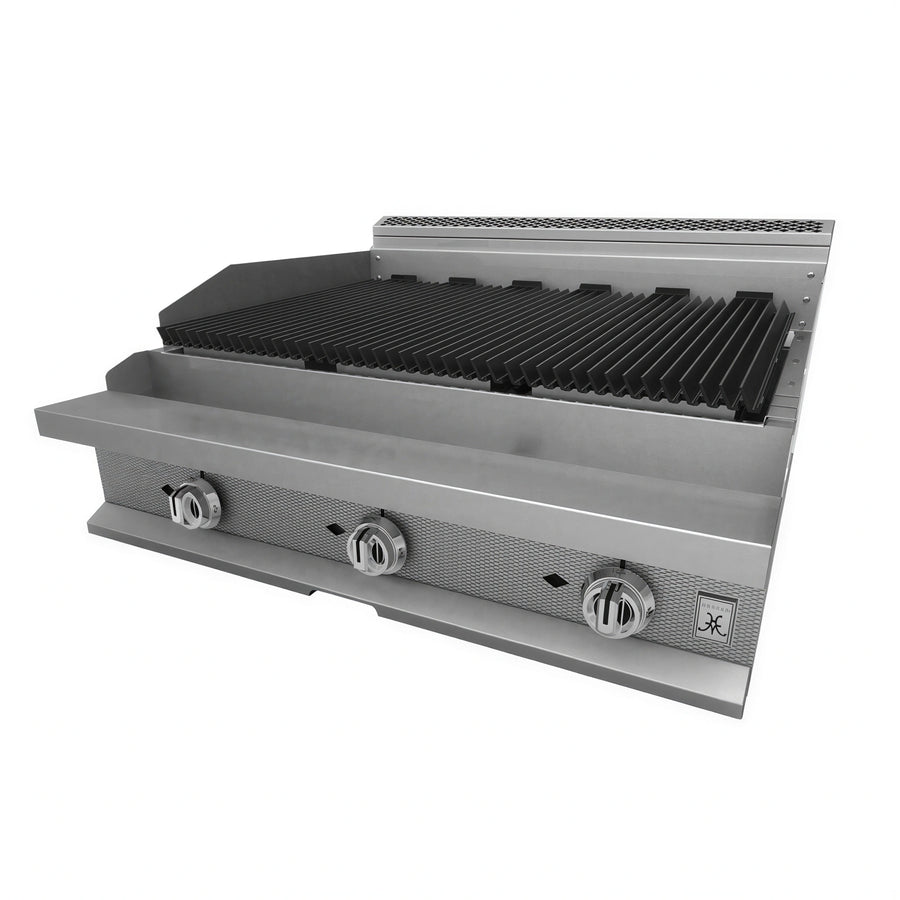

Hestan HCH30 30-Inch Countertop Gas Charbroiler Rangetop

$16,536.00
/each
Estimated to ship in 16–19 business days
Width
Gas typeRequired
Gas supply connection
Cooking surface
Riser
Gas Connector

Need something else? Contact us.

Included: Hestan warranty Two-year limited warranty for the original purchaser during normal use

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,530/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler Rangetop
Style Heavy Duty
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel
Size 30 Inches
Controls Manual
BTU 100,000 BTU
Grate Type Reversible Cast Iron
Radiant Material Stainless Steel
Ignition Type Standing Pilot
Electrical Requirement None
Ventilation Requirement Exhaust Hood Required
Frame System Cantilevered
Broiling Positions 3

Description

The Hestan HCH30 is a 30-inch countertop gas charbroiler rangetop with manual controls and a reversible cast iron grate.

  • Each burner is individually controlled.
  • The cantilevered stainless steel cooking system provides three vertical broiling positions for each section.
  • Stainless steel radiants support heat distribution, while the front, sides, and bottom are stainless steel.
  • The unit has a standing pilot ignition system with front-accessible pilot adjustment.
  • No electrical requirement; installation under an exhaust hood is required.

Overall Dimensions:

30.0"W x 33.0"D x 8.0"H

Product Weight:

300.0 lb

Charbroiler Cooking Surface

The 30-inch top is configured as a charbroiler.

Reversible Cast Iron Grate

The grate has channels that direct grease to the trough.

Individually Controlled Burners

Each burner has individual control.

Three Broiling Positions

The cantilevered cooking system allows each section to be adjusted vertically to three broiling positions.

Stainless Steel Radiants

Stainless steel radiants provide heat distribution across the cooking surface.

Standing Pilot Ignition

The standing pilot ignition system includes front-accessible pilot adjustment.

Low-Profile Design

The low-profile design allows island installation.

Frequently Asked Questions

It is a 30-inch countertop gas charbroiler rangetop.
The documentation identifies it as a gas unit and says to specify natural gas or propane when ordering; the configured gas type is not stated.
No. The product documentation states that there is no electrical requirement.
It has a reversible cast iron grate with channels to direct grease to the trough.
Yes. The product is required to be installed under an exhaust hood.
The listed dimensions are 30 inches wide, 33 inches deep, and 8 inches high, with a listed weight of 300 pounds.
The product has a two-year limited warranty for the original purchaser during normal use. The welded steel frame has a limited 10-year warranty, while the cast iron grate and radiant have a six-month limited warranty.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
