Key specifications

BTU
60,000 BTU
Dimensions
18.0"W × 33.0"D × 8.0"H
Type
Charbroiler Rangetop
Installation Type
Countertop
Material
Stainless Steel
Finish
Stainless Steel Front & Sides
Spec sheet
Hestan SKU: HCH18

Hestan HCH18 18-Inch Gas Charbroiler Rangetop

$13,992.00
/each
Estimated to ship in 16–19 business days
Width
Gas typeRequired
Cooking surface
Riser
Plate shelf
Gas Connector

Need something else? Contact us.

Included: Hestan warranty Two-year limited warranty for operating parts during normal use

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,294/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler Rangetop
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel Front & Sides
Size 18 Inch
Grate Type Reversible Cast Iron
BTU 60,000 BTU
Controls Manual
Electrical Requirement None
Ventilation Requirement Exhaust Hood Required

Description

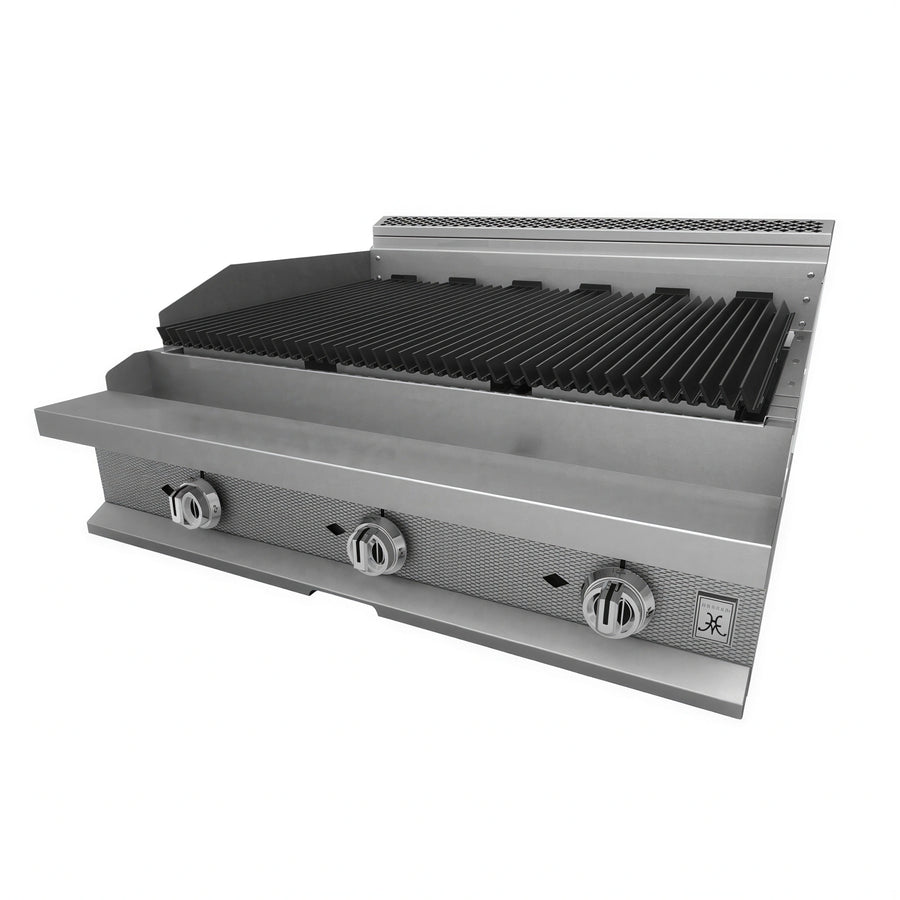

The Hestan HCH18 is an 18-inch gas charbroiler rangetop with manual controls, a reversible cast-iron grate, a cantilevered cooking system, and stainless steel front, sides, bottom, and radiants.

  • Rated at 60,000 BTU
  • Reversible cast-iron grate with channels to direct grease to a trough
  • Individually controlled burners
  • Three vertical broiling positions for each cooking section
  • No electrical requirement
  • Installation under an exhaust hood is required

Overall Dimensions:

18.0"W x 33.0"D x 8.0"H

Product Weight:

200.0 lb

Reversible Cast-Iron Grate

The grate reverses and uses channels to direct grease to a trough.

Manual Controls

The HCH18 uses manual controls.

Cantilevered Cooking System

Each cooking section can be individually adjusted vertically at three broiling positions.

Individual Burner Controls

Each burner is individually controlled.

Stainless Steel Radiant

The charbroiler uses a stainless steel radiant specified as 12 gauge for heat distribution.

Gas Rating

The HCH18 is rated at 60,000 BTU.

Frequently Asked Questions

The HCH18 is an 18-inch gas charbroiler rangetop.
It has a reversible cast-iron grate with channels that direct grease to a trough.
No. The cutsheet specifies no electrical requirement.
The HCH18 must be installed under an exhaust hood.
The cutsheet provides operating requirements for natural gas and propane, and states that the gas type must be specified when ordering.
The product has a two-year limited warranty for operating parts during normal use. The welded steel frame has limited 10-year coverage, while the cast-iron grate and radiant have six-month coverage.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
