Groen TDBC-24C 24 Qt Electric Countertop Tilting Steam-Jacketed Kettle with 2/3 Jacket and Classic Controls
Groen TDBC-24C 24 Qt Electric Countertop Tilting Steam-Jacketed Kettle with 2/3 Jacket and Classic Controls
IPX6 Water-Resistant Controls, Right-Side Crank Tilt, 304 Stainless Steel Liner
Built for reliable batch cooking, this 24-quart countertop kettle combines a self-contained electric steam source with water-resistant Classic controls and a precise crank tilt.
- 24-quart capacity with a 2/3 steam jacket for efficient, even heating on the countertop.
- Classic electronic controls make temperature adjustment simple with clear power, heat, and low-water indicators.
- IPX6-rated control enclosure helps protect the controls in wet kitchen environments.
- Crank tilt design and standard faucet bracket make pouring and transfer easier and more controlled.
- 304 stainless steel construction and liner support durability and easy cleanup.
- Self-contained electric steam source means no remote steam hookup is required.
- Standard unit ships 208V/3-phase and can be field-converted to single-phase; other voltage options are available.
Overall Dimensions:
25.63"W x 25.5"D x 24.63"HProduct Weight:

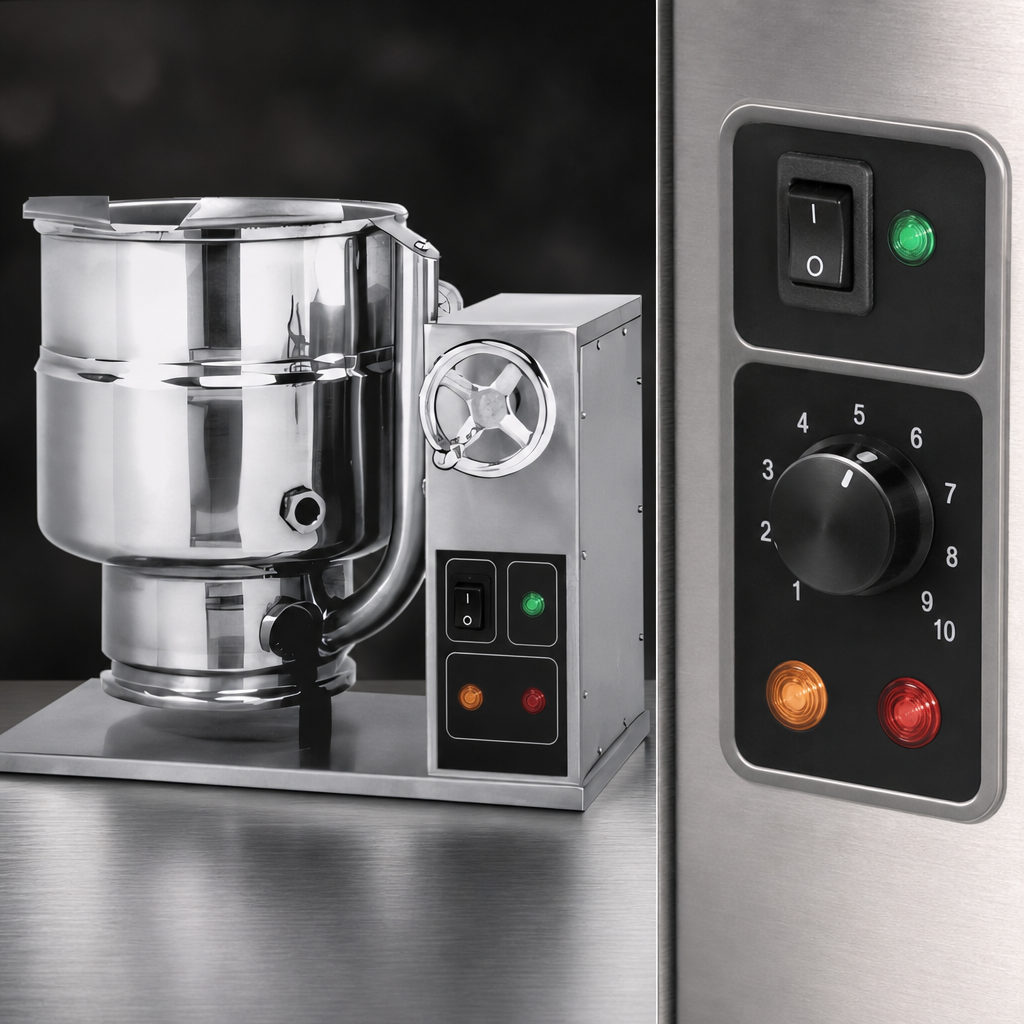

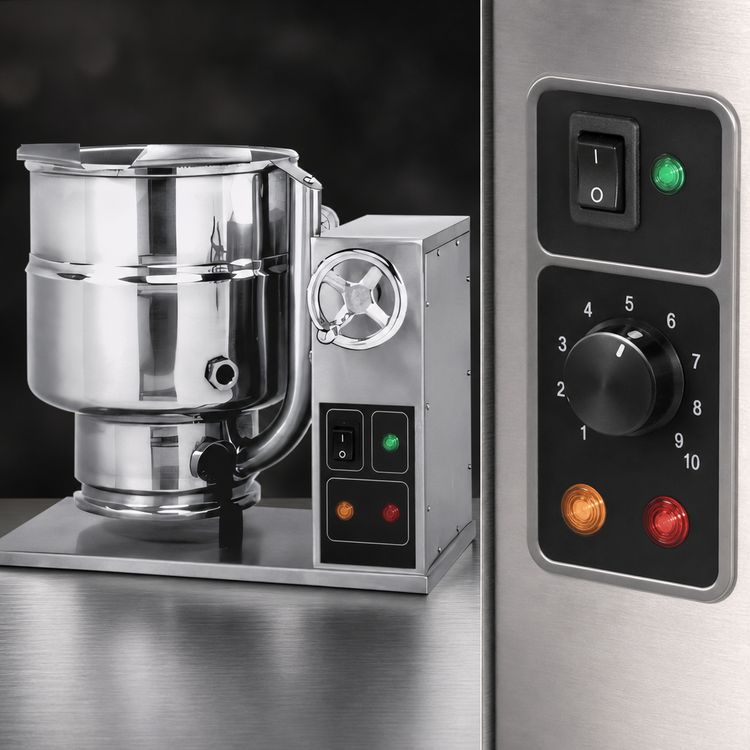

120.0 lbClassic Electronic Controls
Includes a power on/off switch with indicator light, temperature control knob with 1 to 10 increments, heat indicator light, and low-water warning light.

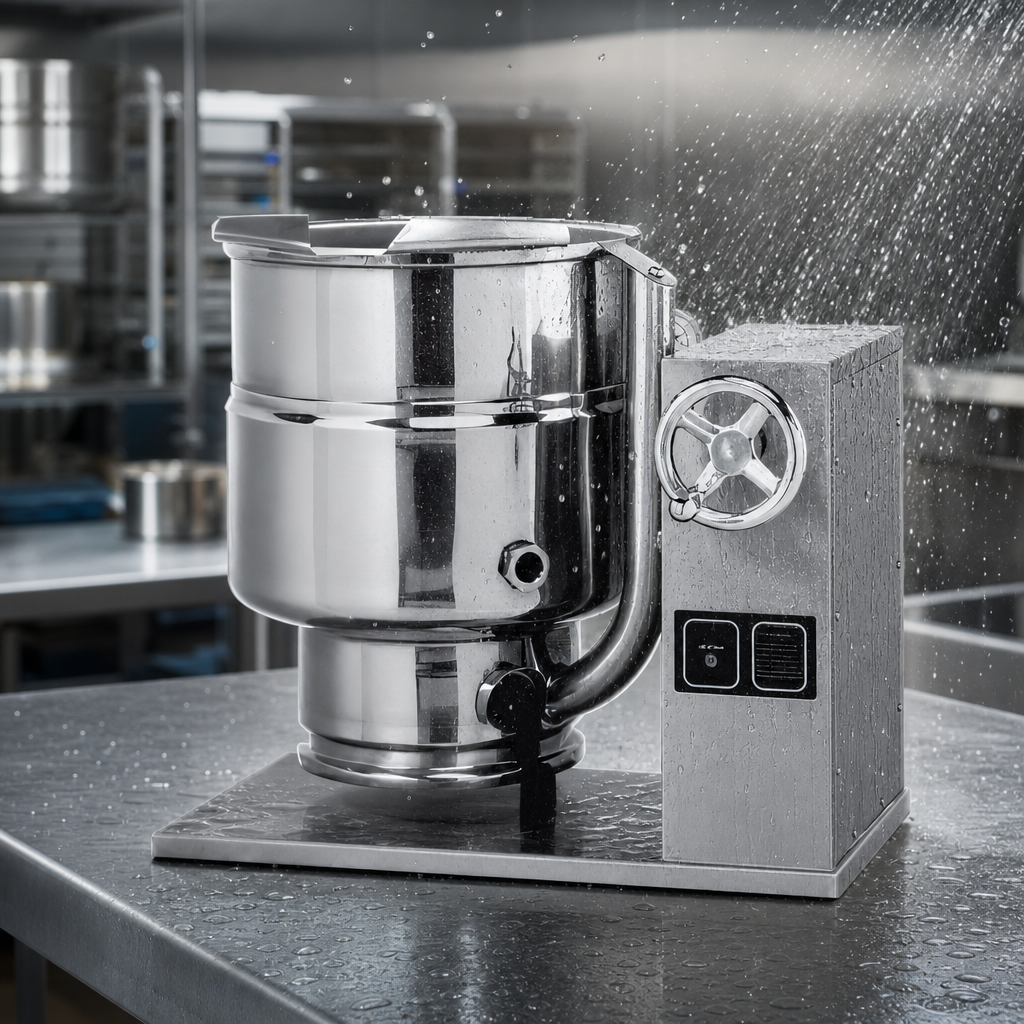

IPX6 Water-Resistant Enclosure
All controls are housed in a water-resistant IPX6-rated enclosure for better protection in demanding prep areas.
Crank Tilt with Right-Side Console
The hand crank tilt provides precise one-person pouring, and the controls/trunnion console is mounted on the right side.
304 Stainless Steel Construction
One-piece welded stainless steel construction with all exposed surfaces in stainless steel for durability and easier cleaning.
304 Stainless Steel Liner
The kettle liner is 304 stainless steel with a polished interior finish for foodservice use.
Self-Contained Electric Steam Source
Built-in electric steam generation heats the kettle without requiring a remote steam source.
Built-In Safety Systems
Includes safety tilt cut-off, pressure relief valve, high limit pressure switch, low-water cut-off, and a 24-volt control system.
Standard Faucet Bracket
A faucet bracket is standard and mounted on the rear of the controls/trunnion enclosure.
Countertop Pour Height
Designed to allow filling of 4-inch deep pans on the tabletop.
Field-Convertible Electrical Setup
Standard configuration ships 208V/3-phase and can be field-converted to single-phase operation; other specified voltages are available.
Certifications & Compliance
Warranty & Protection
12 months from installation, 15 months from shipment, or 2,000 operating hours, whichever occurs first.
