Groen  |  SKU: TDBC-24A

Groen TDBC-24A Steam Kettles

$13,470.00
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Ts/10 & ts/10s support stands Roi calculator Owner's manual Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

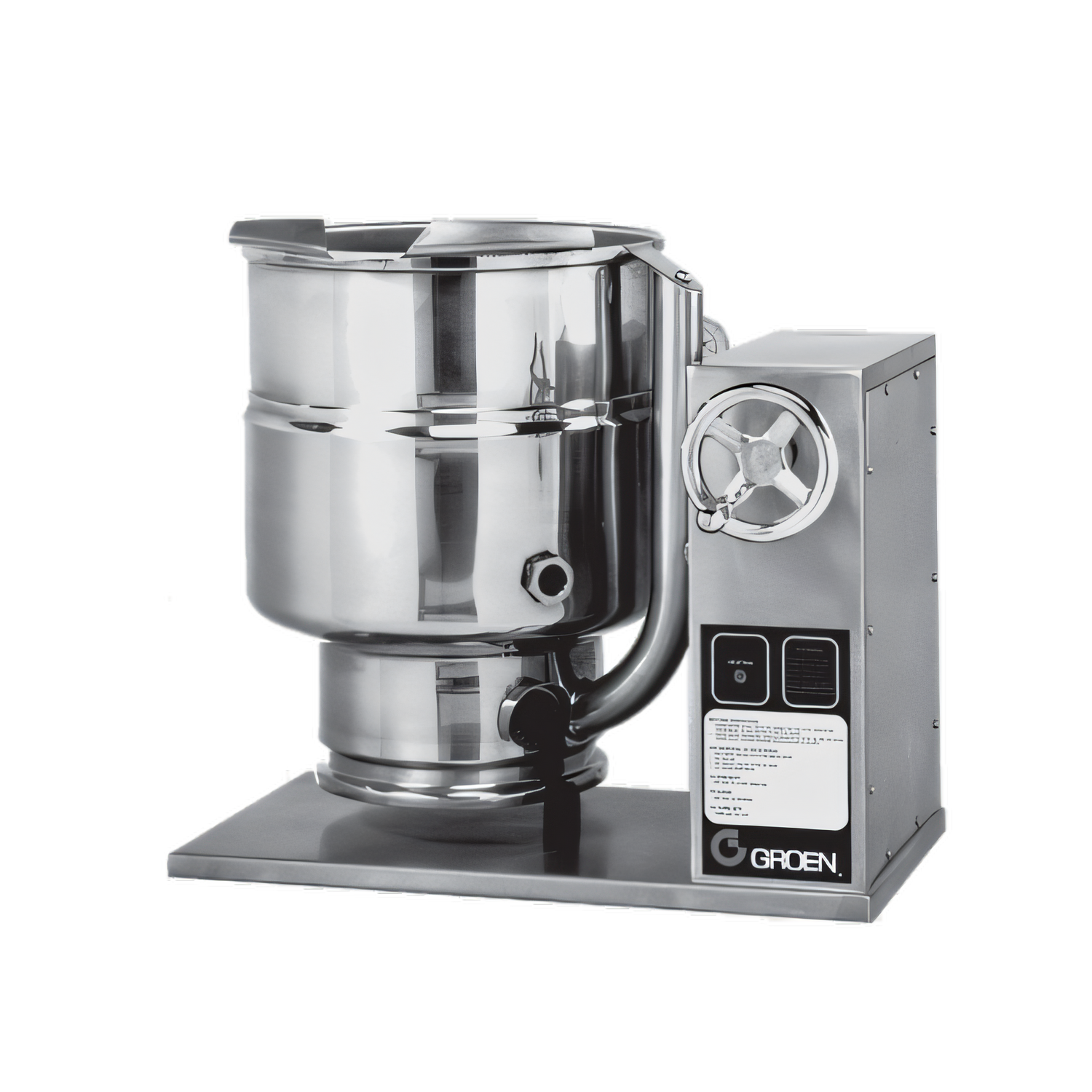

Groen TDBC-24A 24-Quart Electric Table-Top Tilting Kettle

Advanced IPX6 Controls • Self-Contained Steam Jacket • Made in USA

Built for high-volume production in a compact footprint, the Groen TDBC-24A delivers rapid, even heat, intuitive electronic controls and effortless crank-assisted pouring. Perfect for soups, sauces, curries, custards and more, this 24-quart workhorse turns any prep table into a full-scale cooking station.

Key advantages
  • 24 qt (23 L) capacity—ideal for cafés, kiosks, schools and satellite kitchens

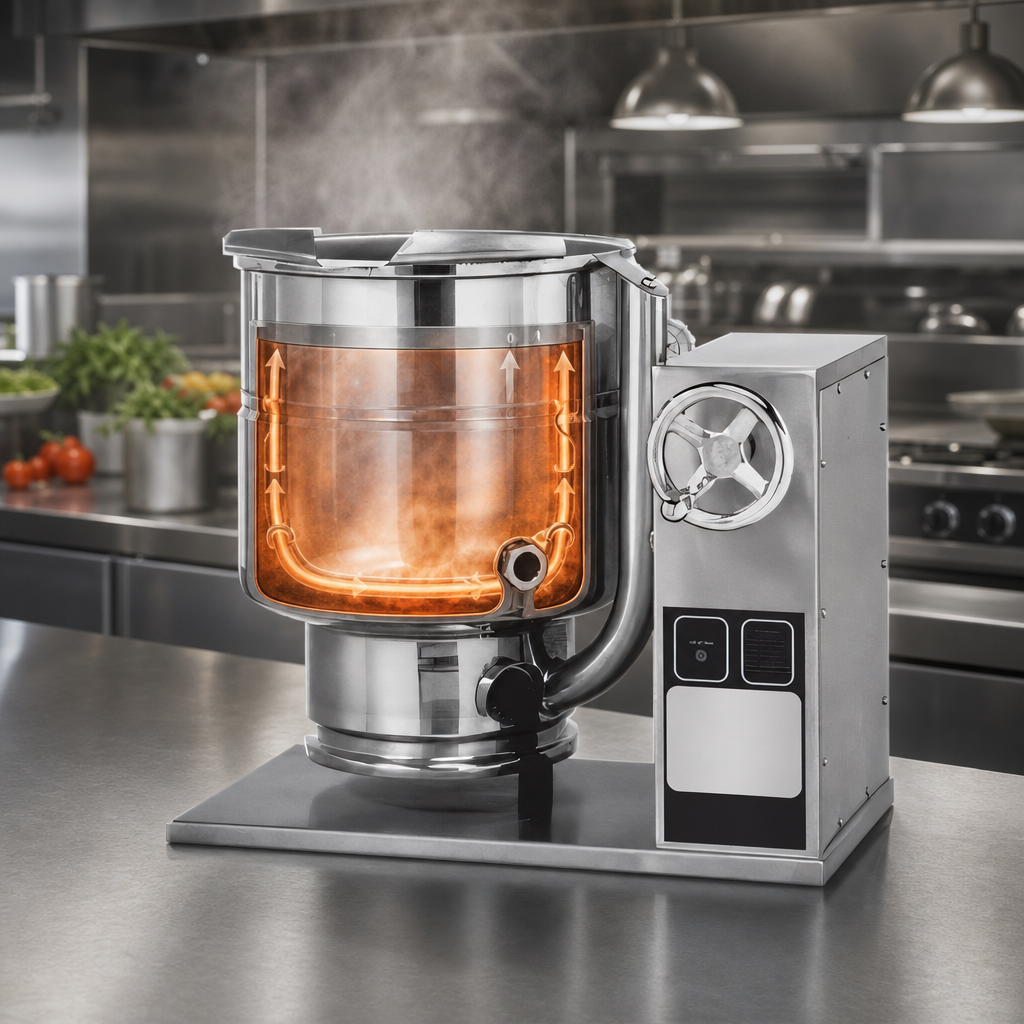

  • 2/3 steam jacket reaches 150 °F–295 °F without an external boiler
  • Advanced IPX6 water-resistant control panel with digital display & 1-600 min timer
  • Two programmable presets (Low 2, High 7) plus MANUAL mode for fine-tuning
  • Right-side worm-gear crank tilts smoothly, even when full
  • 304 stainless liner & all-stainless exterior for unmatched durability and sanitation
  • Integrated faucet bracket keeps rinse/pantry faucets right where you need them
  • Complete safety suite: tilt cut-off, low-water shut-off, pressure relief & high-limit control
  • cULus, NSF & ASME certified—manufactured in the USA

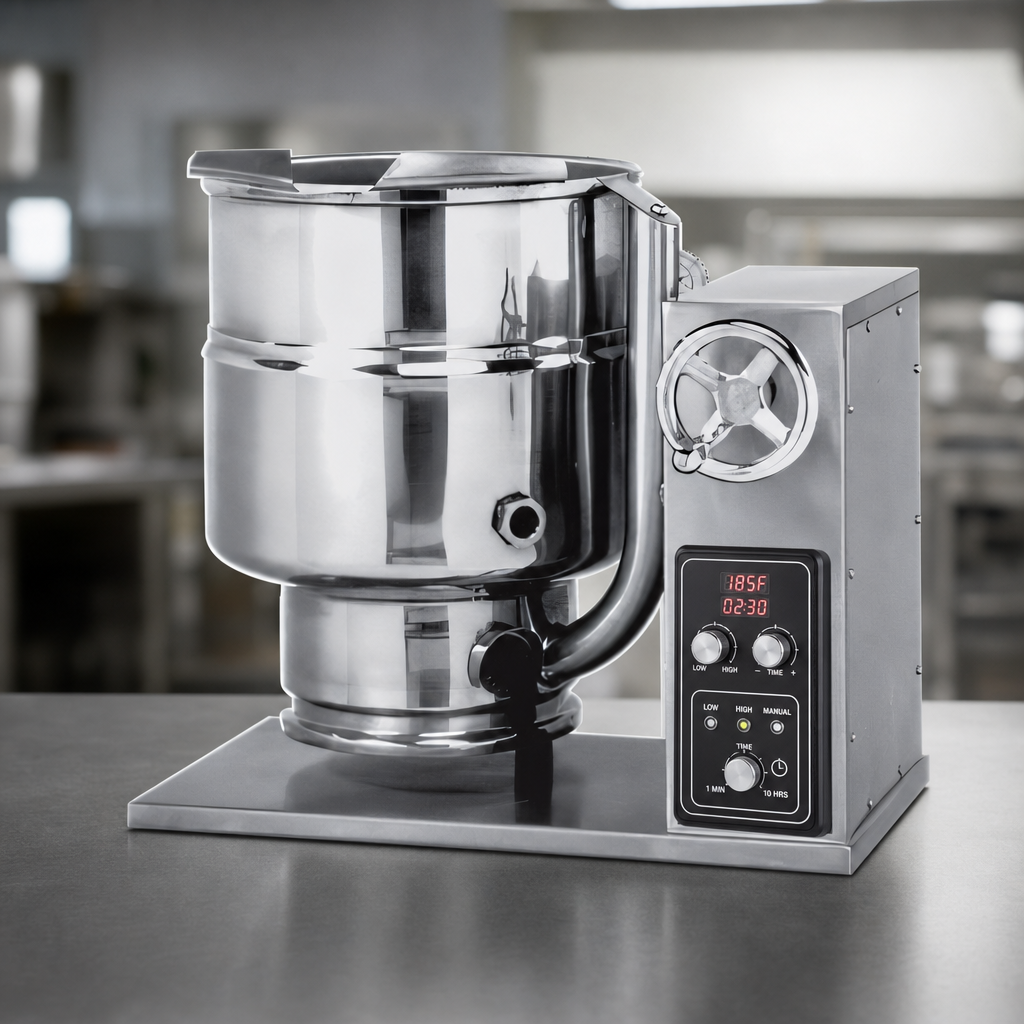

Advanced IPX6 electronic controls
  • Rotary knob instantly sets temperature or cook time
  • Bright LED display toggles between heat level or remaining time
  • 1-minute to 10-hour timer handles everything from flash-heat to slow simmer
  • Low Temp & High Temp reset buttons for one-touch repeatability
  • 24-volt control circuit for operator safety
Specifications
Model TDBC-24A (Advanced Controls)
Capacity 24 qt / 23 L
Jacket Coverage 2/3 (bottom & sidewall)
Heating Source Self-contained electric steam, 6 kW or 8 kW (voltage-dependent)
Temperature Range 150 °F – 295 °F
Max. Working Pressure 50 PSI (ASME stamped & registered)
Electrical 208 V or 240 V, 3 Φ (factory) – field convertible to 1 Φ; 480 V/3 Φ optional
Controls Enclosure IPX6 water-resistant, right-side mounted
Construction 304 SS liner, stainless shell, 180-grit polished interior, high-buff exterior
Tilting Mechanism Hand crank with worm-gear drive
Certifications cULus, NSF, ASME
Origin Proudly made in the USA
Warranty 1-year parts & labor limited warranty
Popular accessories (sold separately)
  • TS/10 or TS/10S stainless table stand (with or without drain drawer)
  • Single or double pantry faucet / pre-rinse assemblies
  • Wire or nylon basket inserts
  • Lift-off cover, cover holder or cover strainer
  • Drain cart & plumbing kit
Heads up: The kettle ships factory-charged and needs only a single electrical connection. Maintain water quality within Groen specifications to ensure maximum service life.

Looking for other sizes or control packages? Explore the full Groen TDBC series or contact us for a custom quote.

Features & Specs

Manufacturer

Groen

Certifications

NSF, cULus, IPX6, Made in USA

Height

24.63in

Width

25.63in

Depth

25.5in

Shipping Weight

120.0lbs

Kettle Jacket

partial jacket

Capacity

6 gal = 24 qt

Tilt type

crank

Kettle Liner

stainless steel

Support location

right

Specifications

Kettle, electric, table top, 24 quart capacity, 2/3 jacket, IPX6 water rated electronic Advanced controls with digital display, 1 minute to 10 hour timer, low (2) and high (7) preset intensities with manual capability, 304 stainless steel liner, crank tilt, faucet bracket, support console on right, stainless steel construction, cULus, NSF, Made in USA
