Groen | SKU:
TDBC-20C
Groen TDBC-20C Steam Kettles
$11,485.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Groen TDBC-20C Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Groen TDBC-20C Steam Kettles
$11,485.00
Unit price
/
Unavailable
Description

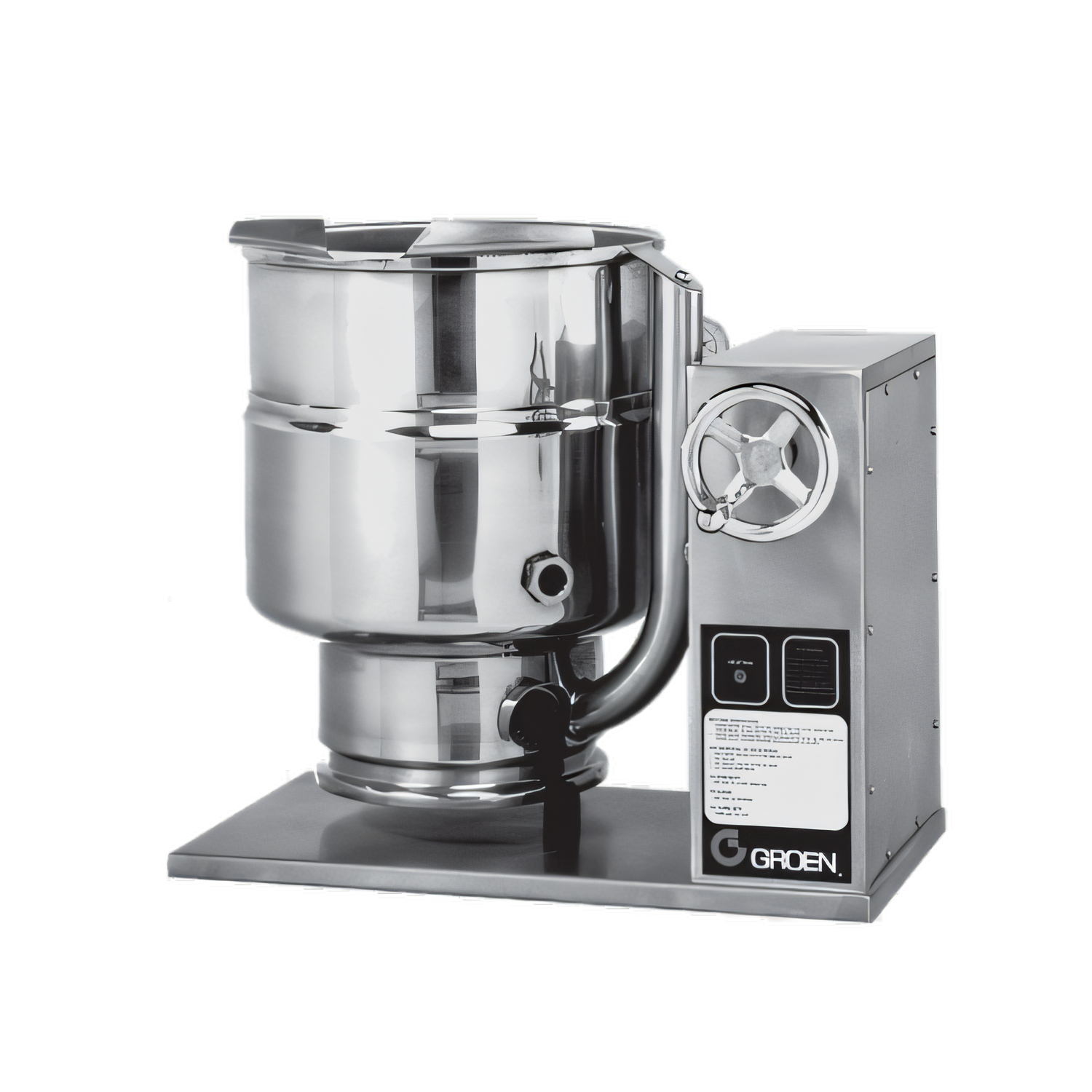

Groen TDBC-20C Electric Table-Top Tilting Kettle
20 Quart • Classic Electronic Controls • Made in USABring Groen performance to your worktop with this 20-quart, self-contained steam-jacketed kettle. Precision Classic controls, easy one-hand crank tilting and all-stainless construction make it the compact, high-output solution for sauces, soups and small-batch production.
Why You’ll Love It

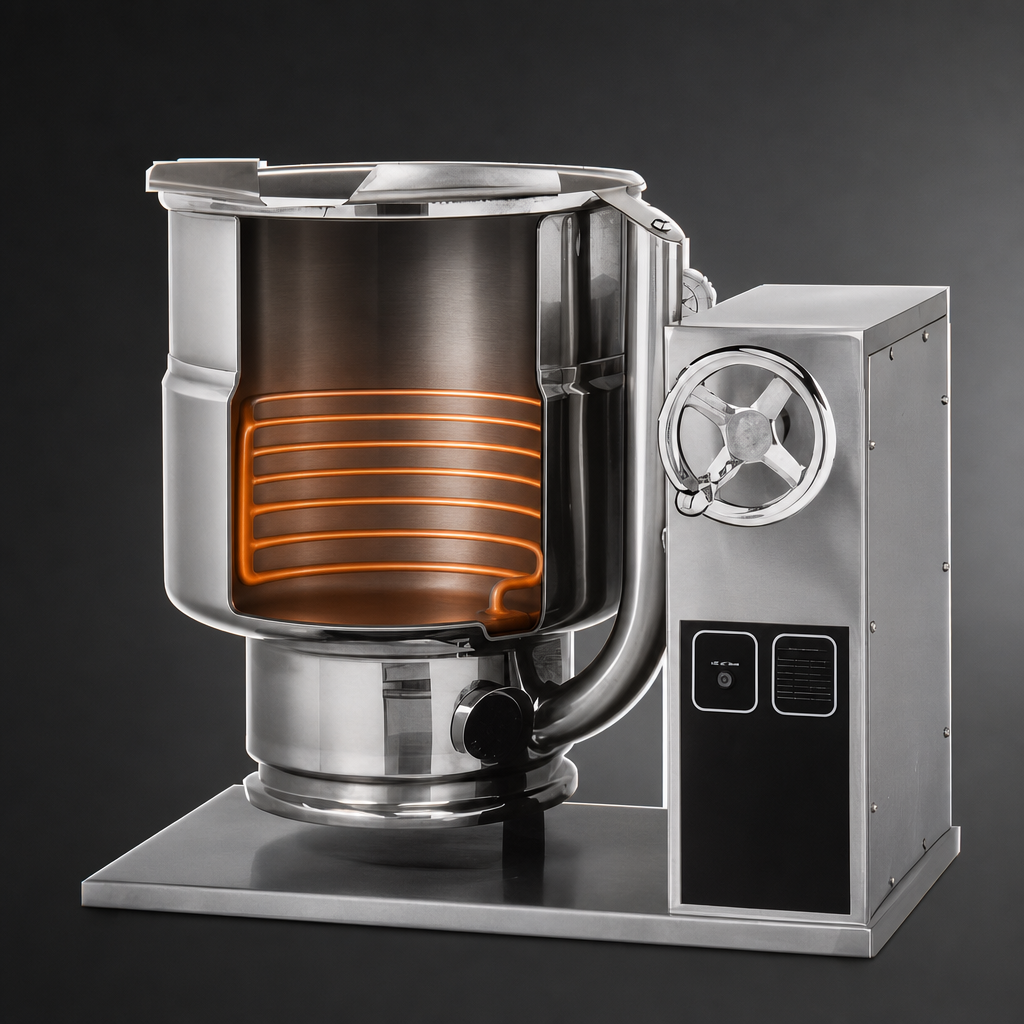

- 20 qt (19 L) capacity with 2/3 steam jacket for fast, uniform heating

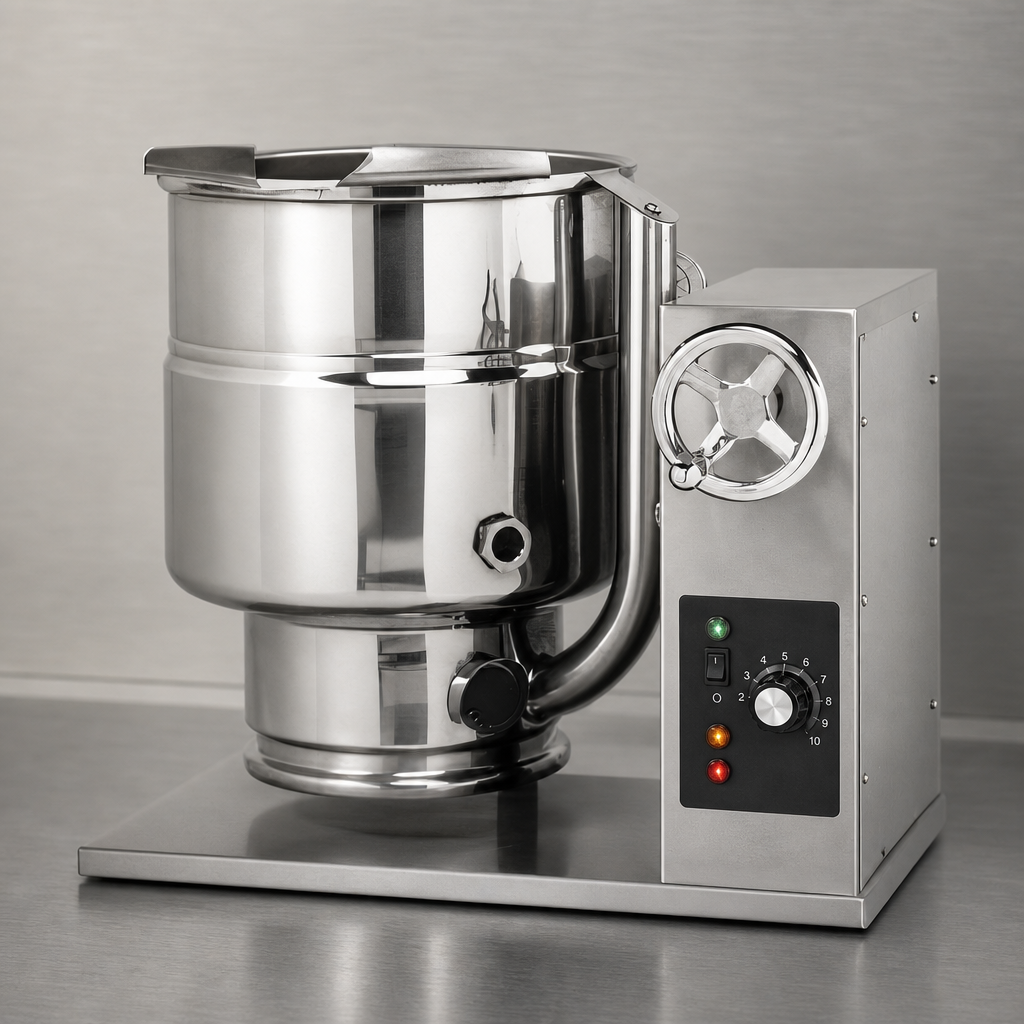

- IPX6 water-resistant Classic control panel with:
- Power on/off & indicator light
- 1-to-10 temperature dial (150 °F – 295 °F)
- Heating status light & Low-water warning light
- Crank-assist tilt (right-hand) for smooth, precise pouring at any fill level
- 304 stainless steel kettle liner and exterior—polished interior, high-buff exterior
- Butterfly-shaped lip and rear-mounted faucet bracket for drip-free dispensing
- Self-contained electric steam source—no external boiler or water connection required
- ASME-stamped 50 PSI jacket with factory-charged treated water for long life
- Comprehensive safety system: tilt cut-off, pressure relief valve, high-limit switch, low-water cut-off, 24 V controls
- cULus, NSF & IPX6 listed; proudly built in the USA
Technical Specs
| Model | TDBC-20C |
|---|---|
| Capacity | 20 qt | 19 L |
| Jacket Coverage | 2/3 (side & bottom) |
| Heat Input | 6 kW or 8 kW – depending on voltage |
| Temperature Range | 150 °F – 295 °F (66 °C – 146 °C) |
| Electrical | 208/240 V or 480 V, 1- or 3-phase (single connection; 208 V/3 Ø ships standard and can be field-converted to 1 Ø) |
| Tilt Mechanism | Manual crank, right side |
| Construction | One-piece 304 SS kettle & console; IPX6 control enclosure |
| Maximum Jacket Pressure | 50 PSI (ASME stamped & registered) |
| Certifications | cULus, NSF, ASME, IPX6 |
| Country of Origin | USA |
Popular Accessories (sold separately)
- Groen TS/10-2 stainless support stand (with or without drain drawer)
- Etched gallon or liter markings
- Single or double pantry faucet assemblies
- Wire or nylon basket inserts & lift-off covers
- Drain cart & plumbing kit
Warranty Notice: Groen backs this kettle with a 1-year parts & labor warranty
(2-year/4000-hour coverage on kettles installed in K-12 facilities with authorized start-up).
Need help choosing options or scheduling start-up? Contact our team via the “Chat Now” button or call 888-994-7636.
Features & Specs
Features & Specs
Manufacturer
Groen
Certifications
NSF, cULus, IPX6, Made in USA
Height
23.13in
Width
25.63in
Depth
25.5in
Shipping Weight
115.0lbs
Kettle Liner
stainless steel
Tilt type
crank
Support location
right
Kettle Jacket
partial jacket
Capacity
5 gal = 20 qt
Specifications
Kettle, electric, table top, 20 quart capacity, 2/3 jacket, IPX6 water rated electronic Classic controls, 304 stainless steel liner, crank tilt, faucet bracket, support console on right, stainless steel construction, cULus, NSF, Made in USA
