Groen PT-60 Steam Kettles
Description

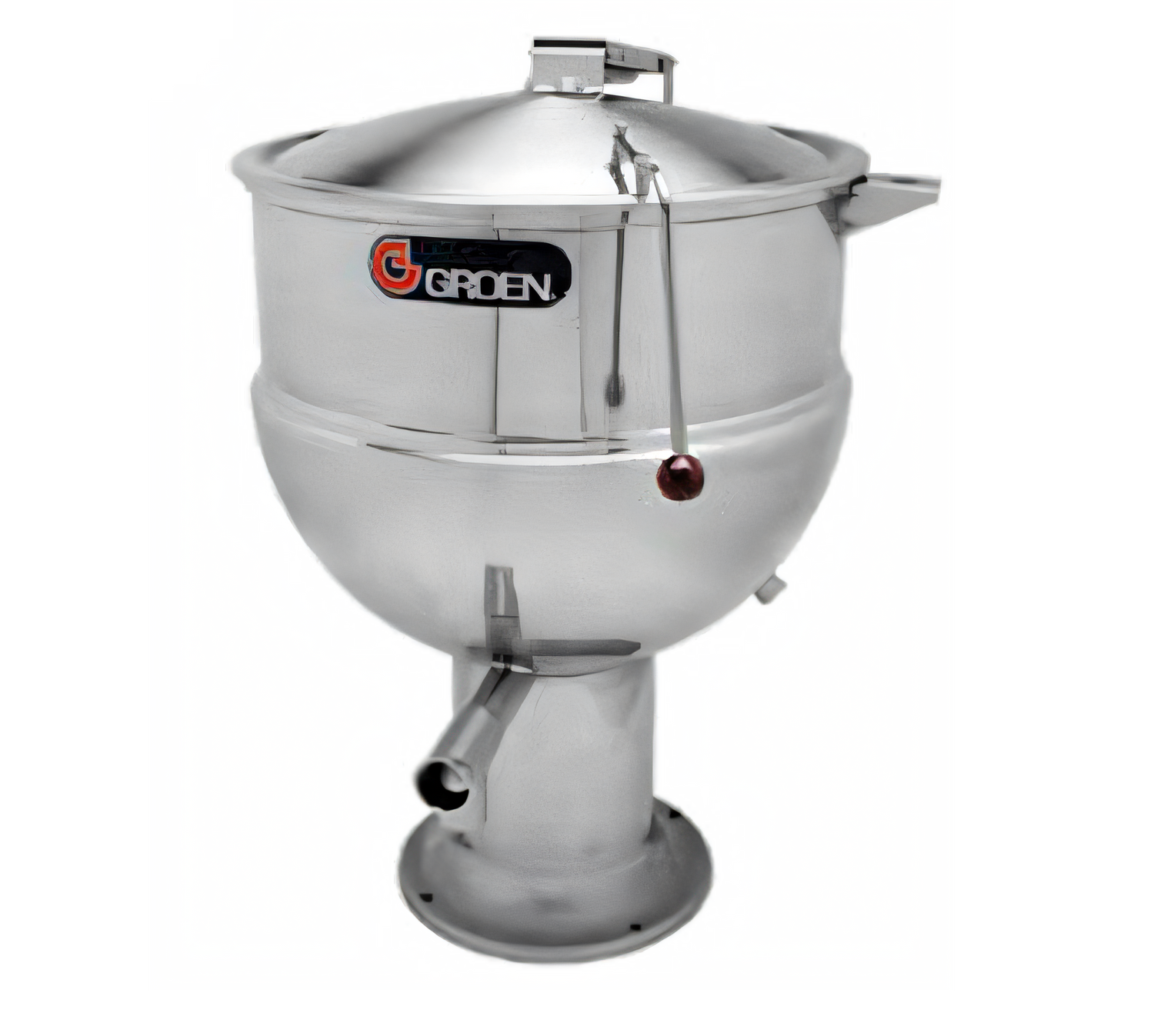

Groen PT-60 Direct Steam Kettle — 60 Gallon
2⁄3 Jacket | 316 Stainless | Pedestal Mounted | 25 PSIEngineered for high-volume production, the Groen PT-60 combines rapid, even heating with legendary durability. Its 60-gallon (227 L) capacity and 2⁄3 steam jacket make quick work of soups, sauces, stocks and more, while the 316 stainless-steel liner shrugs off acidic ingredients that can destroy lesser kettles.
Key Features

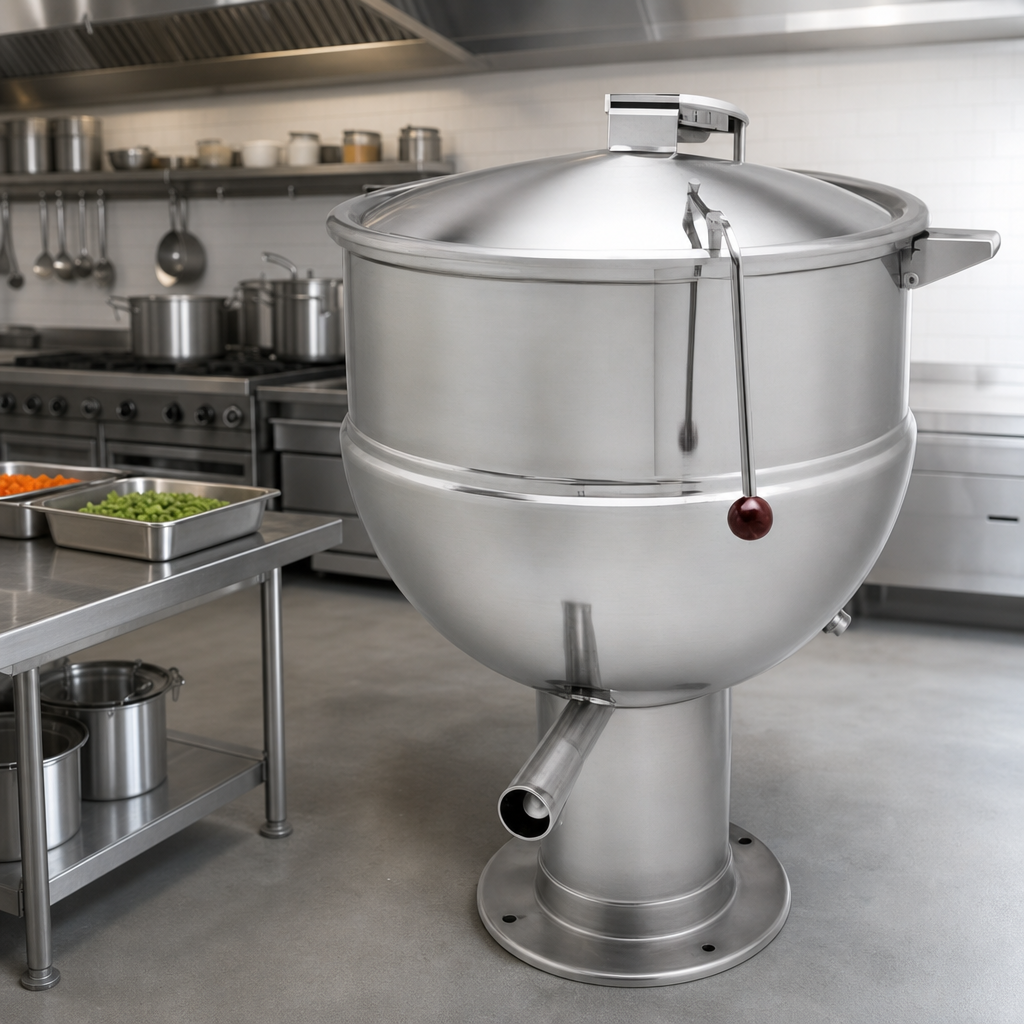

- 60 gal / 227 L working capacity for batch or bulk cooking
- 2⁄3 steam jacket delivers uniform heat at 5–25 PSI
- Type 316 stainless-steel liner resists pitting & corrosion
- All-stainless pedestal base with flanged skirt for sanitary, bolt-down installation
- ASME-code stamped & National Board registered (25 PSI)
- NSF-listed, 180-grit polished interior & bright-buff exterior for easy cleaning
- Heavy-duty bar rim adds strength against daily knocks
- 2" sanitary tangent draw-off valve with compression disc & removable 1⁄4" perforated strainer
- No. 51 counterbalanced “Power-Aid” cover stays open or closed without effort
- Built-in faucet bracket (single or double pantry faucets optional)

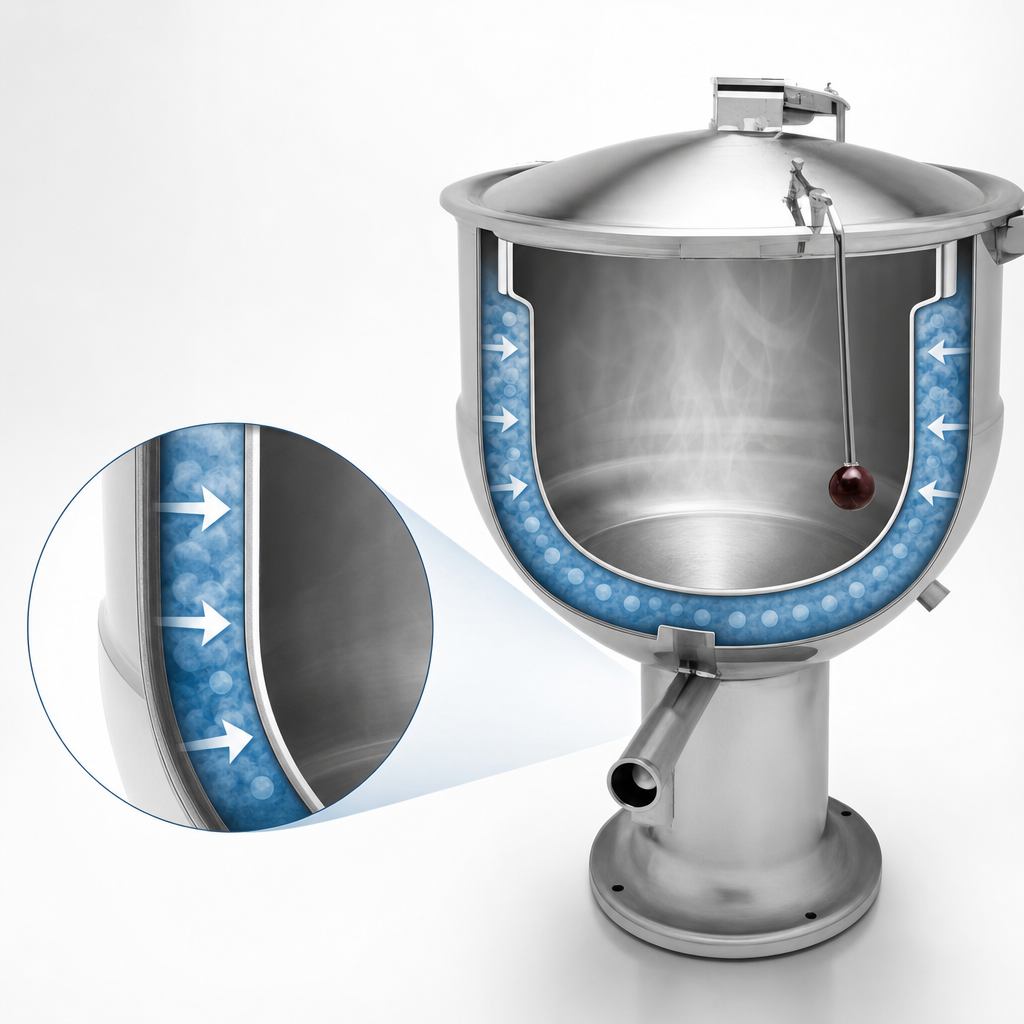

Why Direct Steam?
Connected to your remote boiler or building steam supply, the PT-60 reaches operating temperature in seconds and maintains it with extreme accuracy—no internal heaters to service, no extra electrical load, just consistent performance shift after shift.
- Instant, even heat distribution
- No elements to descale or replace
- Lower kitchen energy demand
Specifications
| Model | PT-60 (stationary, pedestal-mounted) |
|---|---|
| Capacity | 60 gal (227 L) |
| Jacket Coverage | 2⁄3 kettle body |
| Operating Pressure | 5 – 25 PSI (factory set) |
| Liner Material | 316 stainless steel |
| Interior Finish | 180-grit sanitary polish |
| Exterior Finish | High-buff polish |
| Draw-Off Valve | 2" sanitary tangent, compression disc, 1⁄4" perforated strainer |
| Cover | No. 51 counterbalanced stainless-steel cover |
| Steam Inlet | ¾" NPT |
| Condensate Outlet | ½" NPT |
| Inside Diameter (A) | 30" / 762 mm |
| Overall Width (E) | 39" / 991 mm |
| Overall Height (D) | 67" / 1 702 mm |
| Shipping Weight | ≈ 650 lb / 295 kg |
| Listings | NSF, ASME |
| Country of Origin | Made in USA |
Installation Notes
- Requires remote steam source and steam trap assembly (not included).
- Anchor through four &frac9;⁄16" mounting holes in pedestal flange.
- Locate 2" draw-off 4–5" above floor sink for proper drainage.
Detailed drawings and connection requirements are available under the “Downloads” tab.
Warranty
Includes a 1-year parts & labor warranty (2 000 operating hours). Extended coverage options are available—please ask your sales representative.
