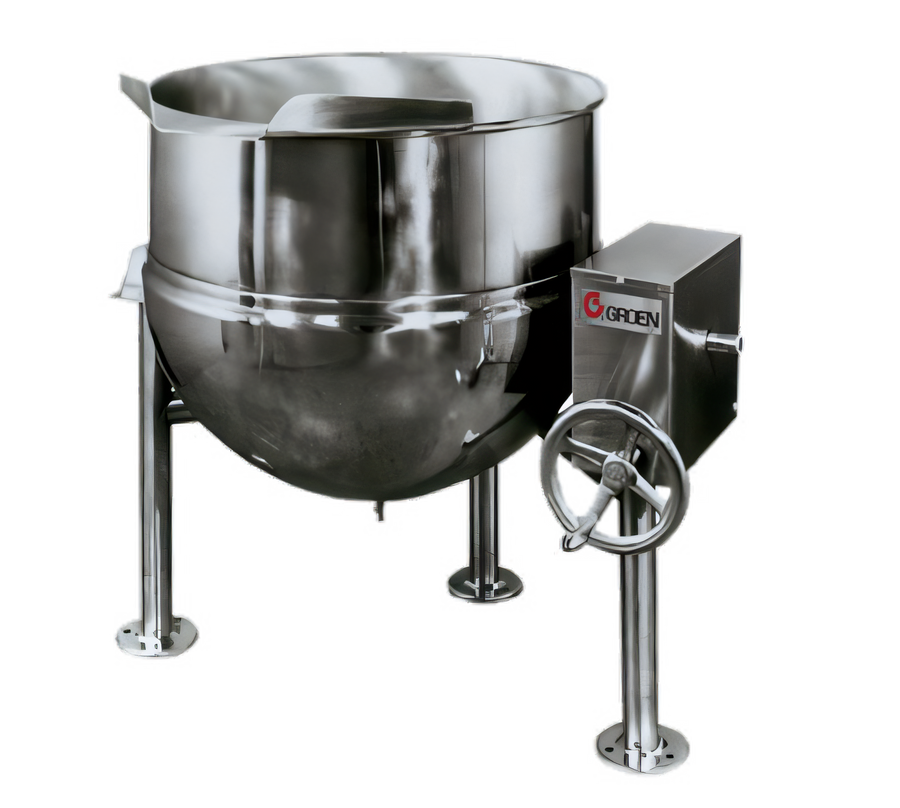

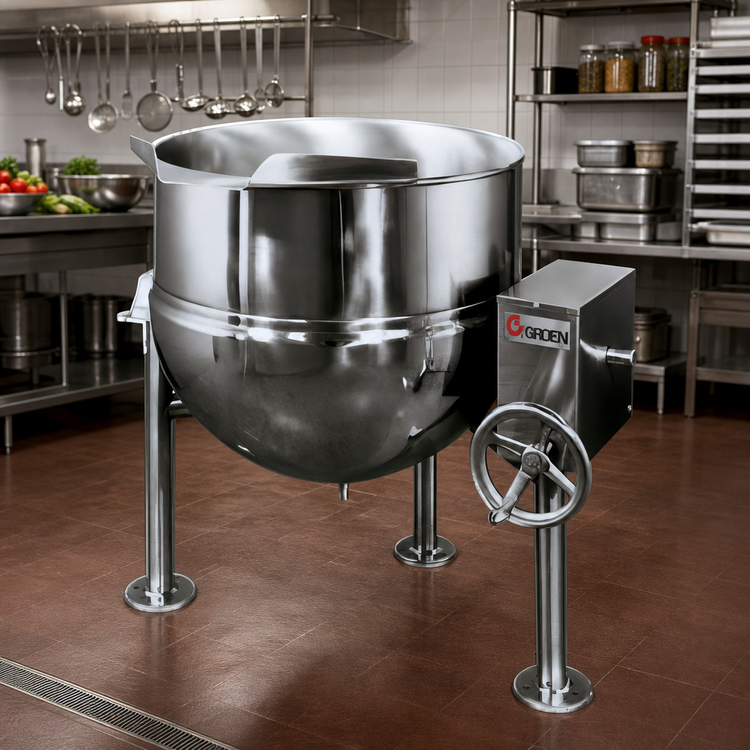

Groen DL-80 80-Gallon Direct Steam Tilting Steam Kettle

Floor Mounted, 2/3 Jacket, 316 Stainless Steel Liner, Manual Crank Tilt

Built for high-volume kitchens, this 80-gallon direct steam kettle delivers controlled manual tilting and a durable 316 stainless steel liner for efficient batch cooking.

  • 80-gallon capacity supports large-volume soups, sauces, stocks, and other batch cooking.
  • Direct steam design connects to a remote steam source for efficient operation.
  • Manual crank tilt provides controlled pouring and easy emptying.
  • 2/3 steam jacket and 316 stainless steel liner support durability and sanitation.
  • Floor-mounted tri-leg base with adjustable flanges helps keep the kettle stable.
  • NSF-listed construction, rated for up to 25 PSI, and made in the USA.

Overall Dimensions:

49.0"W x 39.25"D x 48.0"H

Product Weight:

295.0 lb

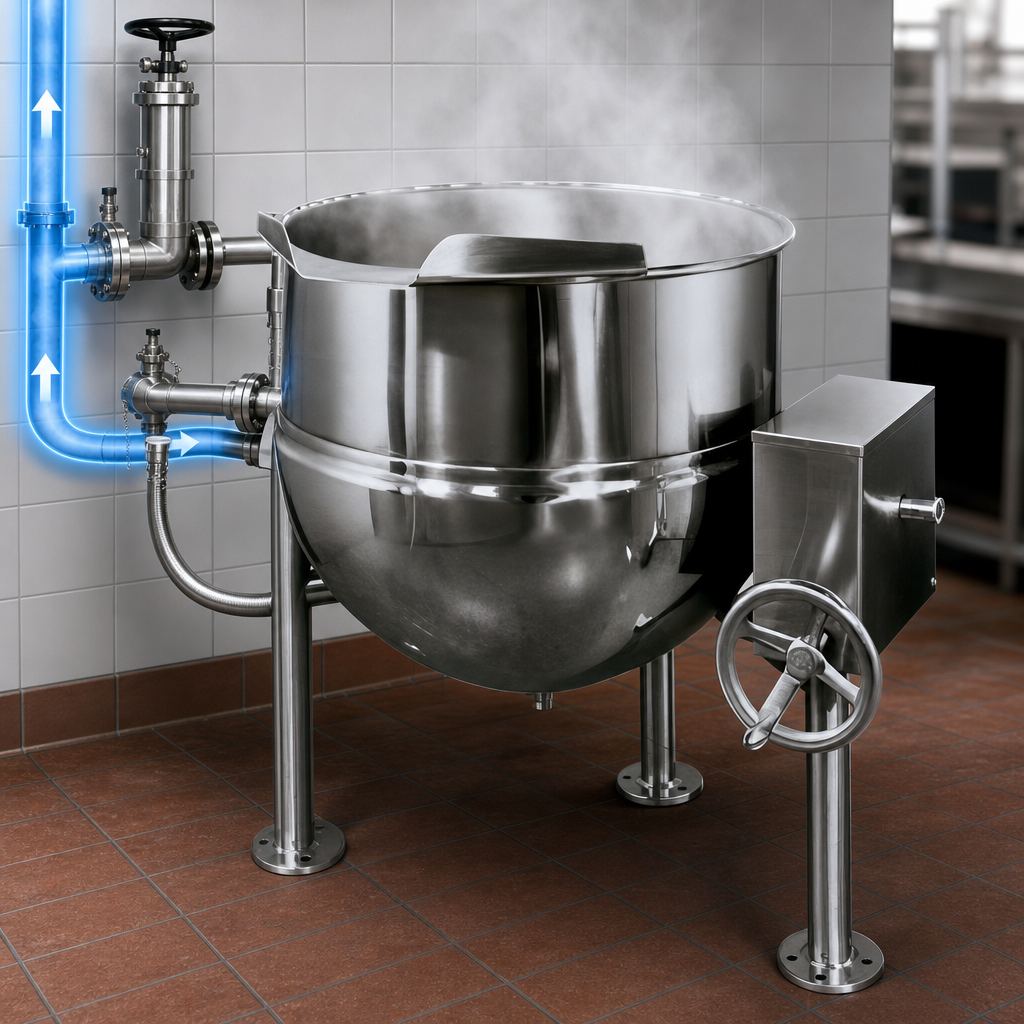

Direct Steam Operation

Designed to operate from a remote steam source for high-volume batch cooking.

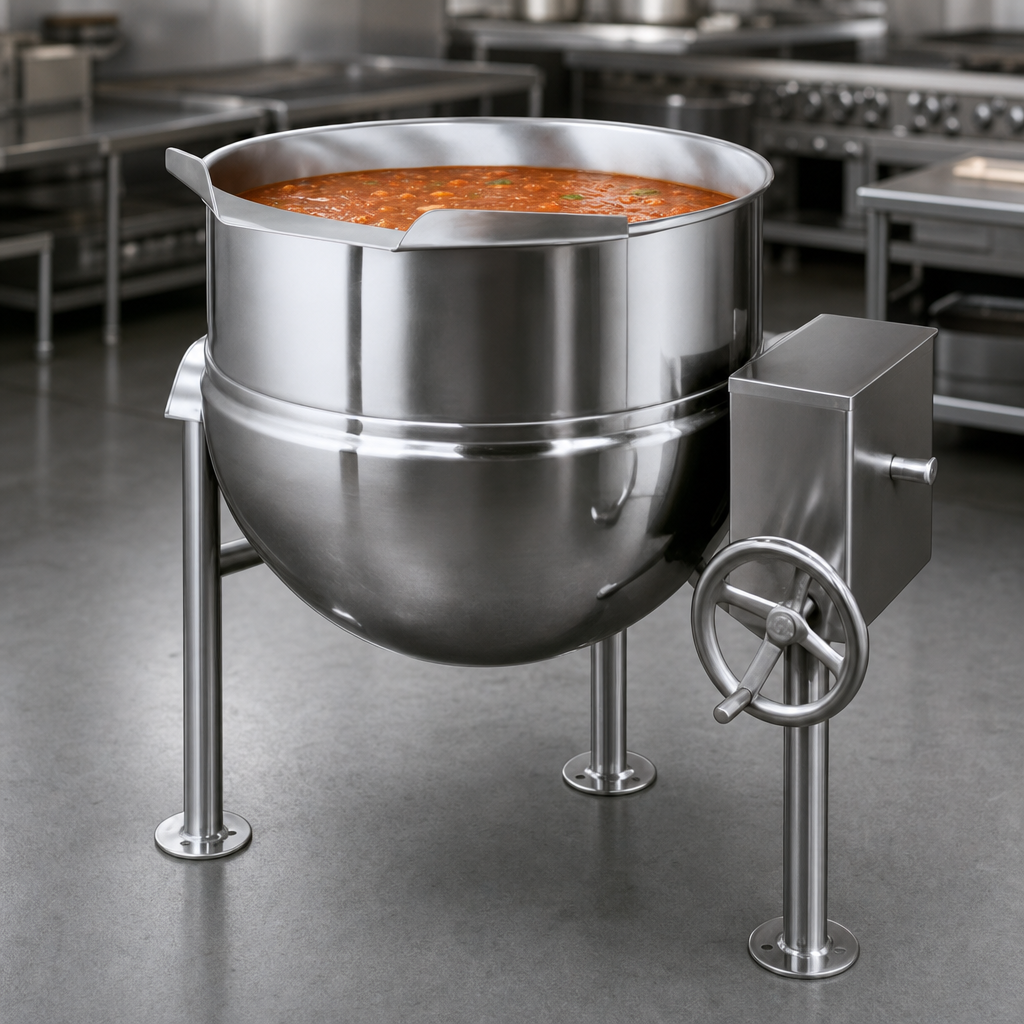

80-Gallon Capacity

Large kettle capacity for commercial production and batch preparation.

2/3 Steam Jacket

Partial steam jacket design supports efficient heat transfer across the kettle body.

316 Stainless Steel Liner

Type 316 stainless steel interior liner with solid one-piece welded construction for durability and sanitation.

Manual Crank Tilt Mechanism

Self-locking worm gear tilt system and large hand crank provide precise pouring control.

Tri-Leg Floor Stand

Stainless steel yoke stand with tubular leg supports and adjustable floor flanges for stable floor mounting.

Polished Interior, Buff Exterior Finish

Interior is polished to a 180 emery grit finish and the exterior has a semi-deluxe buff finish for easier cleaning and a bright appearance.

NSF-Listed, 25 PSI Rated

Built to meet NSF sanitation requirements and shop-inspected for operation up to a maximum working pressure of 25 PSI.

Made in USA

Designed and manufactured in the United States.

Standard Faucet Mounting Bracket

Faucet mounting bracket is standard on the unit.

Type Steam Kettle
Style Direct Steam
Controls Manual Crank
Installation Type Floor Model
Capacity 80 Gallons
Material Stainless Steel
Interior Finish 316 Stainless Steel
Country of Origin USA
Shipping Width 49 Inches
Shipping Depth 40 Inches
Shipping Height 48 Inches
Shipping Weight 295 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

12 months from installation or 15 months from shipment, or 2000 operating hours, whichever occurs first.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download PDF Start-up request form PDF Download PDF Roi calculator PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses direct steam and requires a remote steam source.
It uses a manual crank tilt mechanism with a self-locking worm gear for controlled pouring.
The kettle is designed for operation up to 25 PSI.
The interior liner is type 316 stainless steel with solid one-piece welded construction.
No. A steam trap assembly is required and is not provided unless ordered as an option.
No. Covers are optional, including a No. 31 lift-off cover and a No. 51 counter-balanced cover for applicable models.
