Groen DH-80A Steam Kettles
Description

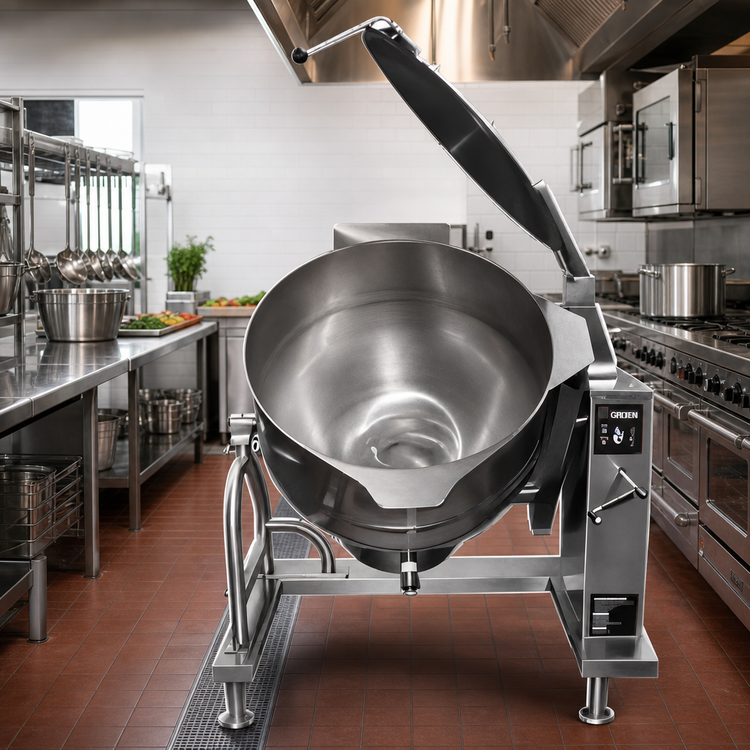

Groen DH-80A 80-Gallon Gas Tilting Floor Kettle
Self-contained steam jacketed kettle with IPX6 Advanced digital controlsWhen your production line demands volume, precision, and rock-solid reliability, the Groen DH-80A delivers. This 80-gallon, 2/3-jacketed kettle generates its own high-efficiency steam, then gives you unmatched command of the cooking process through an IPX6-rated electronic control package. From slow-simmered stocks to rapid rethermalization, the DH-80A keeps quality high and labor low.
Why the DH-80A?
- Massive 80-gal (302 L) capacity handles high-volume soups, sauces and stews with ease.
- Self-contained steam system fires at 150,000 BTU/hr and reaches 100 – 287 °F without an external boiler.

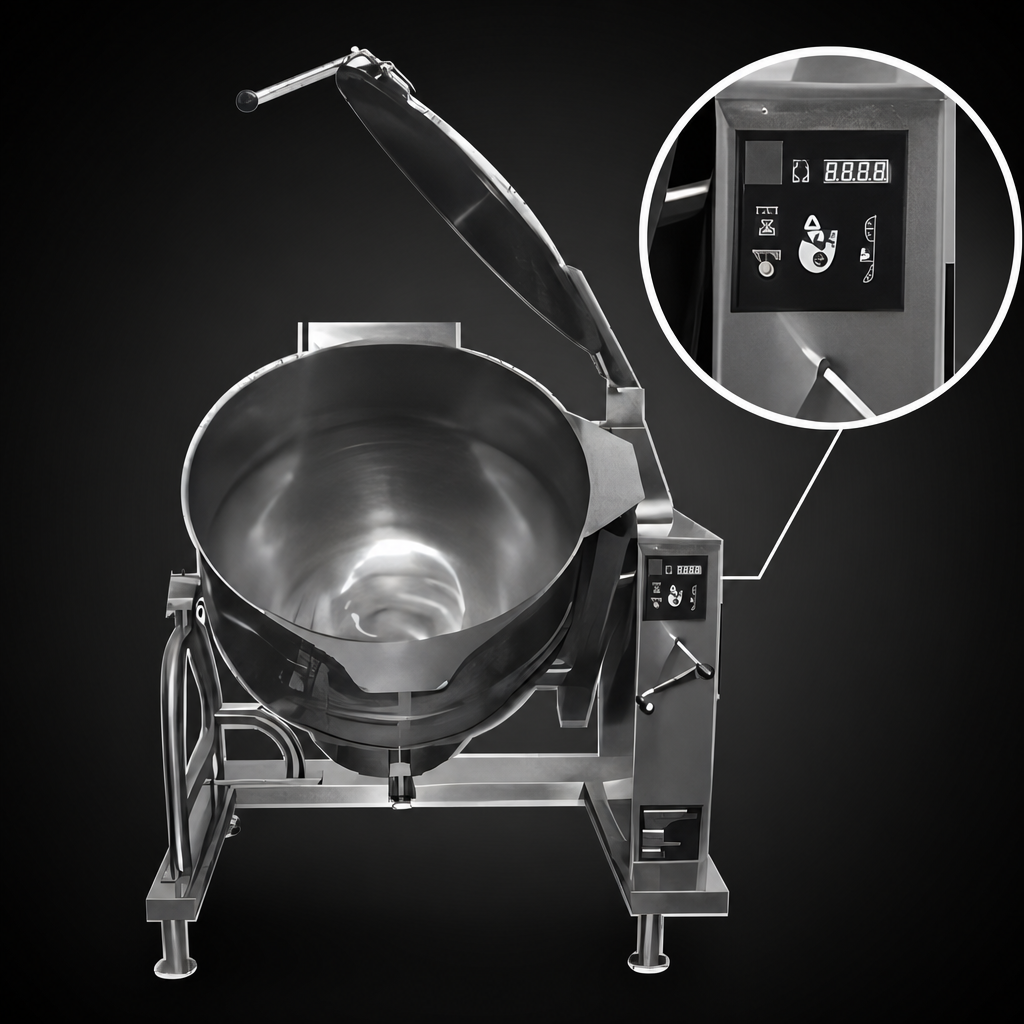

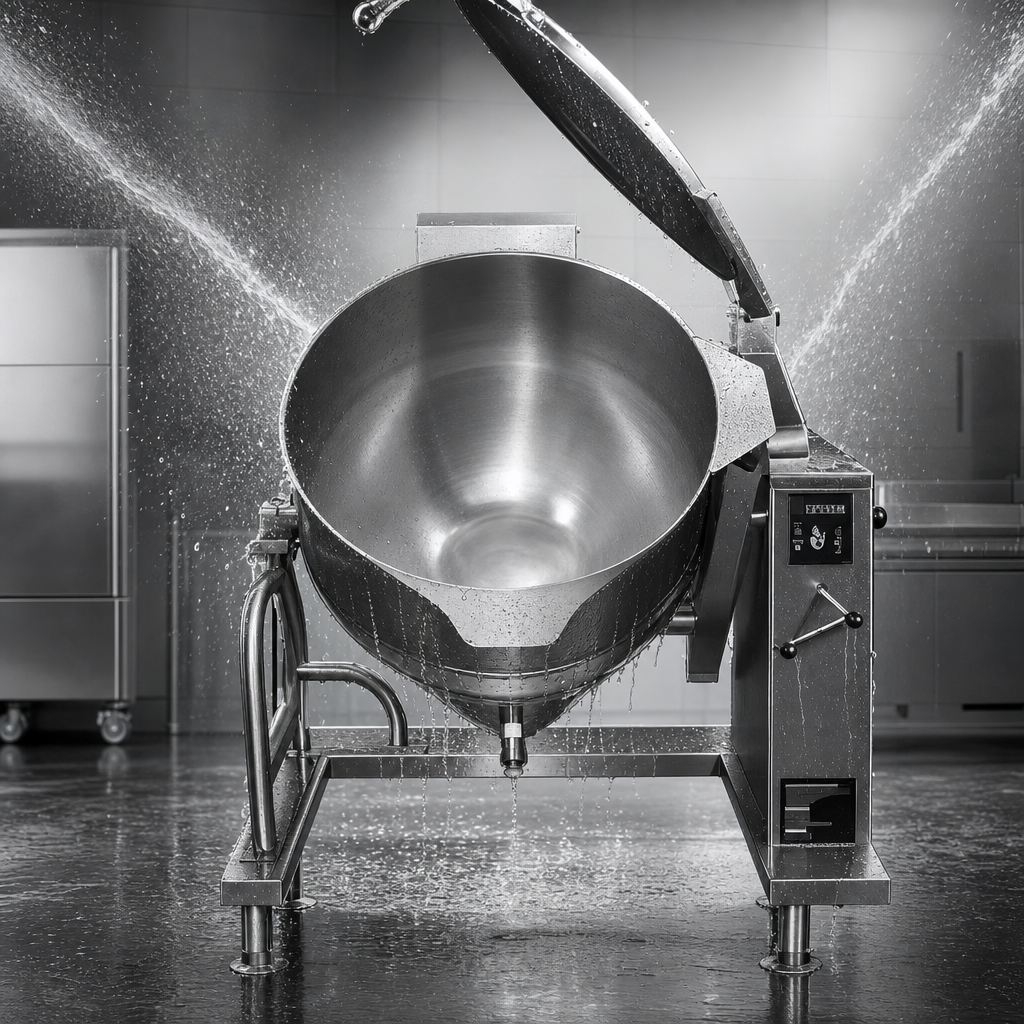

- Advanced IPX6 electronic controls • LED display • 1-minute to 10-hour timer • Low (2) & High (7) preset intensities • Manual mode for infinite adjustment.
- Manual crank tilt with self-locking worm gear lets a single operator safely pour at any pace.
- 316 stainless steel liner resists acids and salt for extended kettle life.
- All-stainless exterior & floor console with flanged feet stands up to daily wash-downs.
- Patented fin-tube burners deliver 62 – 65 % combustion efficiency and electronic spark-to-pilot ignition.
- Full safety suite – pressure/vacuum gauge, 50 PSI relief valve, low-water cutoff, gas regulator & automatic gas shutoff on tilt.
- cCSAus, NSF & ASME stamped; proudly made in the USA.
Technical Specifications
| Model | DH-80A (Advanced Control) |
|---|---|
| Capacity | 80 gal / 302 L |
| Jacket Coverage | 2/3-jacket, self-contained |
| Heat Source | Natural or LP gas, 150,000 BTU/hr |
| Energy Into Product | 93,000 BTU/hr |
| Working Pressure | 50 PSI (ASME code stamped) |
| Operating Temperature | 100 – 287 °F (38 – 142 °C) |
| Controls | IPX6 Advanced digital; timer 1–600 min; Low (2) / High (7) presets; Manual mode |
| Tilt Mechanism | Manual crank with self-locking gearbox |
| Liner Material | 316 stainless steel |
| Construction | Stainless steel body, floor console & flanged feet |
| Ignition | Electronic spark-to-pilot |
| Gas Connection | 1/2" NPT; 3.5–10" W.C. (NAT) or 10–14" W.C. (LP); rated 0–2,000 ft elevation |
| Electrical | 115 V, 1 ph, 50/60 Hz (controls & ignition) |
| Certifications | cCSAus, NSF, ASME, IPX6, Made in USA |
Popular Factory Options & Accessories
- 2" tangent sanitary draw-off valve
- Lift-off, hinged or spring-assist covers
- Basket inserts & kettle brush kits
- Pan carriers and power-aid articulated covers
- Gallon etch marks & contour measuring strip
Specifications are subject to change without notice. Always consult the factory or your sales representative for the latest information.
