Groen D-60 Steam Kettles
Description

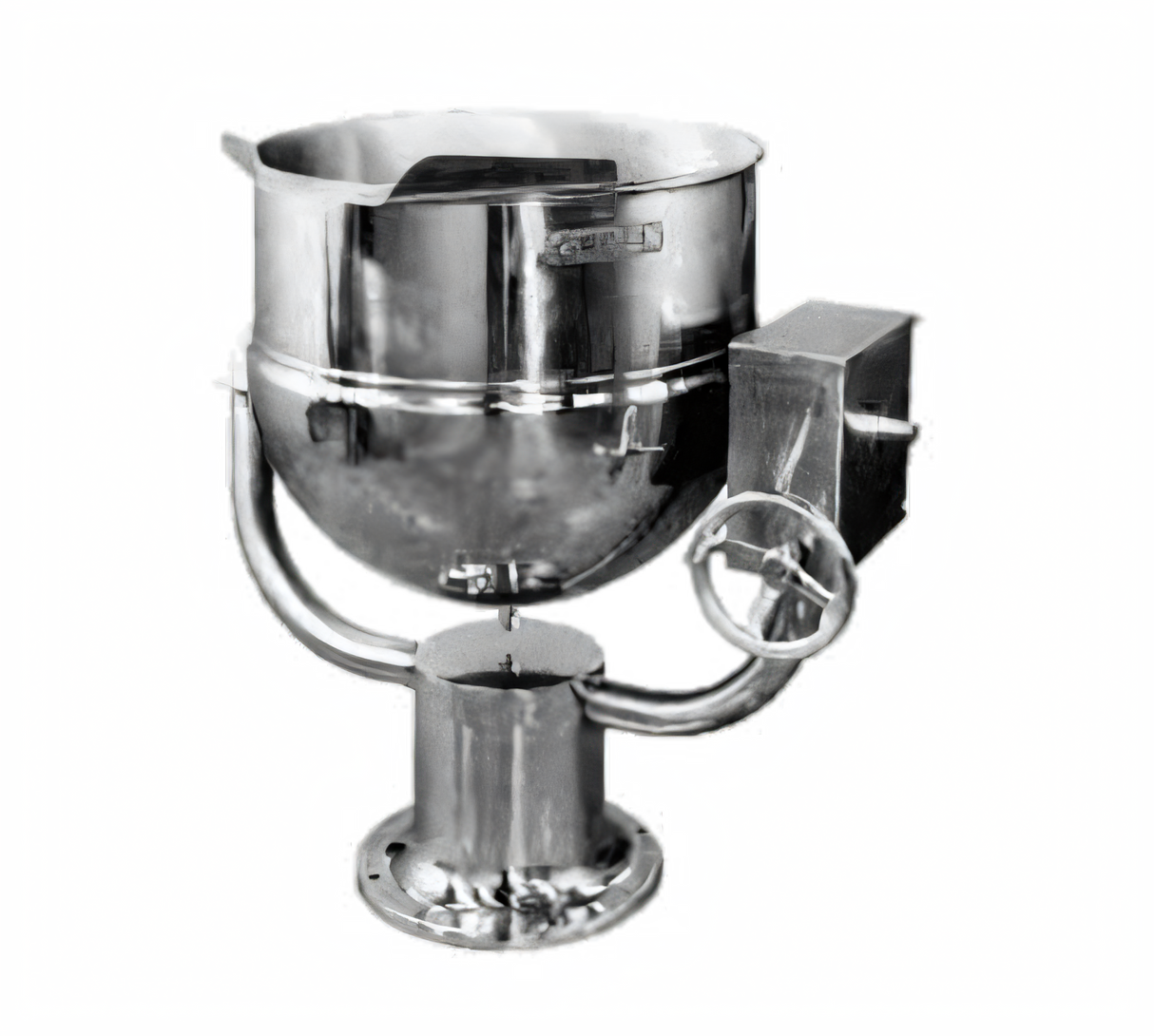

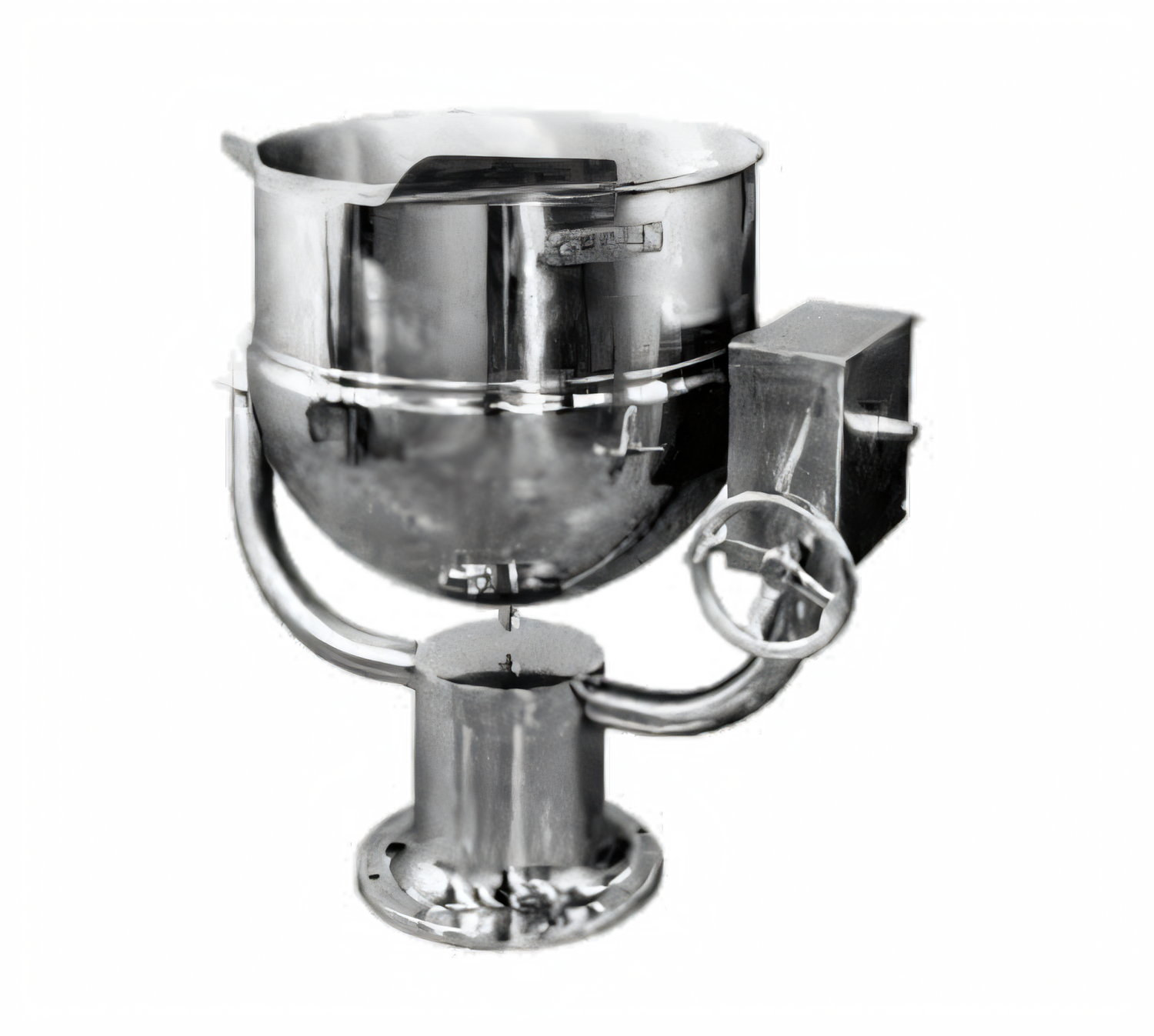

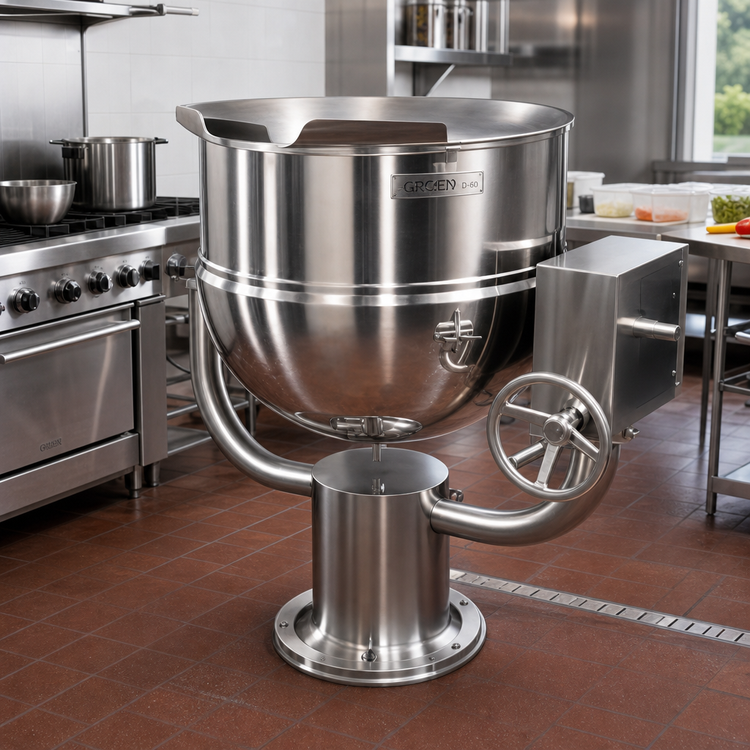

Groen Model D 60-Gallon Direct-Steam Tilting Kettle
Pedestal-Mounted • 2/3 Jacket • 316 SS Liner • 25 PSIEngineered for high-volume, high-precision cooking, the Groen Model D 60-gallon kettle delivers rapid, even heating and effortless tilting in a rock-solid, floor-mounted package. From scratch stocks to signature sauces, it gives your kitchen the capacity and control to turn big ideas into perfectly finished batches—every single time.
Why You’ll Love It
- Large 60 gal (228 L) capacity—ideal for production kitchens, commissaries & institutions.

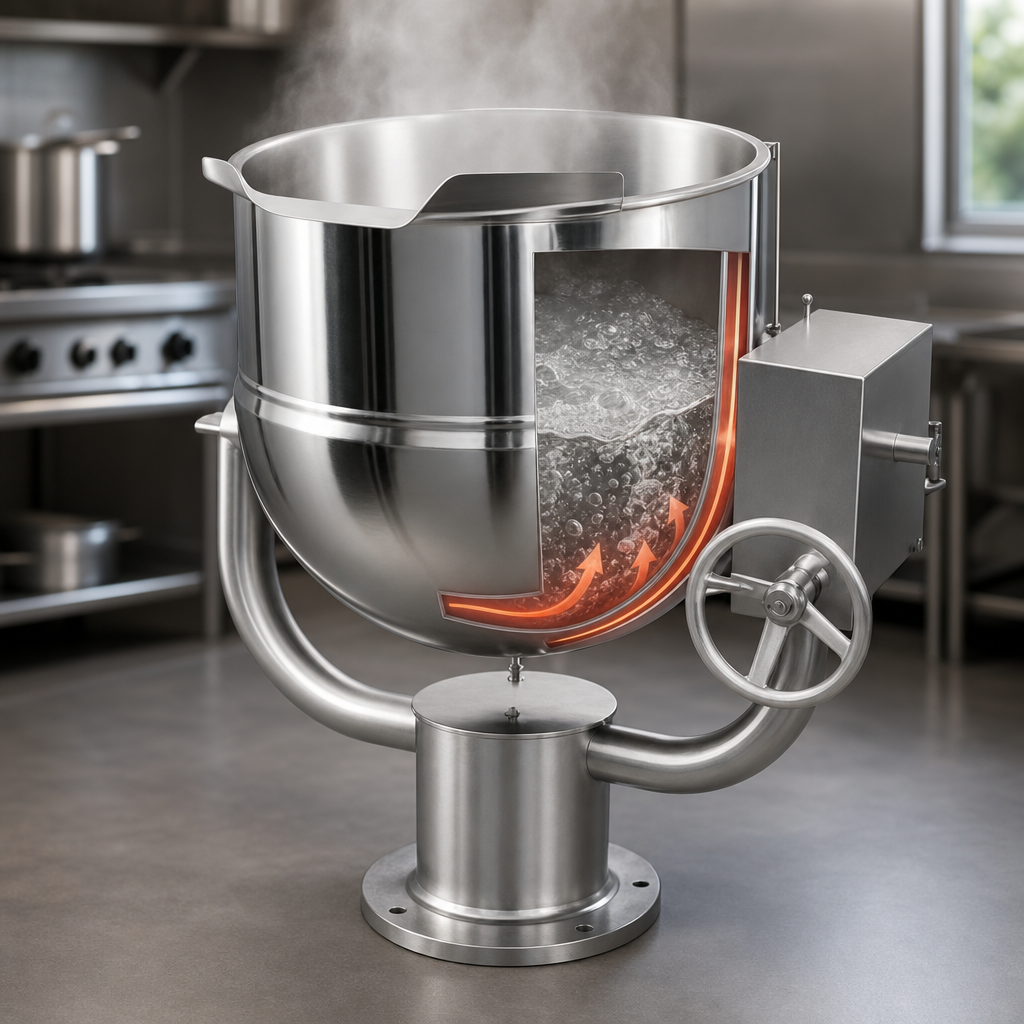

- Direct-steam operation performs reliably at 5–25 PSI for versatile cooking.
- Sanitary 316 stainless steel interior with 180-grit polish resists corrosion from acids & salts.
- Efficient 2/3 jacket in durable 304 SS surrounds the lower kettle for accelerated heat-up.

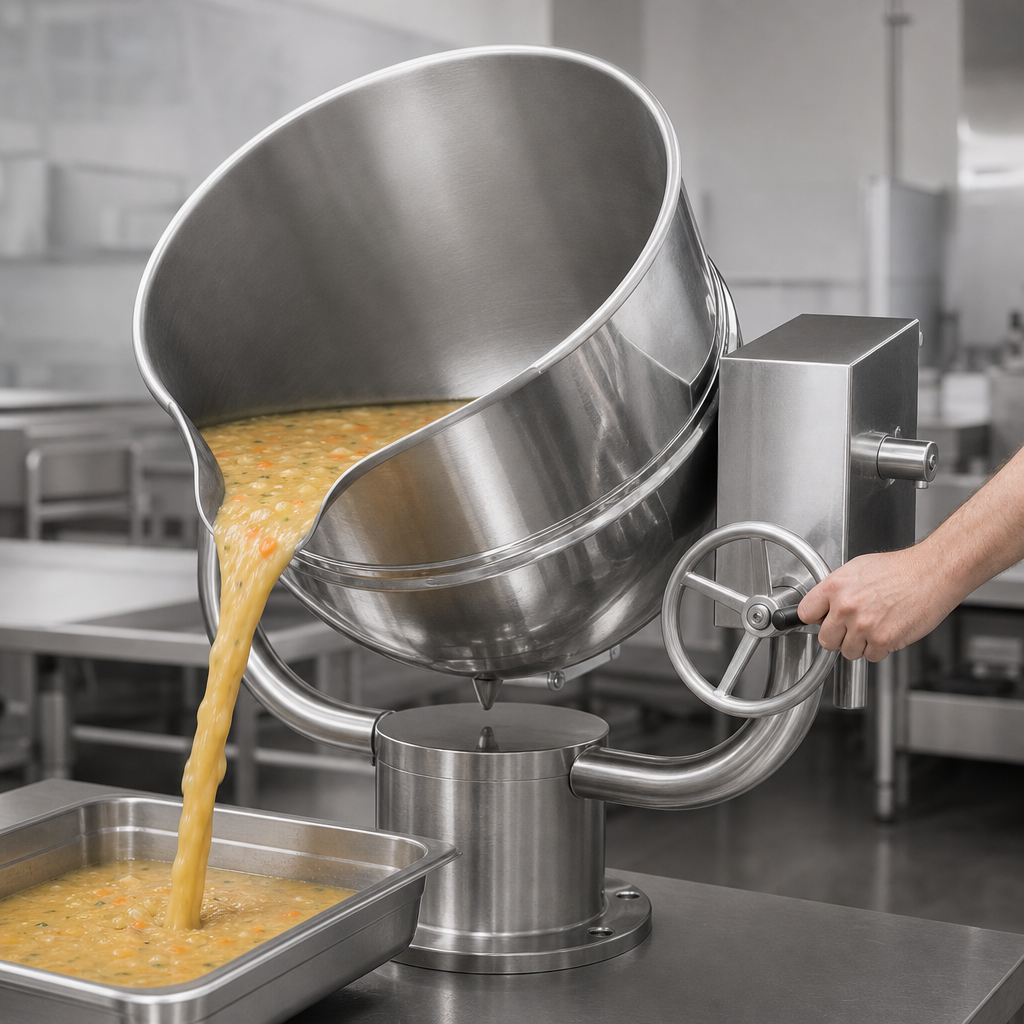

- Manual crank, self-locking worm-gear tilt provides smooth, precise pouring with minimal effort.
- Heavy-duty, butterfly-shaped pouring lip cuts drips and maintains portion control.
- Flanged pedestal base bolts & seals to floor for a permanent, rock-steady installation.
- Faucet mounting bracket is factory-welded—just add an optional water fill faucet.
- NSF listed and ASME stamped; registered with National Board for 25 PSI working pressure.
- Made in the USA and backed by Groen’s industry-leading commercial warranty.
Technical Specifications
| Model | Groen Model D-60 (Pedestal, Tilting, Direct Steam) |
|---|---|
| Capacity | 60 gal / 228 L |
| Interior Material | 316 stainless steel, one-piece welded |
| Jacket Material / Coverage | 304 stainless steel / 2⁄3 kettle body |
| Operating Steam Pressure | 5–25 PSI (max. working pressure 25 PSI) |
| Tilt Mechanism | Manual crank, self-locking worm & gear |
| Mounting | Flanged pedestal base, floor anchored |
| Steam Inlet | ¾" NPT (right support arm) |
| Condensate Outlet | ¾" NPT with steam trap (trap sold separately) |
| Overall Width (Dimension D) | 47" / 1 194 mm |
| Overall Height to Rim (Dimension E) | 34" / 864 mm |
| Tilt Radius (Dimension H) | 43" / 1 054 mm |
| Origin of Manufacture | Jackson, Mississippi, USA |
Popular Factory Options & Accessories
- Single or double water-fill faucets
- Lift-off or counterbalanced hinged cover kit
- 2" or 3" tangent draw-off valve & strainer assemblies
- Basket inserts, pan carrier, lip strainers & kettle brush kit
- Steam trap assembly & pressure regulator
- Gallon etch marks or contour measuring strip
- Cold-water cooling coil for draw-off valve
Covered by Groen’s 1-year parts & labor warranty with optional extended coverage. For service or start-up assistance, call the Groen technical hotline at 888-994-7636.
