Groen D-40 Steam Kettles
Description

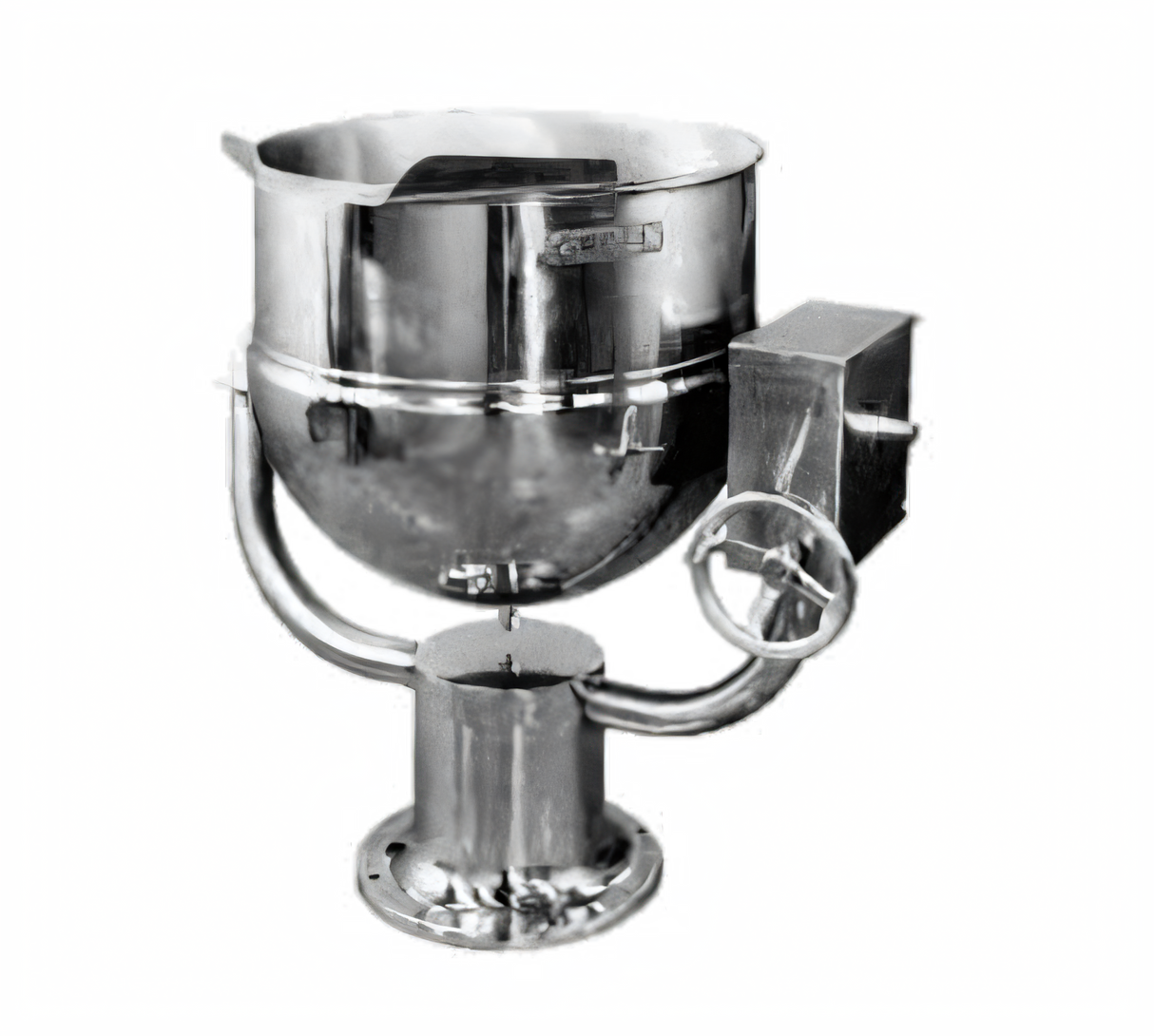

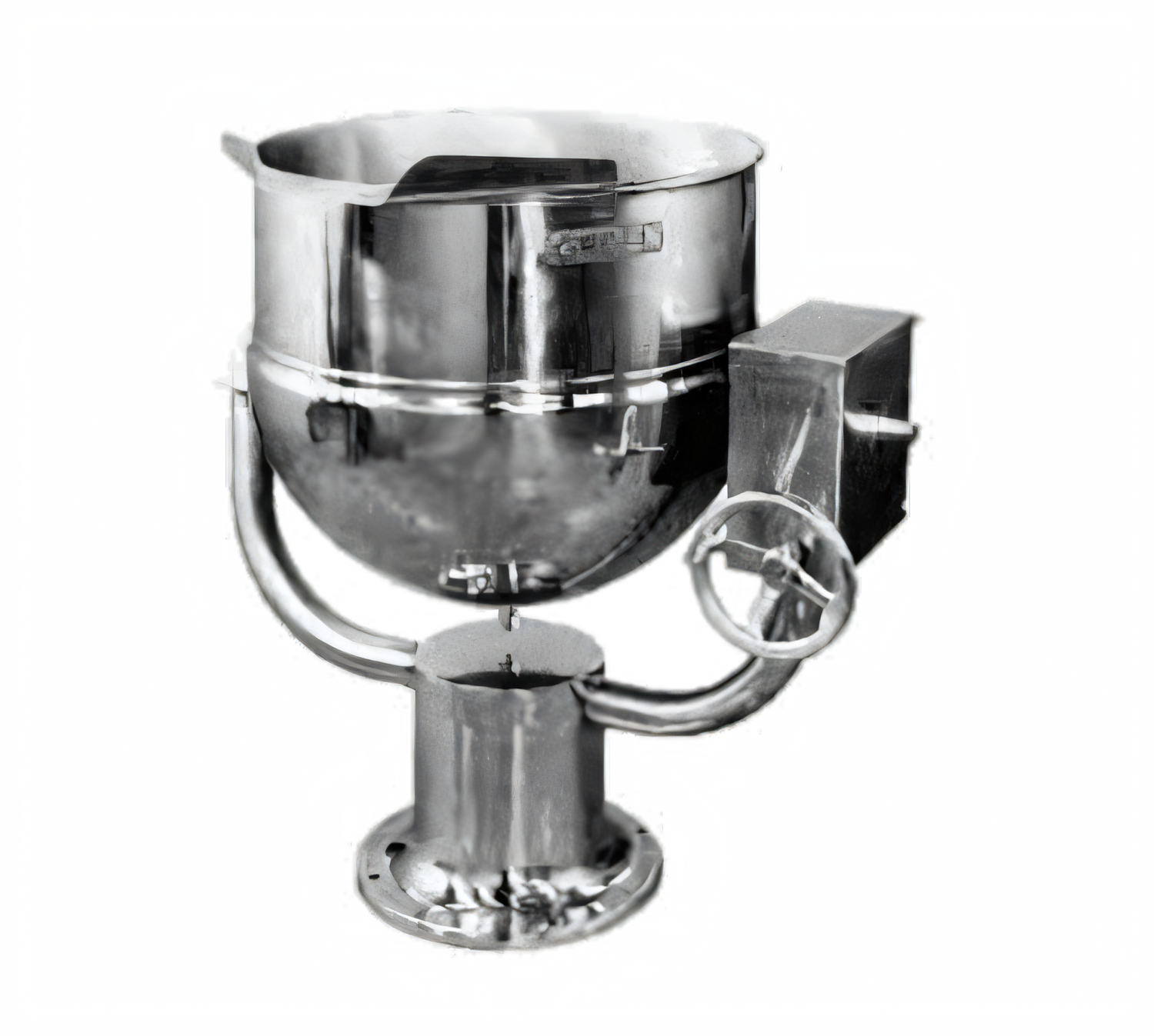

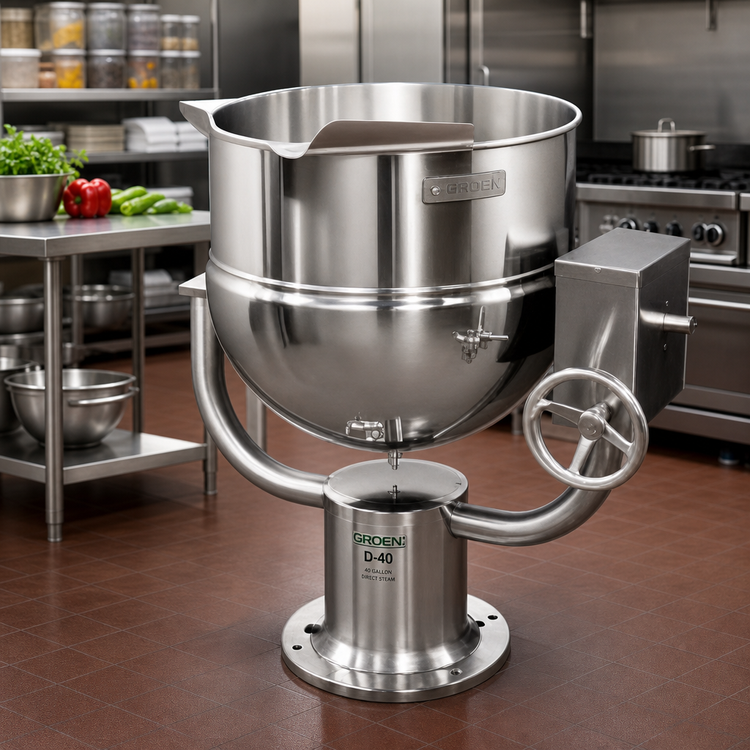

Groen Model D 40-Gallon Tilting Kettle
Direct-Steam • 2/3 Jacket • Pedestal MountedEngineered for demanding production kitchens, the Groen Model D 40-gallon kettle delivers rapid, even heating with precise pour-control — all in a compact pedestal footprint that bolts securely to the floor. Its rugged 316 stainless liner, hand-crank tilt and NSF/ASME certifications make it a dependable workhorse for soups, sauces, stocks and more.
Why you’ll love it

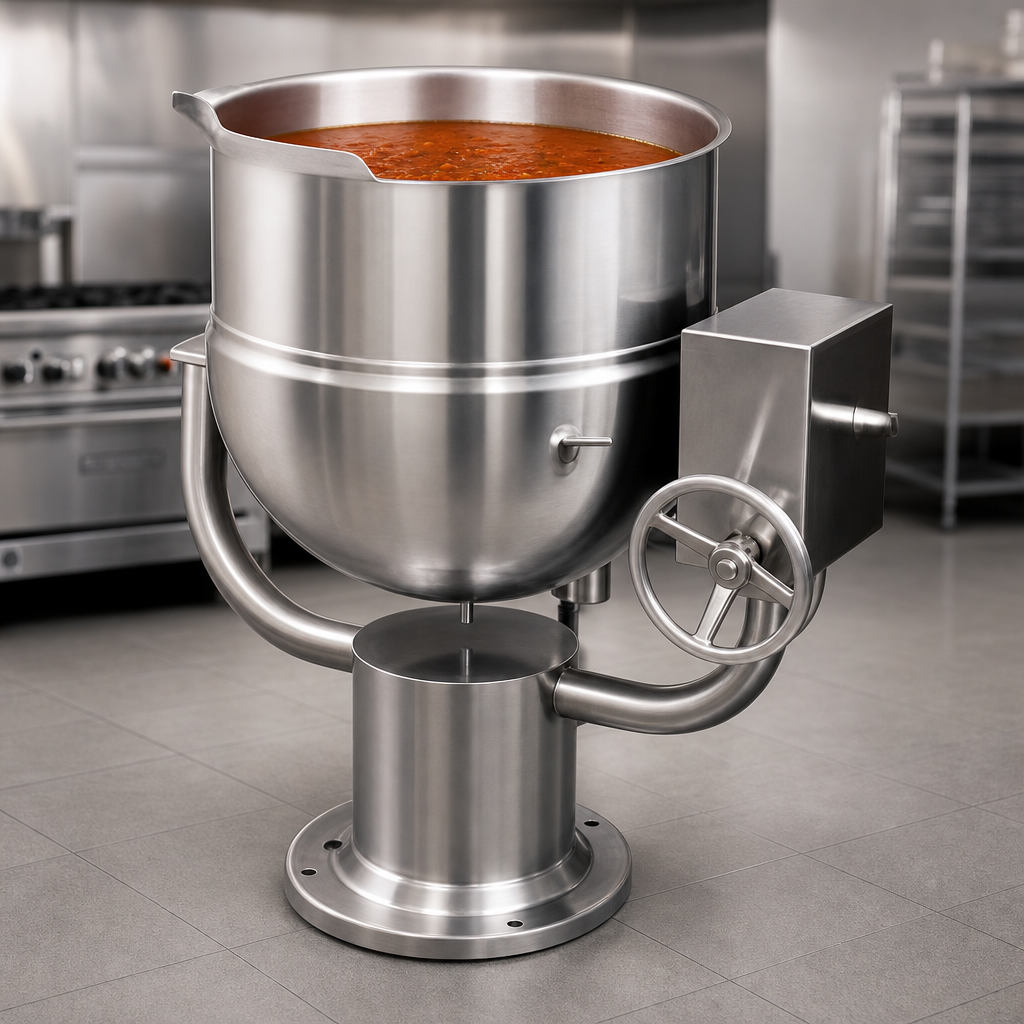

- 40 gal / 152 L capacity handles high-volume batches without taking up excess floor space.

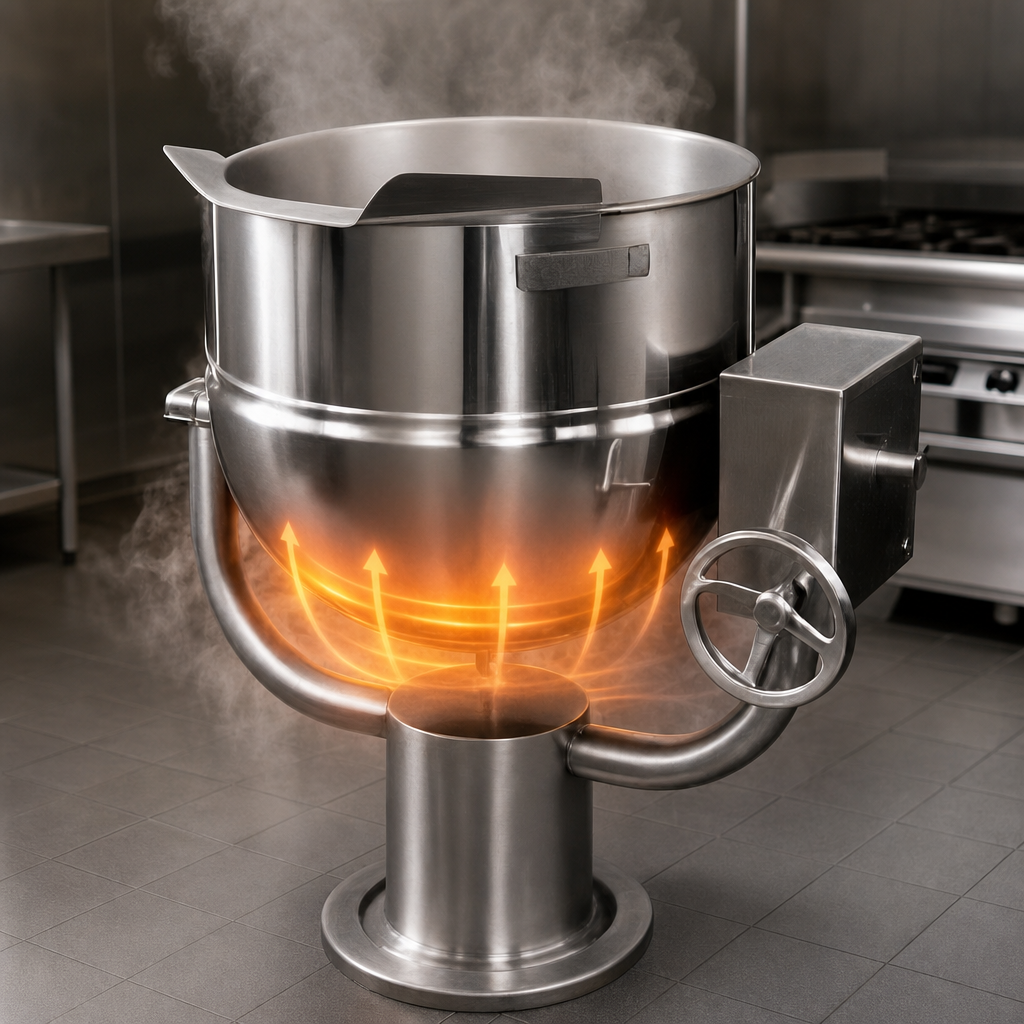

- 2/3 steam jacket surrounds the lower sidewalls for uniform heat transfer and faster cook times.
- Premium 316 stainless steel interior (180-grit polish) resists acidic foods and wipes clean with ease.
- Manual crank tilt with self-locking worm-gear provides smooth, controlled pouring through a butterfly-shaped lip.
- Pedestal base is flanged for a watertight floor seal and rock-solid stability.
- ASME-code stamped for up to 25 PSI; operates dependably from 5 – 25 PSI.
- NSF-listed construction meets all known sanitation standards.
- Integral faucet-mounting bracket simplifies addition of single or double pantry fill faucets (optional).
- Designed & manufactured in the USA and backed by a 1-year parts & labor warranty.
Technical specifications
| Model | Groen Model D-40 (pedestal-mounted, tilting) |
|---|---|
| Capacity | 40 gal (152 L) |
| Operating steam pressure | 5 – 25 PSI (1.4 – 1.7 bar) |
| Maximum working pressure | 25 PSI — ASME stamped & safety valve furnished |
| Interior material / finish | 316 SS, one-piece welded; 180-grit polish |
| Jacket material | 304 SS, one-piece welded (2/3 coverage) |
| Tilt mechanism | Hand crank, self-locking worm & gear (enclosed in stainless housing) |
| Steam inlet | ¾" NPT (direct steam connection required) |
| Overall height (tilted / upright) | 43" / 38.5" (1 092 mm / 978 mm) |
| Floor mounting footprint | Ø 16" pedestal base with four 9/16" anchor holes |
| Warranty | 1 year parts & labor (2 000 operating hours) |
Customize your kettle
- Lift-off or counterbalanced hinged cover kits
- 2" tangent draw-off valve with perforated or solid strainer
- Single or double pantry water-fill faucets
- Steam trap assemblies & regulators
- Basket inserts, lip strainers & contour measuring strip
- Pan carrier for efficient transport (40 & 60 gal models)
Need help specifying your kettle or choosing accessories? Call our food-service specialists at 888-994-7636.
